Suitable Applications

Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

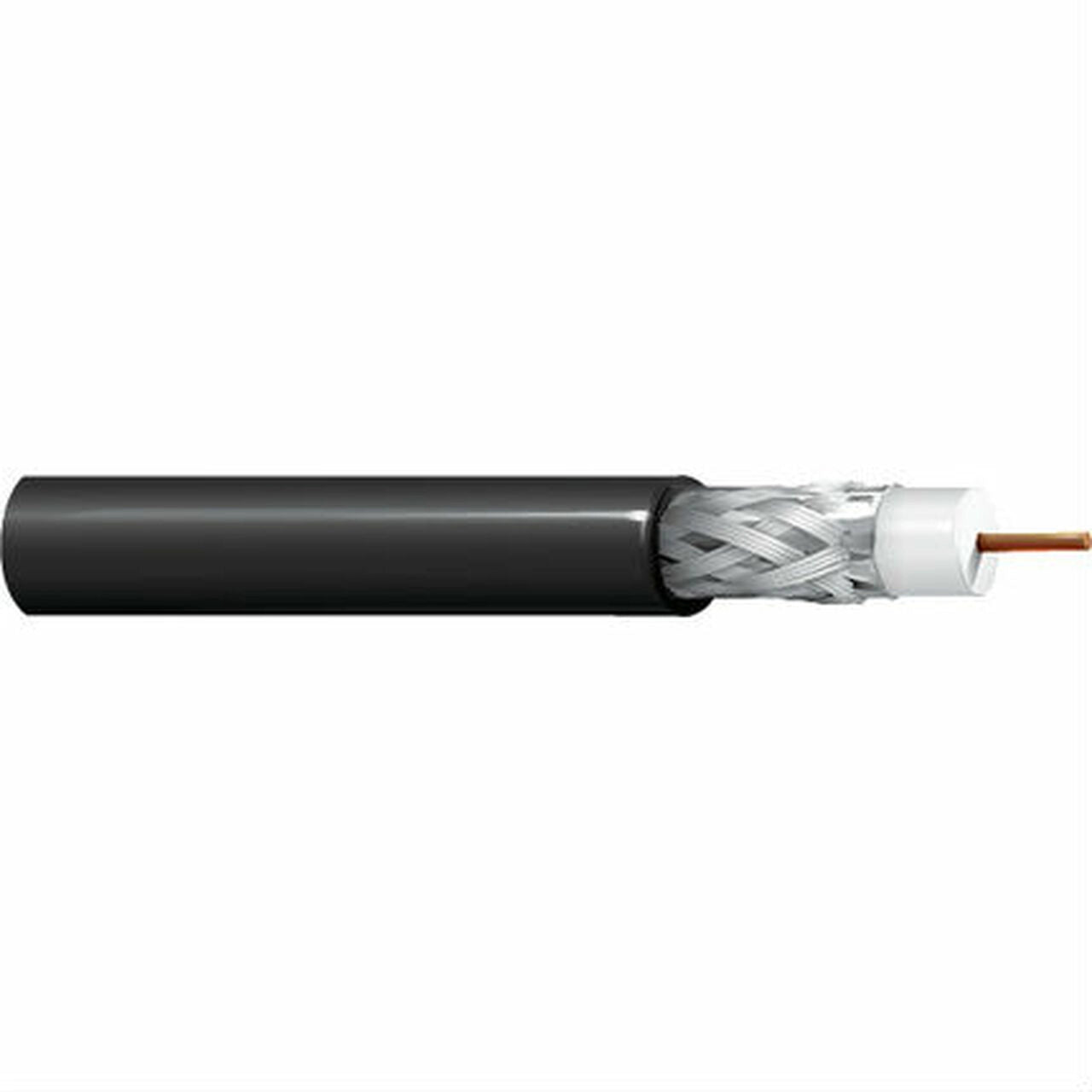

Construction Details

Series Type

1

CONDUCTOR

Size

14 AWG

Stranding

Solid

Nom. Diameter

0.064 in

Material

BCCS - Bare Copper Covered Steel

INSULATION

Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

0.280 in (7.11 mm)

OUTER SHIELD

Layer

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duobond® II

Coverage

100%

Layer

2

Outer Shield Type

Braid

Material

Aluminum

Material Trade Name

-

Coverage

60%

OUTER JACKET

Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.393 in (9.98 mm)

Overall Cable Diameter (Nominal)

0.393 in (9.98 mm)

Electrical Characteristics

RETURN LOSS

Frequency

5 - 1000 MHz

Min. Structural Return Loss

20 dB

ATTENUATION

Frequency

Max. Attenuation

5 MHz

0.38 dB/100ft

55 MHz

0.96 dB/100ft

211 MHz

1.90 dB/100ft

250 MHz

2.05 dB/100ft

270 MHz

2.13 dB/100ft

300 MHz

2.25 dB/100ft

330 MHz

2.35 dB/100ft

350 MHz

2.42 dB/100ft

400 MHz

2.60 dB/100ft

450 MHz

2.75 dB/100ft

500 MHz

2.90 dB/100ft

550 MHz

3.04 dB/100ft

600 MHz

3.18 dB/100ft

750 MHz

3.65 dB/100ft

870 MHz

4.06 dB/100ft

1000 MHz

4.35 dB/100ft

ELECTRICALS

Nom. Conductor DCR

12 Ohm/1000ft (39 Ohm/km)

Nom. Outer Shield DCR

4.1 Ohm/1000ft (13 Ohm/km)

Nom. Capacitance Cond-to-Shield

16.3 pF/ft (53.5 pF/m)

Nom. Characteristic Impedance

75 Ohm

Nom. Velocity of Prop.

83%

VOLTAGE

UL Voltage Rating

300 V (CM)

TEMPERATURE

UL Temperature

75°C

Operating

-40°C to +75°C

BEND RADIUS

Installation Min.

3.9 in

Max. Pull Tension

199 lbs (90.3 kg)

Bulk Cable Weight

56 lbs/1000ft
