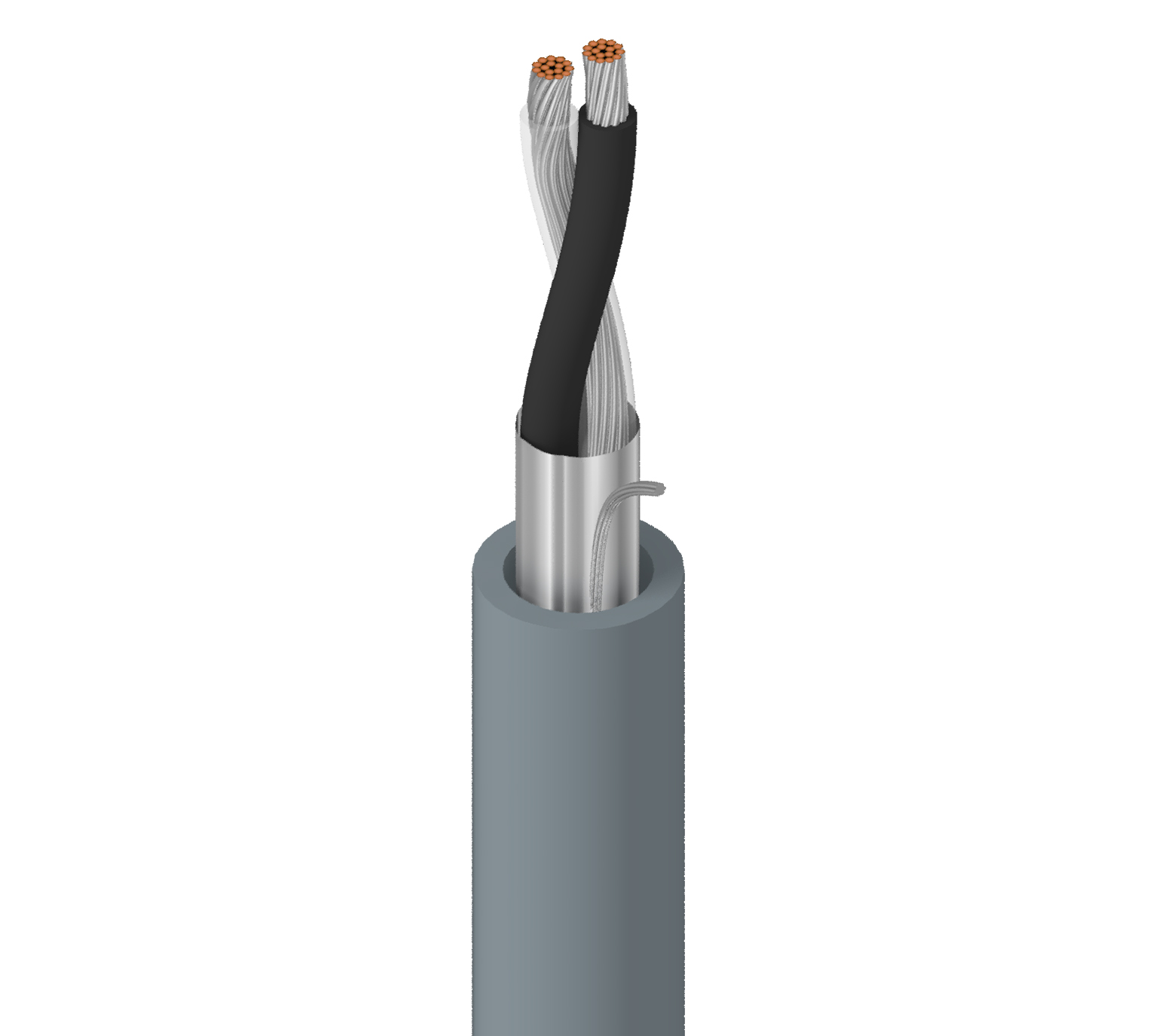

Belden Control/Mic Cable 1000Ft/305Mtr (8760 0601000)
Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
Product Overview:
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
18 |
|
Stranding |
16x30 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PE - Polyethylene |
|
Thickness |
0.018 in (0.46 mm) |
|
Nom. Insulation Diameter |
0.058 in (1.5 mm) |
|
Color Code |
Black, Clear |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Outer Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
20 AWG (7x28) TC |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.222 in |
|
Thickness |
0.028 in (0.71 mm) |
|
Cable Diameter (Nominal) |
0.222 in |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
6.5 Ohm/1000ft (21 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
27.2 pF/ft (89.2 pF/m) |
|
Max. Current |
7.2 Amps per Conductor at 25ºC |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CM), 300 V (UL AWM 2092)) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
60°C (UL AWM 2092) |
|
Operating |
-20°C to +60°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
2.2 in (56 mm) |
|
Stationary Min. |
2.2 in (56 mm) |
|
Bulk Cable Weight |
25 lbs/1000ft (37 kg/km) |
|
Max. Pull Tension |
54 lbs (24 kg) |
