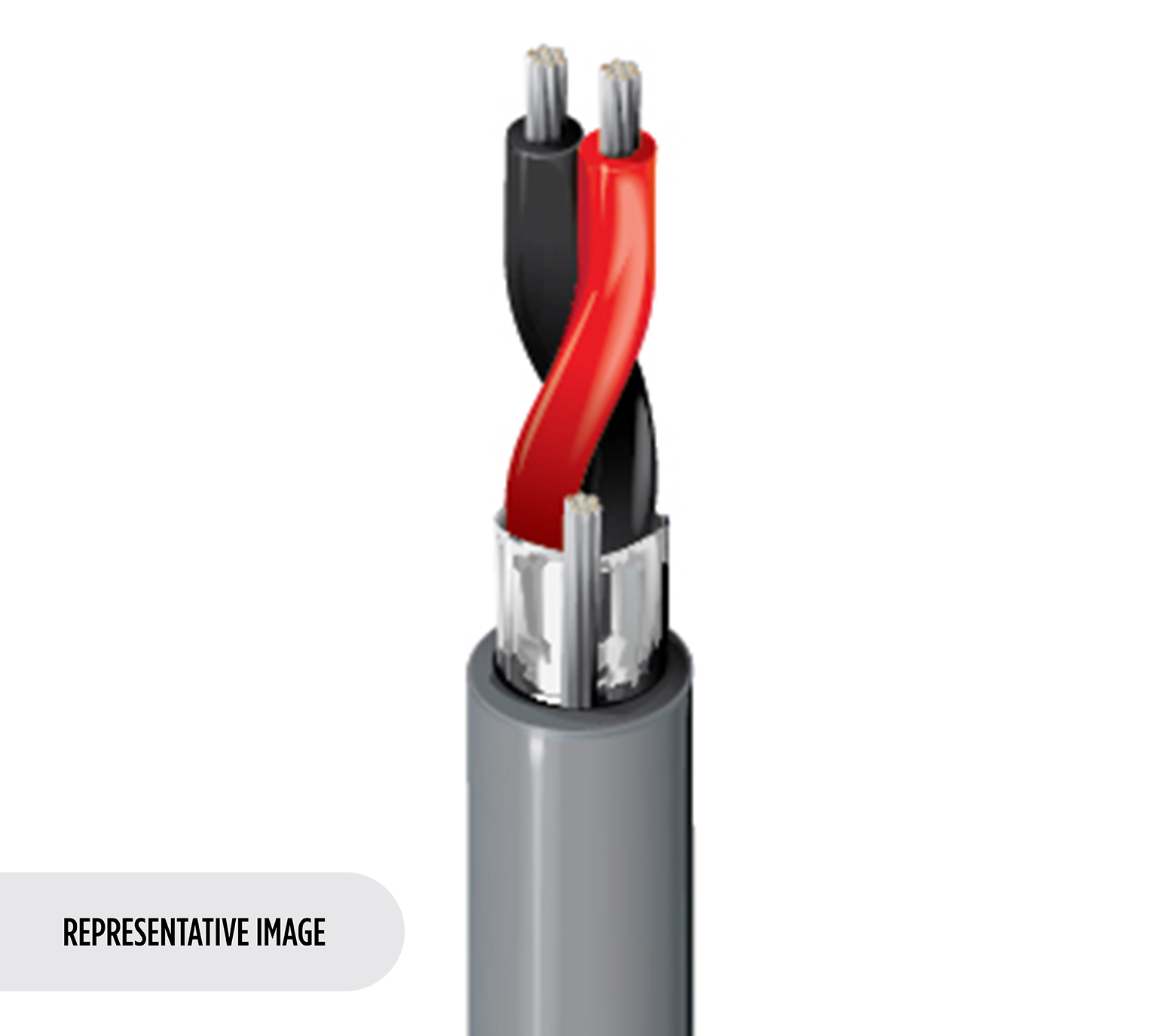

Belden Digital Audio Multi-Conductor Cable 1PR SHIELD 1000ft SPOOL GRAY (1800B T5X1000)

Rs. 50,000.00

Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR

Product Overview:

Suitable Applications

Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles


Construction Details:

CONDUCTOR

Element

Number of Element

AWG

Stranding

Material

Pair(s)

1

24

7x32

TC - Tinned Copper

INSULATION

Element

Material

Thickness

Nom. Insulation Diameter

Color Code

Notes

Pair(s)

PE - Polyethylene (Foam)

0.022 in (0.56 mm)

0.068 in (1.7 mm)

Red & Black

HDPE

OUTER SHIELD MATERIAL

Shield Type

Material

Coverage

Drainwire Type

Tape

Bi-Laminate (Alum+Poly)

100%

24 AWG (7x32) TC

OUTER JACKET MATERIAL

Material

Thickness

Nom. Diameter

PVC - Polyvinyl Chloride

0.023 in (0.58 mm)

0.185 in

Table Notes

Jacket and shield are bonded so both can be removed with automatic stripping equipment.

Cable Diameter (Nominal)

0.185 in (4.70 mm)


Electrical Characteristics:

ELECTRICALS

Element

Nom. Conductor DCR

Nom. Capacitance Cond-to-Cond

Nom. Capacitance Cond-to-Other (Conds + Shield)

Characteristic Impedence

Nom. Velocity of Prop.

Max. Current

Pair(s)

23.7 Ohm/1000ft (77.8 Ohm/km)

12 pF/ft (39 pF/m)

26 pF/ft (85 pF/m)

110 Ohm

76%

2.75 Amps per conductor @ 25°C

VOLTAGE

UL Voltage Rating

300 V (CMR)


Mechanical Characteristics:

TEMPERATURE

UL Rating

Operating

60°C

-30°C to +60°C

BEND RADIUS

Stationary Min.

Installation Min.

1.9 in (48 mm)

1.9 in (48 mm)

Max. Pull Tension

16.5 lbs (7.48 kg)

Bulk Cable Weight

16 lbs/1000ft (24 kg/km)


Standards and Compliance:

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Fire Resistance

IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMR

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

1801B

Other Standard Compliance(s)

AES/EBU


Product Notes:

Notes

For cross-connect use with 1803F (et al.) Digital Audio Snake Cables.


History:

Update and Revision

Revision Number: 0.356 Revision Date: 07-02-2021
