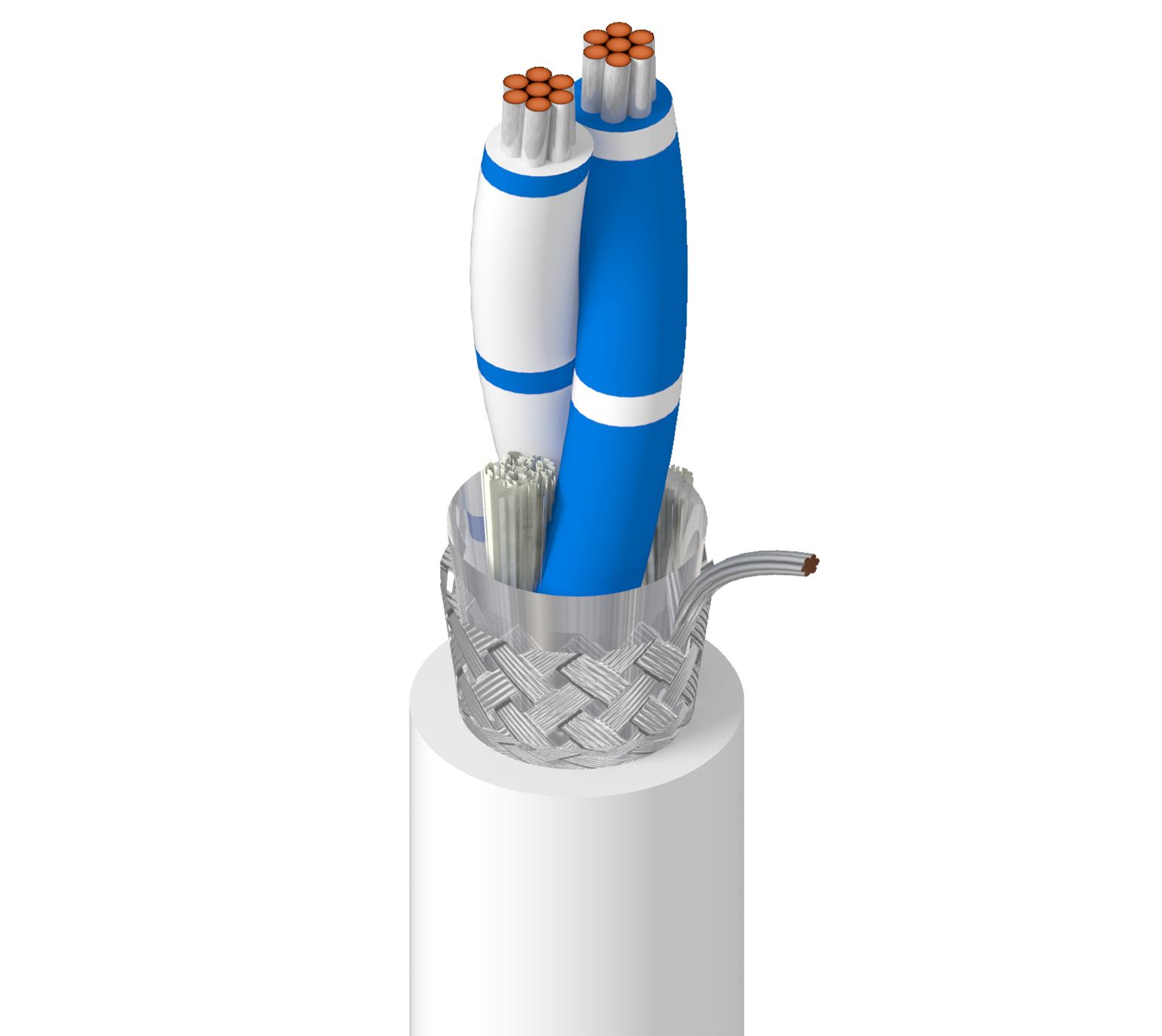

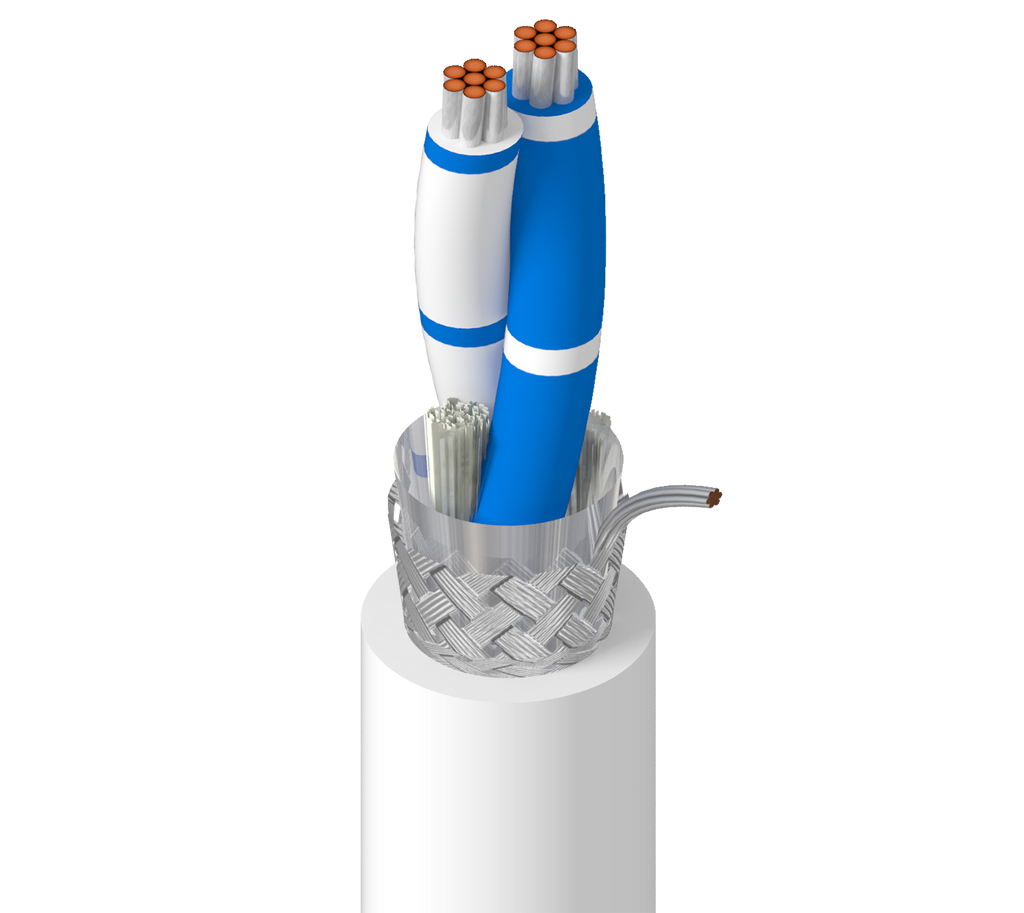

Belden DMX/RS485 Cable (9841 0601000)
This product is Out of stock
RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CM
Product Overview:
|
Suitable Applications |
RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc. |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
24 |
|
Stranding |
7x32 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PE - Polyethylene |
|
Thickness |
0.023 in |
|
Color Code |
White/Blue Stripe & Blue/White Stripe |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Outer Shield Type |
Tape + Braid |
|
Material |
Bi-Laminate (Alum+Poly) + Tinned Copper (TC) |
|
Coverage |
100% + 90% |
|
Drainwire Type |
24 AWG (7x32) TC |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.232 in |
|
Thickness |
0.035 in |
|
Cable Diameter (Nominal) |
0.232 in |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
24 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Cond |
12.8 pF/ft |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
23 pF/ft |
|
Characteristic Impedence |
120 Ohm |
|
Nom. Velocity of Prop. |
66% |
|
Max. Current |
2.1 Amps per Conductor at 25ºC (10°C Temperature Rise) |
|
Nom. Outer Shield DCR |
3.4 Ohm/1000ft |
|
|
|
|
HIGH FREQUENCY (NOMINAL/TYPICAL) |
|
|
Element |
Pair(s) |
|
Frequency [MHz] |
1 MHz |
|
Nom. Insertion Loss |
0.6 dB/100ft |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CM), 30 V (UL AWM 2919) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
80°C (UL AWM 2919) |
|
Operating |
-30°C to +80°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
2.5 in |
|
Stationary Min. |
2.5 in |
|
Bulk Cable Weight |
36 lbs/1000ft |
|
Max. Pull Tension |
72.3 lbs |
