Belden Security & Sound 6-18 AWG Cable (5304FE)

Rs. 18,000.00

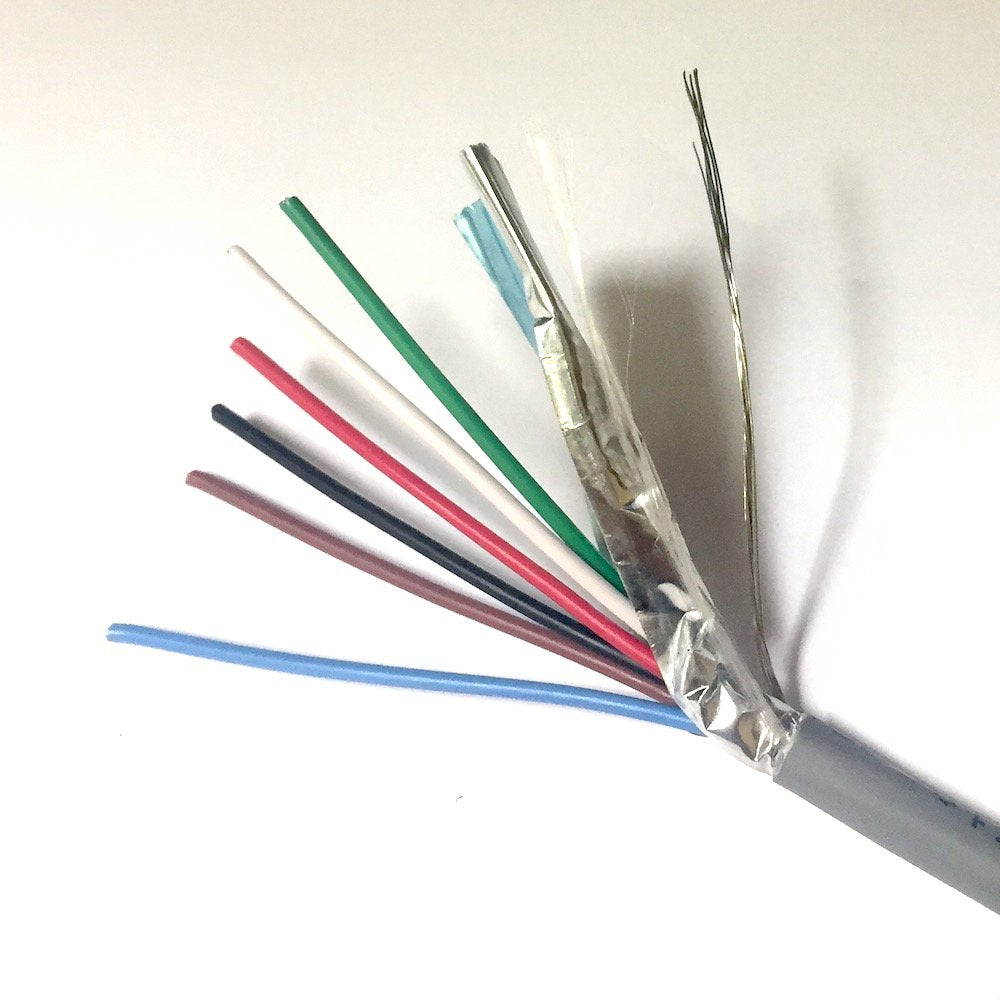

Security & Sound Cable, Riser-CMR, 6-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Technical Specifications:

Suitable Applications

Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment



CONDUCTOR


Element

Conductor(s)

Number of Element

6

Size

18 AWG

Stranding

7x26

Material

BC - Bare Copper



INSULATION


Element

Conductor(s)

Material

PP - Polypropylene

Nom. Thickness

0.009 in (0.23 mm)

Color Code

Black, Red, White, Green, Brown, Blue



OUTER SHIELD


Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (7x32) TC



OUTER JACKET


Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.017 in (0.43 mm)

Nom. Diameter

0.224 in (5.69 mm)

Ripcord

Yes

Overall Cable Diameter (Nominal)

0.224 in (5.69 mm)



ELECTRICALS


Element

Conductor(s)

Nom. Conductor DCR

6.5 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

27 pF/ft (89 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

48.5 pF/ft (159 pF/m)

Max. Current

9.8 Amps per conductor @ 25°C



VOLTAGE


UL Voltage Rating

300 V



TEMPERATURE


UL Temperature

75°C

Operating

-20°C to +75°C



BEND RADIUS


Stationary Min.

2.2 in (56 mm)

Installation Min.

2.2 in (56 mm)

Max. Pull Tension

143.5 lbs (65.09 kg)

Bulk Cable Weight

43 lbs/1000ft
