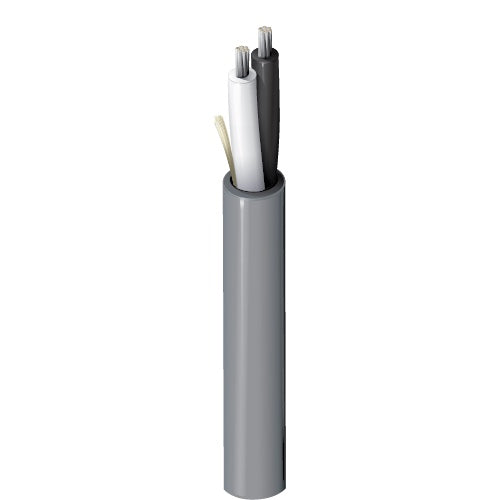

Belden Speaker Cable 14AWG (5100UH 0101000)
Security & Commercial Audio Cable, Riser-CL3R-FPLR 2-14 AWG stranded tinned copper conductors with polyolefin insulation, PVC jacket with ripcord
Product Overview:
|
Suitable Applications |
Intercom/PA Systems, Sound/Audio Systems, Fire Alarm (For color Red only)(Dual Rated) |
|
|
|
|
CONDUCTOR |
|
|
AWG |
14 |
|
Stranding |
19x27 |
|
Material |
TC - Tinned Copper |
|
No. of Conductors |
2 |
|
Conductor Count |
2 |
|
|
|
|
INSULATION |
|
|
Material |
PP - Polypropylene |
|
Thickness |
0.011 in |
|
|
|
|
COLOR CHART |
|
|
Number |
Color |
|
1 |
Black |
|
2 |
White |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Material |
No Shield |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Wall Thickness |
0.017 in |
|
|
|
|
ELECTRICALS |
|
|
Nominal Conductor DCR |
2.53 Ohm/1000ft |
|
Nom. Capacitance Conductor to Conductor |
22 pF/ft |
|
Nominal Inductance |
0.15 µH/ft |
|
Max. Recommended Current [A] |
8 Amps per Conductor at 25ºC |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V RMS |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
75°C |
|
Operating |
-20°C To +75°C |
|
|
|
|
BEND RADIUS |
|
|
Min. Bend Radius/Minor Axis |
2.50 in |
|
Max. Pull Tension |
95 lbs |
|
Bulk Cable Weight |
35 lbs/1000ft |
|
Environmental Space |
Indoor - Riser |
|
Suitability - Indoor |
Yes |
|
UL voltage rating |
300 V RMS |
