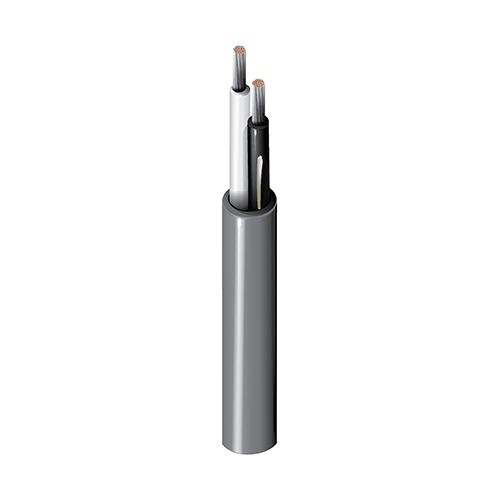

Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Product Overview:
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|
|
CONDUCTOR |
|
Element |
Pair(s) |
Number of Element |
1 |
AWG |
16 |
Stranding |
19x29 |
Material |
TC - Tinned Copper |
|
|
INSULATION |
|
Element |
Pair(s) |
Material |
PVC - Polyvinyl Chloride |
Thickness |
0.023 in (0.58 mm) |
Color Code |
Black & White |
|
|
OUTER JACKET MATERIAL |
|
Material |
PVC - Polyvinyl Chloride |
Thickness |
0.032 in (0.81 mm) |
Nom. Diameter |
0.274 in |
Cable Diameter (Nominal) |
0.274 in (6.96 mm) |
|
|
ELECTRICALS |
|
Element |
Pair(s) |
Nom. Conductor DCR |
4.49 Ohm/1000ft (14.7 Ohm/km) |
Nom. Capacitance Cond-to-Cond |
33 pF/ft (110 pF/m) |
Max. Current |
6.1 Amps per Conductor at 25ºC |
|
|
VOLTAGE |
|
UL Voltage Rating |
300 V (CMG), 300 V (UL AWM 2598) |
|
|
TEMPERATURE |
|
UL Rating |
60°C (UL AWM 2598) |
Operating |
-20°C to +80°C |
|
|
BEND RADIUS |
|
Stationary Min. |
2.7 in (69 mm) |
Installation Min. |
2.7 in (69 mm) |
Max. Pull Tension |
61 lbs (28 kg) |
Bulk Cable Weight |
38 lbs/1000ft (57 kg/km) |
Environmental Suitability |
Indoor |
