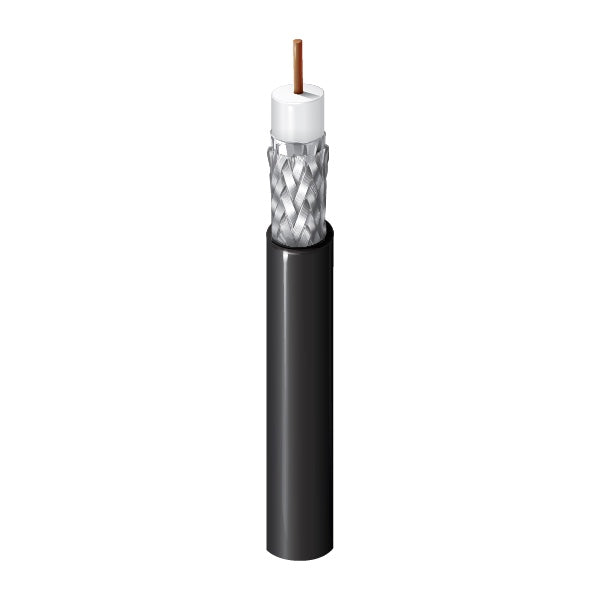

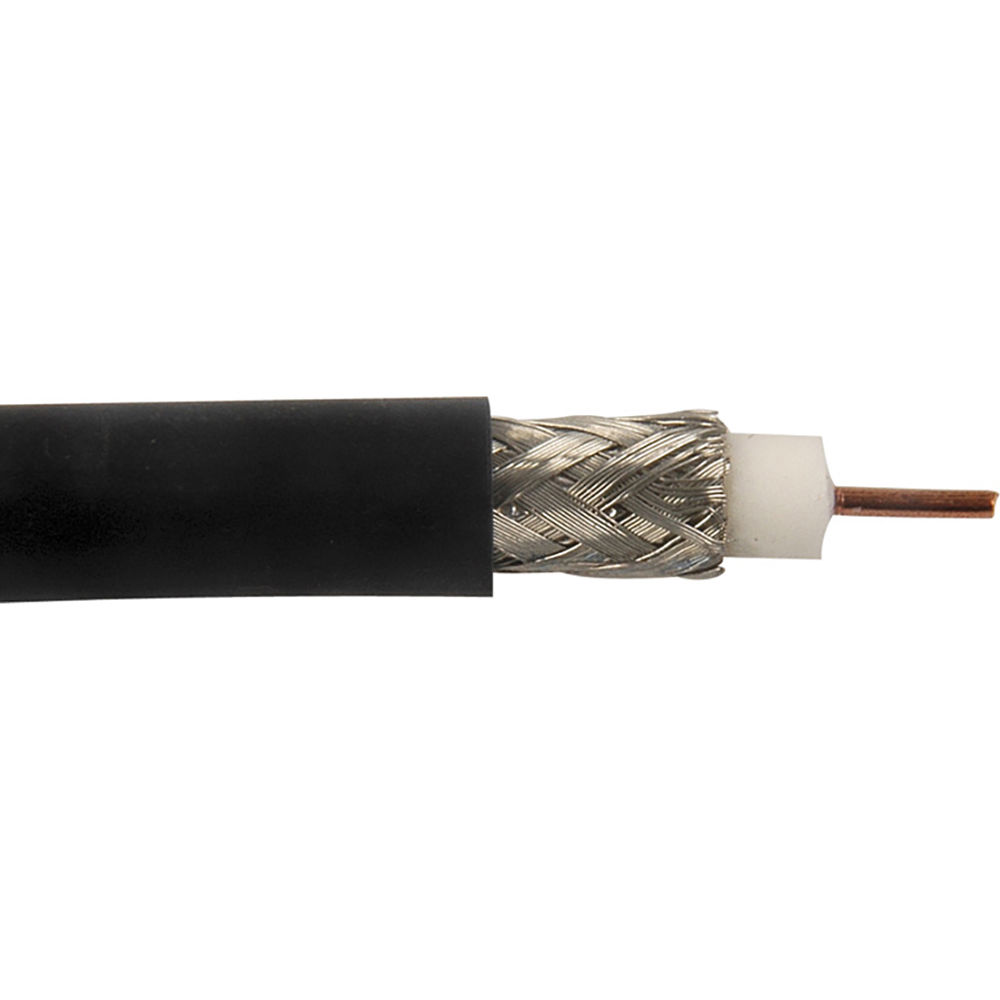

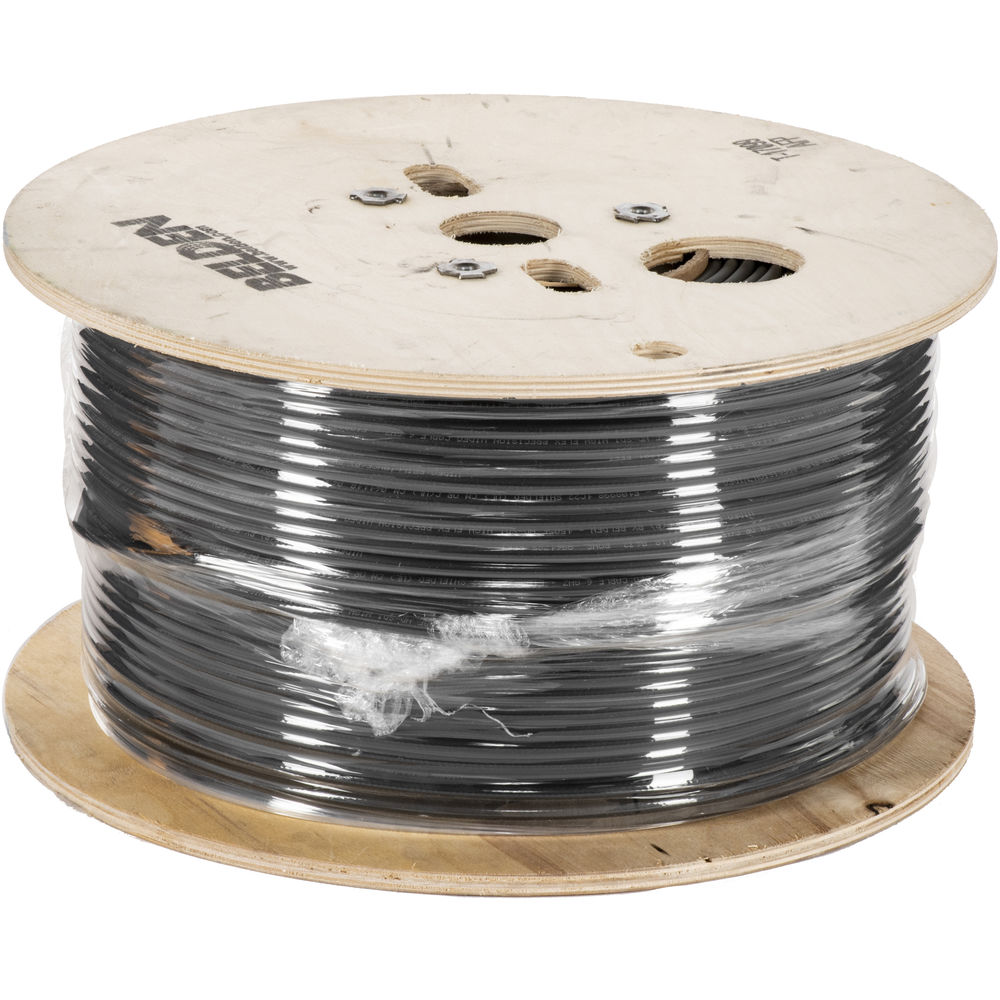

75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
Product Overview:
Suitable Applications
Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
Construction Details
RG Type
6
CONDUCTOR
AWG
18
Stranding
Solid
Material
BC - Bare Copper
Nom. Diameter
0.040 in
INSULATION
PE - Polyethylene (Foam)
0.180 in
ATTENUATION
Frequency
Nom. Attenuation [dB/100ft]
1 MHz
0.24 dB/100ft
3.58 MHz
0.44 dB/100ft
5 MHz
0.52 dB/100ft
6 MHz
0.57 dB/100ft
7 MHz
0.61 dB/100ft
10 MHz
0.71 dB/100ft
12 MHz
0.78 dB/100ft
25 MHz
1.08 dB/100ft
67.5 MHz
1.65 dB/100ft
71.5 MHz
1.69 dB/100ft
88.5 MHz
1.86 dB/100ft
100 MHz
1.95 dB/100ft
135 MHz
2.24 dB/100ft
143 MHz
2.3 dB/100ft
180 MHz
2.57 dB/100ft
270 MHz
3.17 dB/100ft
360 MHz
3.69 dB/100ft
540 MHz
4.5 dB/100ft
720 MHz
5.3 dB/100ft
750 MHz
5.4 dB/100ft
1000 MHz
6.3 dB/100ft
1500 MHz
7.8 dB/100ft
2000 MHz
9.2 dB/100ft
2250 MHz
9.8 dB/100ft
3000 MHz
11.5 dB/100ft
4500 MHz
14.5 dB/100ft
6000 MHz
17.7 dB/100ft
OUTER SHIELD MATERIAL
Layer 1
Outer Shield Type
Tape
Tri-Laminate (Alum+Poly+Alum)
Material Trade Name
Duofoil®
Coverage
100%
Layer 2
Braid
Tinned Copper (TC)
95%
OUTER JACKET MATERIAL
PVC - Polyvinyl Chloride
Nominal Diameter
0.274 in
ELECTRICALS
RETURN LOSS
Frequency [MHz]
Min. Return Loss [dB]
5 - 1600 MHz
23 dB
1600 - 4500 MHz
21 dB
4500 - 6000 MHz
15 dB
Nom. Conductor DCR
6.4 Ohm/1000ft
Nom. Outer Shield DCR
3.8 Ohm/1000ft
Nom. Capacitance Cond-to-Shield
16.2 pF/ft
Nom. Impedence
75 Ohm
Nom. Velocity
82%
VOLTAGE
UL Voltage Rating
300 V (CMR, CMG)
TEMPERATURE
UL Rating
60°C
Operating
-20°C to +75°C
BEND RADIUS
Installation Min.
2.75 in
Bulk Cable Weight
41 lbs/1000ft
Max. Pull Tension
69 lbs
