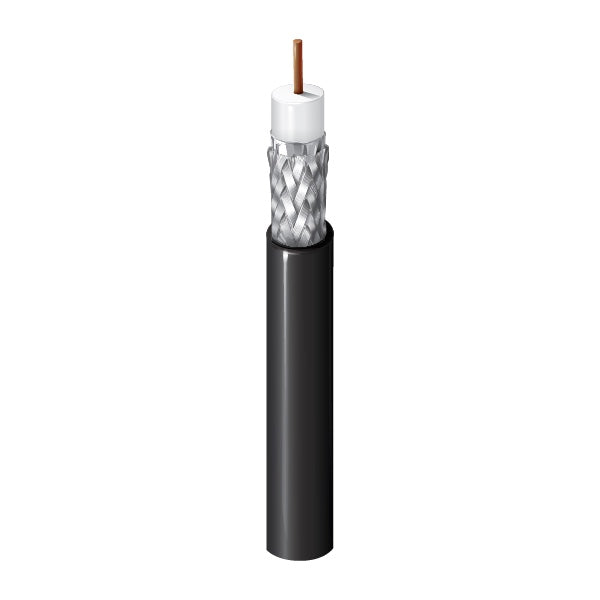

Belden Video Cable RG7 Red 1000Ft/305Mtr (1694A 0021000)

Rs. 87,000.00





75 Ohm SDI Coax, RG-7, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR

Product Overview:

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p



Construction Details


RG Type

7




CONDUCTOR


AWG

18

Stranding

Solid

Material

BC - Bare Copper

Nom. Diameter

0.040 in



INSULATION


Material

PE - Polyethylene (Foam)

Nom. Diameter

0.180 in



ATTENUATION


Frequency

Nom. Attenuation [dB/100ft]

1 MHz

0.24 dB/100ft

3.58 MHz

0.44 dB/100ft

5 MHz

0.52 dB/100ft

6 MHz

0.57 dB/100ft

7 MHz

0.61 dB/100ft

10 MHz

0.71 dB/100ft

12 MHz

0.78 dB/100ft

25 MHz

1.08 dB/100ft

67.5 MHz

1.65 dB/100ft

71.5 MHz

1.69 dB/100ft

88.5 MHz

1.86 dB/100ft

100 MHz

1.95 dB/100ft

135 MHz

2.24 dB/100ft

143 MHz

2.3 dB/100ft

180 MHz

2.57 dB/100ft

270 MHz

3.17 dB/100ft

360 MHz

3.69 dB/100ft

540 MHz

4.5 dB/100ft

720 MHz

5.3 dB/100ft

750 MHz

5.4 dB/100ft

1000 MHz

6.3 dB/100ft

1500 MHz

7.8 dB/100ft

2000 MHz

9.2 dB/100ft

2250 MHz

9.8 dB/100ft

3000 MHz

11.5 dB/100ft

4500 MHz

14.5 dB/100ft

6000 MHz

17.7 dB/100ft



OUTER SHIELD MATERIAL


Layer 1


Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duofoil®

Coverage

100%



Layer 2


Outer Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

95%



OUTER JACKET MATERIAL


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.274 in



ELECTRICALS


RETURN LOSS


Frequency [MHz]

Min. Return Loss [dB]

5 - 1600 MHz

23 dB

1600 - 4500 MHz

21 dB

4500 - 6000 MHz

15 dB



Nom. Conductor DCR

6.4 Ohm/1000ft

Nom. Outer Shield DCR

3.8 Ohm/1000ft

Nom. Capacitance Cond-to-Shield

16.2 pF/ft

Nom. Impedence

75 Ohm

Nom. Velocity

82%



VOLTAGE


UL Voltage Rating

300 V (CMR, CMG)



TEMPERATURE


UL Rating

60°C

Operating

-20°C to +75°C



BEND RADIUS


Installation Min.

2.75 in

Bulk Cable Weight

41 lbs/1000ft

Max. Pull Tension

69 lbs
