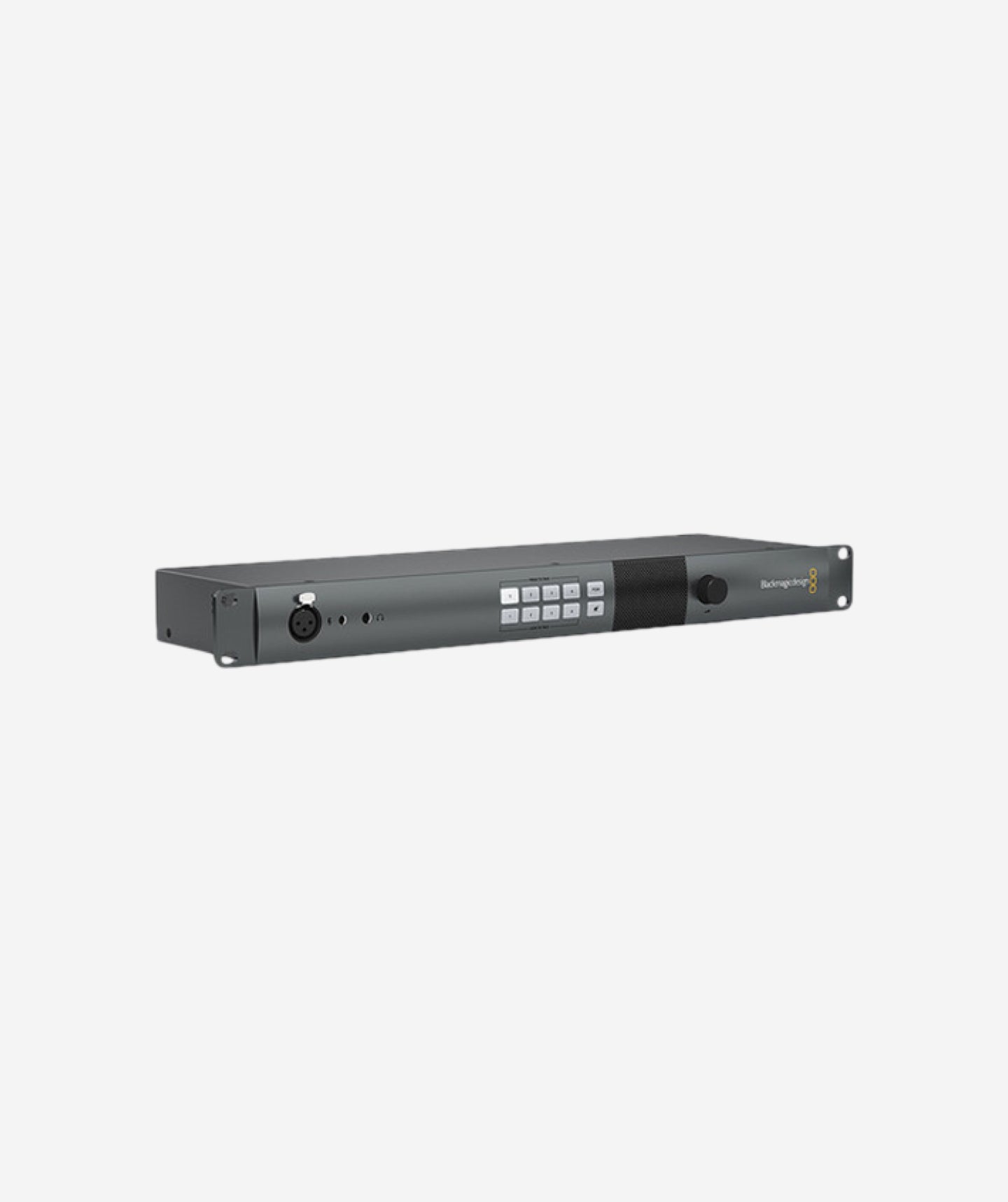

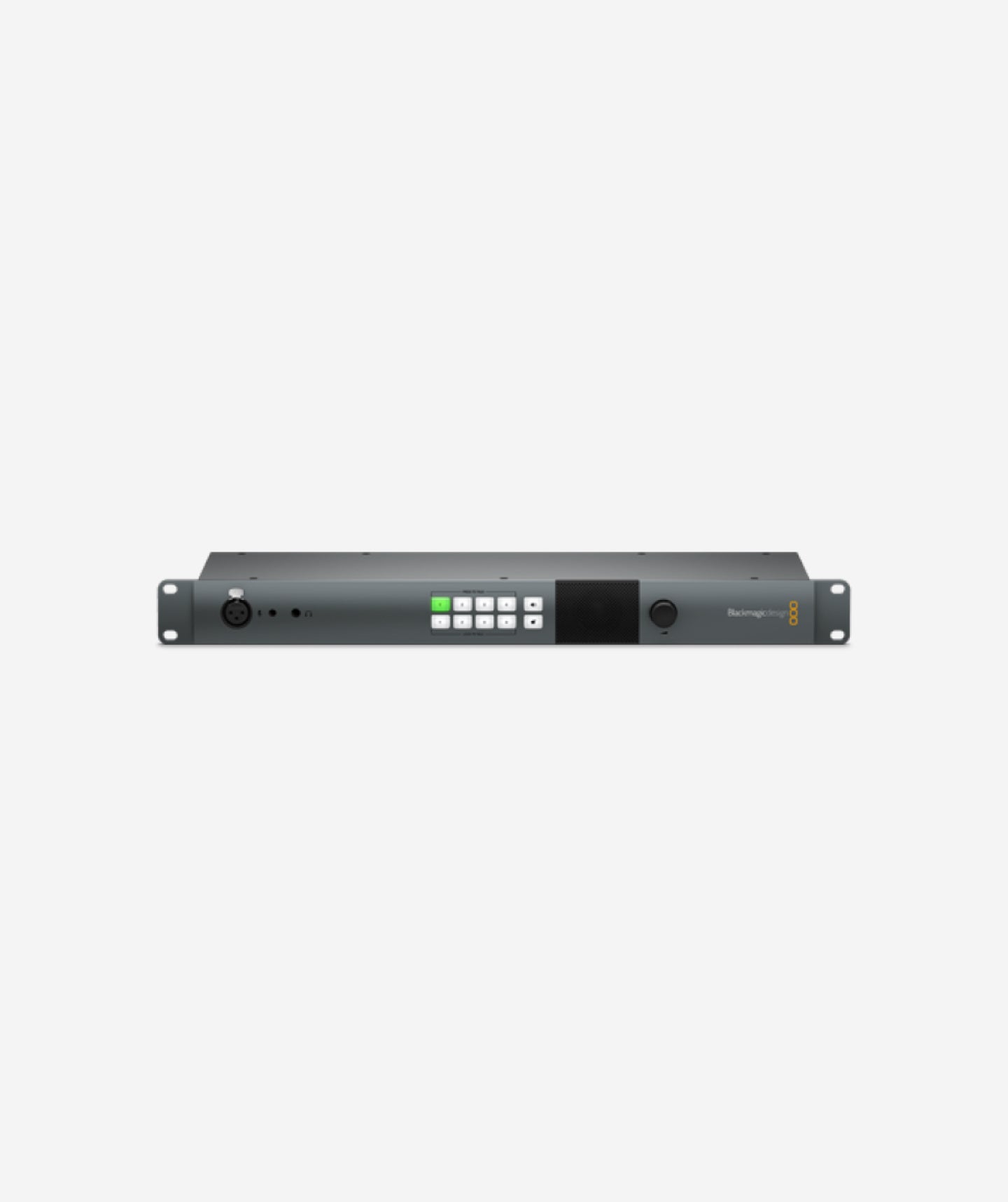

Blackmagic ATEM Studio Converter 2

Rs. 195,900.00



Key Features:

  • 4 Bidirectional Converters in 1 RU Unit
  • Optical Fiber Signal Range 28 Miles
  • Connects up to 4 ATEM Camera Converters
  • 4 x Fiber to SDI 10-bit Converters
  • 4 x Switchable SD/HD-SDI Outputs
  • Camera Talkback with Select, Vol & Mute
  • Connect to ATEM Switchers/Converters
  • Supports SDI Switcher Tally Output
  • Send PGM Feed to Fiber Connected Cameras

The Blackmagic Design Studio Converter 2 inputs video signals transmitted over optical fiber and converts the signals to SDI for use with video switchers. When used in conjunction with the Blackmagic Design ATEM Camera Converter, you can send video signals up to 28 miles between camera and switcher using available optical fiber cables. By comparison, sending an HD-SDI signal over traditional copper cable is usually limited to about 300 feet, depending on the quality of the cable.

A typical set up using the Studio Converter 2 is to connect it between the switcher and up to four ATEM Camera Converter units. This setup allows the Converter 2 to receive the signals from the fiber cable, convert the signals to SDI using 10-bit processing, and send the signals to the switcher. The Converter 2 supports SD/HD signals, and when using the available ATEM Camera Converter you can use any camera with an SDI/HDMI output.

The Converter 2 can also be used as 4 independent simultaneous bidirectional SD/HD-SDI to optical converters. The Converter 2 features a built-in mic input, speaker and headphone jack that provides talkback audio for communicating with camera operators. The Converter 2 passes tally signals embedded in the SDI program stream. You can cascade multiple ATEM Studio Converter 2 units together when using more than 4 cameras. The Studio Converter 2 features a 1 RU design with built in rackmount ears for easy integration into existing studio configurations or production cases.

Optical Fiber Connectors

The ATEM Studio Converter 2 uses standard single mode optical fiber cable with standard LC connectors to allow you to transmit SD and HD video signals up to 28 miles away. Standard copper wire SDI cables have a limit of several hundred feet before the signal breaks up, converting the SDI signal to optical, and sending it along optical cable greatly increases the distance of your cable runs.

Talkback and Tally

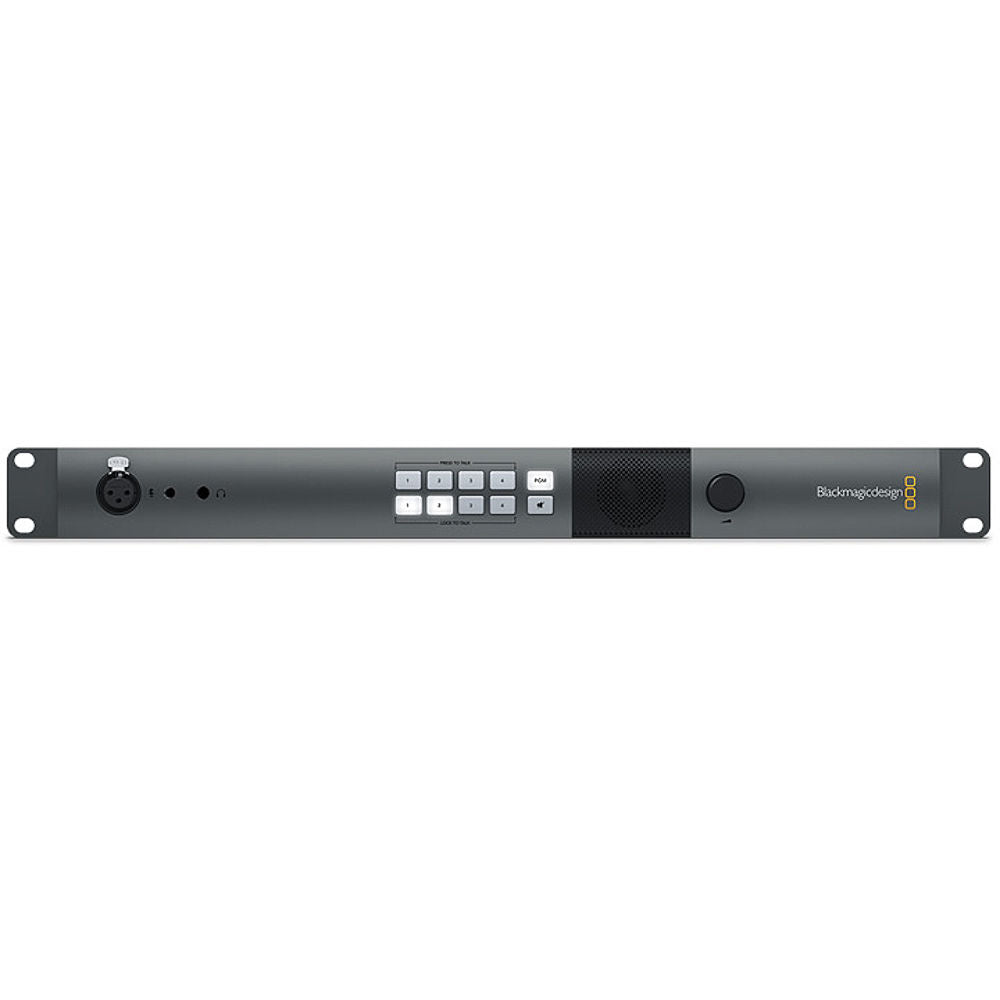

The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or if the area is too loud. When connected to the ATEM Camera Converter, you can talk to your camera operators no matter how far away they are, without needing to worry about walkie talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication.
Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and un-mute buttons on the front of the unit allows you to control who hears what.
The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.

Multiple Units

Each ATEM Studio Converter 2 connects to up to four ATEM Camera Converter units, allowing you to communicate with up to four camera operators at a time. Multiple Studio Converter 2 units can be cascaded together when more than 4 cameras are needed.

Precision Signal Processing

The unit features chips that use 10-bit processing, and are switchable between SD and HD, for a clean signal.
The unit features four independent simultaneous SDI to optical and optical to SDI converters
When used in conjunction with the ATEM Camera Converter the unit can also be used as four independent SDI or Fiber to HDMI converters

Technical Specifications:

Format Support

4K

DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98

UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98


2K

2048 x 1080p: 25/24/23.98

2048 x 1080PsF: 25/24/23.98


HD

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50


SD

NTSC

525i: 59.94

PAL

625i: 50

SDI Video Input

4 x 10-bit SD/HD switchable camera inputs

1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal

SDI Compliance

SMPTE 259M, SMPTE 292M

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601

REC 709

Optical Fiber Video Input

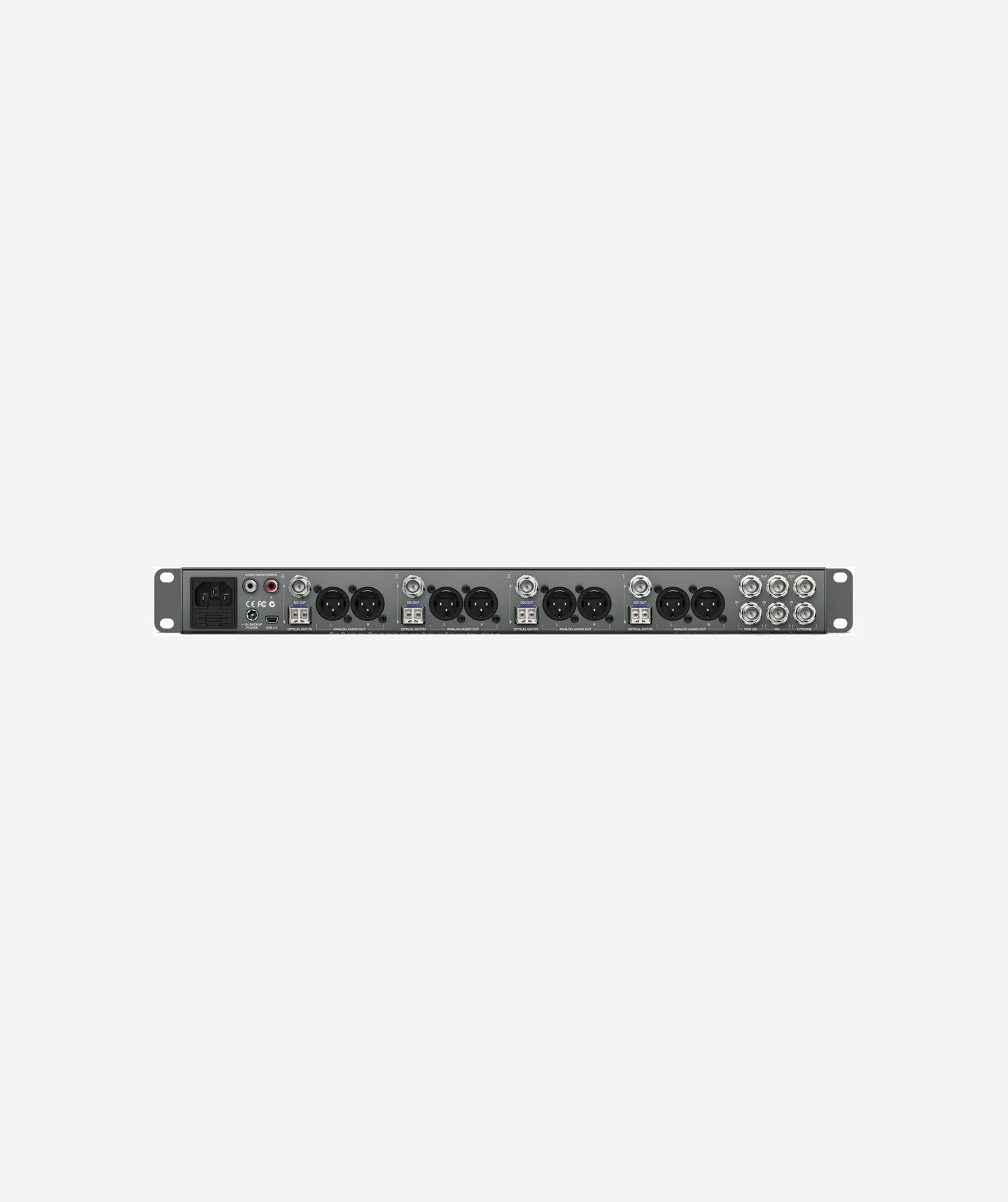

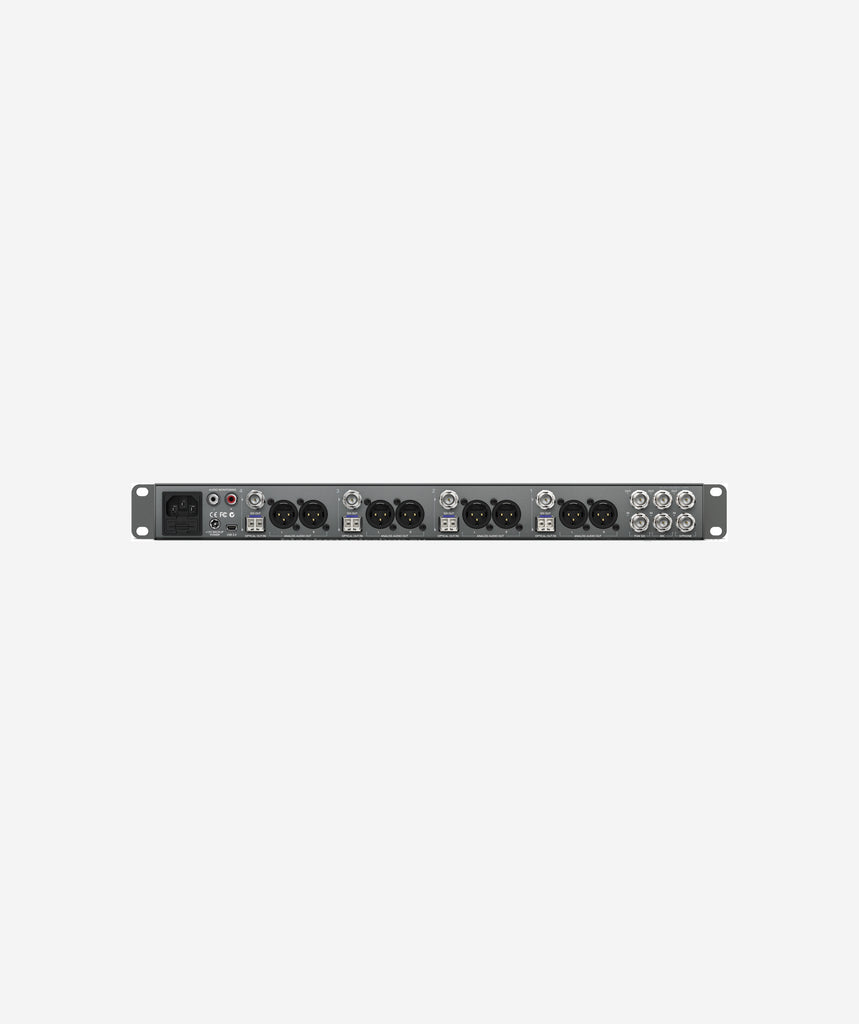

4 x single mode SD/HD switchable camera inputs with LC connector

Optical Fiber

Input

4 x single mode LC connectors for video with embedded audio

Channels 1 & 2 are camera audio

Channels 15 & 16 are talkback audio


Output

4 x single mode LC connectors for video with embedded audio

Channels 1 & 2 are camera audio

Channels 15 & 16 are talkback audio

Audio Sampling

48 kHz

24-bit A/D conversion

Analog Audio Output

4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input)

2 x RCA jacks provide a L/R stereo pair

Talkback

1 x 1/4" TRS headphone jack

1 x .206" TRS mic input for use with aviation style headset

1 x 3-pin XLR connector for talkback microphone

1 x Integrated speaker

Talkback Control

8 x Front panel buttons for camera operator selection, lock, mute and un-mute

AES/EBU Talkback Loops

Input

1 x BNC mic input

1 x BNC headphone input


Output

1 x BNC mic output

1 x BNC headphone output

OS Compatibility

Mac

OS X 10.7 Lion and later

OS X 10.8 Mountain Lion and later


Windows

Windows 7

Windows 8

Computer Interface

1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control

Temperature

Operating

32 to 104°F (0 to 40°C)


Storage

-4 to 113°F (-20 to 45°C)

Power Requirements

110 - 220 VAC, 50/60 Hz

12 - 31 VDC redundant input


Note: IEC power cord is required/not included, redundant power supply not included

Dimensions (H x W)

1.7 x 18.9" (44 x 482 mm)

1 RU size with built-in rackmount ears

Weight

4 lb (1.81 kg)



What's Included:

  • ATEM Studio Converter
  • SD card with software and manual

Warranty:

3 Year Limited Manufacturer's Warranty.

Excluding connectors, cables, cooling fans, fiber optic modules, fuses and keyboards which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
