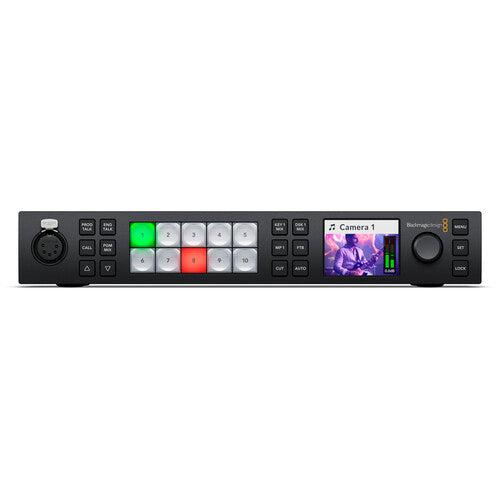

The ATEM 1 M/E Constellation UHD 4K Live Production Switcher adds UHD 4K capabilities and 12G-SDI ports to the familiar switcher construction of its predecessor. Designed for powerful live event UHD 4K switching, the unit features 10 individual 12G-SDI inputs that support 12G/3G/HD-SDI signals and deliver them to six 12G-SDI outputs or webcam USB-C output. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.
Technical Specifications:
Available M/E Layers
1 M/E
Effect Types
4x Chroma Key
5x Luma Key
1x DVE, Stinger
1x DVE
Downstream Keys
1x Chroma, Luma, DVE
Generators
2x Color
5x Pattern
Audio Mixing
48-Channel Mixing
Switching Type
Pushbutton, Software
Latency
10 Lines
Processing Resolution
UHD 4K
Color Processing
10-Bit 4:2:2
Number of Video Input Sources
10

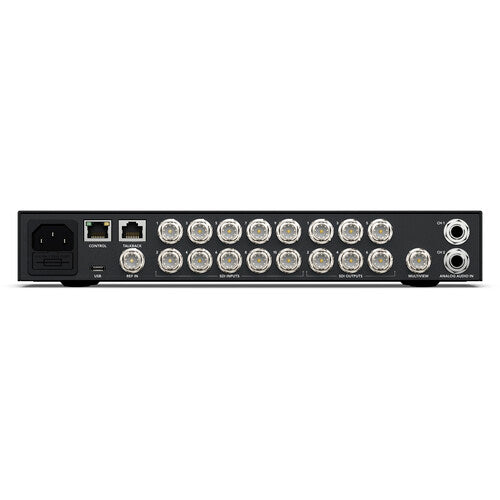

Video Inputs
10x BNC (12G-SDI) Female
Input Video Format
SDI
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/4" TRS
Embedded Audio Input
SDI: 16-Channel
Video Output Channels
6
Video Outputs
6x BNC (12G-SDI) Female
Output Video Format
Embedded Audio Output
Multiview Output
16-Way Multiview
Other I/O
1x USB-C
1x XLR 5-Pin Talkback Input
1x XLR 5-Pin Talkback Output
1x RJ45 Control, LAN Input/Output
1x RJ45 Talkback Input/Output
1x BNC Blackburst, Reference, Tri-Level Sync Input
Video Standard Compliance
SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10
Display Size
2.2"
OS Compatibility
Windows 10 to 11
macOS 13.0 to 14.0
Processor
Not Specified by Manufacturer
Wi-Fi
Yes
Bluetooth
No
Power I/O
1x IEC C13 Input
Power Consumption
Device: 100 to 240 VAC (90 W)
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
