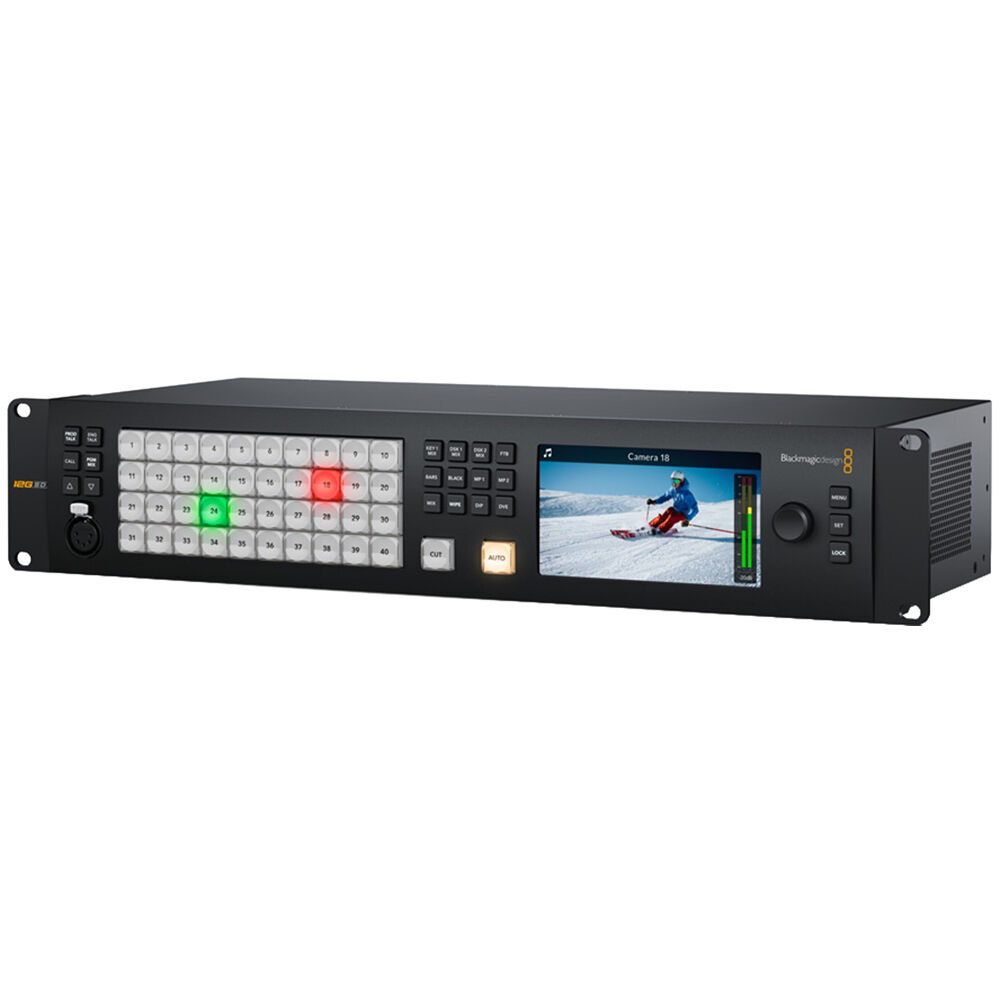

Name: Blackmagic Design ATEM 4 M/E Constellation 4K Switcher
Brand: Blackmagic Design
SKU: SWATEMSCN2/2ME4/4K
Price: 949999 INR
Availability: InStock

Rs. 999,224.00 Rs. 949,999.00

- +

Blackmagic Design ⁄ Blackmagic Design ATEM 4 M/E Constellation 4K Switcher

Key Features

Supports 12G-SDI at 10-Bit
40 x 12G-SDI Inputs
24 x 12G-SDI Outputs
Webcam Output via USB-C
Frame Rate/Format Converter per Input
156-Channel Audio Mixer
16 x Upstream, 4 x Downstream Keyer
Chroma/Luma Keyers
Color/Pattern Generators

The ATEM 4 M/E Constellation 4K Switcher from Blackmagic Design features 40 12G-SDI inputs and 24 12G-SDI outputs, and it connects to a wide range of cameras and sources, delivering video at resolutions of up to 10-bit UHD 4K60 via the 12G-SDI program outputs or 1080p and 720p webcam outputs via USB-C. The switcher features four multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 156 channels of audio.

The switcher also boasts a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter, allowing you to mix and match cameras that do not have genlock capabilities. Upstream and downstream keyers and effects are supported in real time. The switcher can be controlled using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.

Advanced Broadcast Power

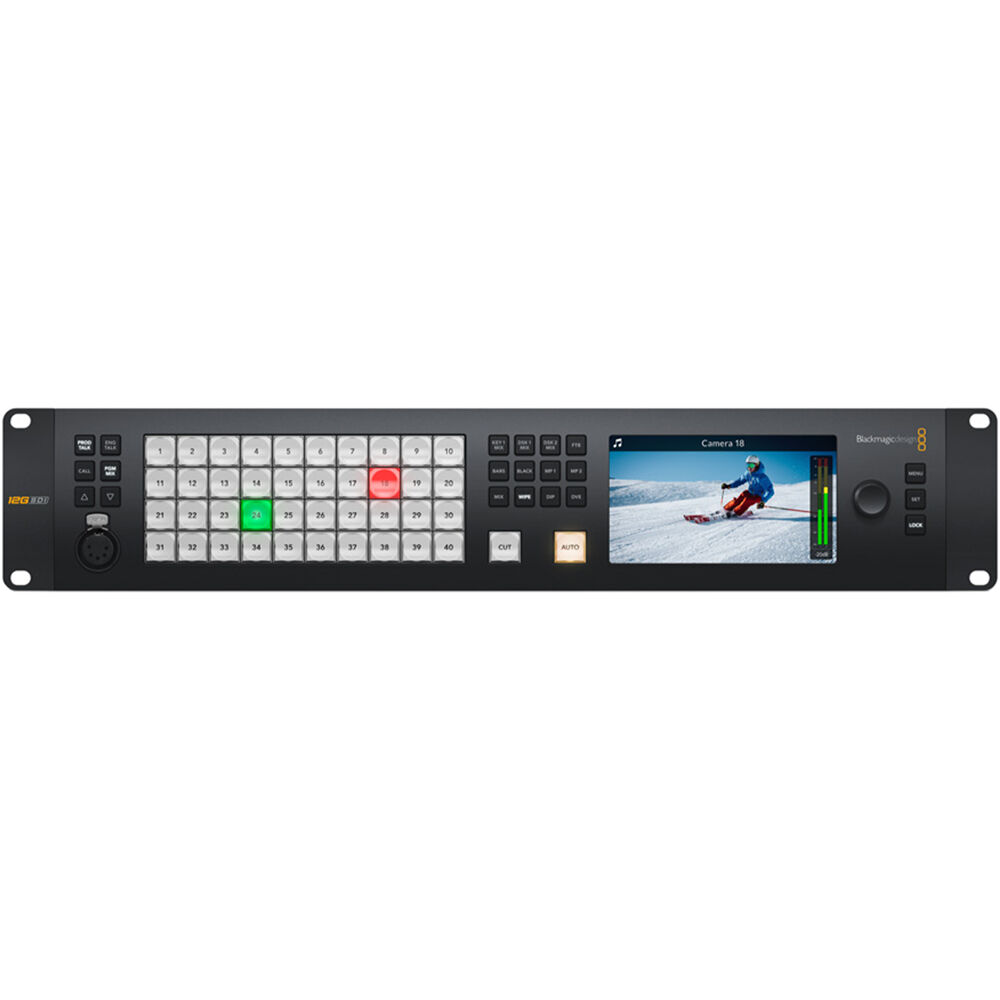

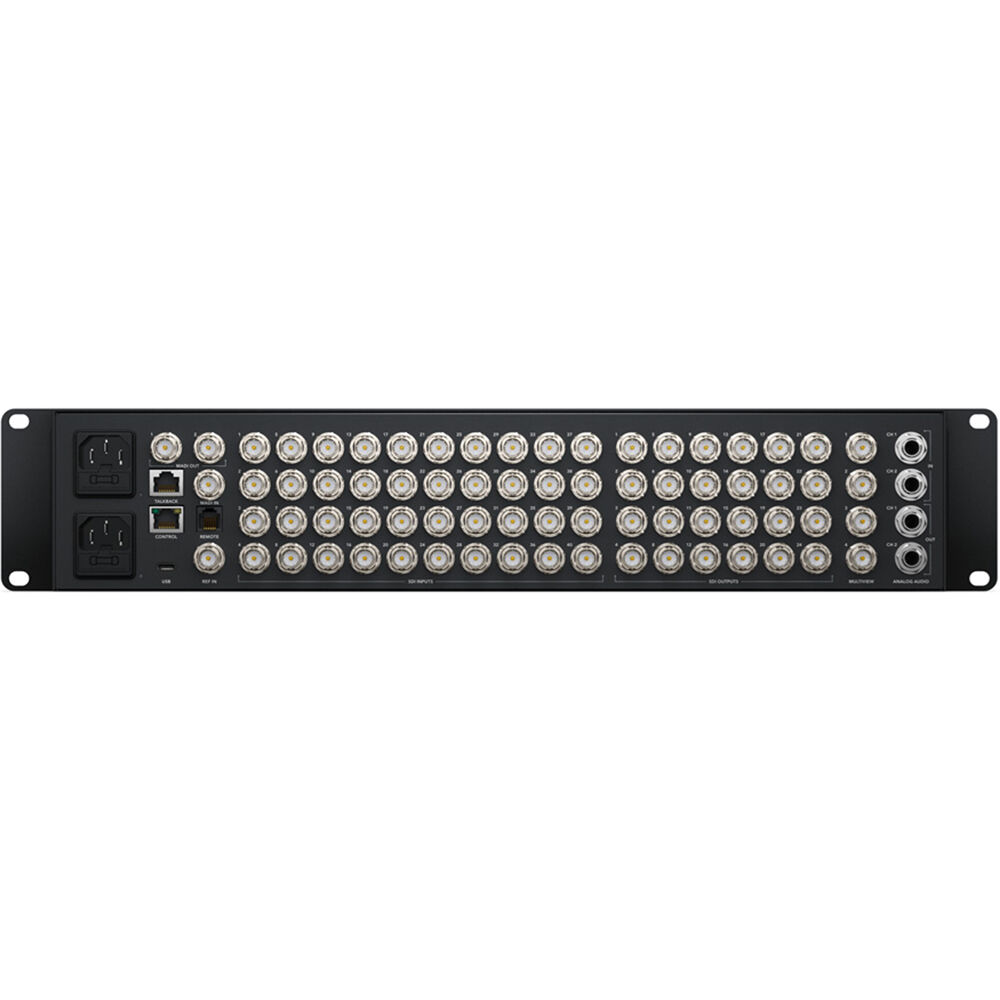

The switcher features a compact rack mount design with a built-in control panel and a large LCD so you can see program output and change switcher settings via on-screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 12G-SDI inputs, aux outputs, balanced audio, and Ethernet for control. The 4 M/E models include RS-422 for serial control and MADI digital audio connections. Even with all this power, the switcher is extremely quiet with its innovative high-efficiency thermal system.

Built-In DVE

The switcher features four independent DVEs that let you reposition graphics and up to 4 independent DVEs that let you reposition graphics and create picture-in-picture compositions with impressive results. The DVE lets you create professional picture-in-picture effects with customizable 3D borders, shadows, and lighting. DVEs can also be used to create amazing DVE transitions with squeeze and swoosh effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions.

SuperSource Processing

In addition to the DVEs in the M/E rows, the 4 M/E model includes powerful SuperSource multilayer processors with eight extra DVE layers plus a background layer, all appearing to ATEM Constellation HD as an additional input source. Any switcher video input can be used for each SuperSource DVE, then it's all layered together over a media pool custom background. SuperSource is just like having an extra multilayer VFX switcher built in. SuperSource is perfect for doing picture-in-picture displays for interviews because you can set up the effect while keeping the main DVEs free for other tasks.

Multiview

Configurable to 16, 13, 10, 7, or 4 up view, it includes monitoring of program, preview, inputs, media players, DSK, and clean feed with optional labels and audio meters. The 4 M/E model features four multiview outputs.

Professional Broadcast Talkback

To keep crews working as a single creative team, ATEM Constellation features built-in talkback. Talkback supports a 5-pin XLR headset connector, plus a rear-mounted RJ12 connector for interfacing with industry-standard talkback systems such as ClearCom or RTS. You get full talkback control, including program and engineering loops, sidetone control for hearing the headset mic into the headphones, and program mix. ATEM Constellation HD also supports SDI talkback that uses SDI channels 15 and 16 for 2-way communication with Blackmagic Design cameras. You can even use channels 13 and 14 for engineering talkback. It's even possible to mix the talkback mic into the program audio for voiceovers.

Media Pool

The built-in media pool stores broadcast quality RGBA graphics and animations that can be played back instantly by the four media players. Media players simply appear as additional input sources on the ATEM Constellation HD, so you don't have to use extra SDI inputs for graphics. The built-in media pool holds graphics for use with the media players. The 4 M/E model can hold 60 stills and 1200 frame animations, with four video clips up to 1080p60. You can easily manage all your media using the included ATEM Software Control or download directly from Photoshop using the ATEM Photoshop plug-in.

Chroma Keyers

For news or virtual set work, this switcher features lots of ATEM advanced keyers for high-quality chroma or luminance keying. The chroma keyer is incredibly powerful and features a color picker to sample background colors for the automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground color corrector so you can match the "look" of the foreground layer to the background layer making seamless compositions possible. The keyer can also be used for pattern and DVE keying. You get 16 ATEM Advanced Keyers on the 4 M/E model.

Upstream Chroma Keyers

With four upstream chroma keyers per M/E row, you get the perfect solution for building virtual sets. With so many ATEM Advanced chroma keyers, you can use a keyer per camera to create a seamless composition of the camera over the custom background. The 4 M/E model has enough keyers to generate a 4-camera virtual set. You can use external image processors for virtual sets, or you can even build a fixed camera virtual set by loading pre-rendered still image backgrounds from the media players and media pool. You can set up macros to change cameras and load the correct background into the media players. With so much flexibility, you can experiment with trying out different studio setups.

ATEM Software Control Panel

The ATEM Software Control Panel gives you total control over your switcher and is included for free. The ATEM Software Control Panel features a beautifully designed interface with a visual switcher and parameter palettes for making quick adjustments. Multiple users can connect to the switcher via Ethernet, and all work on different parts of the event at the same time. The ATEM Software Control also lets you access camera control, audio mixing, media, macro programming, and even control of HyperDeck disk recorders. You can even save the full state of the switcher as XML files, plus all media is backed up from the media pool. You can run the software on macOS or Windows.

Supports Optional Control Panels

Three models of ATEM Advanced Panels are available. ATEM Advanced Panels feature an industry-standard, familiar M/E style layout. Each panel has built-in LCDs for menus, high-quality buttons with customizable illumination color, a DVE joystick, and a T-bar fader. You can even set up and trigger macros. All rows of M/E buttons include integrated LCDs for dynamic input button labeling. The 1 M/E model features a single M/E row with 10 input buttons. The 2 M/E model features 2 M/E rows with 20 input buttons. The massive 4 M/E model features four M/E rows with 40 input buttons per row and four independent system control LCD screens.

Technical Specifications:

Available M/E Layers	4 M/E
Effect Types	16 x Chroma Key 21 x Luma Key 4 x Stinger 4 x DVE
Downstream Keys	4 x Chroma, Luma, DVE
Generators	2 x Color 21 x Pattern
Audio Mixing	156-Channel Mixing
Switching Type	Pushbutton, Software
Processing Resolution	UHD 4K at 60
Color Processing	10-Bit 4:2:2
Number of Video Input Sources	40
Video Inputs	40 x BNC (12G-SDI)
Input Video Format	SDI (10-Bit 4:2:2) UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Audio Inputs	2 x 1/4" TRS Stereo Analog Female 1 x BNC Stereo MADI
Input Audio Format	Analog
Embedded Audio Input	SDI: 2-Channel (per Input)
Video Output Channels	28
Video Outputs	28 x BNC (12G-SDI) 1 x USB-C (USB Video) (Program)
Output Video Format	SDI (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps USB-C 1080p 720p
Audio Outputs	2 x 1/4" TRS 2 x BNC Stereo MADI
Output Audio Format	Analog
Embedded Audio Output	SDI USB-C
Multiview Output	4-Way Multiview viaSDI
Other I/O	1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ12 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output
Video Standard Compliance	SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
HDCP Support	None
IP Video	1280 x 720 to 1920 x 1080 Encoding
Screen Resolution	1366 x 768
OS Compatibility	macOS 12.0 macOS 13.0 or Later Windows 10 Windows 11 *As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi	None
Bluetooth	None
Power I/O	2 x IEC C14 Input
Operating Temperature	32.0 to 104.0°F / 0.0 to 40.0°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90% (Non-Condensing)
Rack Form Factor	2 RU
Dimensions	19 x 13.26 x 3.54" / 48.3 x 33.68 x 8.99 cm
Weight	18.52 lb / 8.4 kg
