Available M/E Layers

5 M/E

Effect Types

1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key

Downstream Keys

1 x Chroma, DVE

2 x Luma

Generators

1 x Pattern

2 x Color

Audio Mixing

2-Channel Mixing

Switching Type

Pushbutton

Color Processing

10-Bit 4:2:2 YUV

Number of Video Input Sources

4

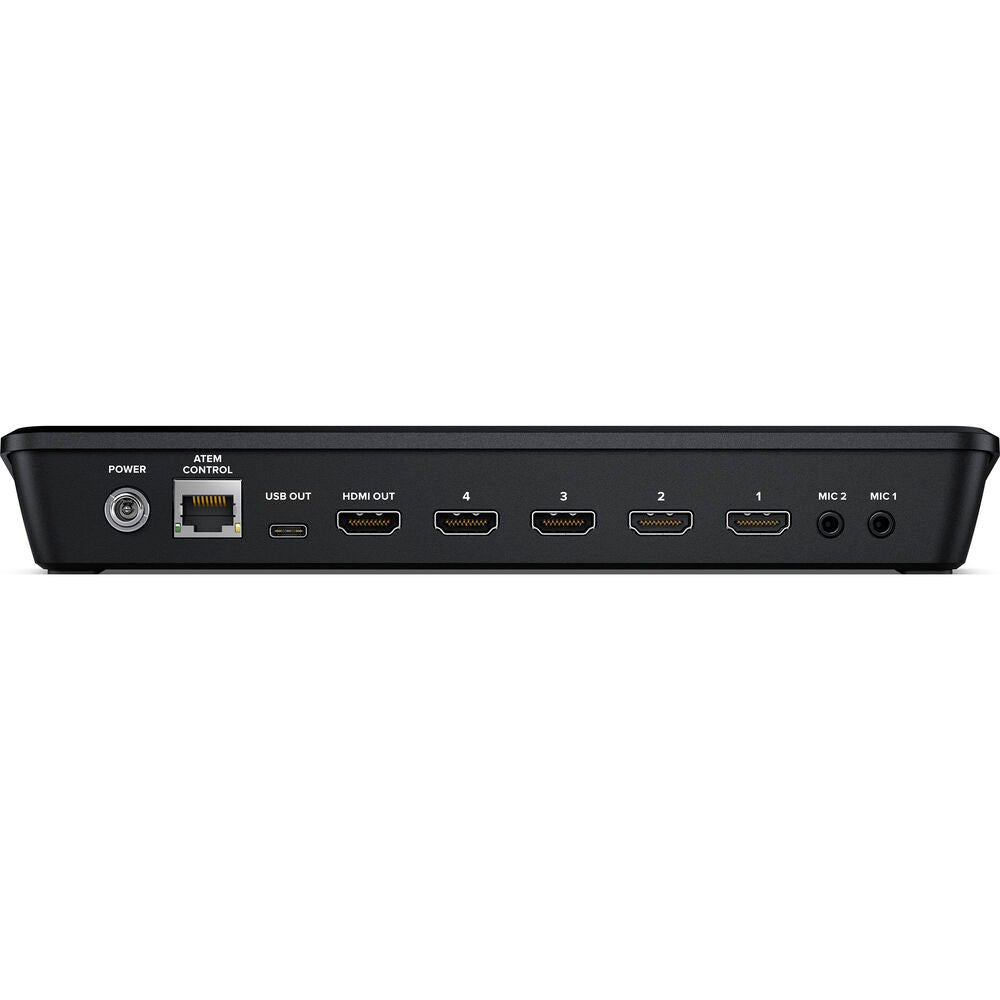

Video Input Connectors

4 x HDMI Female

Input Video Format

HDMI (10-Bit 4:2:2 YUV)

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

Audio Input Connectors

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)

Video Output Channels

1

Video Output Connectors

1 x HDMI

Output Video Format

HDMI / RJ45 (10-Bit 4:2:2 YUV)

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

Embedded Audio Output

HDMI: 2-Channel (per Output)

Multiview Output

Yes

Monitor Output

1 x HDMI

Other I/O

1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output

1 x USB Type-C Firmware, Control Input/Output

IP Video

H.264:

1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding

Transport Protocols

RTMP

Simultaneous Streams

1 Streams

OS Compatibility

macOS 10.14 or Later

Windows 10

Power Connector

1 x Barrel (12 VDC) Input

Power Consumption

36 W

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

0 to 90%

Dimensions

9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm

Weight

19.4 oz / 550 g
