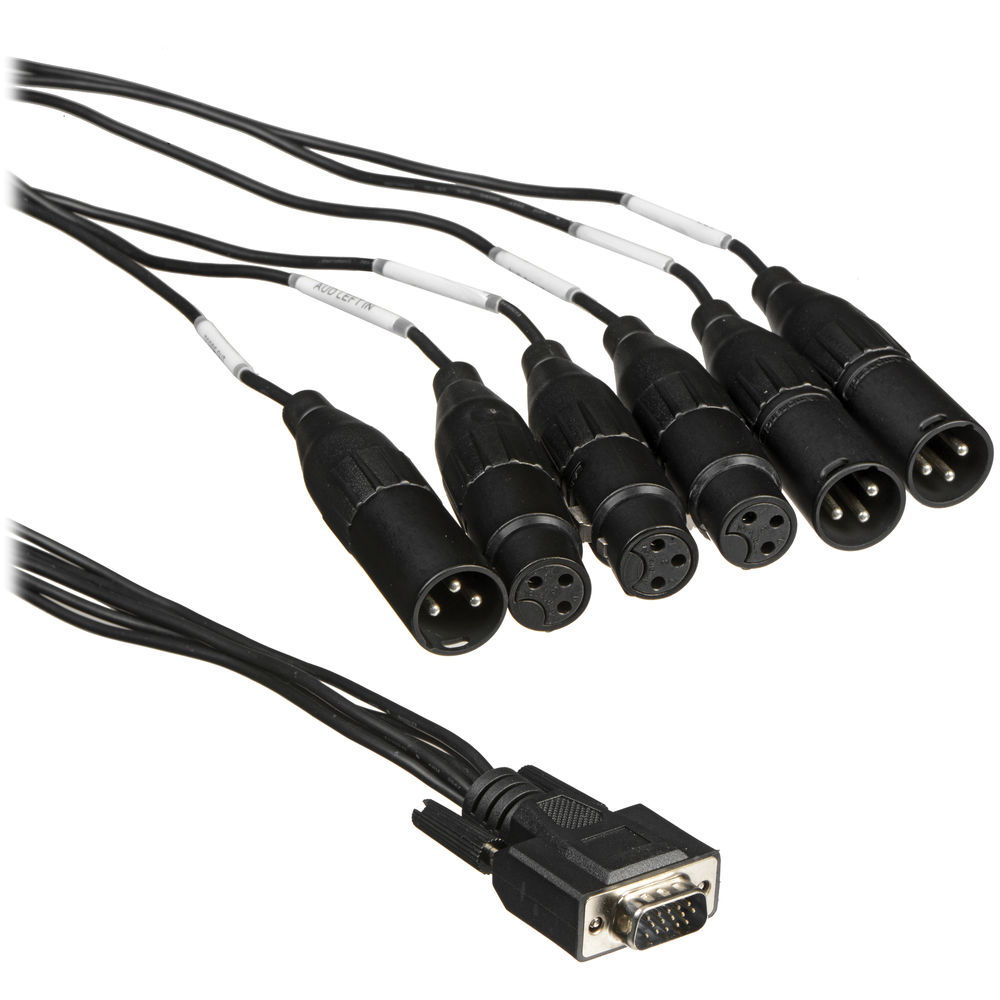

Bringnig analog audio into an ATEM 1M/E or 2M/E switcher requires a Blackmagic Design Audio Breakout Cable to interface with the switcher's DB-15HD connector. The breakout cable is approximately two feet long, terminating in six XLR connectors that support two channels of input and output audio, as well as timecode in and out. Each cable is shielded to protect your signals.
Specifications:
Length
2' / 0.6 m
Connectors
To Switcher
1 x DB-15HD, male
To Input/Output Devices
Audio In: 2 x 3-pin XLR
Audio Out: 2 x 3-pin XLR
Timecode In: 1 x 3-pin XLR
Timecode Out: 1 x 3-pin XLR
In the Box:
