- Large LCD with Touchscreen Deck Controls
- Physical Controls, Two CFast Card Slots
- 12G-SDI, HDMI, and Legacy Analog
- Fast USB Type-C Disk Port; 10G Ethernet
- PCIe Cache Card Slot
- H.265 Recording/Playback, ProRes Support
- Rec. 2020/709 Support, HDR Scopes
- SDI/HDMI Auto HDR Detection
- Multichannel SDI and Analog Audio
- Load and Save 3D LUTs
Add a playback and recording deck to your broadcast studio, live production, or digital signage environment with the HyperDeck Extreme 4K HDR from Blackmagic Design. The HyperDeck Extreme 4K supports up to UHD 4K video and allows you to save H.265 files and utilize 3D LUTs, internal cache, and HDR support for video playback.

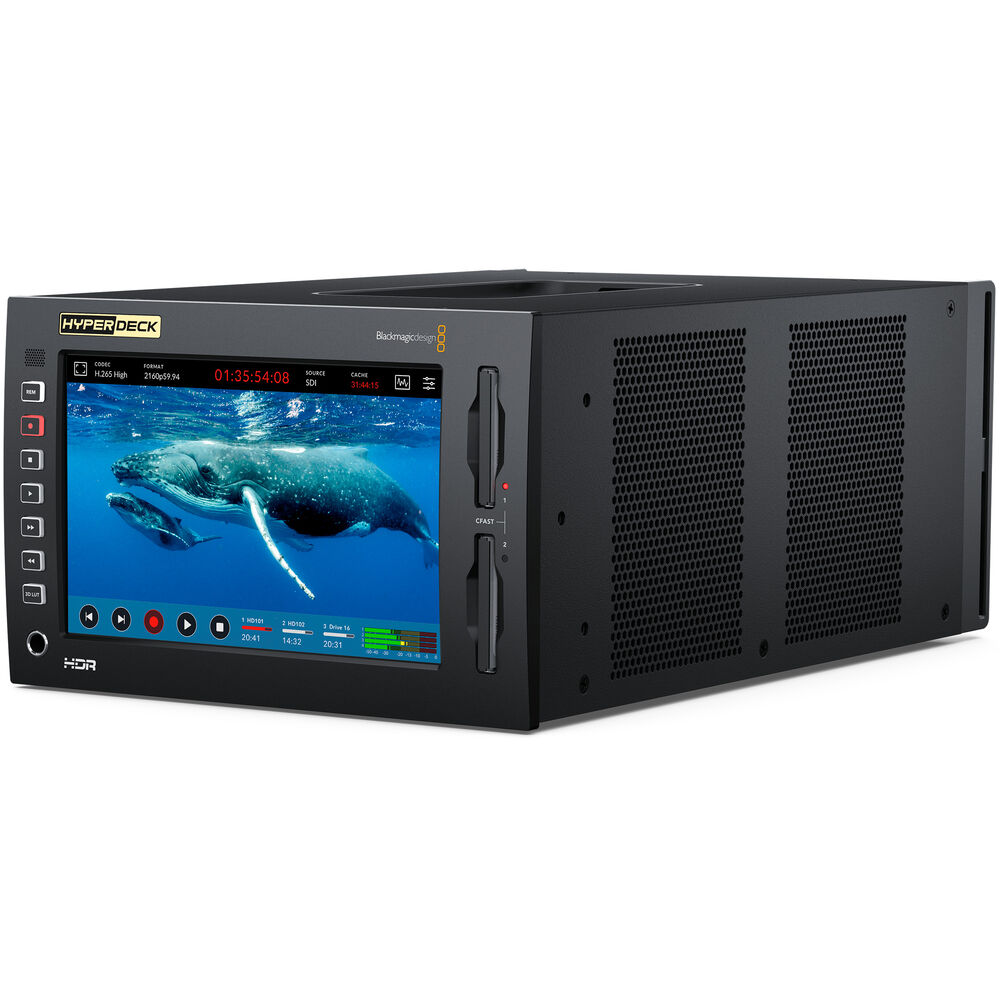

The HyperDeck features a 7" capacitive touchscreen LCD screen that provides a clean image and controls, scopes, and monitoring tools that you can control and configure with a swipe or a button press. It features 12G-SDI and HDMI inputs and outputs, two CFast media slots for recording, and allows you to record your video stream to an optional disk via USB Type-C.

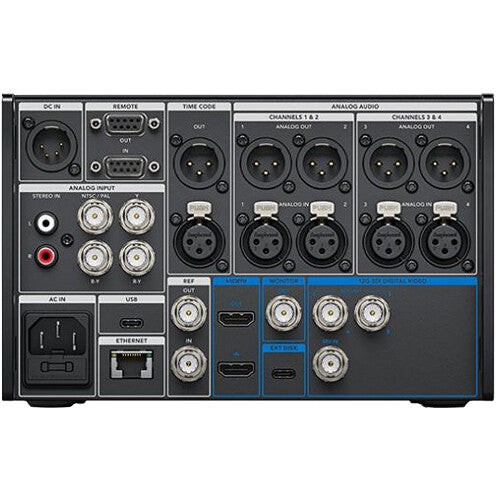

If you want to fit streaming into your legacy production rack, the HyperDeck can be controlled via RS-422 as traditional broadcast decks. The unit also features a 3G-SDI monitor output, component analog audio and video inputs, 3-pin XLR inputs and outputs, timecode I/O, and reference I/O. The unit also supports built-in media caching that can be upgraded to avoid cards and disks filling up and losing data.
Updated HyperDeck
File and I/O Formats
Interfaces and Inputs
Live Production, Signage, and Archiving
Convert Legacy Programming for Streaming
Dual CFast Media
12G-SDI, HDMI, and Legacy Analog
HDR Support and Bright Wide Gamut LCD
Localized for Popular Languages
Traditional RS-422 Broadcast Deck Control
Compatible with Controllers, Switchers, Converters
Compatibility |
Blackmagic Design ATEM Mini |
Video Formats |
DCI 4K: 25, 24, 23.98 UHD 4K: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 DCI 2K: 25, 24, 23.98 DCI 2K PsF: 25, 24, 23.98 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 525i: 59.94 625i: 50 |
Display |
7" Capacitive Touchscreen HDR LCD |
Resolution |
1920 x 1200 |
Video Sampling |
10-Bit, 4:2:2 YUV |
Color Space |
Rec 601, Rec 709, Rec 2020 |
SMPTE Standards |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, and SMPTE 2084 |
Supported Codecs |
ProRes HQ QuickTime ProRes 422 QuickTime ProRes LT QuickTime up to 2160p60 ProRes 4444 (Playback Only) H.265 High H.265 Medium H.265 Low up to 2160p60 |
Compatible Operating Systems |
Mac 11.1 Big Sur Mac 12.0 Monterey or Later Windows 10 and 11 |
USB |
1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Female Output |
Video |
1 x BNC (12G-SDI) Input 2 x BNC (12G-SDI) Output 1 x BNC (Component) Input 1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 2.0) Output 1 x BNC (3G-SDI) Monitor Output 1 x USB Type-C Output |
Audio I/O |
4 x XLR 3-Pin Input 4 x XLR 3-Pin Output 1 x 2RCA Input |
Other I/O |
1 x 9-Pin DSub, RS-422 Input 1 x 9-Pin DSub, RS-422 Output 1 x 3-Pin XLR, Timecode Input 1 x 3-Pin XLR, Timecode Output 1 x BNC, Reference Input 1 x BNC, Reference Output 1 x RJ45 Ethernet 1 x USB Type-C Input |
Power Source |
AC Input (Built-In) |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
DC Input Power |
12 VDC |
Power Consumption |
190 W |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
0 to 90% (Non-Condensing) |
Storage Temperature |
-4 to 140°F / -20 to 60°C |
Storage Humidity |
0 to 90% (Non-Condensing) |
Dimensions |
13.15 x 8.28 x 5.14" / 33.4 x 21.03 x 13.06 cm |
Weight |
7.94 oz / 225 g |
In the Box:
- Blackmagic Design HyperDeck Extreme 4K HDR
- Limited 1-Year Warranty
