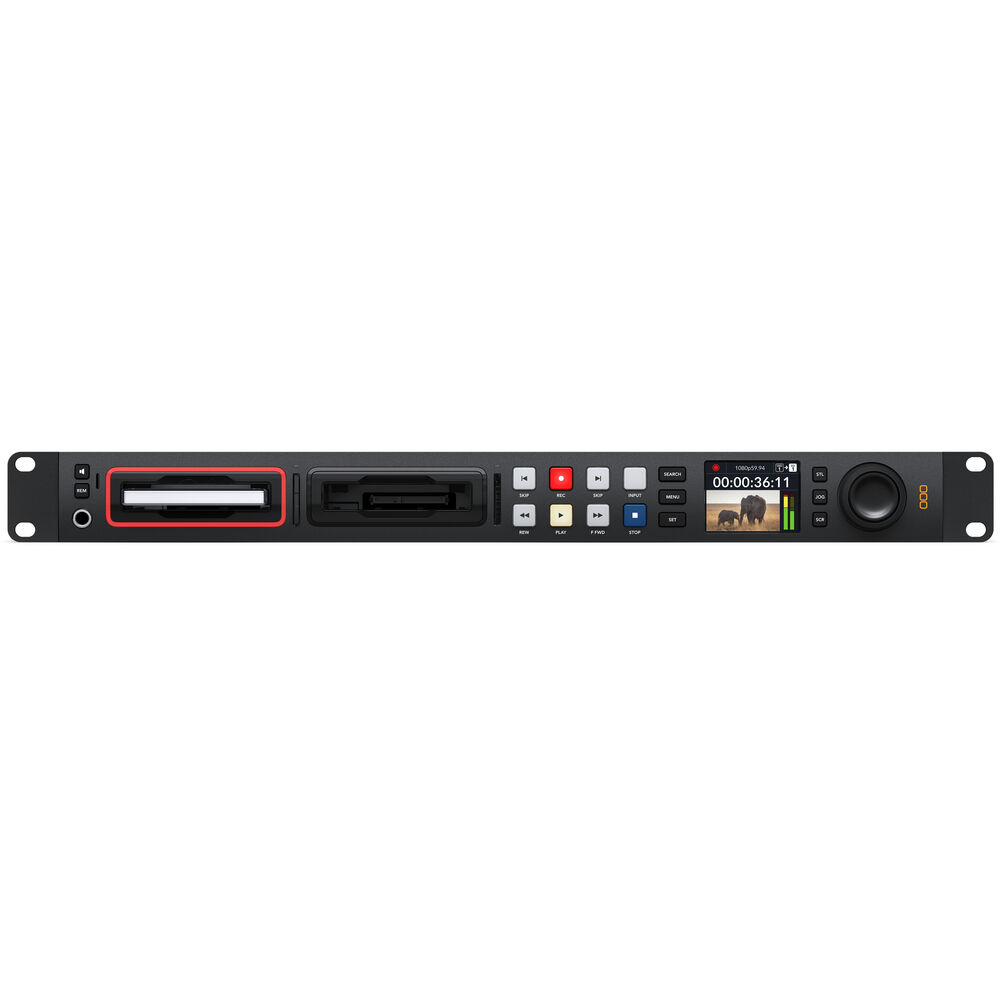

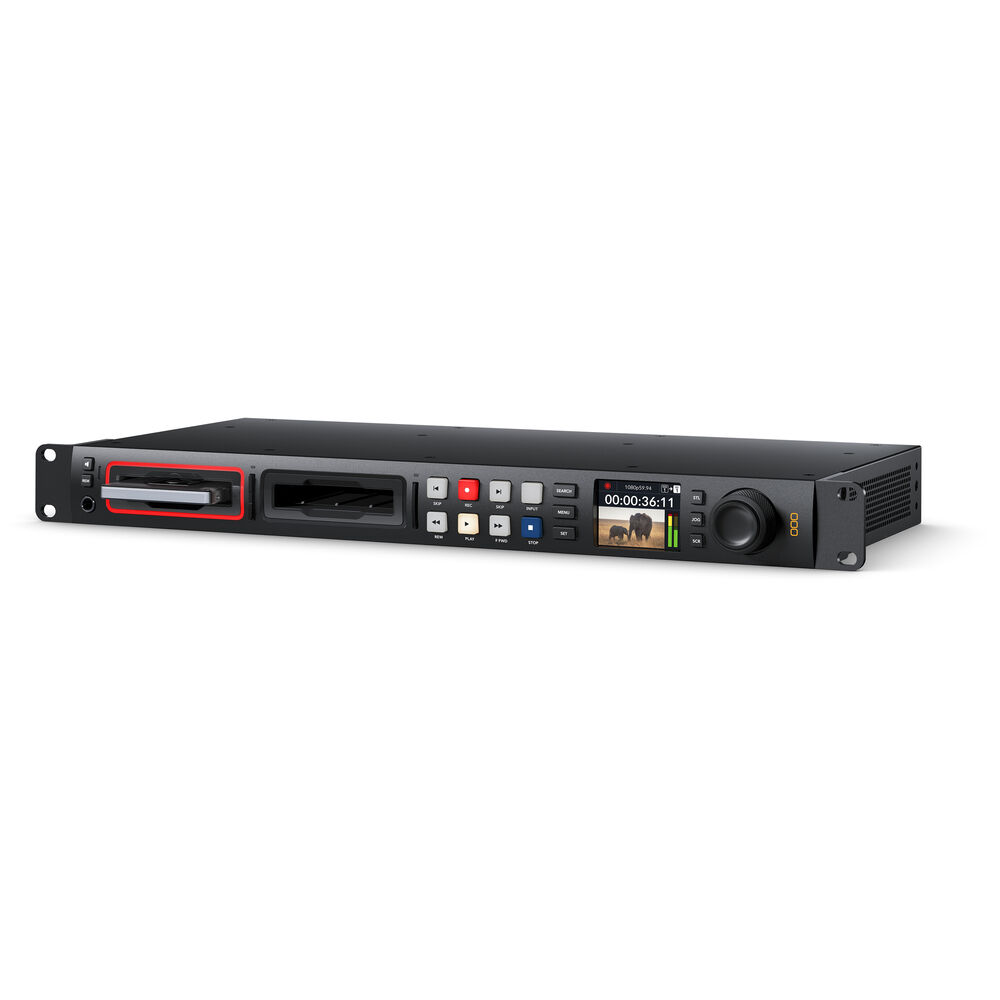

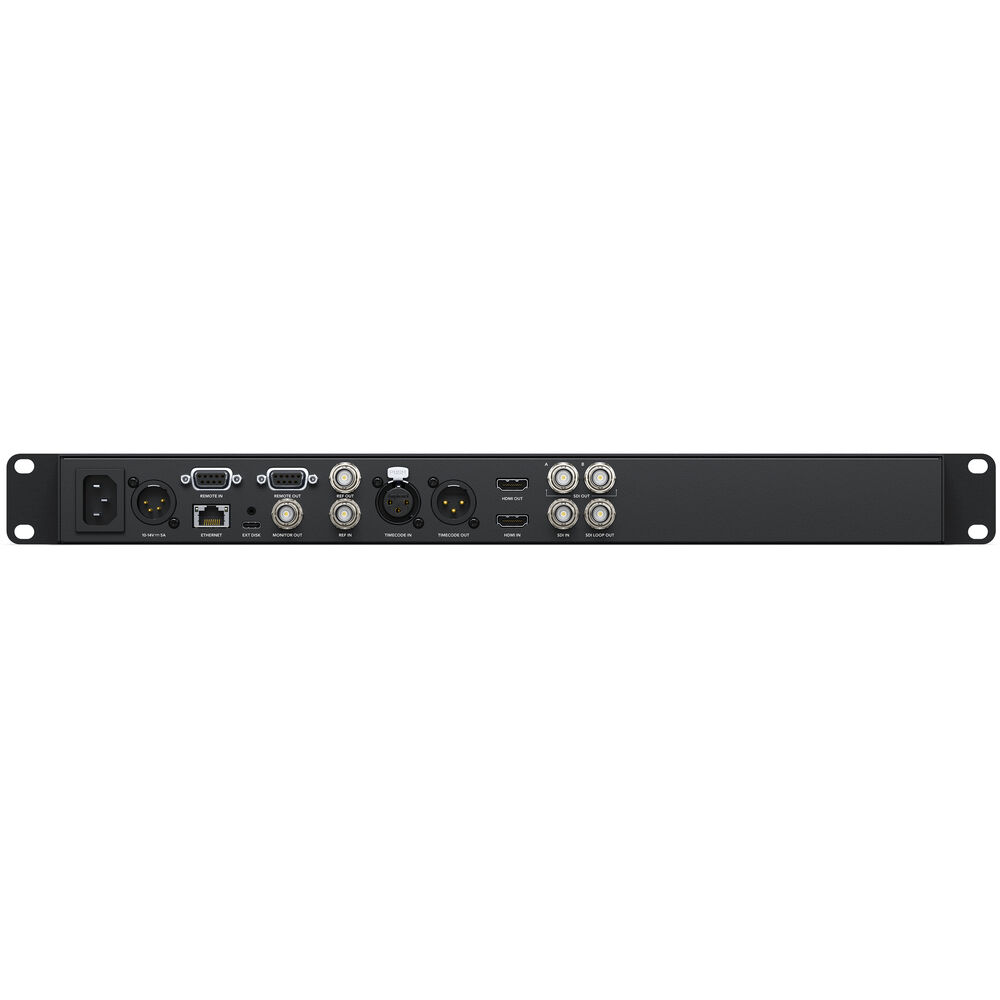

Video Input

1 x BNC 6G-SDI

1 x HDMI 2.0

Video Output

1 x BNC SDI Loop-Through

2 x BNC 6G-SDI

1 x SDI Monitor Output

1 x HDMI 2.0

Embedded Audio

Input:

16 x Channels SDI

16 x Channels HDMI

Output:

8 x Channels SDI

8 x Channels HDMI

Audio Output Connector

1 x 1/4" Headphone Jack

Network

1 x RJ45 1 Gb/s

SSD Interface

2 x 2.5" SATA 3Gb/s

Reference Input

1 x BNC

Reference Output

1 x BNC

Timecode Input

1 x BNC

Timecode Output

1 x BNC

Device Control

1 x RS-422 Input

1 x RS-422 Output

Display Size

2.2" LCD

Speaker

Mono

Format Support

DCI/UHD 4K 2160p: 30/29.97/25/24/23.98

2K 1440p: 30/29.97/25/24/23.98
1080p: 60/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC/PAL
525i 59.94
625i 50
480p60 and 576p50 via HDMI only

Supported Operating Systems

macOS 10.15 Catalina

macOS 11.1 Big Sur or Later

Windows 10, 64-Bit

Other Outputs

1 x USB Type-C for External Recording or Webcam Use

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1

SDI Metadata Support

HD RP188 and closed captioning CEA‑708

HDR Metadata supported on SDI

Sampling

Video: 4:2:2 YUV

Audio: 24-Bit, 48 kHz

Color Precision

10-Bit

Color Space

REC 601, REC 709, REC 2020

3D LUTS can be Applied to SDI Monitor Out

Multiple Rate Support

Auto-Detection of SD, HD and 6G-SDI

HDR Support

Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

Codecs Supported

ProRes HQ QuickTime

ProRes 422 QuickTime

ProRes LT QuickTime

ProRes Proxy QuickTime for all Formats up to 2160p30

Playback only of:

ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs

DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps

DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps

H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive Formats up to 1080p60

Media Slots

2 x 2.5" SSD

2 x SD Card

Rack Size

1 RU

Power Input

1 x 110 to 240 VAC, 50/60 Hz Power Input

1 x 12 VDC, 4-Pin XLR Input

Power Consumption

100 W Maximum

Operating Temperature

32to 104°F/ 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Relative Humidity

0 to 90% Non-Condensing

Dimensions

19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.4 cm

Weight

4.65 lb / 2.1 kg
