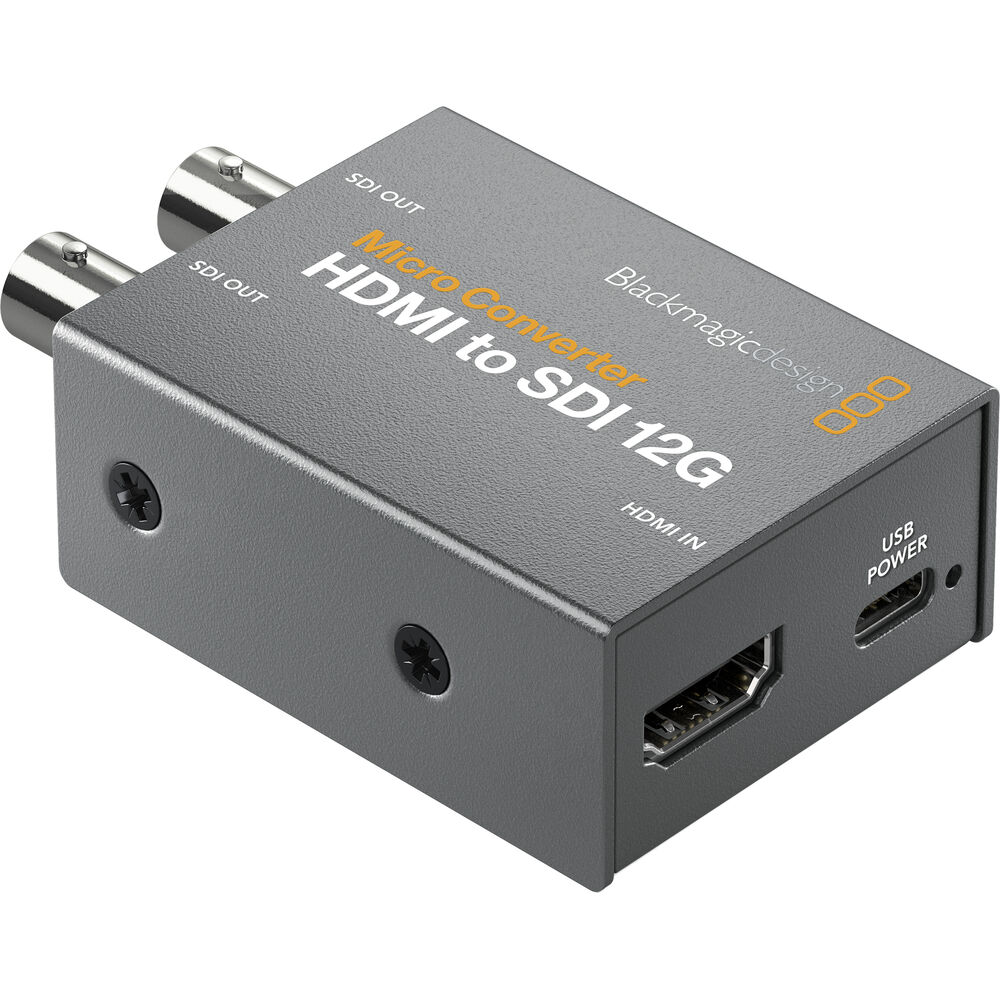

Blackmagic Design Micro Converter HDMI to SDI 12G

Rs. 11,050.00
This product is Out of stock



Key Features:
  • 1 x HDMI Input, 2 x 12G-SDI Outputs
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to DCI 4K60 Resolution I/O
  • SDI Re-Clocking, HDMI Copy Protection
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • Embedded Audio, USB Type-C Power
  • LED Video & Power Signal Indicators

Super compact and rugged, the Micro Converter HDMI to SDI 12G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances, using an SDI cable. This compact converter has one HDMI input and two 12G-SDI outputs, and they can be set to Level A or B when using 3G-SDI. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized Micro Converter HDMI to SDI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, HDMI copy protection, and support for a wide range of pro broadcast resolutions, including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.

Features:

Dual SDI Outputs

  • One HDMI input
  • Two 12G-SDI outputs
  • Selectable A and B level formats

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI

SDI Re-Clocking

  • Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60

Embedded Audio

  • Supports embedded HDMI input and embedded SDI output

LED Indicators

  • LED indicators for video and power signals

Technical Specifications:

Video Input Connectors

1 x HDMI (HDMI 2.0) Female

Input Video Format

HDMI (8/10-Bit 4:2:2 RGB, YUV)

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

UHD 4K: 24/25/29.97/30/47.95/48/50/59.94/60 fps

1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 29.97 fps

PAL: 25 fps

Audio Input Connectors

None

Embedded Audio Input

HDMI

Video Output Connectors

2 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female

Output Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

1080PsF: 25/29.97/30 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 29.97 fps

PAL (768 x 576): 25 fps

Audio Output Connectors

None

Embedded Audio Output

SDI

Video Standard Compliance

SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084

HDCP Support

Version 2.2

HDR Compatibility

Not Specified by Manufacturer

Other I/O

1 x USB Type-C Control, Service Input

Expansion Slots

None

OS Compatibility

macOS 10.15.15 or Later

macOS 11.1 or Later

Windows 10

Power Connector

1 x USB Type-C (4.4 to 5.2 VDC) Input

Power Consumption

Device: 4 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90% (Non-Condensing)



In the Box:

  • Blackmagic Design Micro Converter HDMI to SDI 12G (Power Supply Unit for "With Power Supply" Variant)
  • Limited 3-Year Warranty
