Blackmagic Design Micro Converter HDMI to SDI 3G

Rs. 5,876.00 Rs. 5,799.00

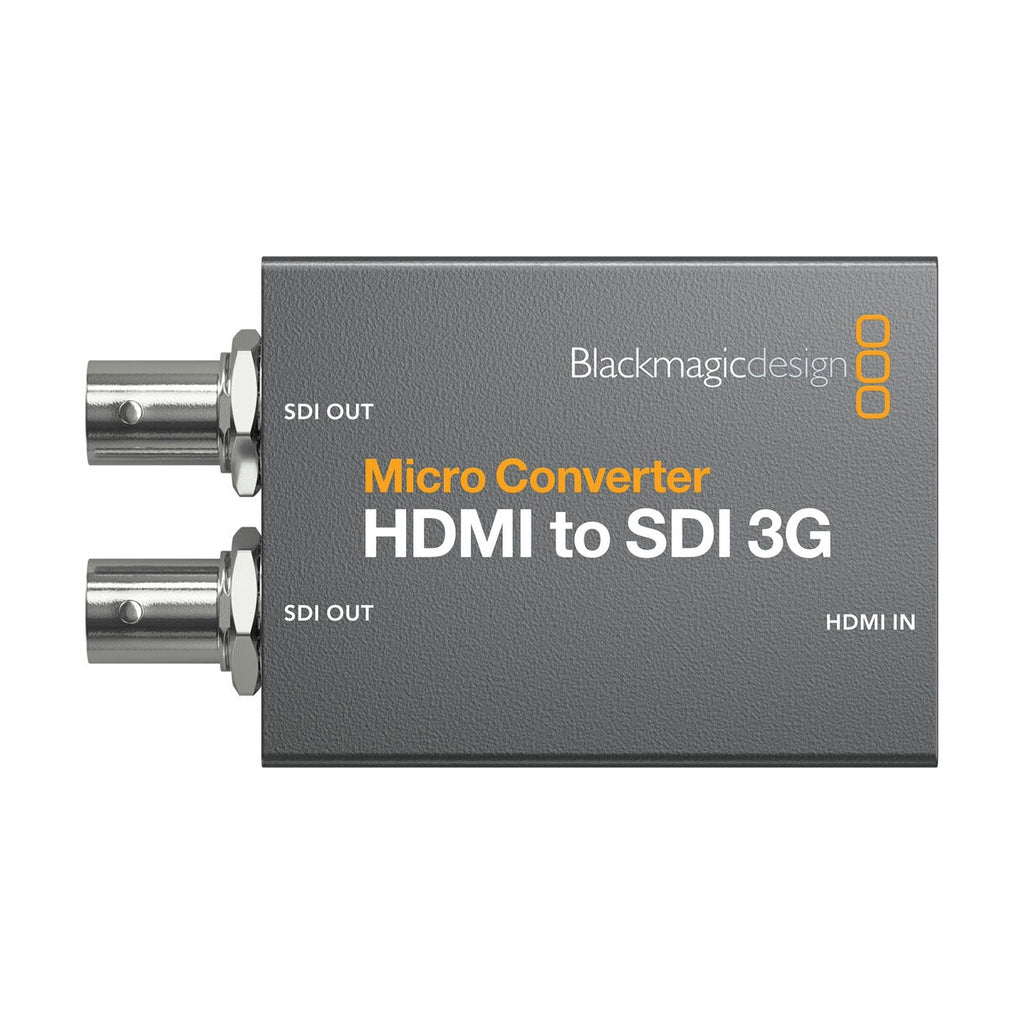

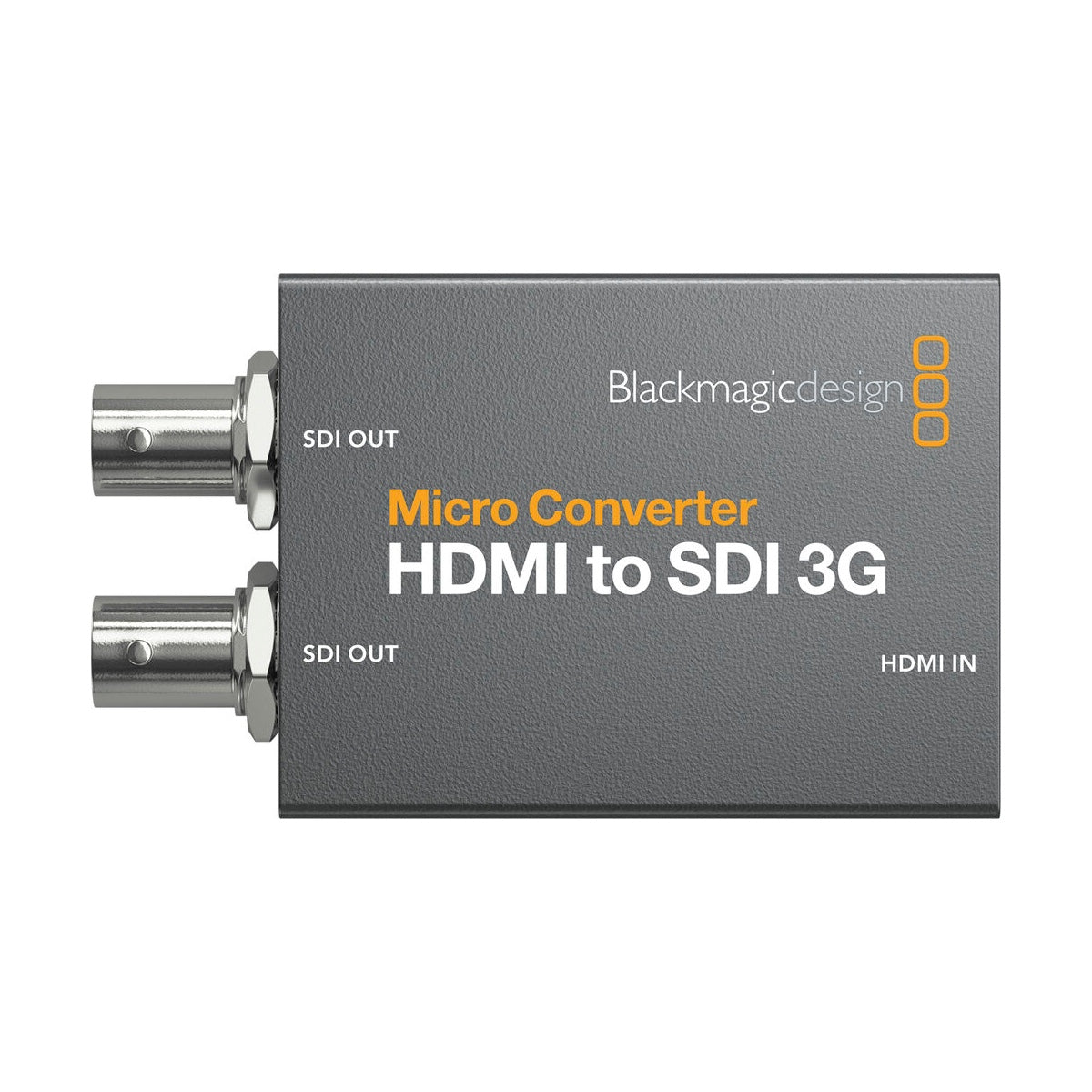

Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

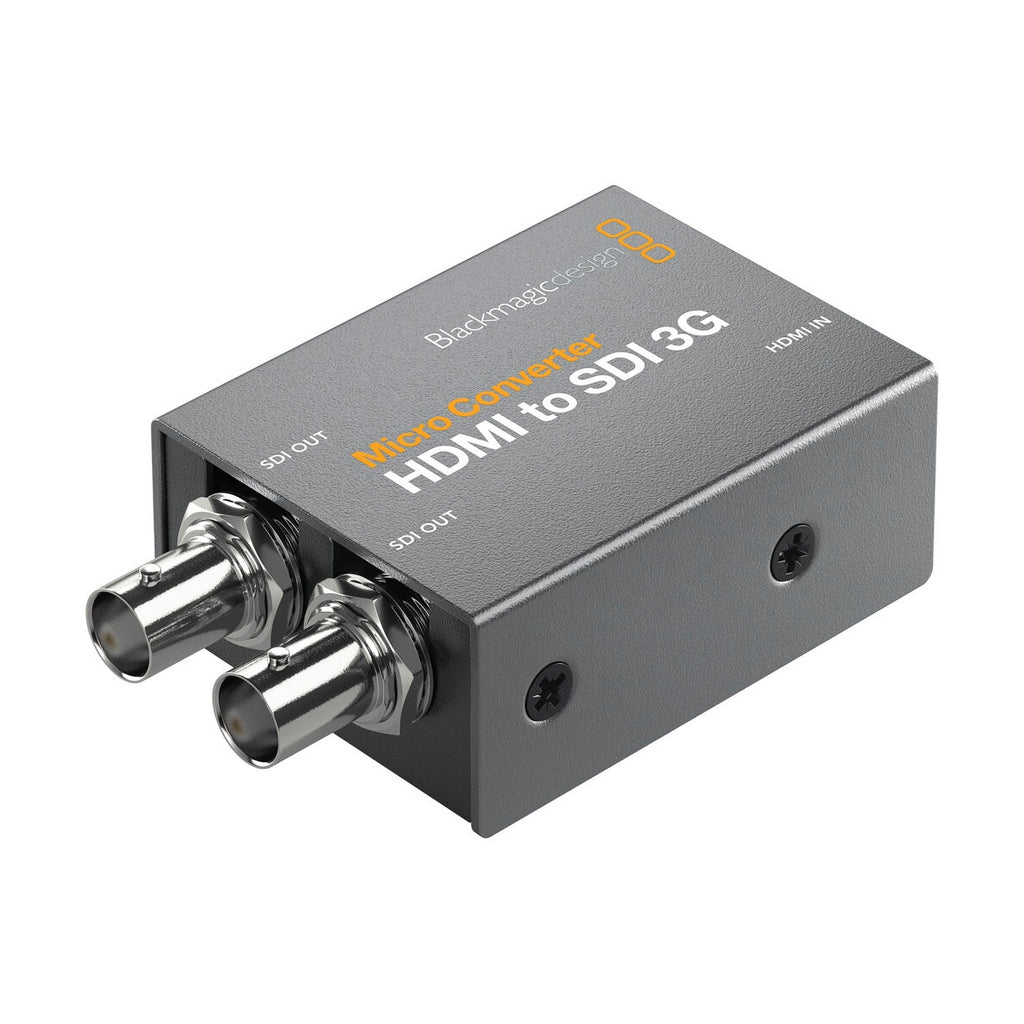

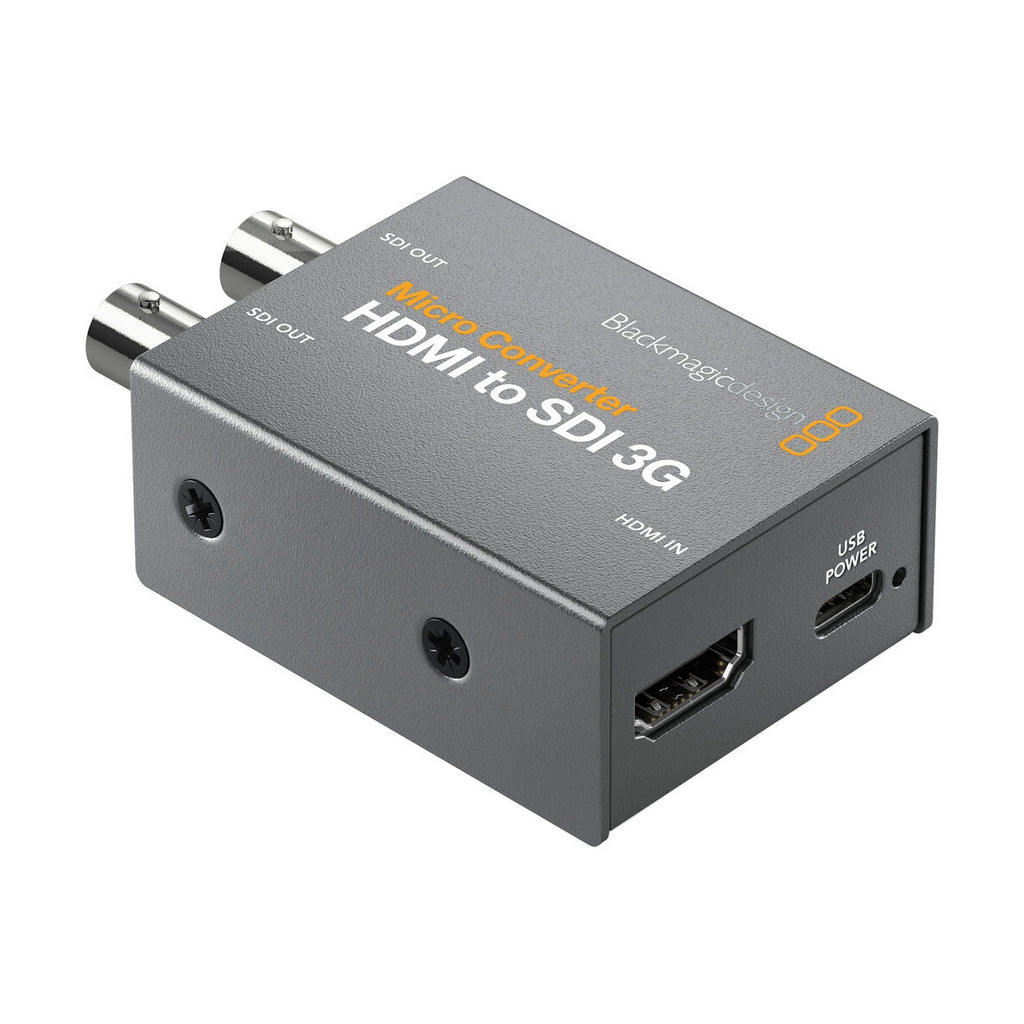

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Features:

Dual SDI Outputs

  • One HDMI input
  • Two 3G-SDI outputs
  • Selectable A and B level formats

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI

SDI Re-Clocking

  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

  • Supports embedded HDMI input and embedded SDI output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port

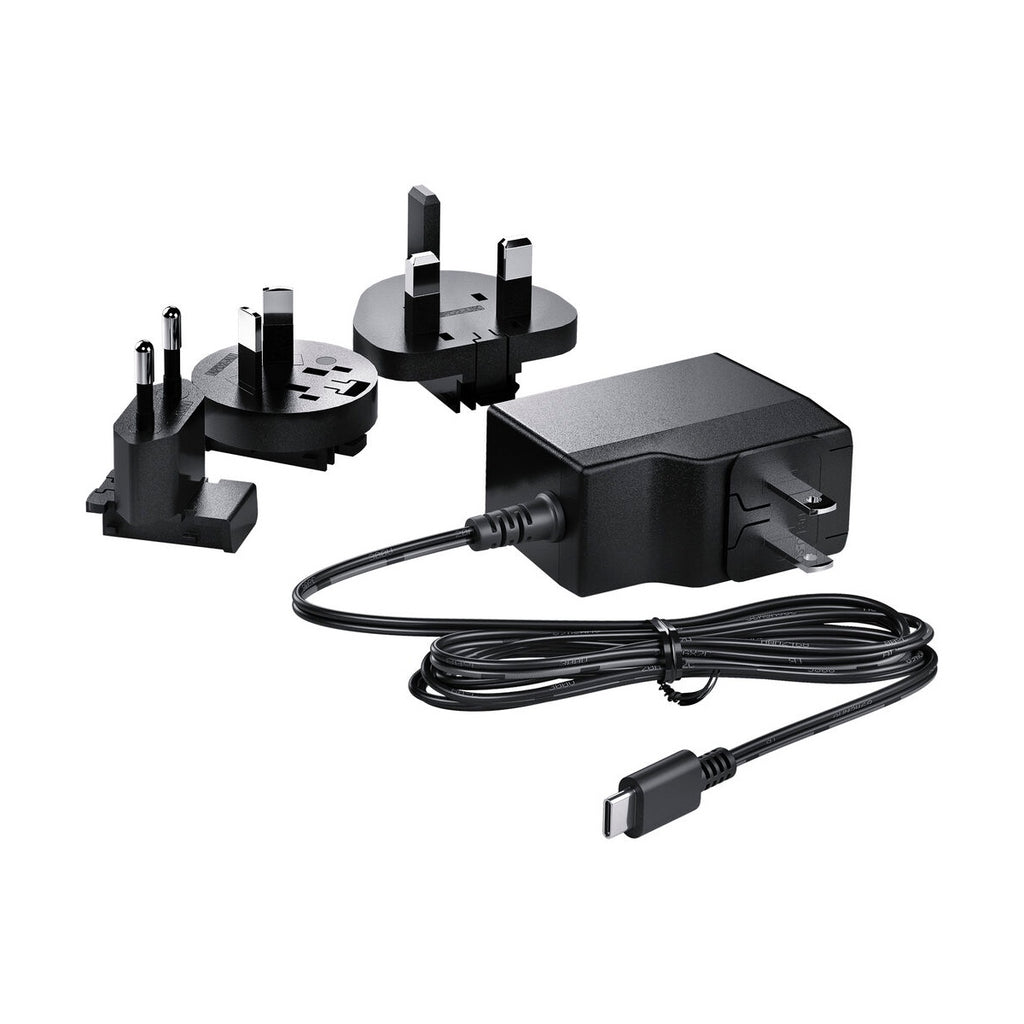

  • Includes a 100-240 AC power supply with four socket adapters

Technical Specifications:

Input

Video Input Connectors

1 x HDMI (HDMI 2.0)

Input Video Format

HDMI (8/10-Bit 4:2:2 RGB, YUV)

1080p: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 29.97 fps

PAL: 25 fps

Audio Input Connectors

None

Embedded Audio Input

HDMI



Output

Video Output Connectors

2 x BNC (3G-SDI / HD-SDI / SD-SDI)

Output Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 2K: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

DCI 2KPsF: 25/29.97/30 fps

1080p: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

1080PsF: 25/29.97/30 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 29.97 fps

PAL (768 x 576): 25 fps

Audio Output Connectors

None

Embedded Audio Output

SDI



Standards

Video Standard Compliance

SMPTE 259M/292M/296M/424M/425M

HDCP Support

Version 2.2



Connectivity

Other I/O

1 x USB Type-C Input

Expansion Slots

None



Hardware

OS Compatibility

macOS 10.14.15 or Later

Windows 10



Power

Power Connector

1 x USB Type-C (4.4 to 5.2 VDC) Input

Power Consumption

2 W



Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%



General

Dimensions

3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm

Weight

150 g

Warranty Length

Limited 3-Year Warranty



What's Included:

Micro Converter HDMI to SDI 3G

Power Supply Unit (Only for wPSU)
