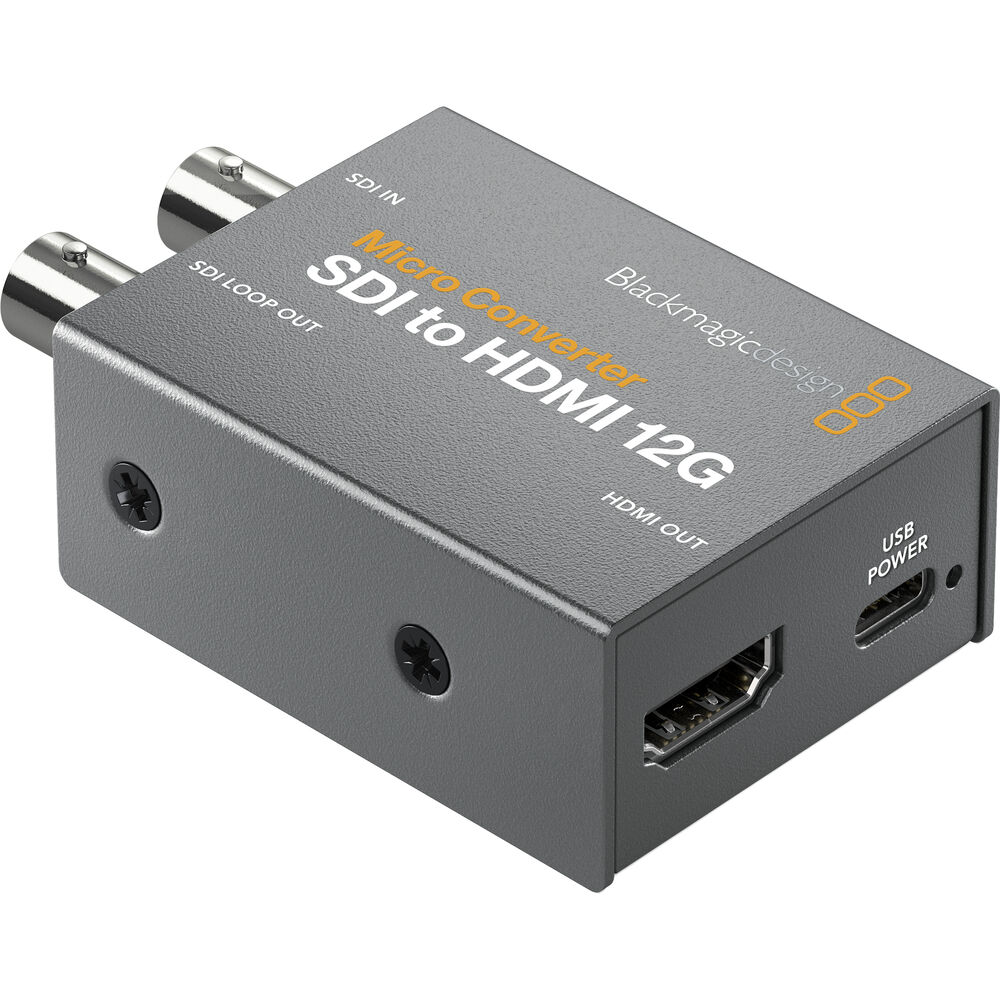

Blackmagic Design Micro Converter SDI to HDMI 12G
This product is Out of stock
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 17-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.
The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.
Features:
I/O
- One 12G-SDI input
- One HDMI output
- One 12G-SDI loop output
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
SDI Re-Clocking
- Built-in re-clocking on HDMI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio
- Supports embedded SDI input and embedded HDMI output
LED Indicators
- LED indicators for video and power signals
Technical Specifications:
|
Video Input Connectors |
1 x BNC (12G-SDI / 3G-SDI) Female |
|
Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
|
Audio Input Connectors |
None |
|
Embedded Audio Input |
SDI |
|
Video Output Connectors |
1 x HDMI (HDMI 2.0) Female 1 x BNC (12G-SDI / 3G-SDI) Female (Loop Output) |
|
Output Video Format |
HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
|
Audio Output Connectors |
None |
|
Embedded Audio Output |
HDMI |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
|
HDCP Support |
Version 2.2 |
|
HDR Compatibility |
Not Specified by Manufacturer |
|
Other I/O |
1 x USB Type-C Control, Firmware Input |
|
Expansion Slots |
None |
|
OS Compatibility |
macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 |
|
Power Connector |
1 x USB Type-C (4.4 to 5.2 VDC) Input |
|
Power Consumption |
Device: 4 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Operating Humidity |
0 to 90% (Non-Condensing) |
In the Box:
- Blackmagic Design Micro Converter SDI to HDMI 12G (Power Supply Unit for "With Power Supply" Variant)
- Limited 3-Year Warranty
