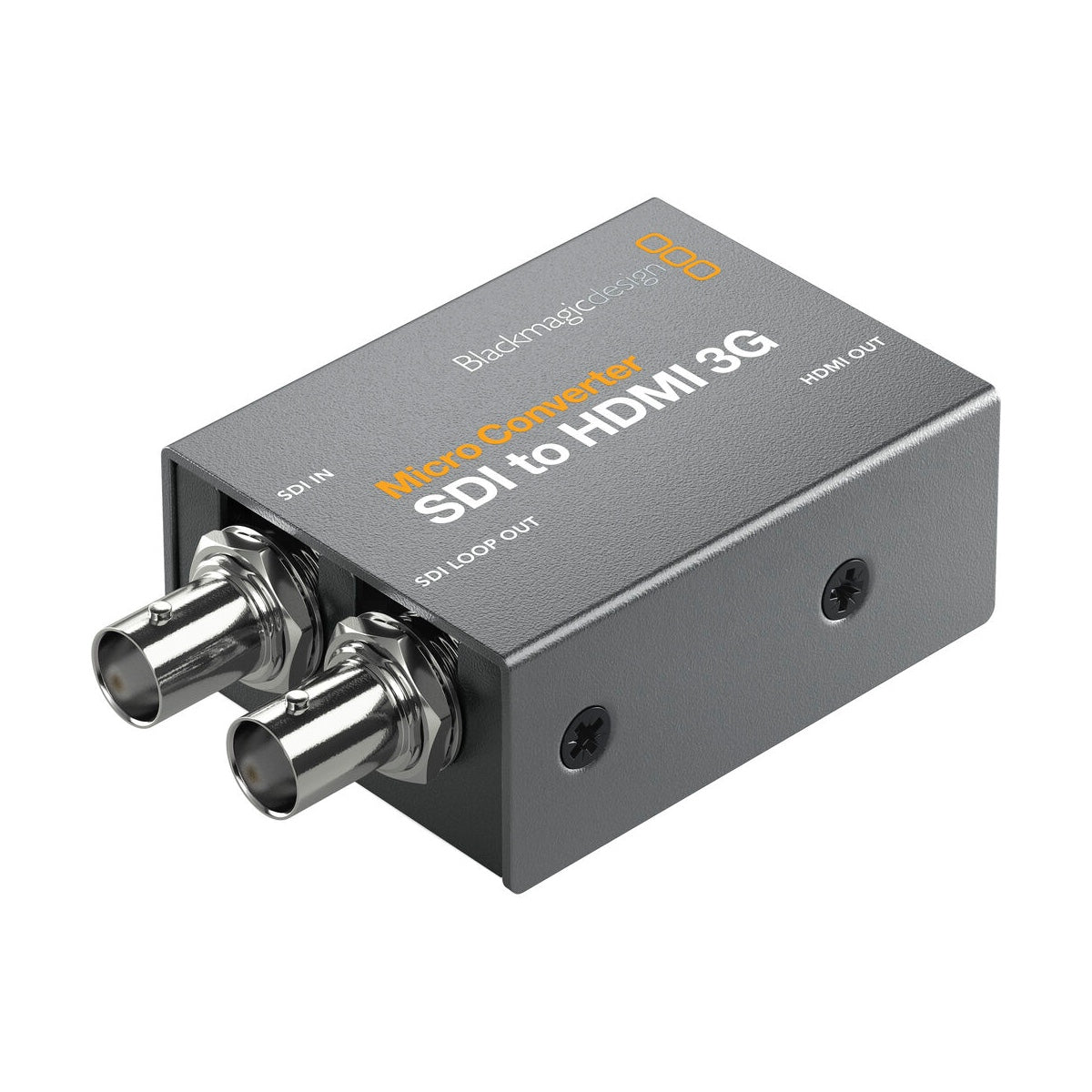

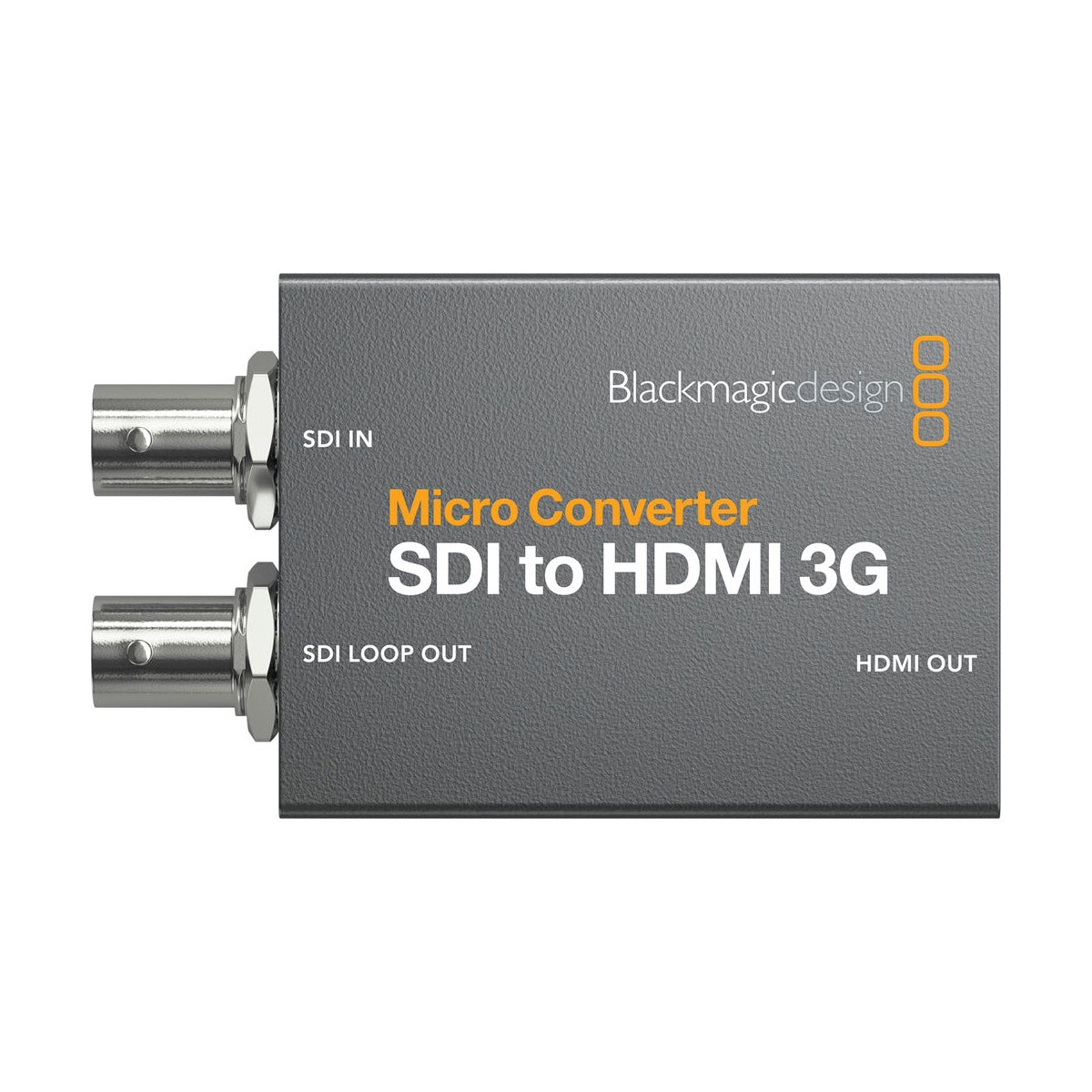

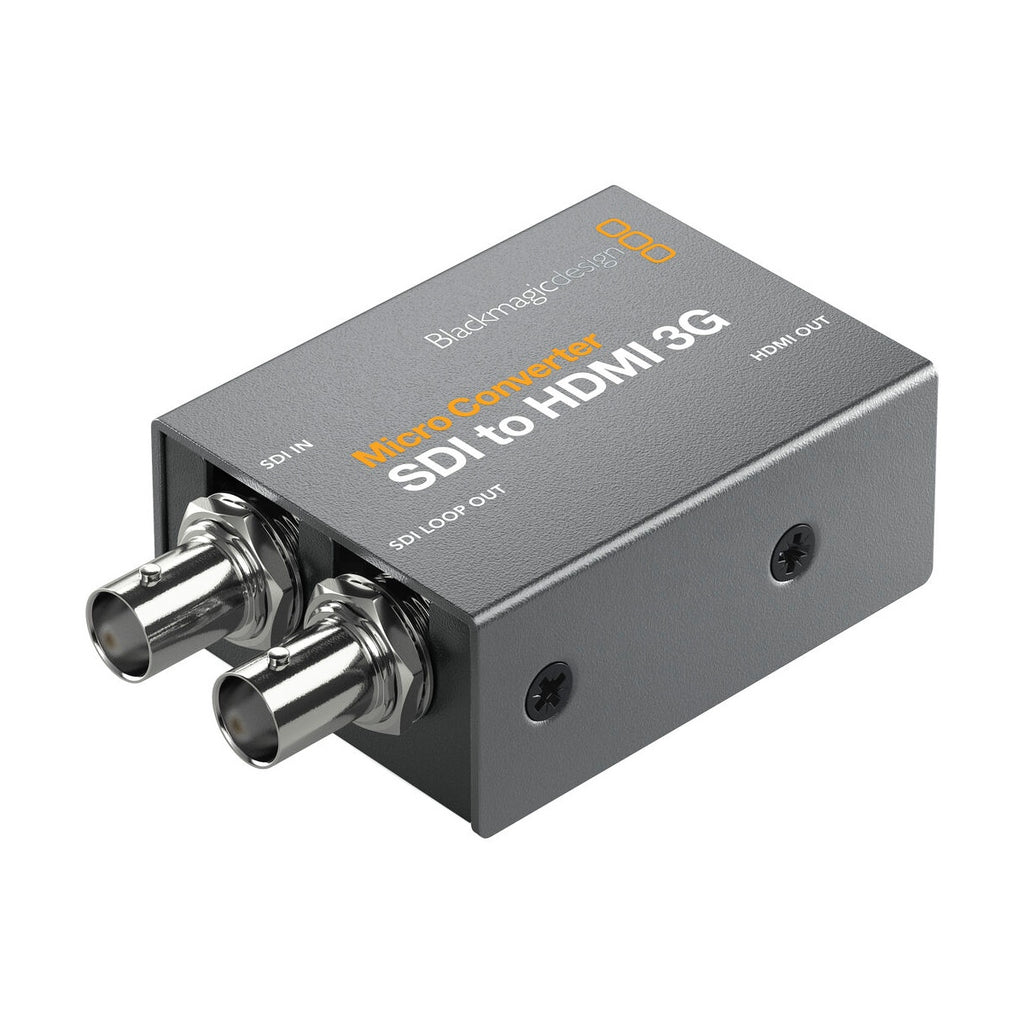

Blackmagic Design Micro Converter SDI to HDMI 3G

Rs. 5,000.00

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

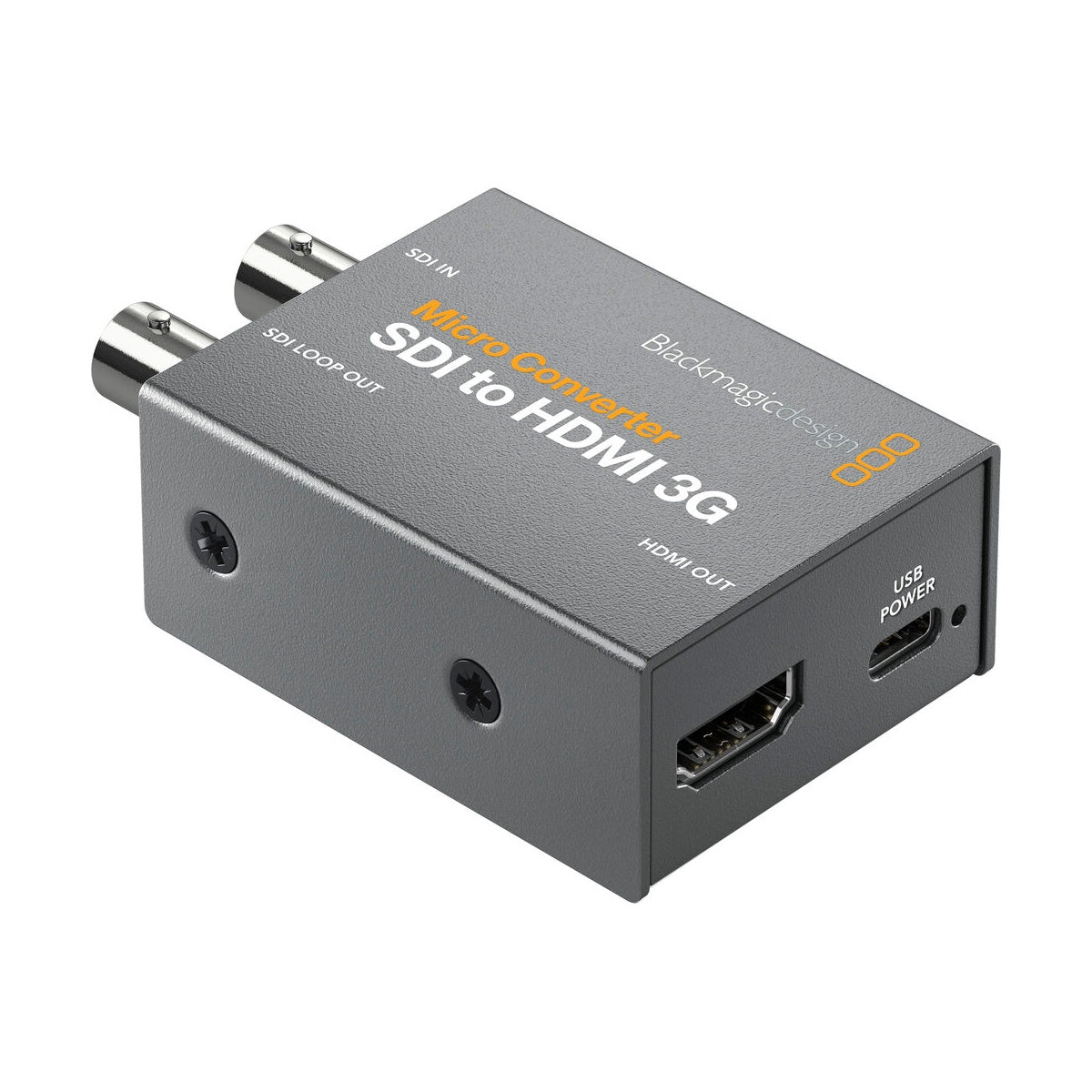

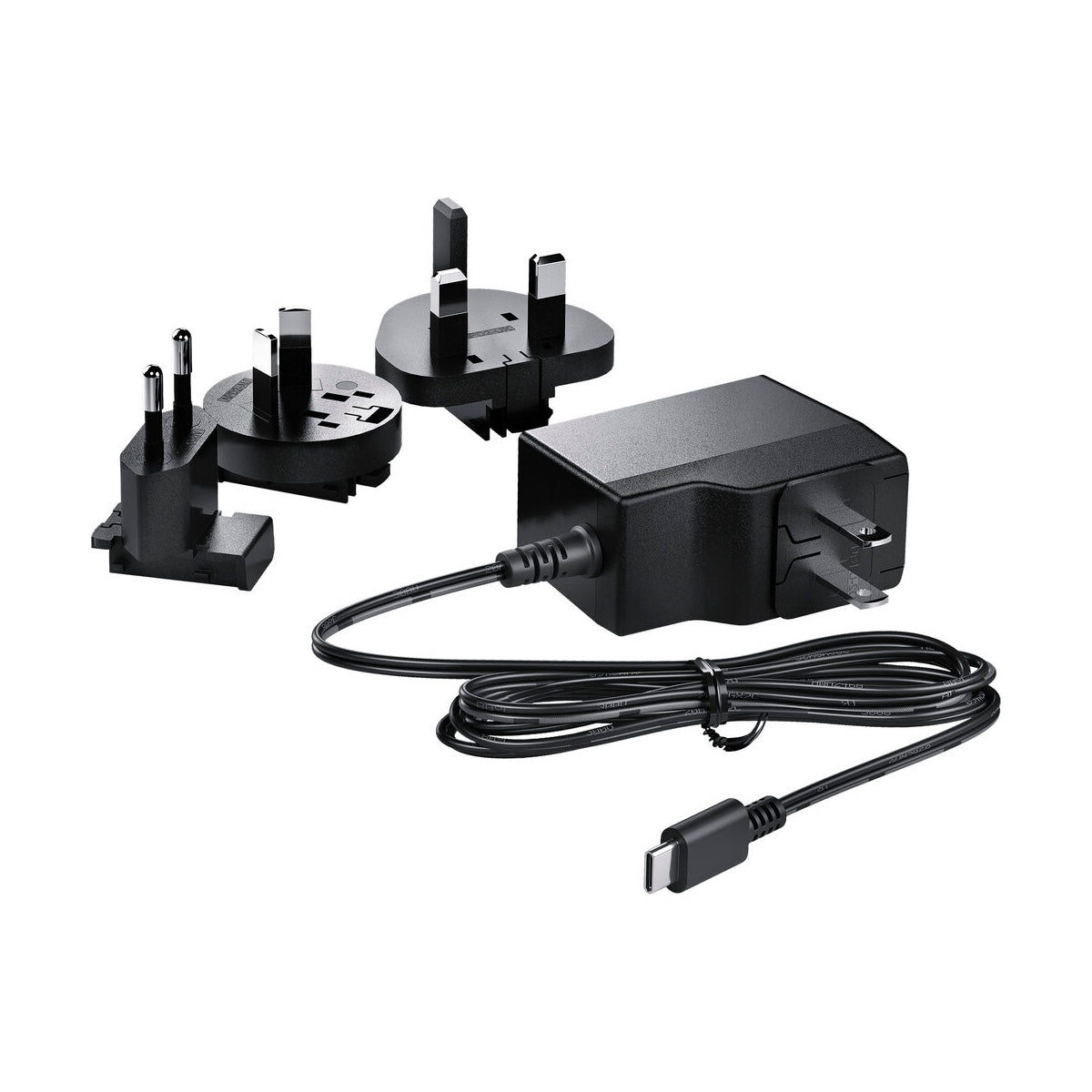

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Features:

HDMI & SDI Outputs

  • One SD/HD/3G-SDI input
  • One HDMI output and one SD/HD/3G-SDI loop output

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

3D LUT Support

  • Supports a 7-point 3D LUT for color calibrating your monitor, television, or projector
  • Outputs LUT for monitoring via SDI loop output

Wider Resolution Support

  • SDI support up to DCI 2Kp60
  • HDMI support up to 1080p60

Embedded Audio

  • Supports embedded HDMI input and embedded SDI output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Includes a 100-240 AC power supply with four socket adapters

Technical Specifications:

Input

Video Input Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI)

Input Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 2K: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

DCI 2KPsF: 25/29.97/30 fps

1080p: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

1080PsF: 25/29.97/30 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 59.94 fps

PAL: 50 fps

Audio Input Connectors

None

Embedded Audio Input

SDI



Output

Video Output Connectors

1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output)

1 x HDMI

Output Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 2K: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

DCI 2KPsF: 25/29.97/30 fps

1080p: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

1080PsF: 25/29.97/30 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 29.97 fps

PAL (768 x 576): 25 fps

HDMI (8/10-Bit 4:2:2 RGB, YUV)

1080p: 23.98/24/25/29.97/30/47.95/

48/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 29.97 fps

PAL (768 x 576): 25 fps

Audio Output Connectors

None

Embedded Audio Output

HDMI

SDI



Standards

Video Standard Compliance

SMPTE 259M/292M/296M/424M/425M-A/425M-B

HDCP Support

Version 2.2



Connectivity

Other I/O

1 x USB Type-C Input

Expansion Slots

None



Hardware

Tally Light

Yes

OS Compatibility

macOS 10.14.15 or Later

Windows 10



Power

Power Connector

1 x USB Type-C (4.4 to 5.2 VDC) Input

Power Consumption

2.5 W



Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%



General

Dimensions

3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm

Weight

150 g

Warranty Length

Limited 3-Year Warranty



What's Included:

Micro Converter SDI to HDMI 3G

Power Supply (Only for wPSU)
