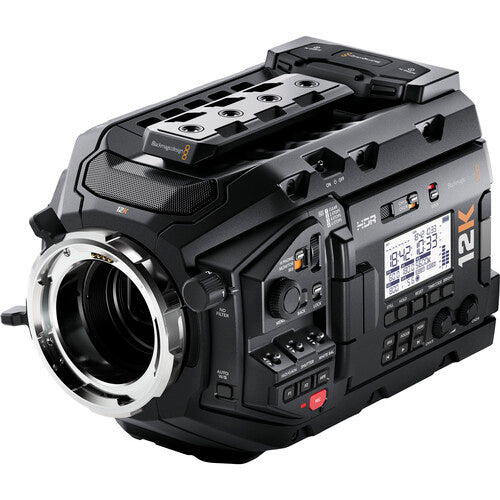

Blackmagic Design URSA Mini Pro 12K with OLPF

Name: Blackmagic Design URSA Mini Pro 12K with OLPF
Brand: Blackmagic Design
SKU: CINEURSAMUPRO12KOLPF
Price: 645000 INR
Availability: InStock

Rs. 727,824.00 Rs. 645,000.00

- +

Blackmagic Design ⁄ Blackmagic Design URSA Mini Pro 12K with OLPF

Key Features:

12K Super35 HDR CMOS Sensor
12K 17:9 at 60 fps | 12K 2.4:1 at 75 fps
OLPF for Reduced Moire and Aliasing
Updated IR Filtering
DCI 8K at 120 fps, 14-Stop Dynamic Range
User-Changeable PL Lens Mount
4K Super16 up to 220 fps
80MP/frame Blackmagic Raw
Dual CFast 2.0 or SD Card Recording
USB-C Recording to Disk/SSD

URSA Mini Pro 12K: Digital Film Revolution

Step your cine-style video recording up to 12K with the URSA Mini Pro 12K Digital Cinema Camera with OLPF from Blackmagic Design. This pro video camera uses a 12,288 x 6480 12K Super35 sensor, a new color science, and up to 14 stops of dynamic range to produce extraordinarily detailed images. The URSA Mini Pro 12K OLPF uses an optical low pass filter that minimizes unwanted image interference when shooting in virtual production environments and also offers updated IR filtering. The camera records up to 80MP per frame in Blackmagic Raw and offers flexible recording options that include dual CFast 2.0 card capture and high-speed USB-C output. Recording rates include up to 60 fps in 12K 17:9 full sensor, up to 75 fps in 12K 2.4:1, 120 fps in 8K, and up to 240 fps in 4K Super16.

Rich Film Look with Digital Definition

The URSA Mini Pro 12K's massive resolution gives you the immersive detail, wide dynamic range, and deep color of film combined with an incredible definition around objects that is perfect for chromakeying, VFX, and IMAX imaging. Oversampling from 12K down to 8K or 4K both improves color and eliminates aliasing for an ultra-smooth look.

Super35 12K Sensor Delivers a Cinematic View

The URSA Mini Pro 12K's new sensor has a native resolution of 12,288 x 6480 that produces a whopping 80 MP per frame. This sensor is designed with equal representations of red, green, and blue pixels, an 800 native ISO, and 14 stops of dynamic range. In-sensor scaling provides 8K and 4K rates up to 110 fps without cropping or a change in the field of view. The 12K sensor also enables you to reframe shots in post to get an 8K or 4K multicamera look using a single camera.

Virtual Cinema Production

The URSA Mini Pro 12K OLPF adds a high-performance, optical low-pass filter that is precisely matched to the 12K sensor. When shooting in virtual production environments, the high frequencies of the LED matrix in video walls can cause problems for ultra-sharp modern lenses and high-resolution sensors, creating interference patterns. Using an optical low pass filter minimizes that interference, which results in a reduction of moire and aliasing. The OLPF also incorporates updated IR filtering that improves far red color response which, when combined with Blackmagic RAW processing for the URSA Mini Pro 12K OLPF, preserves color and critical image detail for new levels of image fidelity.

Interchangeable PL Lens Mount

The front of the URSA Mini Pro 12K sports an interchangeable PL lens mount, enabling you to choose from an array of current and vintage pro cine lenses from multiple manufacturers.
Canon EF and Nikon F mounts are available separately for shooters who have their own glass.

Generation 5 Color Science

The Gen 5 color science's new film curve takes advantage of the huge amounts of color data produces by the URSA Mini Pro 12K's sensor. The result is more attractive skin tones and improved color saturation for images like neon signs and car taillights.

Efficient 12-Bit Raw Workflow in 12K with Blackmagic Raw

A new codec enables you to use Blackmagic Raw to edit your URSA Mini Pro 12K footage on a laptop and to edit in any resolution without needing to render before your final version.

Lightweight, Ergonomic Form

An evenly weighted, lightweight yet robust magnesium alloy design makes the URSA Mini Pro 12K perfect for either handheld work or tripod-based shots.
Additional camera features include 12G-SDI input and output, a 4" fold-out display, built-in ND filters, ergonomic controls, timecode and reference input, and 48V phantom power XLR audio.
A digital slate function and lens metadata capture ease your URSA Mini Pro 12K workflow transition from capture to post.
Camera setup 7.0 includes Blackmagic Raw stills capture and broadcast lens support.

Two Encoding Methods

Choose between Constant Quality and Constant Bitrate encoding as best suits your need. Use constant quality Q0 or Q5 options or the new Q1 and Q3 choices to lock the quality level and enable compression levels to adapt, matching the detail levels of each scene. Turn to Constant Bit Rate 5:1, 8:1, and 12:1 options or the new 18:1 choice when you prefer optimal imaging with predictable and consistent file sizes.

Flexible, High-Bandwidth Recording Options

Dual built-in CFast 2.0 and UHS-II SD card slots and a SuperSpeed USB-C expansion port provide three methods for capturing 12K video.
A "Record Raw on 2 Cards" option enables you to record across two cards simultaneously at speeds up to an impressive 900 MB/s to two CFast 2.0 cards, or to 500 MB/s to two UHS-II SD cards.
The third option is capturing to NVMe SSD drives via a USB-C 3.2 Gen 2 port at rates up to 10 Gb/s.

Technical Speicifcations:

Lens Mount	ARRI PL
Lens Communication	Yes
Sensor Resolution	Effective: 79.6 Megapixel (12,288 x 6480)
Image Sensor	27.03 x 14.25 mm (Super35) CMOS
Image Stabilization	None
Built-In ND Filter	Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type	Stills & Video
Shutter Type	Electronic Rolling Shutter
ISO Sensitivity	125 to 3200
Advertised Dynamic Range	14 Stops
Internal Recording Modes	Blackmagic RAW 12-Bit 12288 x 6480 up to 60.00 fps [72 to 578 Mb/s] 11520 x 6480 up to 60.00 fps 12288 x 5112 up to 75 fps 7680 x 6408 8192 x 4320 [32 to 258 Mb/s] 7680 x 4320 8192 x 3408 up to 160 fps 5120 x 4272 up to 160 fps 6144 x 3240 [18 to 145 Mb/s] 4096 x 2160 up to 240 fps [8 to 65 Mb/s] 3840 x 2160 4096 x 1704 up to 160 fps 2560 x 2136 up to 160 fps
External Recording Modes	Raw via USB 12288 x 6480 8192 x 4320 6144 x 3240 4096 x 2160
Sensor Crop Modes	Super35 / APS-C
Fast-/Slow-Motion Support	Yes
Broadcast Output	NTSC/PAL
Built-In Microphone Type	Stereo
Audio Recording	2-Channel 24-Bit 48 kHz
IP Streaming	None
Aspect Ratio	1:1, 2:1, 4:3, 4:5, 16:9
Image File Format	Raw
Media/Memory Card Slot	Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O	1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output
Audio I/O	2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
Power I/O	1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output
Other I/O	1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input
Wireless	None
Mobile App Compatible	Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.)	None
Size	4.0"
Display Type	Articulating Touchscreen LCD
Secondary Display	Side: Status Display
Type	Optional, Not Included
Focus Type	Auto and Manual Focus
Focus Mode	Automatic, Manual Focus
Operating Temperature	32.0 to 104.0°F / 0.0 to 40.0°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90%
Accessory Mount	4 x 1/4"-20 Female 1 x ARRI/Hirth Rosette
Dimensions (W x H x D)	9.2 x 5.92 x 5.87" / 23.4 x 15.04 x 14.91 cm
Weight	5.62 lb / 2.55 kg
