Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router

Rs. 266,444.00 Rs. 254,999.00
Key Features:
  • Zero-Latency Routing Switcher
  • 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
  • Supports Up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video
  • Push-Button, Knob & Ethernet Control
  • 2.2" Front Panel LCD Status Display
  • SDI Reclocking, Compact 1RU Size
  • Includes Videohub Mac/Windows Software

Support a mix of multiple video formats using the Videohub 20x20 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20x20 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.

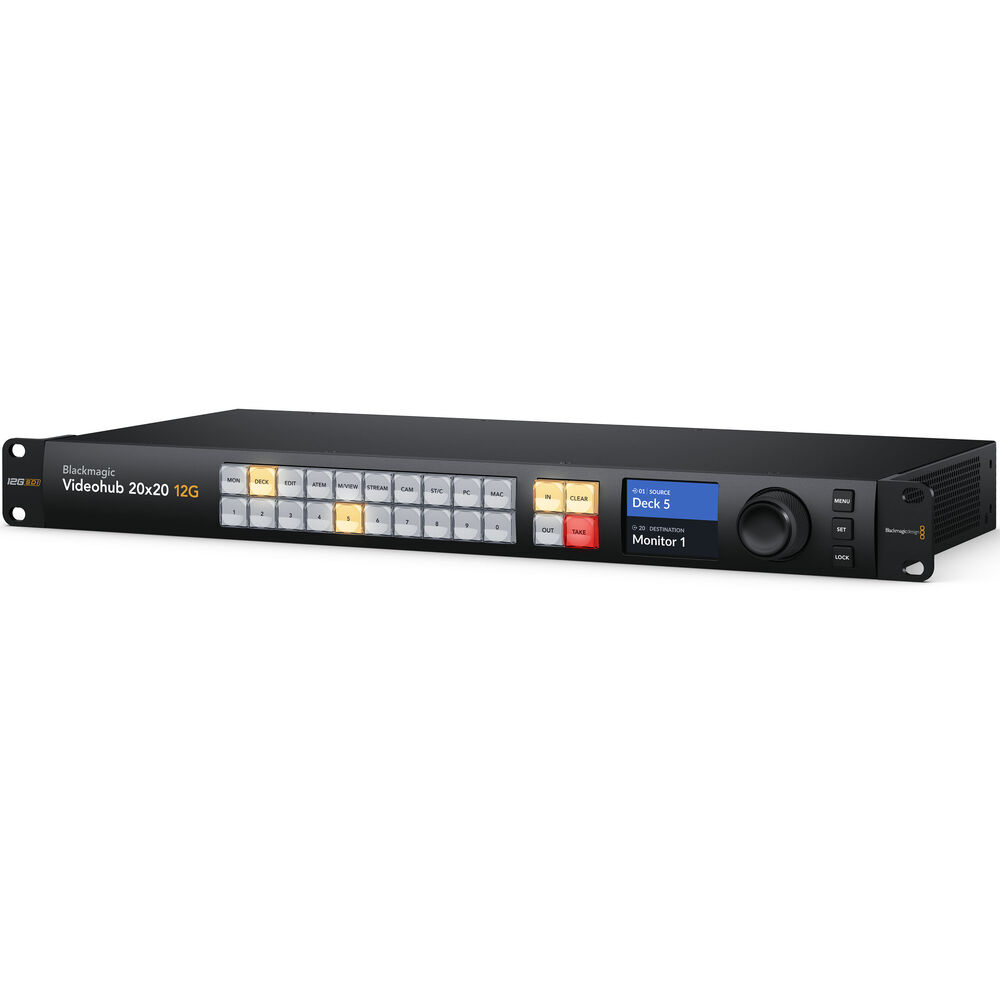

Front Panel Controls
  • A sleek front panel offers multiple control options.
  • Buttons include assignable shortcuts, and In, Out, Clear and Take buttons.
  • The machined metal spin knob provides precise control using an electronic clutch.
Built-In LCD
  • View your live input before routing the signal on the built-in 2.2" LCD screen.
  • Bottom labels enable you to scroll through your sources in alphabetical order.
  • Eliminates the need to add an external SDI monitor to your setup.
12G-SDI Multi-Rate Connections
  • Multi-rate 12G-SDI connections enable you to route up to 20 different video standards at the same time.
  • Supports up to DCI 4K60 video resolutions.
  • Provides 4:2:2 8 or 10-bit color routing in any standard.
  • Works with 4:4:4 12-bit SDI up to DCI 4K30 for features films.
SDI Reclocking
  • Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
  • Reduces or eliminates signal loss and jitter when using longer cables.
Optional Hardware Control Panels
  • Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
  • Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
Flexible Control
The Mac and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.

Setup Utility and SDK
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.

Multiple Language Support
Customized support is available in:
  • English, Chinese, Japanese, Korean
  • Spanish, German, French, Russian
  • Italian, Portuguese, Turkish, Polish, Ukrainian

Technical Specifications:

Switching Type

Pushbutton, Software

Processing Resolution

DCI 4K at 60

Color Processing

8-Bit 4:2:2

10-Bit 4:2:2

12-Bit 4:4:4

Audio Processing

48 kHz / 24-Bit

Video Inputs

20 x BNC (12G-SDI)

Input Video Format

SDI (10/12-Bit 4:4:4 RGB, YUV)

DCI 4K up to 30 fps

UHD 4K up to 30 fps

DCI 2K up to 60 fps

DCI 2KPsF up to 30 fps

1080p up to 60 fps

1080PsF up to 30 fps

1080i up to 60 fps

SDI (10-Bit 4:2:2 RGB, YUV)

DCI 4K up to 60 fps

UHD 4K up to 60 fps

DCI 2K up to 60 fps

DCI 2KPsF up to 30 fps

1080p up to 60 fps

1080PsF up to 30 fps

1080i up to 60 fps

720p at 50/59.94/60 fps

576i / 625 lines at 50 fps

480i / 525 lines at 59.94 fps

Embedded Audio Input

SDI

Video Outputs

20 x BNC (12G-SDI)

Output Video Format

SDI (10/12-Bit 4:4:4 RGB, YUV)

DCI 4K up to 30 fps

UHD 4K up to 30 fps

DCI 2K up to 60 fps

DCI 2KPsF up to 30 fps

1080p up to 60 fps

1080PsF up to 30 fps

1080i up to 60 fps

SDI (10-Bit 4:2:2 RGB, YUV)

DCI 4K up to 60 fps

UHD 4K up to 60 fps

DCI 2K up to 60 fps

DCI 2KPsF up to 30 fps

1080p up to 60 fps

1080PsF up to 30 fps

1080i up to 60 fps

720p at 50/59.94/60 fps

576i / 625 lines at 50 fps

480i / 525 lines at 59.94 fps

Embedded Audio Output

SDI

Other I/O

1 x RJ45 LAN

1 x USB-C

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10

ITU -R BT.601/BT.656

Display Size

2.2"

OS Compatibility

macOS 12.0

macOS 13.0 or Later

Windows 10 (64-Bit Only)

Windows 11

*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Wi-Fi

None

Bluetooth

None

Power I/O

1 x IEC C14 (100 to 240 VAC) Input

Power Consumption

27.5 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90% (Non-Condensing)

Rack Form Factor

1 RU

Dimensions

19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm

Weight

7.87 lb / 3.57 kg



In the Box:

  • Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
  • Router Control Software
  • Internal Software Updater Application
  • Limited 1-Year Manufacturer Warranty
