SDI Video Inputs

4

SDI Video Outputs

5 (12G-SDI A, B, C, D, and 3G-SDI Monitor Out)

SDI Data Rates

270 MB/s, 1.5G, 3G, 6G, 12G

HDMI Video Inputs

1 x HDMI 2.0 Type A

HDMI Video Outputs

1 x HDMI 2.0 Type A

Analog Video Inputs

1 x Component YUV on 3 BNCs

1 x Composite NTSC/PAL on 1 BNC

Analog Video Outputs

None

Analog Audio Inputs

4 Channels of Professional Balanced Analog Audio via XLR Connectors

2 Channels of Consumer Unbalanced via RCA connectors

Speaker

Built-In Mono Speaker

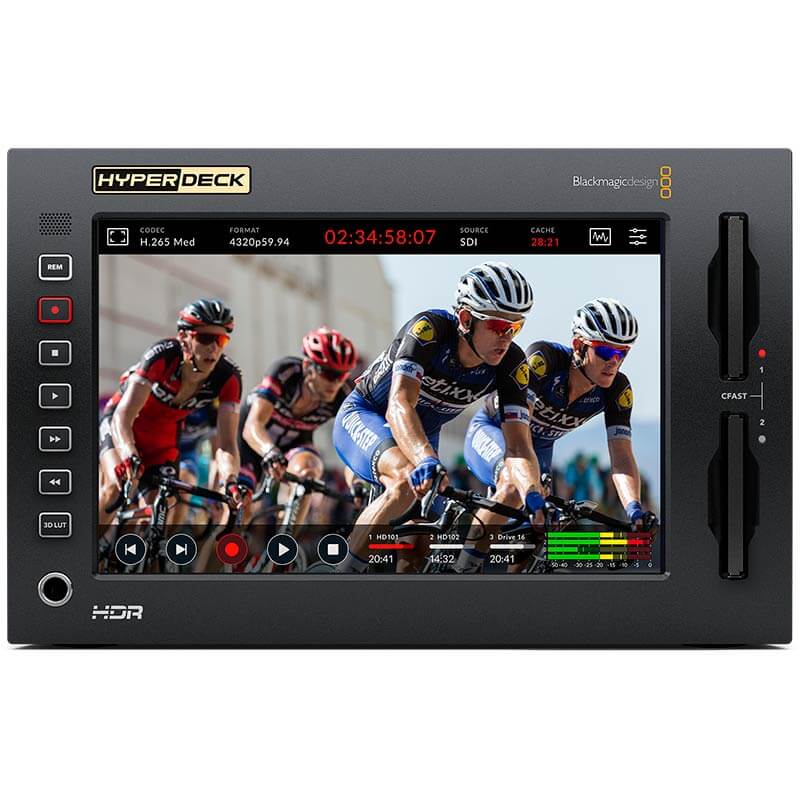

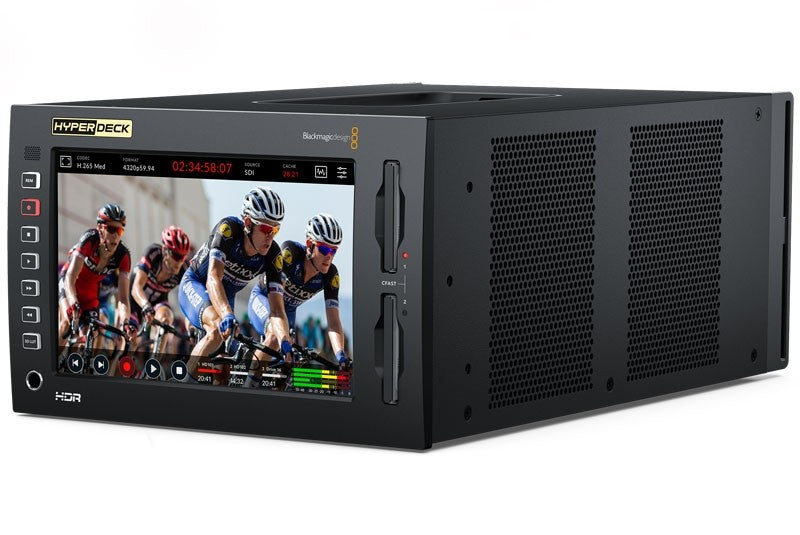

Display

7" with 1920 x 1200 Resolution, 2000 cd/m², DCI-P3 100% HDR LCD

Timecode Input & Output

1 x XLR Input

1 x XLR Output

Reference Input

Tri-Sync or Black Burst

SDI Audio Inputs

16 Channels of Embedded Audio

SDI Audio Outputs

16 Channels of Embedded Audio

HDMI Audio Inputs

8 Channels of Embedded Audio

HDMI Audio Outputs

8 Channels of Embedded Audio

Remote Control

1 x RS-422 Input

1 x RS-422 Output

Recorder Configuration

Via User Interface or Blackmagic HyperDeck Ethernet Protocol

Ethernet

10 Gb/s

External Recording Output

1 x USB Type-C 3.1 Gen 2 (up to 10 Gb/s) for External Disk Recording

Computer Interface

1 x USB Type-C for Software Updates

SD Video Standards

525i: 59.94 NTSC

625i: 50 PAL

HD Video Standards

1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

1080PsF: 30, 29.97, 25, 24, 23.98

1080i: 60, 59.94, 50

720p: 60, 59.94, 50

2K DCI Video Standards

1080p: 25, 24, 23.98

1080PsF: 25, 24, 23.98

UHD Video Standards

2160: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

4K DCI Video Standards

2160p: 25, 24, 23.98

8K Video Standards

4320: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

8K DCI Video Standards

4320p: 25, 24, 23.98

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084

SDI Metadata Support

HD RP188 and Closed Captioning CEA-708, HDR Metadata Supported on SDI

Audio Sampling

Television Standard 24-Bit, 48 kHz Sample Rate

Video Sampling

4:2:2 YUV

Color Precision

10-Bit

Color Space

Rec. 601, Rec. 709, Rec. 2020. 33-Point 3D LUTs Can Be Applied via the LUT Menu Tab.

Multi Rate Support

Autodetection of SD, HD, 6G-SDI, 12G-SDI, 2SI Quad-Link 12G-SDI.

Copy Protection

HDMI Input is Unable to Capture from Copy Protected HDMI Sources. Always Confirm Copyright Ownership Before Capture or Distribution of Content.

Cache Recording

Slot for Optional M.2 PCIe NVMe Card for Cache Recording up to 16 GB/s. 60, 80, and 110 mm Supported.

Media

2 x CFast 2.0 Card Slots and 1 x USB Type-C 3.1 Gen 2 Expansion Port for External Recording of SD, HD, UHD, and 8K.

Media Type

CFast Card and External USB Type-C Flash Drives

Media Format

Can Format Media to ExFAT (Windows/Mac) or HFS+ (Mac) File Systems

Supported Codecs

ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for All Formats up to 4320p60. H.265 High, H.265 Medium, H.265 Low for All Progressive Formats up to 4320p60.

Scopes

Waveform, RGB Parade, Vector, and Histogram Scopes in Broadcast-Quality 10-Bit

Viewing Modes

Picture-in-Picture; Picture Overlay with Opacity Control. Waveform and RGB Parade with Standard and HDR Graticules; Vector with Zoom.

Control Panel

Integrated Capacitive Touchscreen LCD with On-Screen Controls for Settings and Navigating Menus.

External Control

RS-422 Deck Control, SDI Start/Stop, Timecode Run. Includes Blackmagic HyperDeck Ethernet Protocol.

Internal Software Upgrade

Loaded at System Start or via Blackmagic HyperDeck Setup Using USB Port

Supported Operating Systems

Mac 10.13 High Sierra, 10.14 Mojave, or Later

Windows 8.1 or 10

Power Supply

1 x Internal 100-240 VAC

1 x 4-Pin XLR 12 VDC Input for External Power or Battery Use

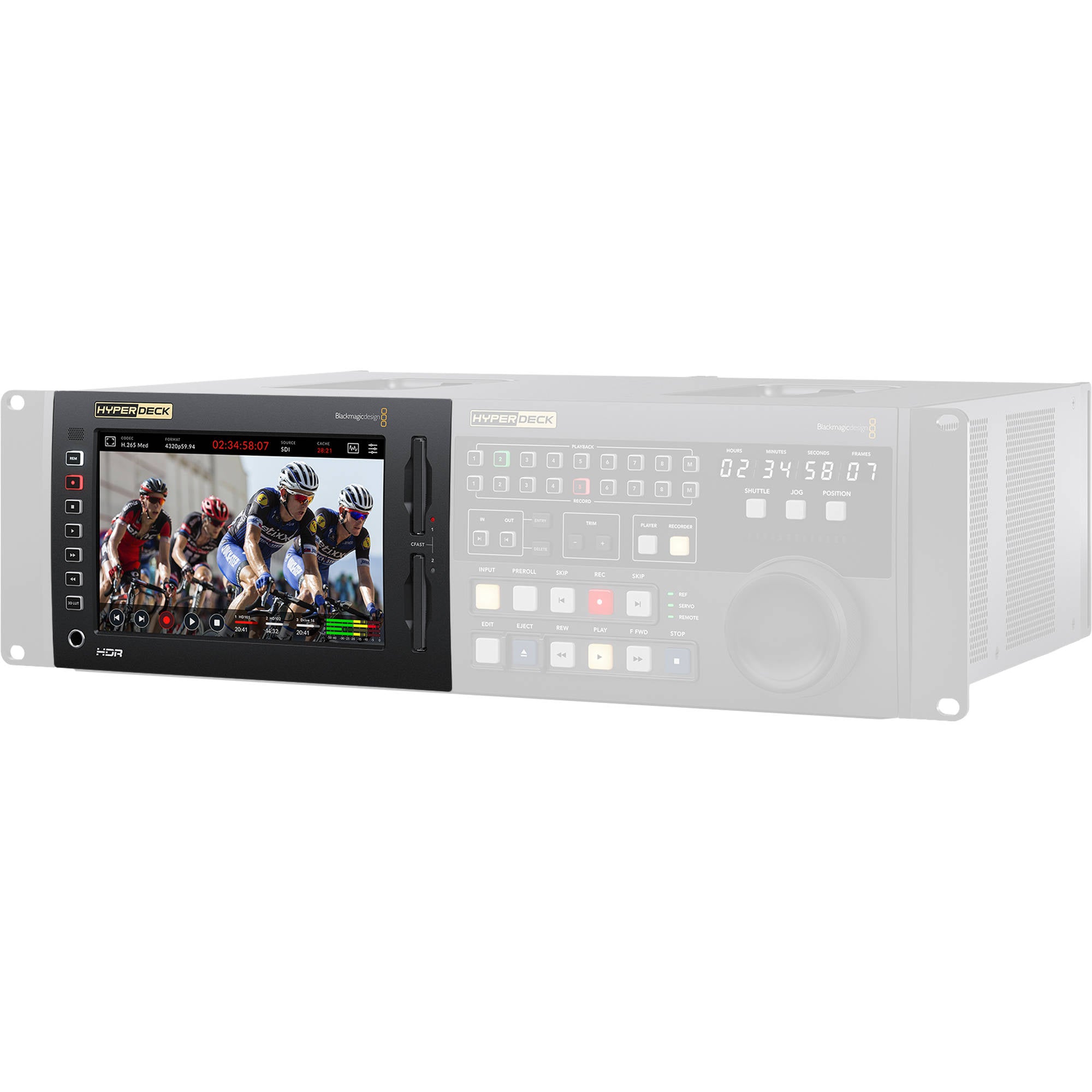

Rack Compatibility

3 RU, Half-Rack Width

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 60°C

Relative Humidity

0 to 90% Non-Condensing

Dimensions

8.3 x 5.1 x 13.2" / 21 x 13 x 33.5 cm

Weight

8 lb / 3.6 kg
