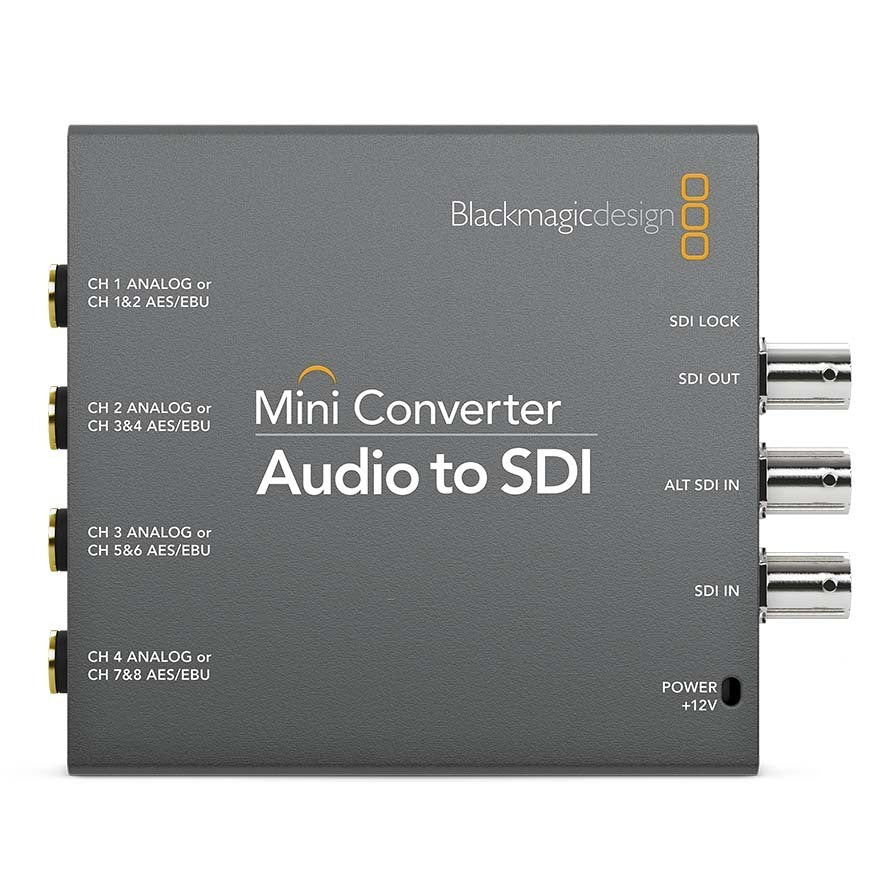

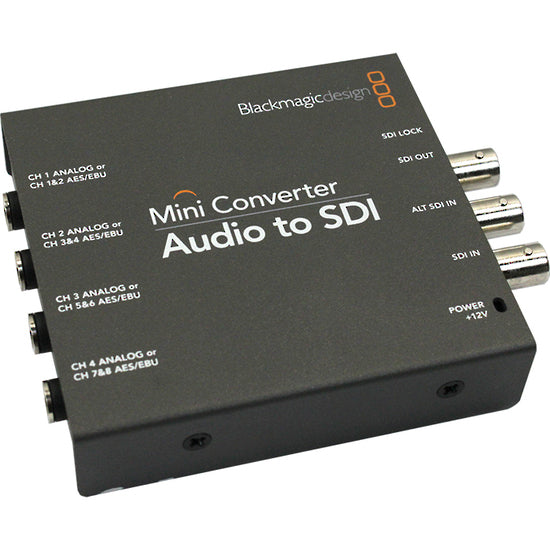

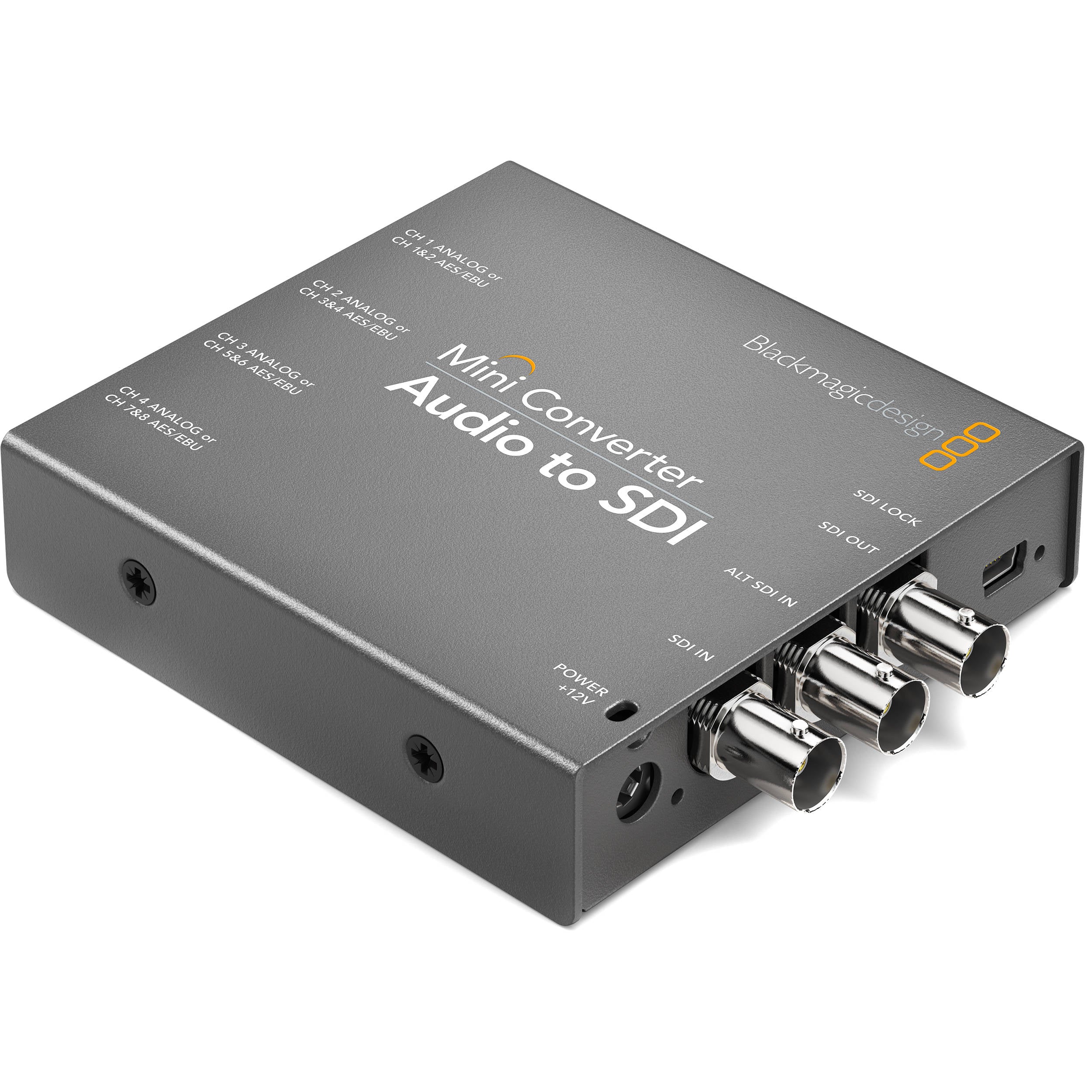

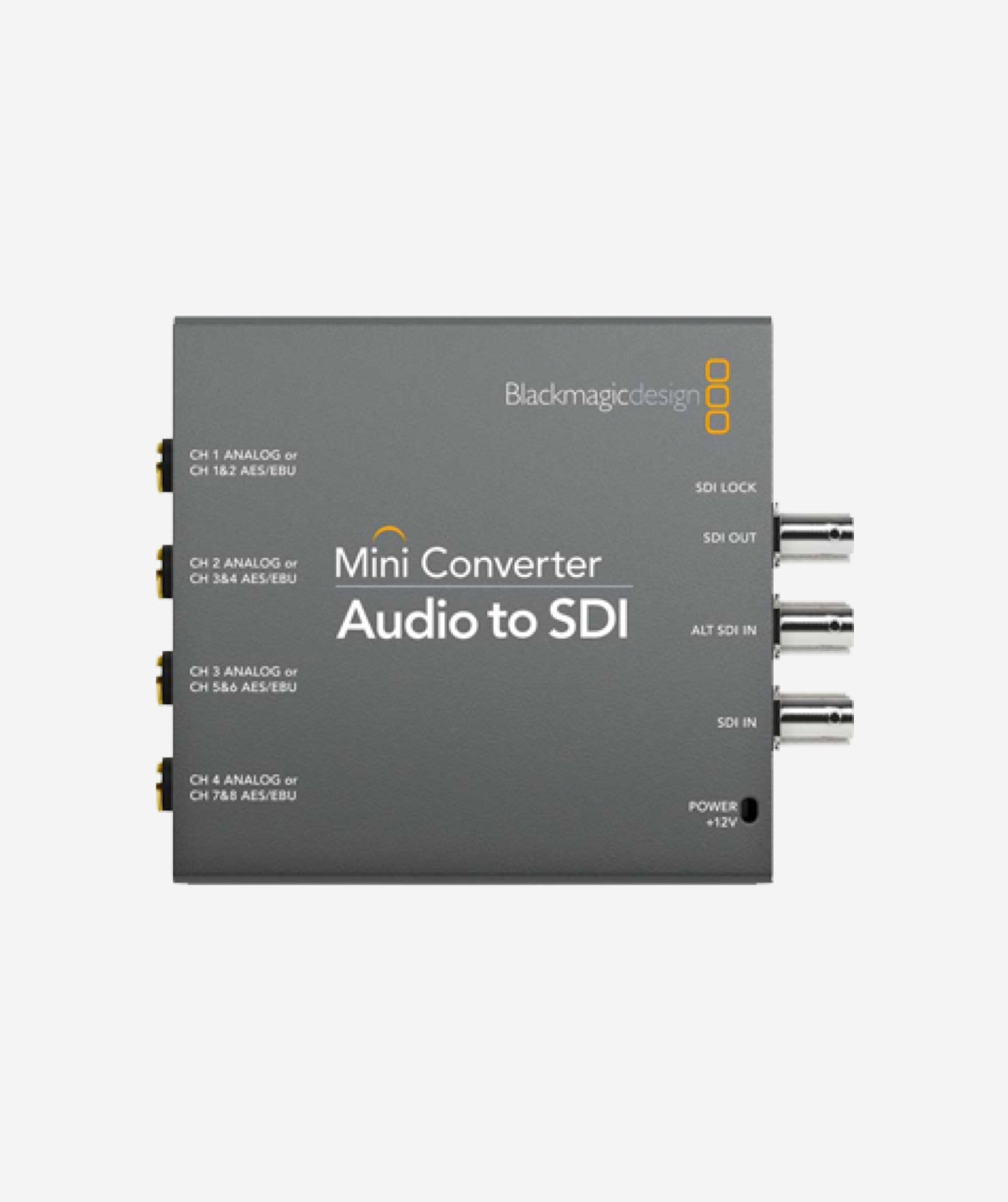

Blackmagic Mini Converter Audio to SDI

Rs. 23,576.00 Rs. 21,499.00



Key Features:

  • Embed Audio into up to 1080p SDI Signals
  • Four 1/4" Audio Input Jacks
  • Supports 4 Channels of Analog Audio
  • Supports 8 Channels of AES/EBU Audio
  • Redundant SDI Backup Input

Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.

In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.

Technical Specifications:

SDI Input

1 x SDI on BNC (switchable between 3G/HD/SD)

1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost)

Audio Input

4 x 1/4" jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio

SDI Output

1 x SDI on BNC (switchable between 3G/HD/SD)

SDI Auto Switching

Auto-detection of 3G/2K/HD/SD-SDI

Updates and Configuration

Via USB 2.0 high-speed (480 Mb/s)

Reclocking

Yes

SDI Compliance

SMPTE 292M/259M/296M/372M/424M-B/425M

ITU-R BT.656/BT.601

SDI Video Rates

SDI video connections are switchable between HD and SD

SDI Video Sampling

4:2:2, 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit

SDI Color Precision

4:2:2, 4:4:4

SDI Color Space

YUV, RGB

SDI Auto Switching

Automatically selects between 3G/HD/SD

SDI Format Support

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

525i: 59.94 NTSC

625i: 50 PAL

2K Format Support

2K DCI 25p/24p/23.98p

2K DCI 25PsF/24PsF/23.98PsF

Software Control

Mac OS X and Windows software upgrade via USB

Internal Software Upgrade

Via included updater application

Operating System

Mac OS X 10.11 El Capitan, macOS Sierra or later

Windows 8.1 or Windows 10

Settings Control

Mini switches or USB software

Power Supply

+12 V universal power supply included, with international socket adapters for all countries and cable tie point

Power Consumption

8.4 W

Operational Voltage Range

12 VDC

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Relative Humidity

0 to 90% non-condensing

Dimensions

4.5 x 3.6 x 0.9" / 11.5 x 9.2 x 2.3 cm

Weight

7.6 oz / 215 g


In the Box:

  • Blackmagic Design Audio to SDI Mini Converter
  • 12V Universal Power Supply
  • Set of International Socket Adapters
  • Limited 3-Year Warranty
