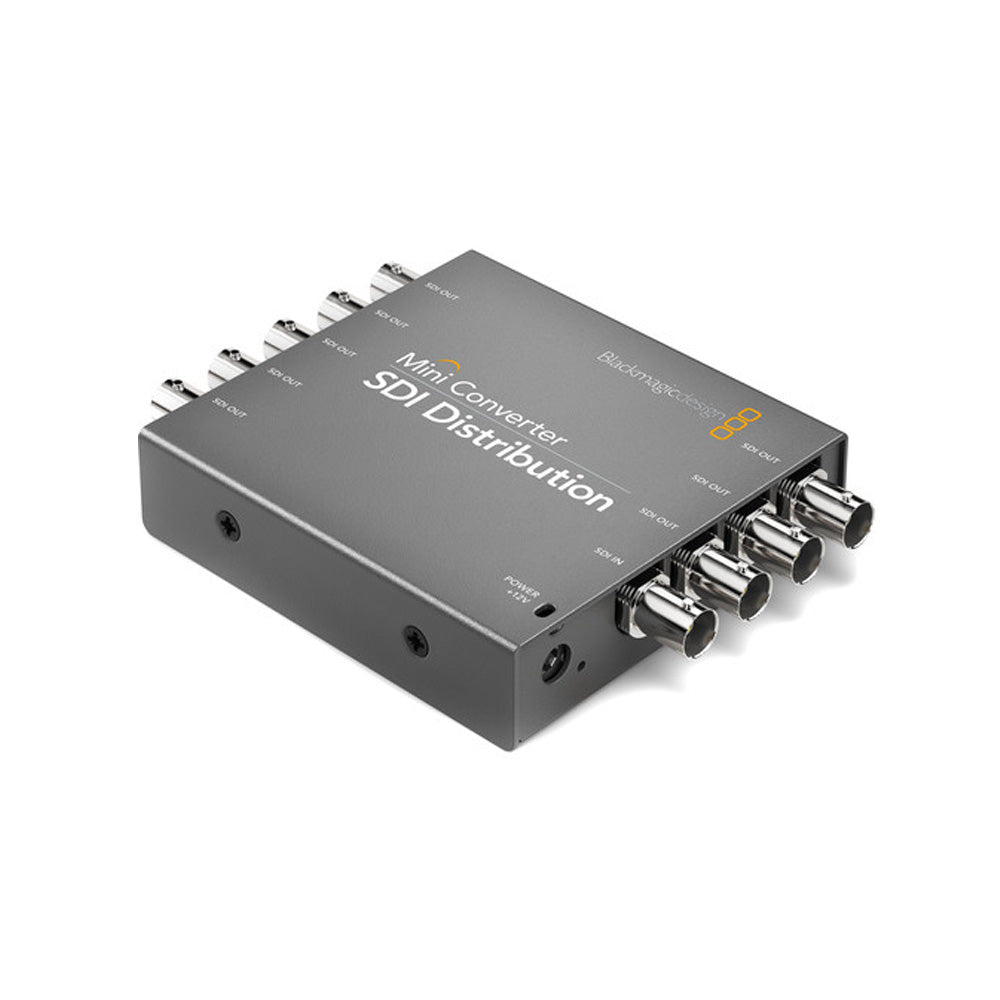

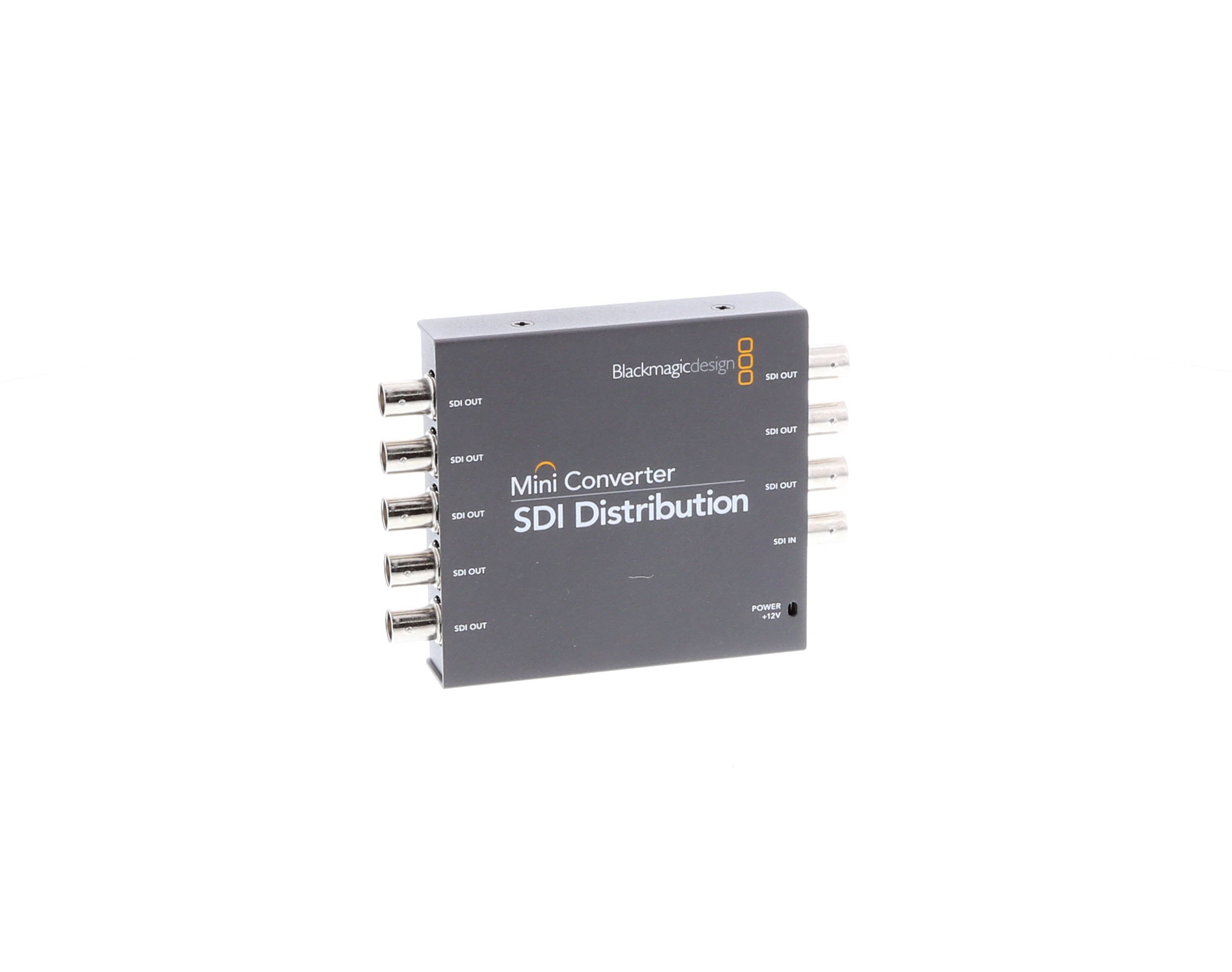

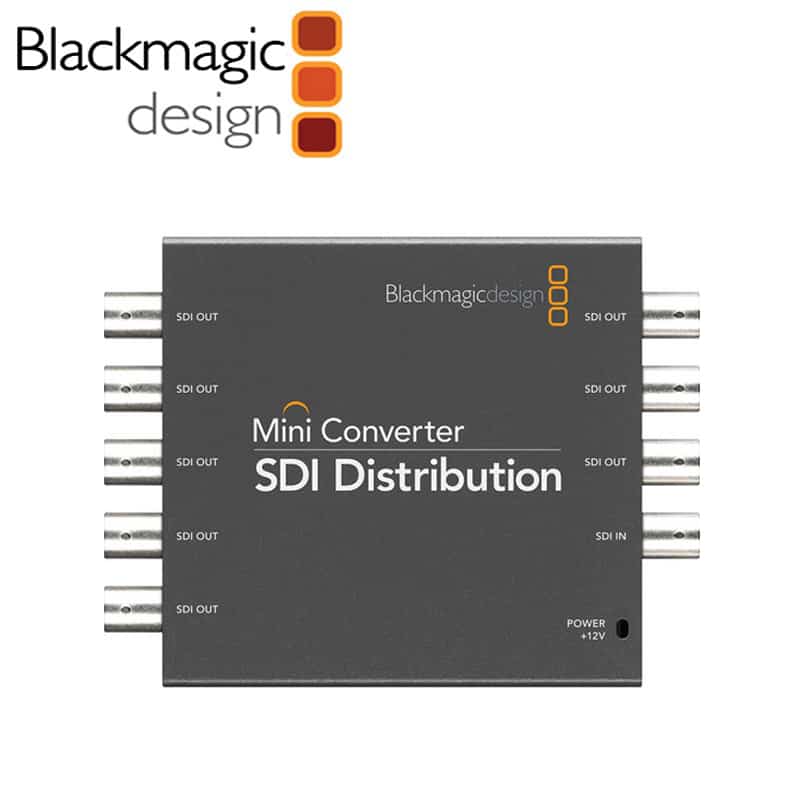

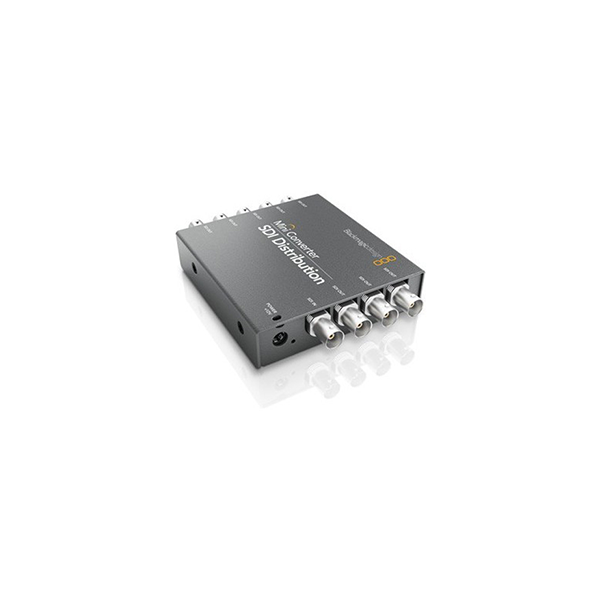

Blackmagic Mini Converter SDI Distribution

Rs. 18,856.00 Rs. 17,199.00



Key Features:

  • (1) SDI Input, (8) SDI Outputs
  • 3G/HD/SD-SDI Auto-Switching Input
  • Re-Clocked Outputs
  • Ancillary Data & Embedded Audio
  • 1080p & 2K Distribution
  • Supports ASI Signals

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.

Technical Specifications:

Inputs

1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI

Outputs

8x SDI: Automatically match the SDI video input

Re-clocking

Yes

Supported Formats

NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M

Video Sampling

4:2:2 and 4:4:4

Audio Sampling

Television standard sample rate of 48 kHz and 24-bit

Color Precision

4:2:2 and 4:4:4

Color Space

YUV and RGB

ASI Support

Yes

Power Supply

12V universal power supply included

Power Consumption

110V: 40mA

220V: 20mA

Voltage Range

12-30V



In the Box:

  • Blackmagic Design Mini Converter SDI Distribution
  • 12V Universal Power Supply
  • 3 Year Limited Warranty
