SDI Video Inputs
1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
The GFX, is a premium online. Any products you buy from GFX are from the ORIGINAL EQUIPMENT MANUFACTURERS (OEM). It's an OEM to Consumers, and every product you buy is a BRAND NEW and comes with an ORIGINAL manufacturers India warranty and 24/7 support.
Blackmagic Mini Converters are the world’s most advanced converters because they include the latest 6G-SDI technology, automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards up to 2160p30! You get advanced features such as redundant SDI inputs, re‑clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analog and AES/EBU audio connections so you can convert video, as well as embed or de-embed audio! Choose from a wide range of 3G and 6G-SDI models, depending on the conversion you need!
Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format using high quality Teranex algorithms! Simply set the output format you need and the input format is automatically converted, protecting your equipment from receiving an incorrect signal. It’s also perfect for connecting HDMI computers to SDI projectors because it scales the computer’s video to the broadcast television output standard that you choose. Mini Converter UpDownCross HD features multi rate 3G-SDI connections for working in all formats up to 1080p60 including Level A and B devices plus computer resolution scaling via HDMI in. You also get an HDMI input, reference in, audio delay for perfect AV sync, timecode conversion and both 3G-SDI and HDMI inputs and outputs allowing you to connect to virtually anything!
Now you can extend SDI massive distances up to 10 miles away! Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, so it’s like getting two converters in one. You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. The fiber socket lets you install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks. Plus, the included international power supply has a locking connector so the power cannot be accidentally disconnected!
The broadcast, post production and AV industry rely on Blackmagic Mini Converters to connect all of their equipment together and keep their studios running. With over 20 different models available, there are Mini Converters with analog, SDI, and HDMI conversions that let you work with virtually all SD, HD and Ultra HD equipment! That means you can connect analog decks to digital equipment, switch HDMI to SDI, de-embed or embed audio, or even extend signals over massive distances with optical fiber! With so many conversion options, there’s no limit to the equipment you can connect!
Blackmagic Mini Converters are designed to be used anywhere! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events. Mini Converters have a straightforward, compact design that makes them easy to use and super reliable for 24/7 operation. The built in connections are easy to access and use standard cables, plus all models feature built in mini switches to quickly change settings. There’s even a diagram with switch settings printed on the back so you never have to look for the manual!
Changing settings on Mini Converters is as easy as using the built in function switches.
All SDI Mini Converters feature a redundant SDI input for running a second SDI cable as back up.
Most Mini Converter models feature 6G-SDI, making them compatible with all SD, HD and Ultra HD formats up to 2160p30! Ultra HD features a massive 3840 x 2160 frame size that’s 4 times the resolution of regular 1080 HD video! The 6G-SDI connections are multi-rate, so they are fully compatible with all of your existing SD and HD-SDI equipment, as well as Ultra HD! The advanced SDI connections automatically detect the input signal and switch formats as needed.
Some Mini Converters are also available in 3G-SDI models for when you want to save money and only need to work with SD and HD equipment. A good example is analog conversions where you don’t need Ultra HD support. You still get the same quality and dependability broadcasters have relied on for years. The 3G-SDI connections are multi-rate and automatically detect and switch formats as needed. That means they are compatible with virtually all SD and HD-SDI equipment! Mini Converters with 3G-SDI are perfect when you don’t need the extra cost of the Ultra HD models!
In professional broadcast, post and live production workflows, the audio is just as important as the video. Blackmagic Mini Converters maintain the cleanest possible audio signal and always keep it in sync with your video! Mini Converters support embedded SDI and HDMI audio, and there are several models that let you separately embed or de-embed it to balanced analog or AES/EBU digital connections. Mini Converters support 24 bit analog and AES/EBU audio, and feature standard 1/4 inch audio jacks so you don't need custom cables!
Anything can happen during a live production and you can’t afford to lose a signal and go off air. All Blackmagic Mini Converters with SDI inputs feature an innovative redundant SDI input so you can run a second SDI cable as a back up in case one cable is damaged! This feature is great for outdoor use, or in large, crowded venues where there’s a chance cables might get damaged. Often it makes sense to run the second cable on a different route than the first. If the main input is lost, the converter automatically switches over to the second input, so you’re always on air!
SDI signals with jitter degradation
Clean, reclocked SDI signals
With the highest quality 10-bit video processing and low jitter SDI, Mini Converters are ideal for the stringent requirements of broadcast, post production and professional AV. You get incredibly low noise levels when moving between analog and digital video formats. Low SDI jitter and full SDI re-clocking means you can run long cable lengths without any loss of video quality. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats, and then all the way up to massive 3840 x 2160 Ultra HD resolutions!
HDMI televisions and projectors can take a long time to lock onto a signal when a new source is connected. HDMI Instant Lock on the Mini Converter SDI to HDMI 6G solves this problem by continuously sending an active HDMI signal to the display. When you switch to a new source that’s the same format as the previous signal it will lock in as little as 1 frame so you get glitch free clean switching!
Mini Converter SDI to HDMI 6G also includes a full 33 point 3D lookup table for high precision color conversions. You can apply custom looks, color and gamma changes in realtime for on set monitoring. LUTs can also be used with the SDI loop output, turning the converter into a 3D LUT processor! The LUTs are compatible with DaVinci Resolve so you get consistent color on set and in post!
When you need to extend SDI connections over long distances, there is even a Blackmagic Mini Converter Optical Fiber model available with 12G-SDI support. You get bi-directional 12G-SDI to optical fiber conversion, with each direction independent of the other. Optical fiber can transmit video over incredibly long distances that would be impossible with regular BNC SDI cables. They’re also affordable, making it much more cost effective to run than traditional copper cable. Using optical fiber you can transmit video from remote cameras up to 28 miles away without any loss of signal quality. That makes fiber perfect for use at large outdoor events and in stadiums and arenas!
Changing settings on Mini Converter's is as easy as using the built in function switches! This is great when you need to change settings quickly as there are no complicated menus to navigate. There’s even a printed switch diagram on each converter, so you never have to find the manual! You can also control settings using the included Converter Utility software by connecting the converter to any OS X or Windows computer! All models can be updated to the latest software via USB by simply downloading upgrades directly from the Blackmagic Design website and connecting the Mini Converter to your Mac or Windows computer! This means Mini Converters can be updated to include new video standards and technologies when they become available.

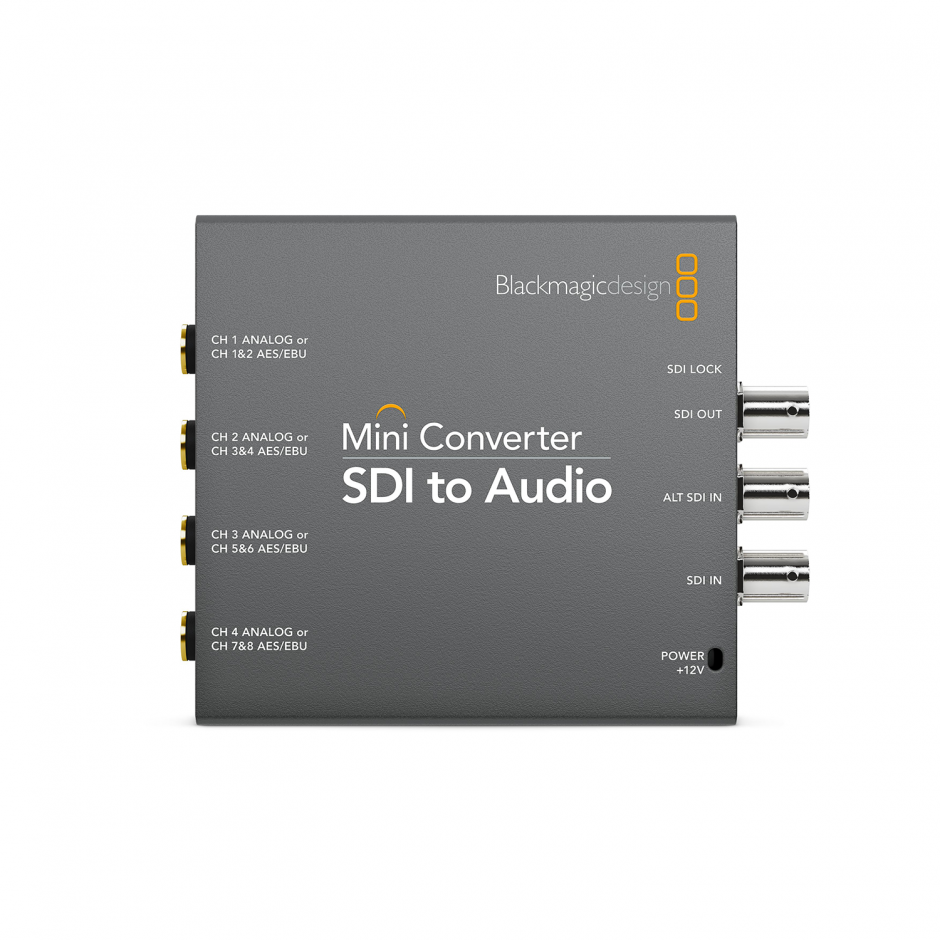

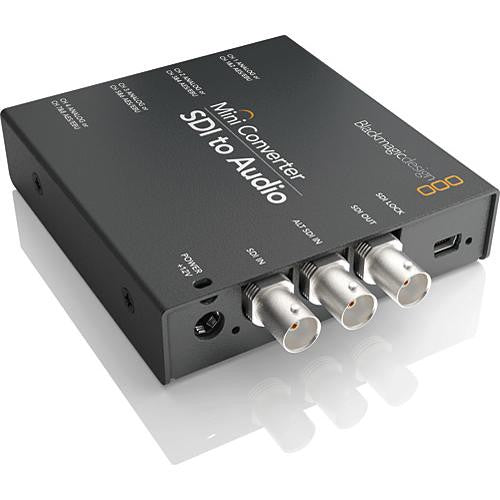

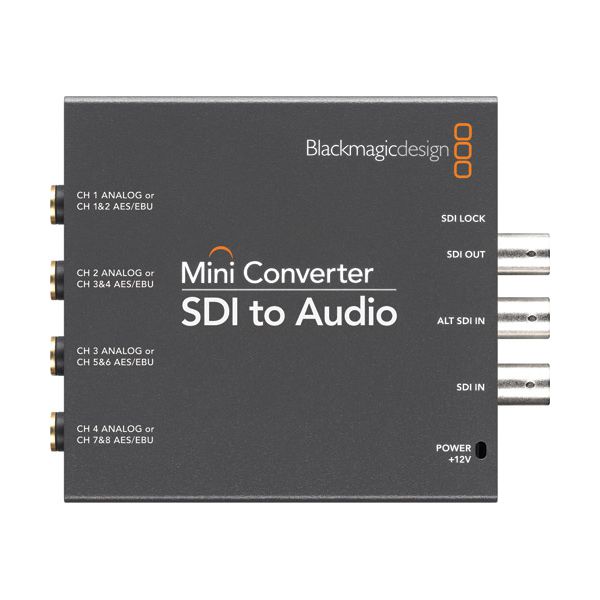

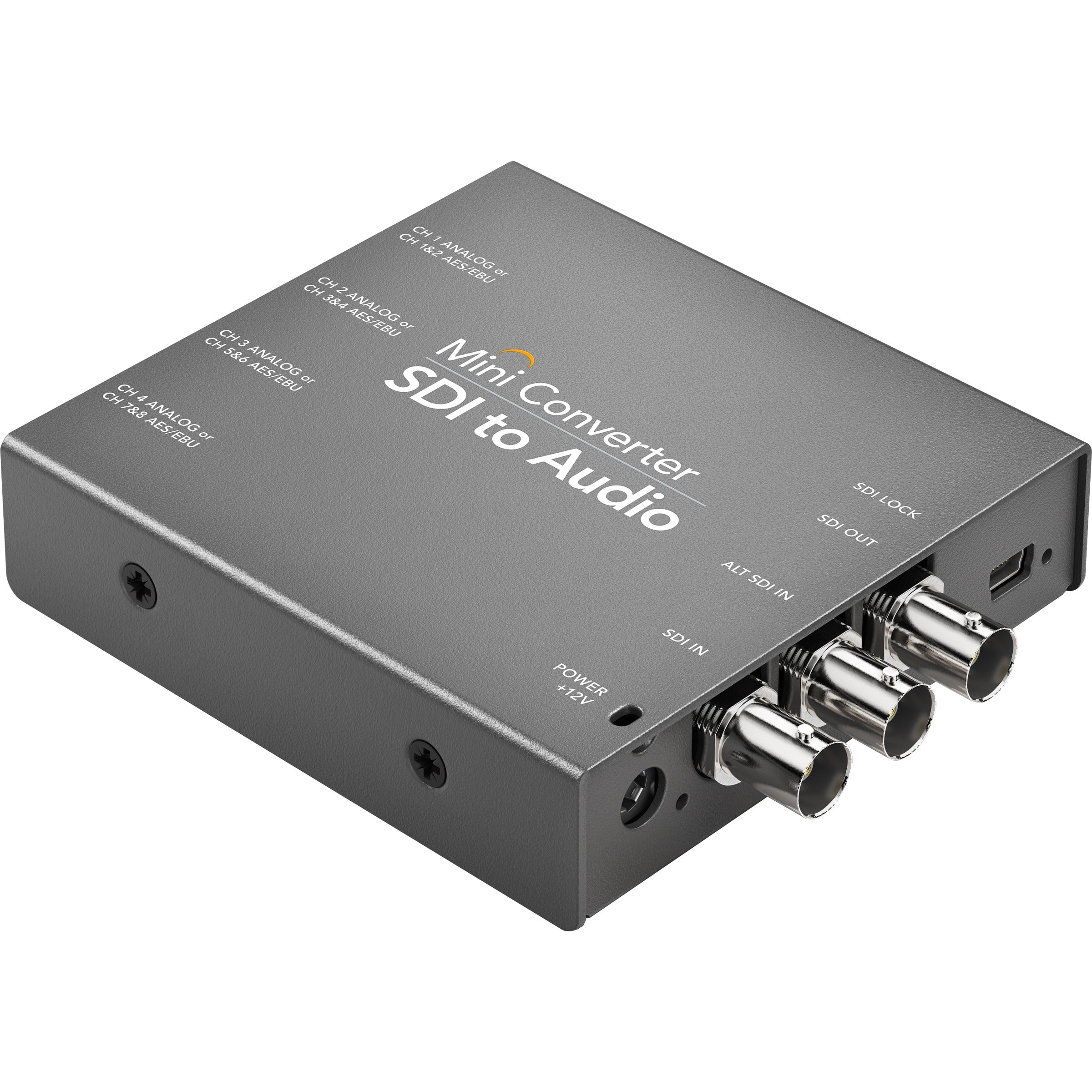

The perfect way to de‑embed audio from any SDI source in SD and HD formats up to 1080p60! Audio is output on ¼" connectors for balanced analog and AES/EBU audio output to equipment such as mixers, analog decks, audio monitors and more. Mini Converter SDI to Audio is the ideal SD/HD SDI audio de‑embedder for when you don’t need the cost of the Ultra HD model!
1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
1 x SDI Loop Output.
4 channels of professional balanced analog audio.
8 channels of professional balanced AES/EBU audio.
Automatically switches over if main SDI input is lost.
Auto detection of SD, HD or 3G‑SDI.
Via USB 2.0 high speed. (480 Mb/s)
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601
SDI video connections are switchable between standard definition and high definition.
Television standard sample rate of 48 kHz and 24 bit.
Automatically selects between SD, HD, and 3G‑SDI.
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.
Mini Switches or USB software.
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
12 ‑ 15V DC
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
Mini Converter SDI to Audio
12V universal power supply with international socket adapters
3 Year Limited Manufacturer's Warranty.
