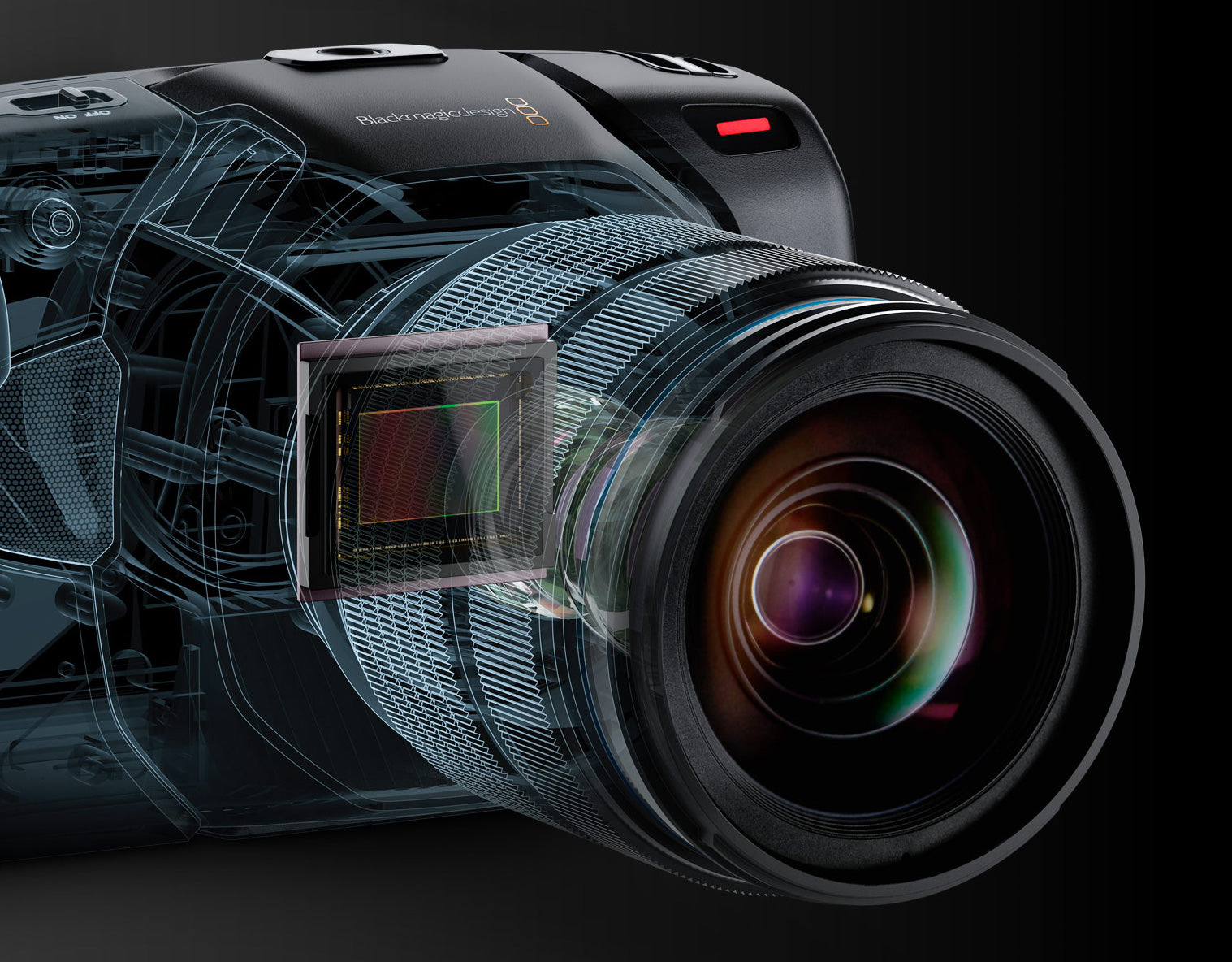

Sensor Size

18.96 x 10 mm (4/3")

Sensor Type

CMOS

Shutter Type

Rolling Shutter

ISO

100 to 25,600 (Expanded)

Advertised Dynamic Range

13 Stops

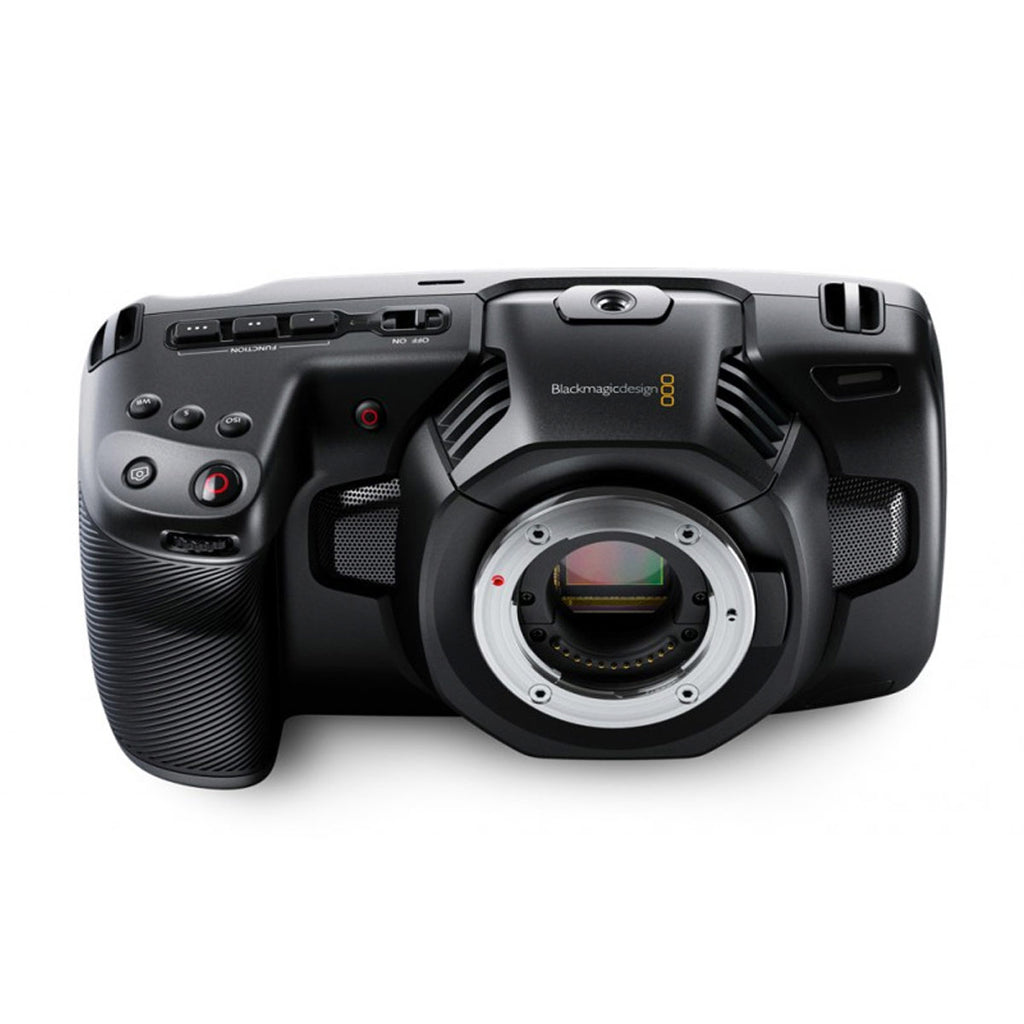

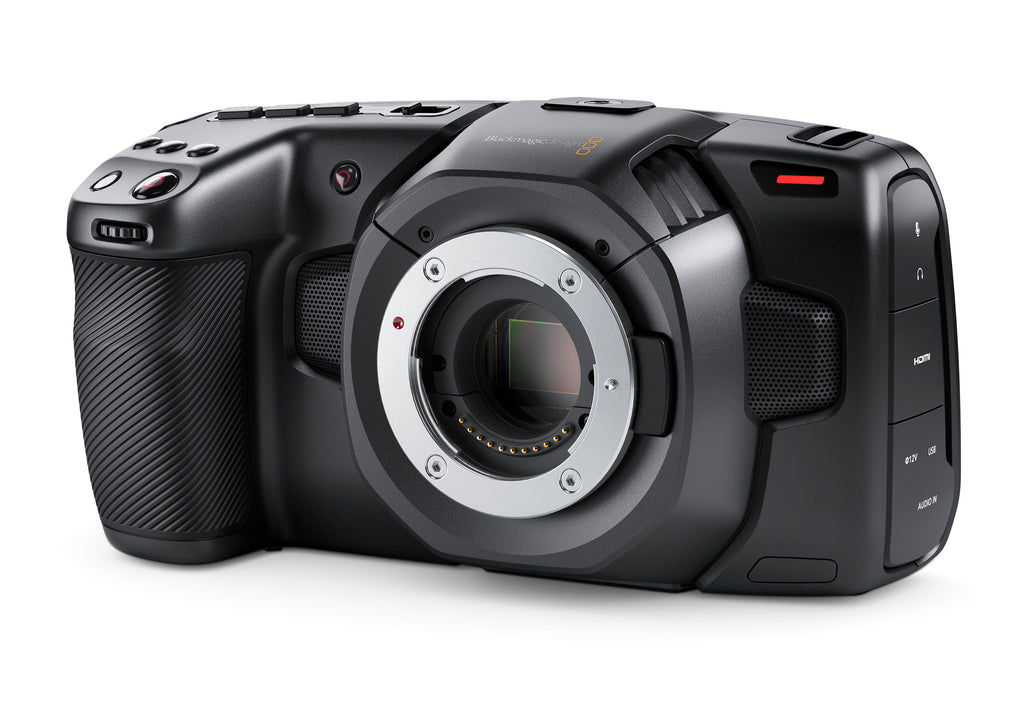

Lens Mount

Micro Four Thirds

Lens Communication

Yes

Built-In ND Filter

None

Built-In Microphone Type

Stereo

Variable Frame Rates

Up to 120 fps

Raw Recording

Raw:

4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (21 to 203 MB/s)

4096 x 1712 at 23.98/24/25/29.97/30/50/59.94/60/75 fps

2880 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/80 fps

2688 x 1512 at 23.98/24/25/29.97/30/50/59.94/60/75/120 fps

Recording Modes

ProRes 422HQ:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (117.88 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (110 Mb/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)

ProRes 422:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)

ProRes 422LT:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)

ProRes 422 Proxy:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)

Still Image Support

None

Video Output

4:2:2 10-Bit via HDMI:

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Raw Output

USB:

4096 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps

3840 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps

1920 x 1080 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps

Video Connectors

1 x HDMI Output

Audio Connectors

1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input

1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input

1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x USB Type-C Video Output

1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)

Wireless Interfaces

Bluetooth Control

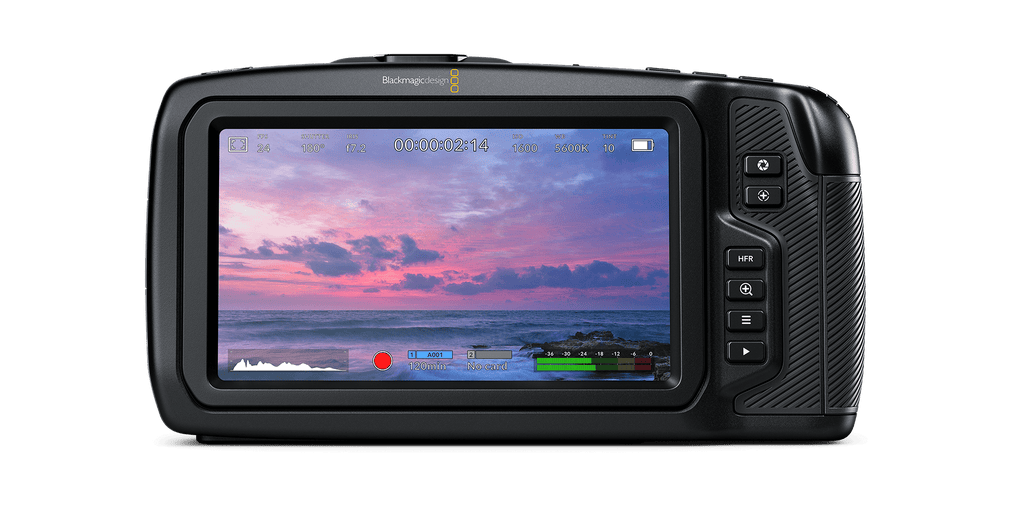

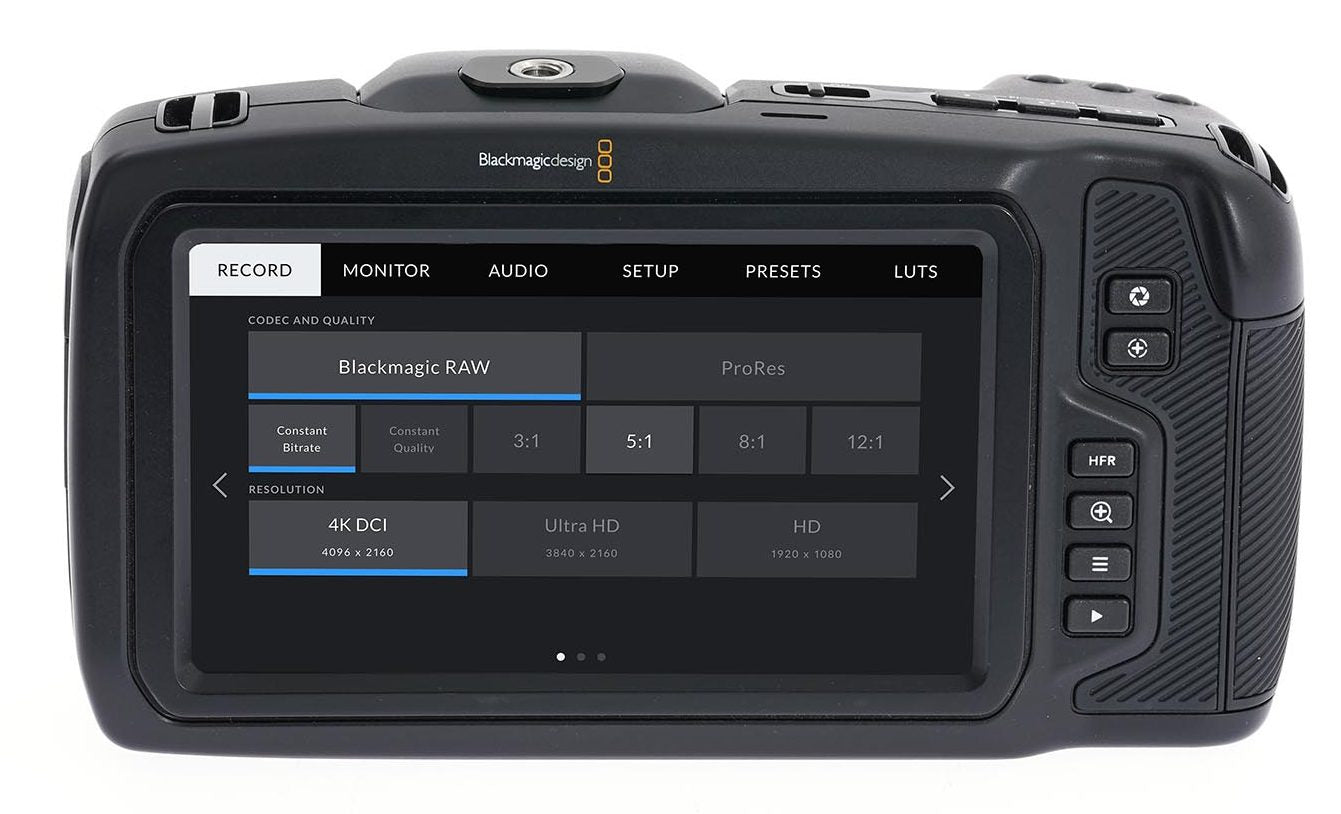

Display Type

Fixed Touchscreen LCD

Size

5"

Resolution

1920 x 1080

EVF

Optional, Not Included

Battery Type

Canon LP-E6

Power Connectors

1 x Weipu SF610/S2 Input

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Accessory Mount

1 x 1/4"-20 Female

Tripod Mounting Thread

1/4"-20 Female

Material of Construction

Carbon Fiber

Dimensions

7 x 3.8 x 3.4" / 177.8 x 96.52 x 86.36 mm

Weight

1.5 lb / 680.38 g
