Key Features:
- Supports SD/HD/3G/6G-SDI
- Auto Format Sensing & Selection
- 1 x Loop-Through SDI I/O per Monitor
- Select Video, Waveform, Vectorscope
- RGB Parade, YUV Parade, Histogram
- Audio Phase & Levels
- Software Control via Ethernet
- Industry Compatible Tally System
- 3 Rack Unit Size for Mounting
- Auto Orientation Sensing & Image Flip
Number of Displays |
2 |
Panel Type |
TFT LCD |
Display Size |
8.0" / 20.3 cm |
Screen Resolution |
800 x 480 |
Aspect Ratio |
16:9 |
Touchscreen |
No |
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) |
117 ppi |
Real-Time LUT Monitoring |
SDR |
Image Controls |
Blue Only, Focus Peaking, Histogram, Image Flip, Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform |
Video |
2 x BNC (6G-SDI) Output 2 x BNC (6G-SDI) Input |
Embedded Audio |
SDI: 16-Channel |
Audio |
None |
Built-In Speaker |
None |
Other I/O |
2 x LAN (RJ45) 1 x USB 2.0 (USB Type-A) 1 x Tally (DE-9/DB-9) |
Card Slot |
None |
Wi-Fi |
None |
Video Format |
SDI (4:4:4) UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i 576i |
DC Input Power |
12 to 15 VDC |
Battery Type |
None |
Power Consumption |
20 W (Maximum) |
Rack Form Factor |
3 RU |
Operating Humidity |
0 to 90% |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Storage Temperature |
-4 to 113°F / -20 to 45°C |
Dimensions (W x H x D) |
19 x 5.2 x 1.3" / 48.3 x 13.3 x 3.2 cm |
Weight |
3.37 lb / 1.53 kg |
Warranty Length |
Limited 1-Year Warranty |
In the Box:

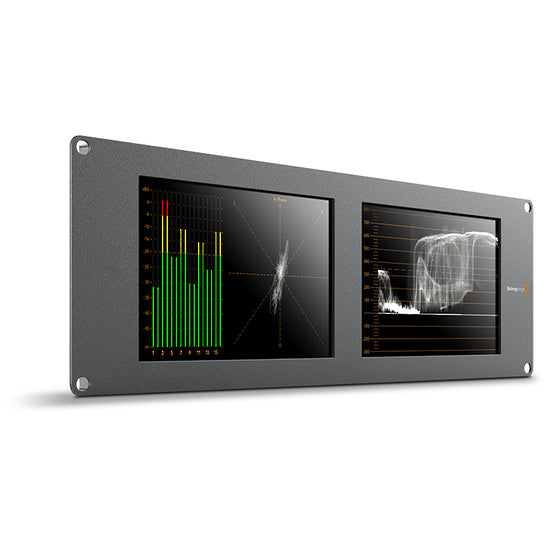

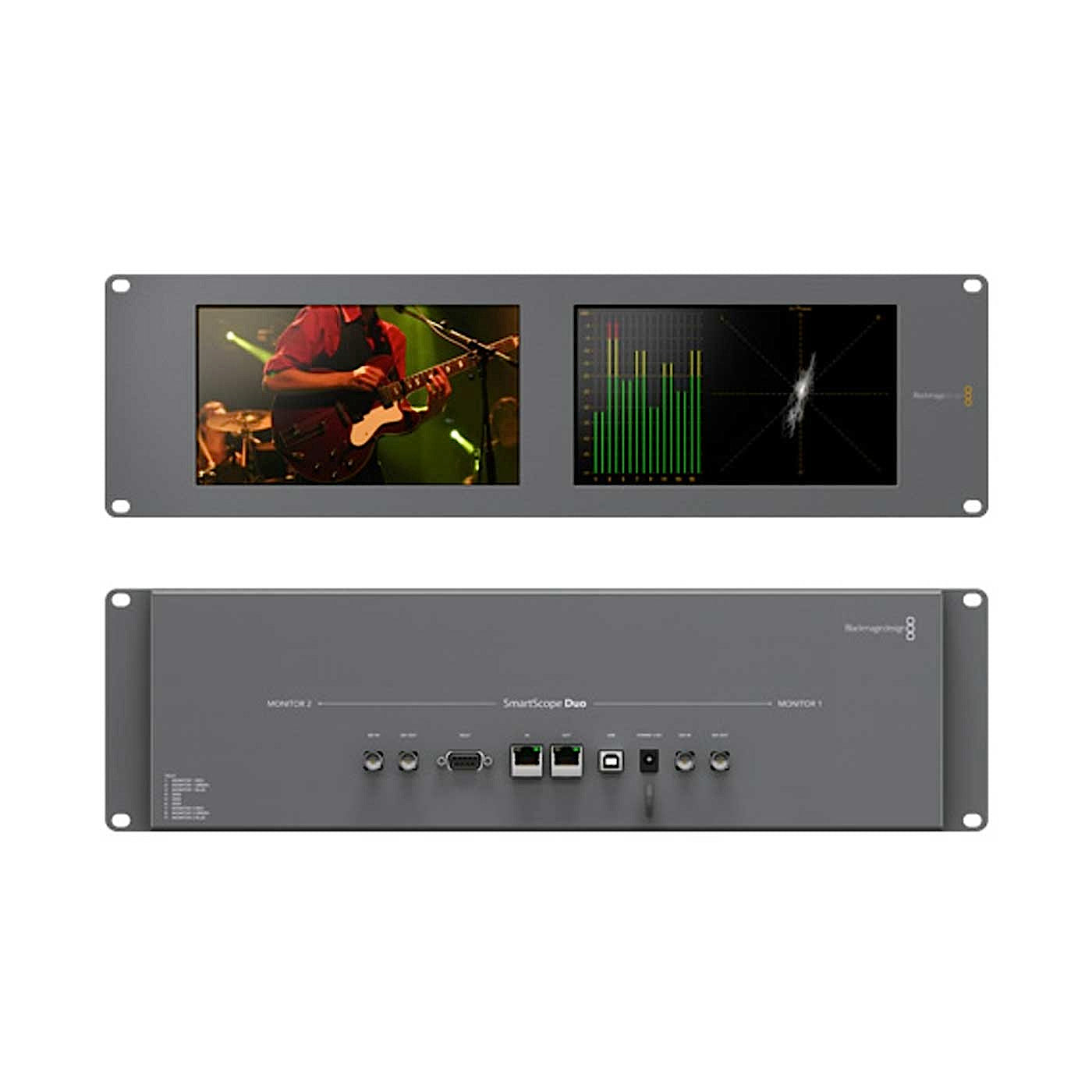

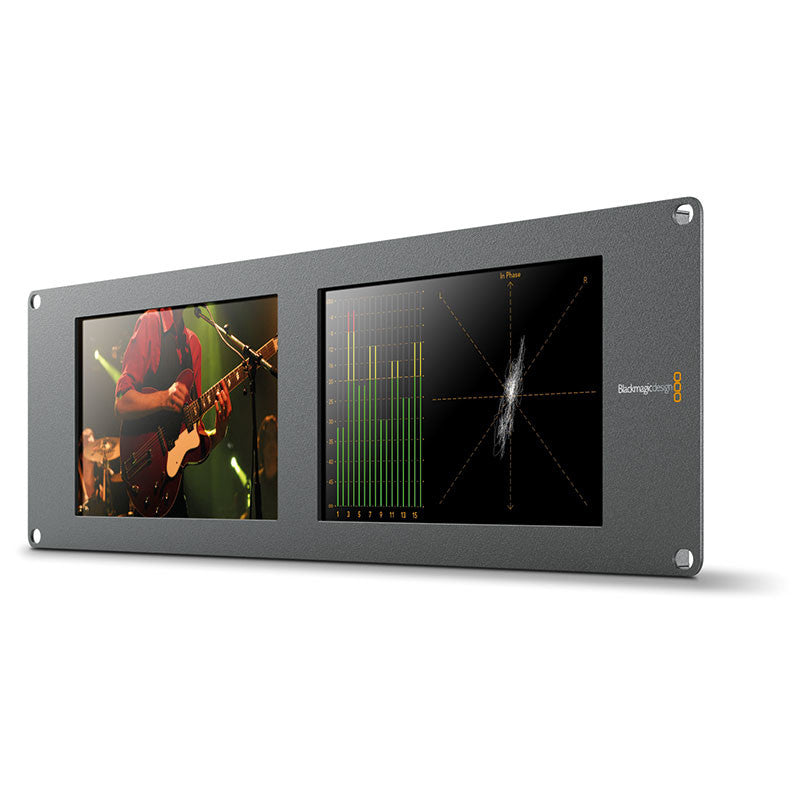

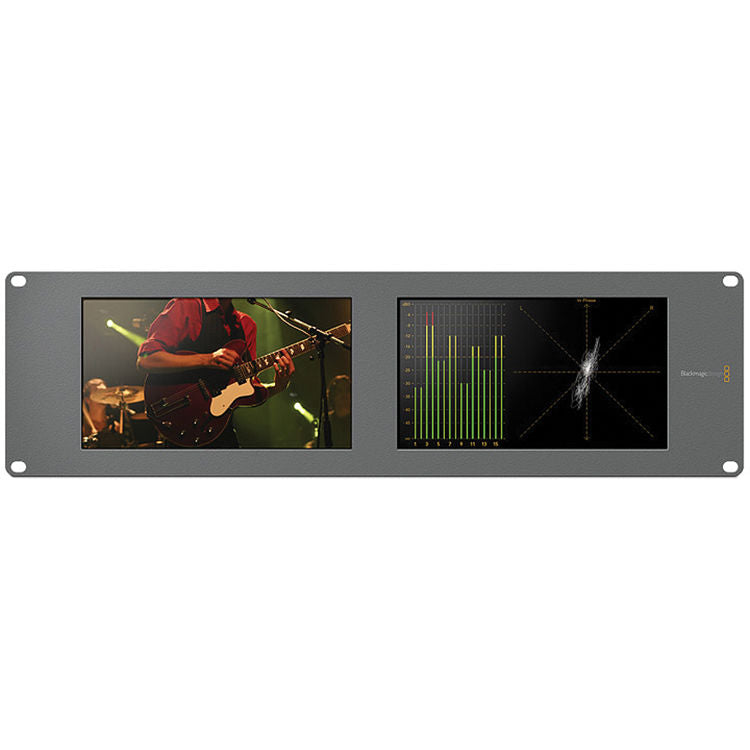

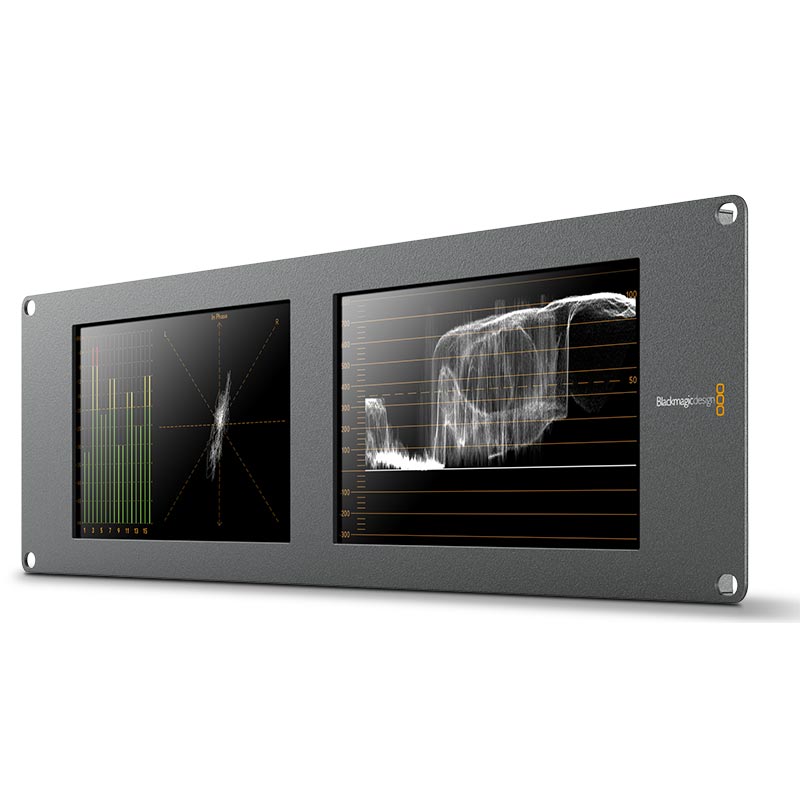

- Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
- 12V Universal Power Supply
- Set of International Wall Socket Adapters
- Limited 1-Year Warranty
