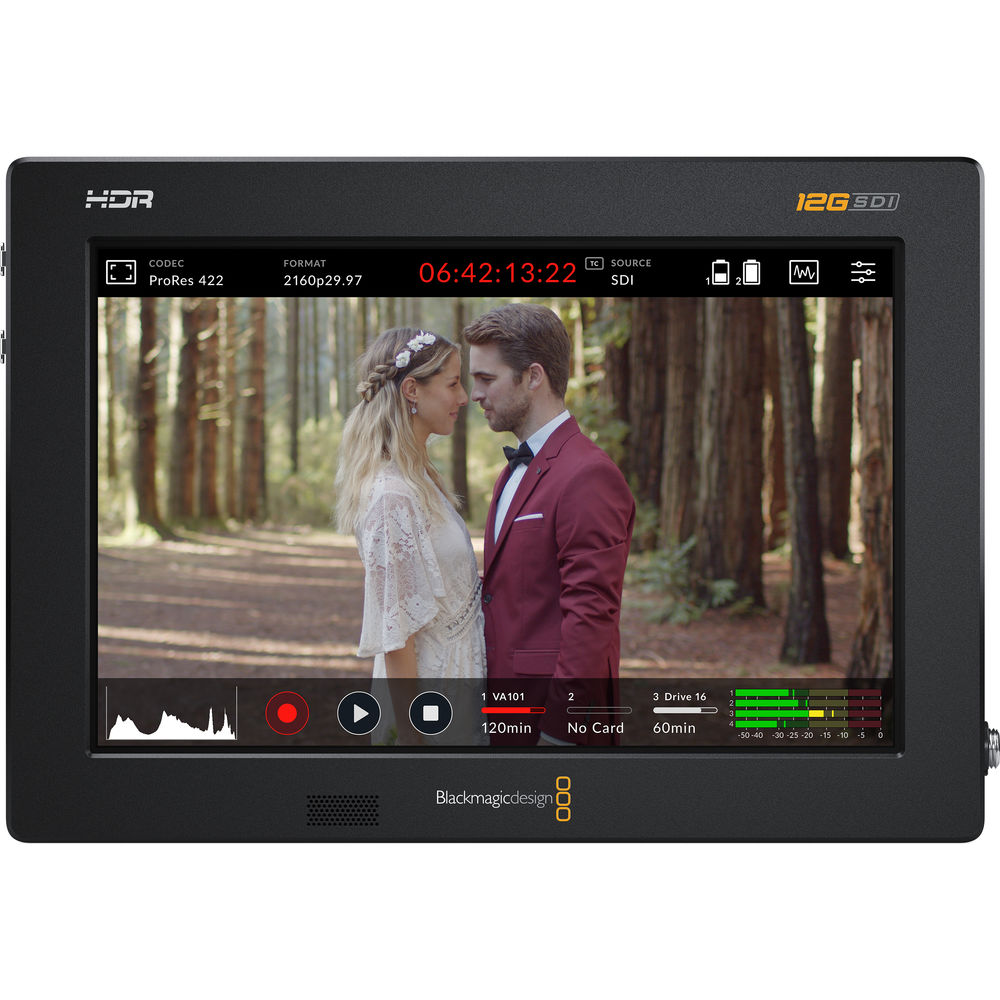

Blackmagic Video Assist 7" 12G HDR
Key Features:
- 7" 1920 x 1200 Touchscreen LCD
- Record up to DCI or UHD 4K HDR Video

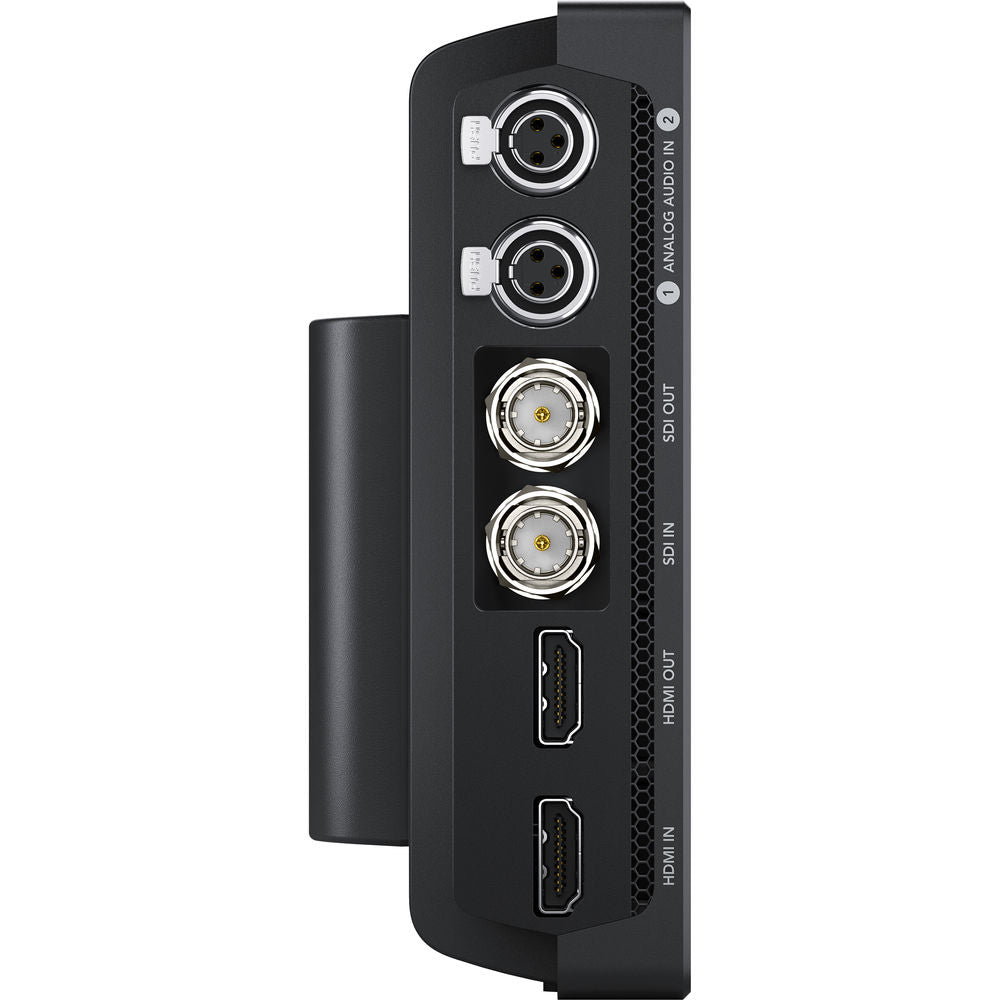

- HDMI and 12G-SDI Video Inputs & Outputs
- 10-Bit, 4:2:2 ProRes & DNxHD Encoding
- 3D LUTs, 2500 cd/m² Brightness

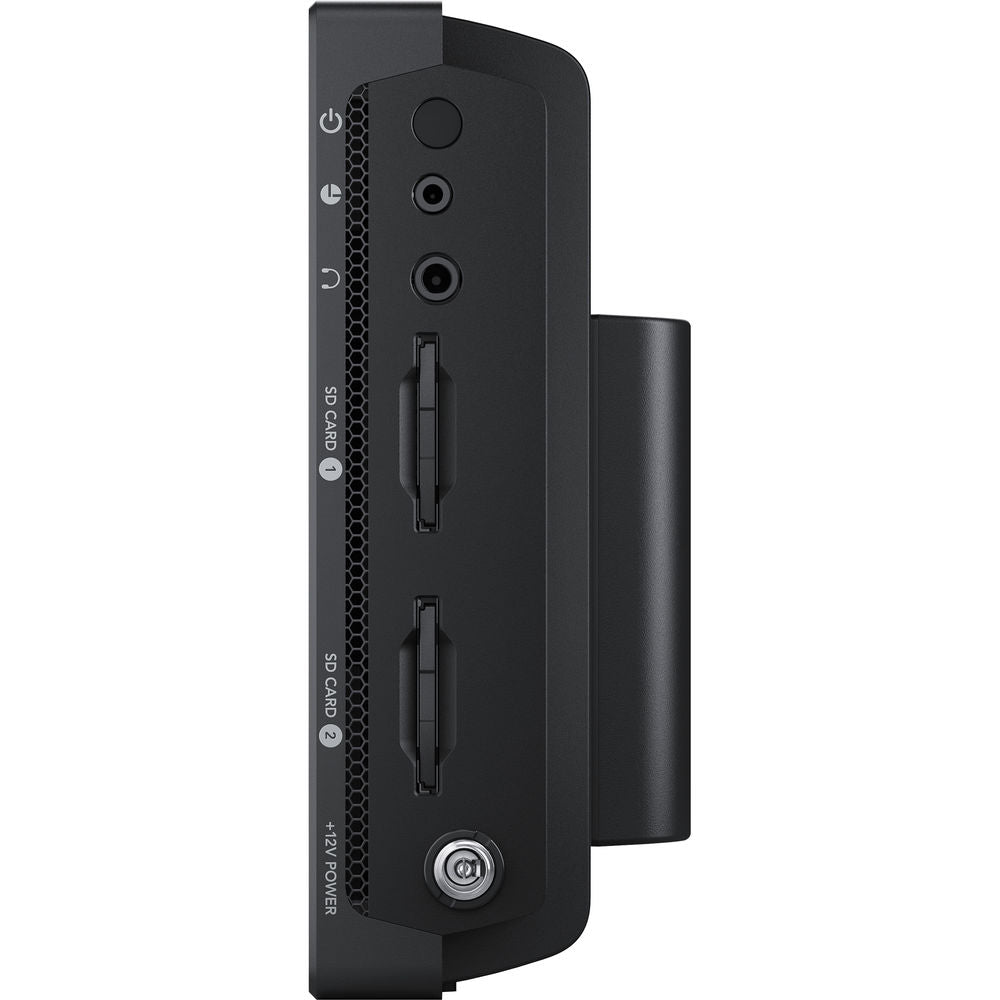

- Stores to Dual SDHC/XC Memory Slots
- Two Balanced Mini-XLR Audio Inputs
- Histogram, Waveform, Vectorscope

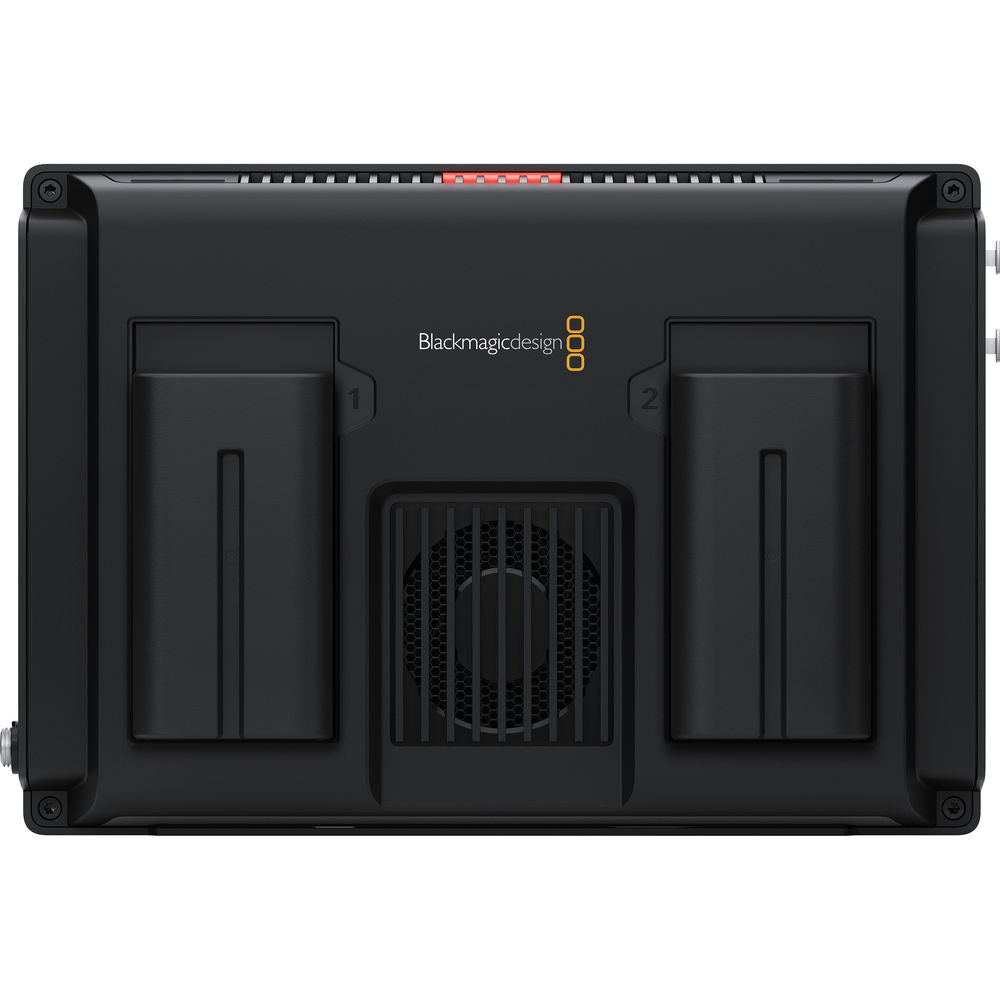

- Dual L-Series Type Battery Slots
- 12V Power Adapter Included
|
Panel Type |
TFT LCD |
|
Display Size |
7.0" / 17.8 cm |
|
Resolution |
1920 x 1200 |
|
Aspect Ratio |
16:10 |
|
Touchscreen |
Yes |
|
Maximum Brightness |
2500 cd/m2 |
|
HDR Compatibility |
Advanced HDR |
|
Pixels Per Inch (ppi) |
323 ppi |
|
Image Controls |
Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform |
|
Video |
1 x HDMI Type A (HDMI 2.0a) Input 1 x BNC (12G-SDI) Input 1 x HDMI Type A (HDMI 2.0a) Output 1 x BNC (12G-SDI) Output |
|
HDCP Support |
No |
|
Embedded Audio |
HDMI: 8-Channel SDI: 16-Channel |
|
Audio |
1 x 1/8" / 3.5 mm Headphone Output 2 x Mini-XLR Mic/Line Input |
|
Built-In Speaker |
1 |
|
Power |
1 x Barrel (12 VDC) Input |
|
Other I/O |
1 x USB Type-C 1 x LANC (2.5 mm) |
|
Wi-Fi |
None |
|
Video Format |
SDI (10-Bit 4:2:2 RGB) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
|
Gamma Curve |
HDR-HLG, Rec2020, Rec709 |
|
Timecode |
Yes |
|
Pre-Roll Record |
None |
|
Encoding Formats |
Up to 4096 x 2160 ProRes 422, HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF, HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps |
|
Maximum Audio Tracks |
16 |
|
Phantom Power |
+48 V |
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
|
DC Input Power |
12 VDC |
|
Built-In Battery |
None |
|
Battery Type |
2 x L-Series |
|
Power Consumption |
36 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Operating Humidity |
0 to 90% |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Dimensions |
7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
|
Weight |
29.1 oz / 824.99 g |
|
Warranty Length |
Limited 1-Year Warranty |
In the Box:
- Blackmagic Design Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor
- 12 VDC, 36W Power Adapter
- Limited 1-Year Warranty
