Key Features:

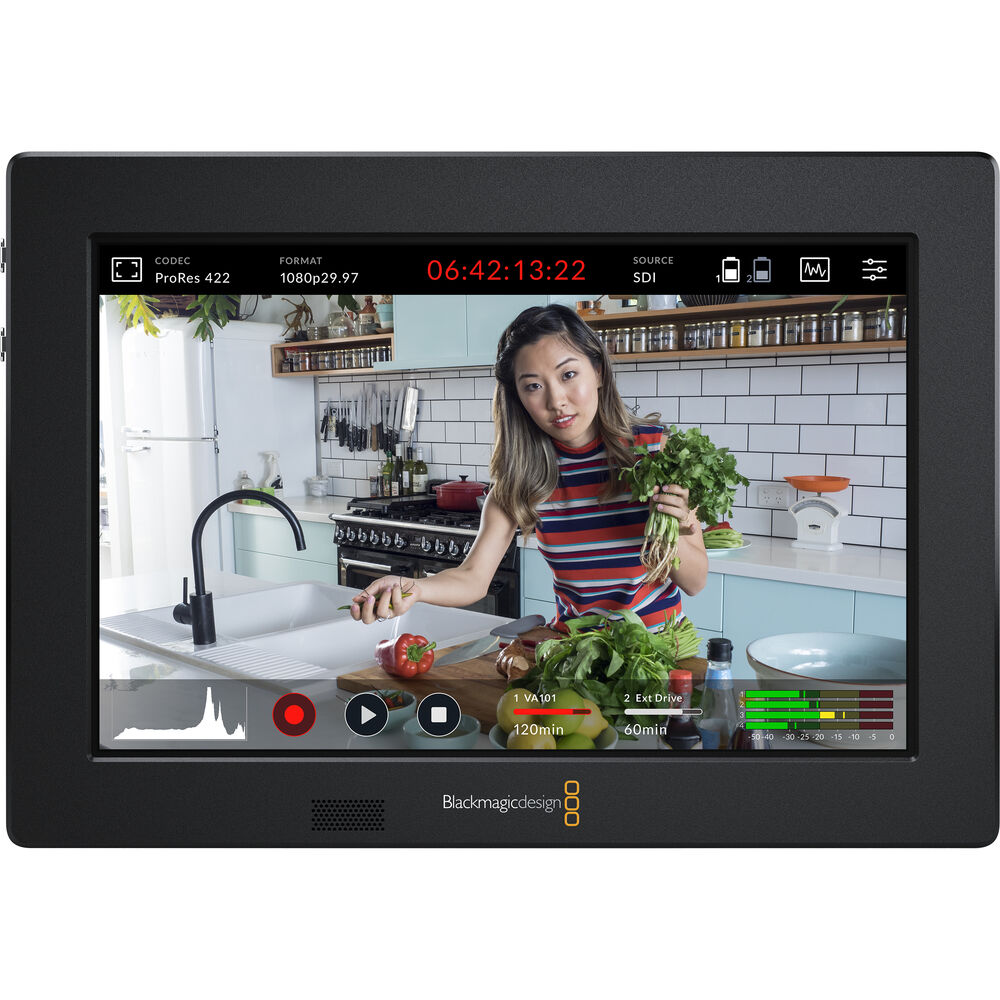

- 1920 x 1200 7" Touchscreen LCD
- HDMI & 3G-SDI Video Inputs/Outputs
- Records up to 1080p60 Video
- USB Type-C Webcam Video Output

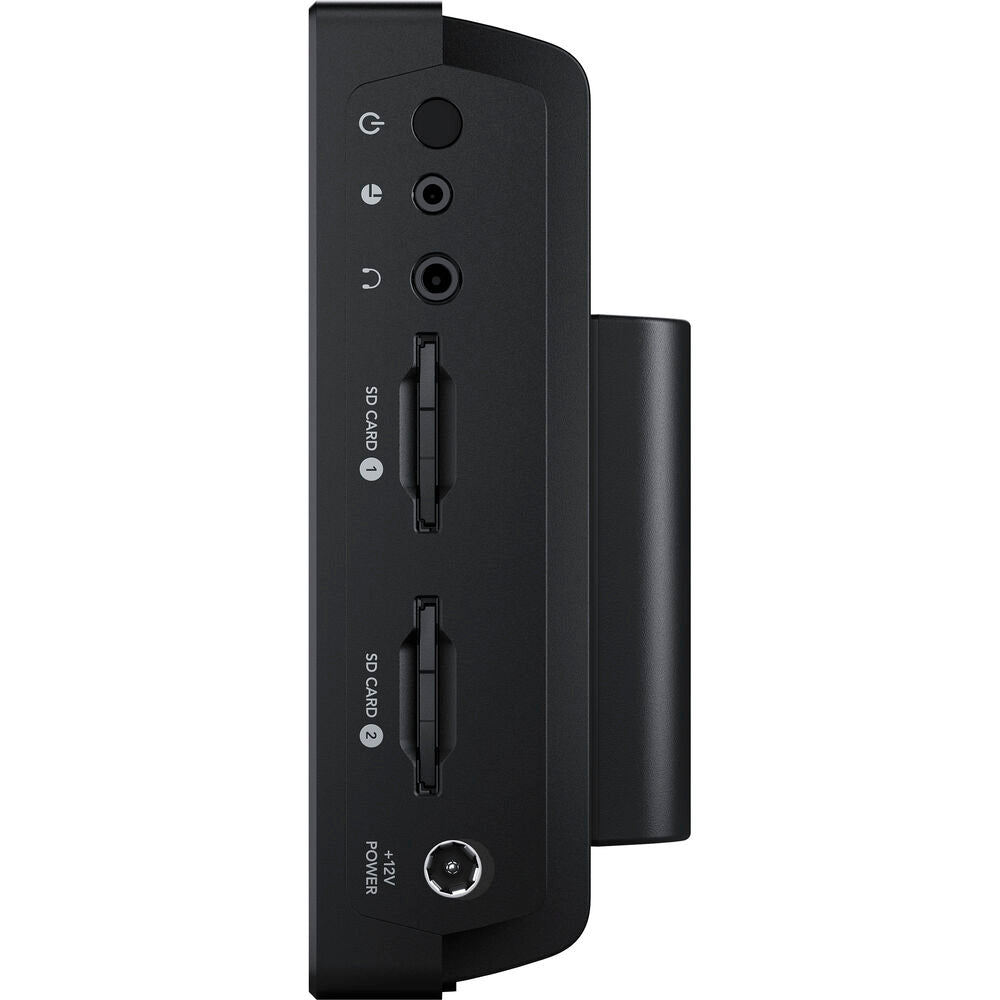

- Stores to 2 x SDXC/SDHC Memory Cards
- 2.5mm LANC Port for Record Start & Stop
- Waveform, Vectorscope & Histogram
- Focus Peaking, False Color & Zebra
- 11 x Display Language Options

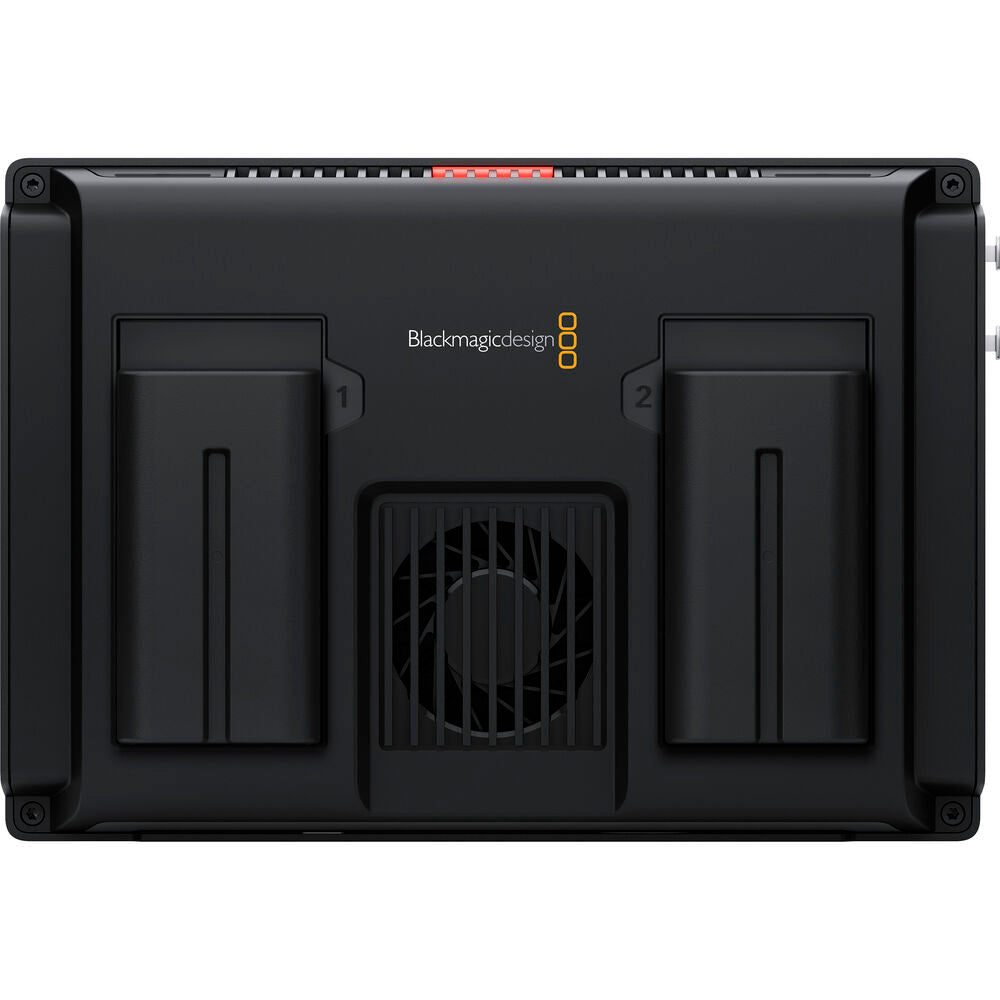

- Dual Sony L-Series Type Battery Slots
Technical Specifications:
Panel Type |
LCD |
Display Size |
7.0" / 17.8 cm |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 135° |
Touchscreen |
Yes |
Maximum Brightness |
310 cd/m2 |
Pixels Per Inch (ppi) |
323 ppi |
Color Gamut |
100% Rec. 709 |
Real-Time LUT Monitoring |
SDR |
Image Controls |
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Wi-Fi |
None |
Video |

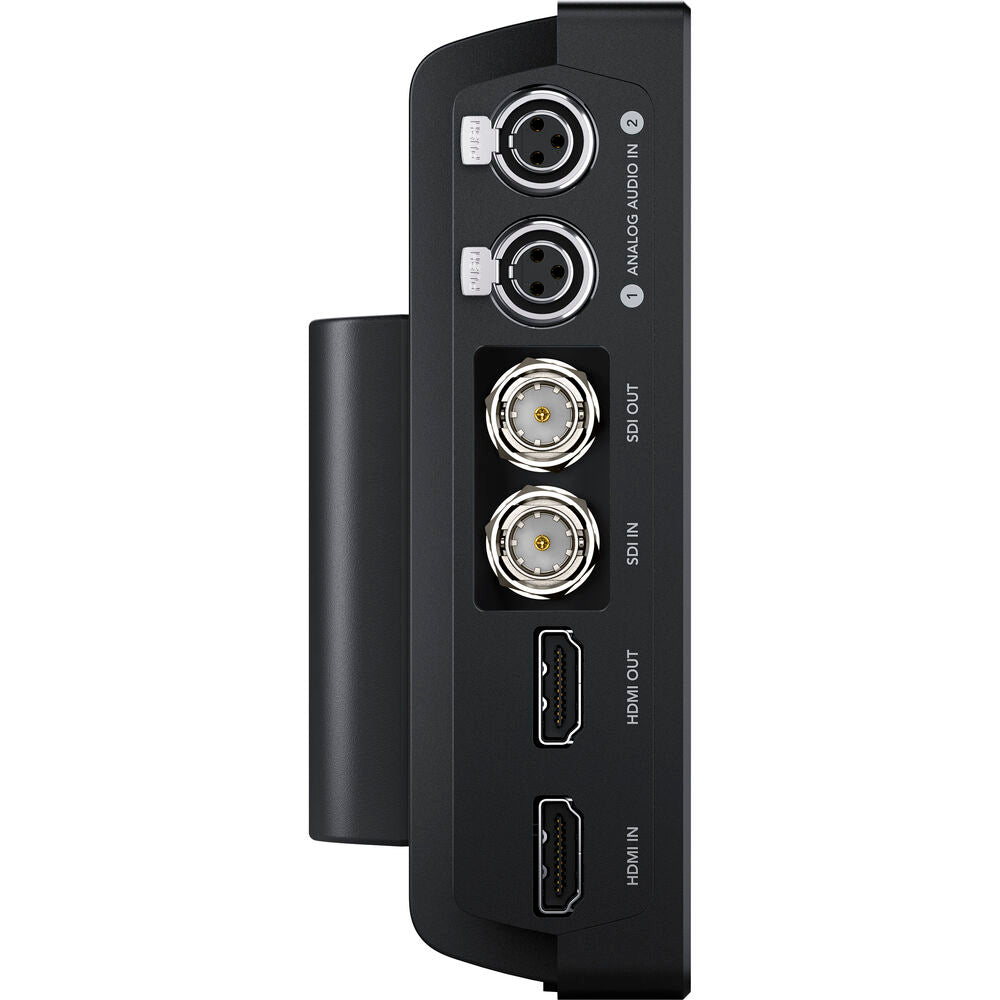

1 x HDMI Type A Input 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output |
HDCP Support |
Yes |
Embedded Audio |
HDMI: 8-Channel SDI: 16-Channel |
Audio |
2 x Mini-XLR Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
1 |
Power |
1 x Barrel (12 VDC) Input |
Other I/O |
1 x USB Type-C 1 x LANC (2.5 mm) Input |
Video Format |
SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
Pulldown Conversion |
None |
Camera Trigger |
None |
Pre-Roll Record |
None |
Encoding Formats |
Up to 1920 x 1080 ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps |
Maximum Audio Tracks |
16 |
Recording Media |
1 x SDXC (UHS-I) |
Metadata Tagging |
Yes |
Phantom Power |
None |
Battery Type |
2 x L-Series |
Mounting |
6 x 1/4"-20 Female |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
0 to 90% |
Storage Temperature |
-4 to 113°F / -20 to 45°C |
Material of Construction |
Aluminum |
Dimensions |
7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
Weight |
1.82 lb / 825 g |
Warranty Length |
Limited 1-Year Warranty |
In the Box:
- Blackmagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor
- Power Supply
- Limited 1-Year Warranty
