Explore the best of both worlds in video production and stills photography with the new EOS R5 C, a mirrorless hybrid camera with the capabilities of CINEMA EOS and EOS R system. A compact and lightweight system with 8K/60P resolution video recording is born. The all-new internal cooling fan system allows continuous internal recording in various file formats, including Cinema RAW Light, XF-AVC, and MP4.
Full-frame 8K sensorRecord 30fps 8K footage across the entire width of the sensor (up to 60fps with external power supply).
Cinema RAW LightEnjoy greater flexibility and efficiency with lighter data sizes for your 12-bit RAW internal recordings.
XF-AVC and MP4Video recording in MXF-based broadcast-standard XF-AVC and MP4 formats are also supported.
Dual Pixel CMOS AFSpotting the Eye AF and EOS iTR AF X for impeccable autofocus performance.
45 Megapixel imagesCapture crisp details with high quality images at up to 20fps with the electronic shutter and up to 12fps when using the mechanical shutter.
Long duration recordingRecord 8K footage with ease across an extended duration, thanks to a new active cooling system.
HDR recordingHigh dynamic range recording with Canon Log3, HLG and PQ support offer more realistic videos with detailed highlights and darker shadows.
Cinema EOS functionsEnjoy maximum control over your production with professional Cinema EOS features such as Canon Log 3, waveform and false colour monitoring and timecode terminal.
Sturdy and portable designA lightweight (680g) magnesium alloy body with dust- and drip-resistance offers you peace of mind during outdoor shoots.
Cinematic full-frame 8K videoFor the first time ever in the Cinema EOS System, the EOS R5 C offers 8K 60p RAW internal recording on a full-frame sensor. 4K 4:2:2 10-bit recording is also possible with 8K readout oversampling, offering stunning high resolution footage and greater possibilities in post-production. Create stunning slow motion scenes with high frame rate recording at up to 4K 120fps, with support for simultaneous audio recording that eliminates the need for separate audio input typically required in conventional high frame rate recording.
Stunning 45MP image qualityThe EOS R5 C is not just an excellent video camera, it also shares the same photography features as the EOS R5, making it a powerful workhorse even in still image photography.
Equipped with 45 megapixels, the EOS R5 C also delivers pin-sharp images across the entire width of the full-frame sensor, with bursts up to 20fps along with cutting-edge autofocus technology — Dual Pixel CMOS AF II (Photo mode) and EOS iTR AF X, including Eye Detection AF and Animal Detection AF. Low-light performance is also on point with ISO sensitivity that goes up to 51 200 and a focusing brightness range that goes up to EV-6.

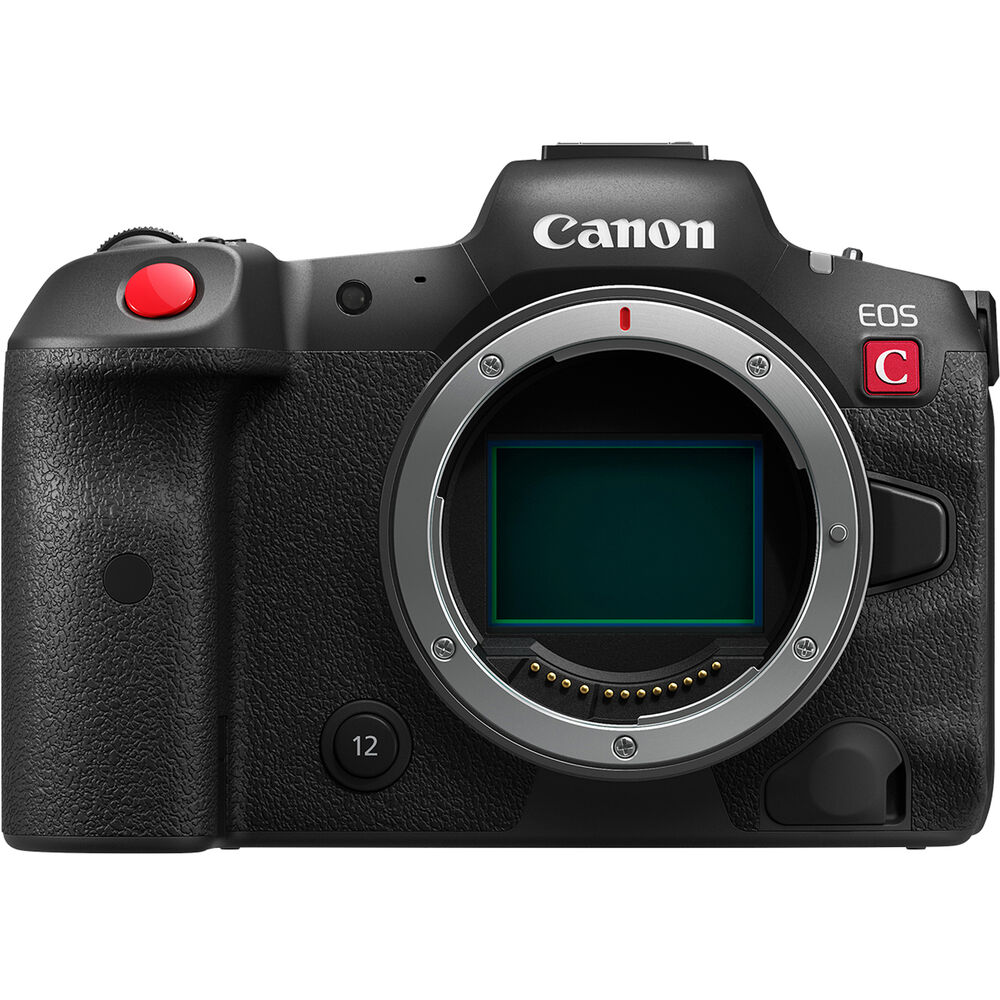

RF mount expands possibilitiesEquipped with an RF mount, the EOS R5 C dramatically expands your lens options and possibilities by offering compatibility with not just the latest RF lenses, but also an extensive range of existing EF and Cinema lenses via the EF-EOS R Mount Adapters. You can also record your own virtual reality videos by attaching the RF5.2mm F2.8 L Dual Fisheye VR lens!
The electronic image stabilisation of the camera combined with the in-lens Image Stabilizer of selected lenses provides Combination IS that further improves stabilisation in your footages.
Superior autofocusingNever lose track of your subjects during recording even when they are not facing the camera, thanks to the amazing focusing precision of the EOS R5 C’s Dual Pixel CMOS AF, Eye Detection AF and EOS iTR AF X that is engineered with deep learning technology.

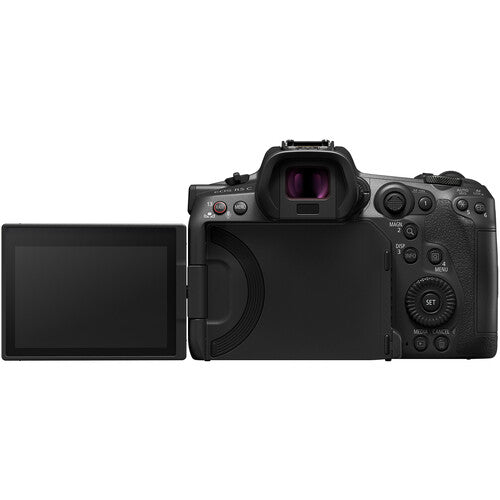

Multiple AF modes, including the Dual Pixel Focus Guide that comes in handy during manual focusing, offer even greater control and flexibility in your shoots. With a Vari-angle touchscreen LCD, autofocusing has become more intuitive with direct touch controls.
Multiple recording formatsThe EOS R5 C has a wide range of recording formats to suit every need. Cinema RAW Light saves your RAW recordings in lighter file sizes for easier file handling. The broadcast-ready MXF-compliant XF-AVC format and the highly versatile HEVC/H.264 MP4 formats support proxy recording in lower bitrates for more efficient video editing.
The Canon Log 3 colour profile offers a wide dynamic range and flexibility in colour grading. In addition, a full-featured Custom Picture mode supports Hybrid Log-Gamma (HLG) and Perceptual Quantization (PQ) for High Dynamic Range (HDR) recordings.

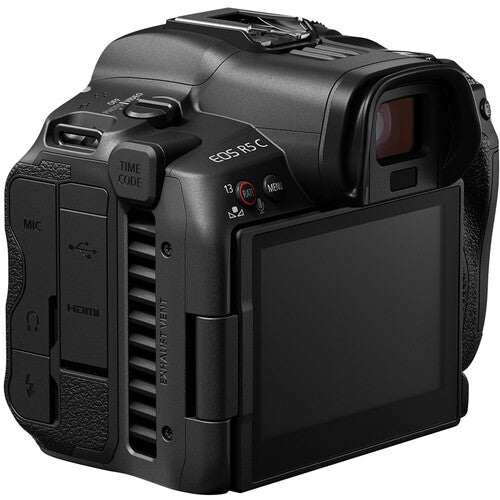

New internal cooling fanEnjoy continuous* recording of high definition 8K/60p video without interruption.

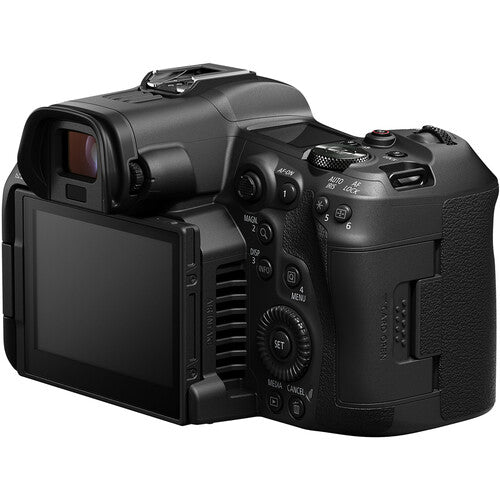

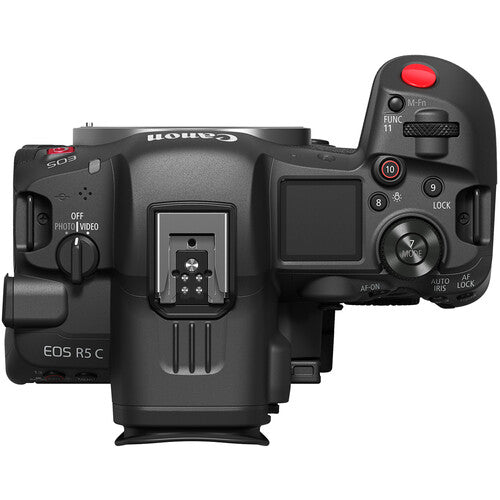

Full-featured buttonsThe buttons are designed to improve the operability, making it easy to use as a professional cinema camera. In addition, its 13 assignable buttons allow for flexible customisation and better control.

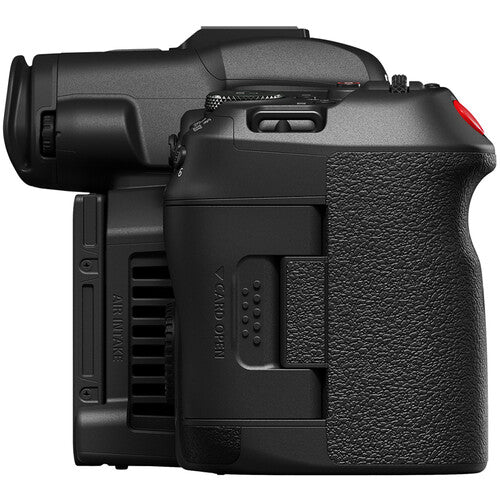

Dual card slotsThe dual card slot lets users combine a CF-Express and SD Card. Simultaneous recording of 4K XF-AVC, MP4, and proxy data is enabled even during 8K RAW internal recording.
Flexible power supplyThe EOS R5 C comes with the LP-E6NH battery.Optional power options:
Compact and lightweightEven with its multiple features, the EOS R5 C remains in a compact size (142mm width x 101mm height x 111mm depth) and is lightweight enough (approx. 680g body only, or 770g with one battery and memory cards – CFexpress & SD card) for long shoots outdoors, and for easy handling even with gimbals.
Technical Specifications:
Lens Mount
Canon RF
Sensor Resolution
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Image Sensor
36 x 24 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.5x/1.6x/3x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Digital
Built-In ND Filter
No
Capture Type
Stills & Video
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
Electronic Shutter
1/8000 to 0.5 Seconds
Bulb/Time Mode
Bulb Mode
ISO Sensitivity Range
100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
100 to 12,800 in Auto Mode (Extended: 100 to 51,200)
Video
100 to 51,200 (Extended: 50 to 102,400)
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Precise Scan Rate Control
Yes
Exposure Modes
Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range
-3 to 20 EV
White Balance
2500 to 10,000K
Presets: ATW, AWB, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent, Shade, Tungsten
Continuous Shooting
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording
Self-Timer
2/10-Second Delay
Image Sizes
3:2 JPEG / Raw
44.8 MP (8192 x 5464)
22.5 MP (5808 x 3872)
11.6 MP (4176 x 2784)
3.8 MP (2400 x 1600)
4:3 JPEG / Raw
39.8 MP (7280 x 5464)
19.9 MP (5152 x 3872)
10.3 MP (3712 x 2784)
3.4 MP (2112 x 1600)
16:9 JPEG / Raw
37.7 MP (8192 x 4608)
19 MP (5808 x 3264)
9.8 MP (4176 x 2344)
3.2 MP (2400 x 1344)
1:1 JPEG / Raw
29.8 MP (5456 x 5456)
15 MP (3872 x 3872)
7.8 MP (2784 x 2784)
2.6 MP (1600 x 1600)
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
C-RAW, HEIF, JPEG, Raw
Bit Depth
14-Bit
Internal Recording Modes
AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [160 to 810 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps [160 to 810 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 to 310 Mb/s]
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s]
AVC-LongG/MP4 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [400 to 540 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [400 to 540 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/120 fps [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s]
AVC-LongG/MP4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/120 fps [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 225 Mb/s]
1920 x 1080p at 23.98/24.00/29.97/50/59.94 fps [35 to 50 Mb/s]
Cinema RAW Light/Raw 12-Bit
8192 x 4320 at 23.98/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s]
5952 x 3140 at 23.98/24.00/29.97/50/59.94 fps [544 to 1360 Mb/s]
2976 x 1570 at 23.98/24.00/25/29.97/50/59.94 fps [138 to 344 Mb/s]
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
Fast-/Slow-Motion Support
Gamma Curve
Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020
Recording Limit
Broadcast Output
NTSC/PAL
IP Streaming
Built-In Microphone Type
Mono
Audio Recording
Raw: 4-Channel
MP4: 4-Channel
Media/Memory Card Slot
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II)

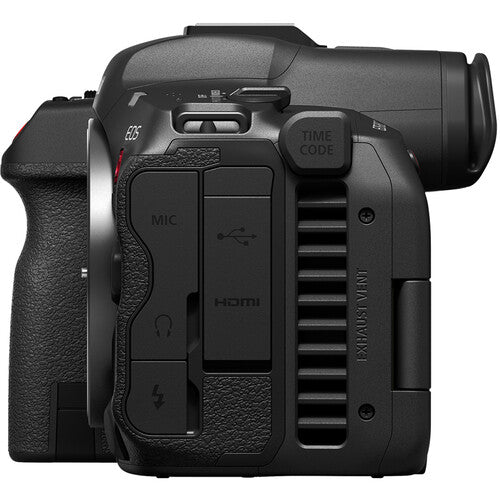

Video I/O
1x Micro-HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x USB-C (9VDC at 3 A) Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input)
1x BNC (Timecode) Input/Output
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
Mobile App Compatible
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
GPS
*Adapter Required or Via Connected Smartphone
Display Size
3.2"
Resolution
2,100,000 Dot
Display Type
Free-Angle Tilting Touchscreen LCD
Type
Built-In Electronic (OLED)
Size
0.5"
5,790,000 Dot
Eye Point
23 mm
Coverage
100%
Magnification
Approx. 0.76x
Diopter Adjustment
-4 to +2
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Phase Detection: 1053
Autofocus Sensitivity
-6 to +20 EV
Built-In Flash/Light
Maximum Sync Speed
1/250 Second
Flash Compensation
Dedicated Flash System
eTTL
External Flash Connection
Shoe Mount
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 85%
Battery Type
1x LP-E6NH Rechargeable Lithium-Ion, 7.2 VDC, 2130 mAh (Approx. 220 Shots)
or
1x /LP-E6N Rechargeable Lithium-Ion
1x LP-E6 Rechargeable Lithium-Ion
1x Hot Shoe

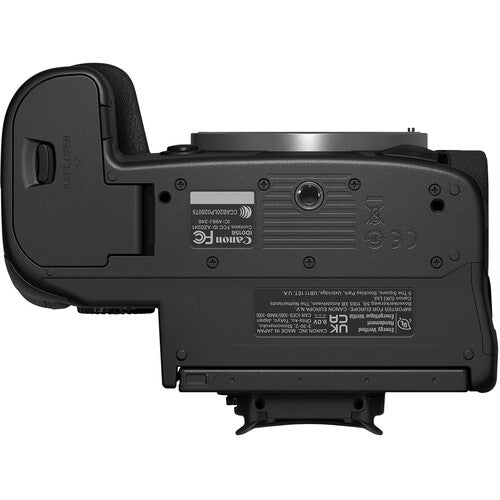

Tripod Mounting Thread
1x 1/4"-20 Female (Bottom)
Dimensions (W x H x D)
5.6 x 4 x 4.4" / 142.2 x 101.6 x 111.8 mm
Weight
1.7 lb / 770 g (With Battery, Recording Media)
1.5 lb / 680 g (Body Only)

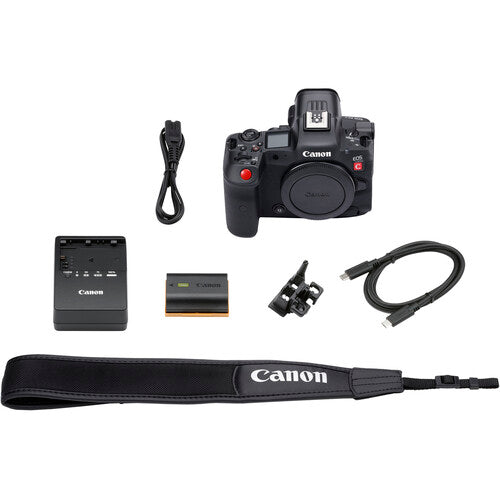

In the Box:
