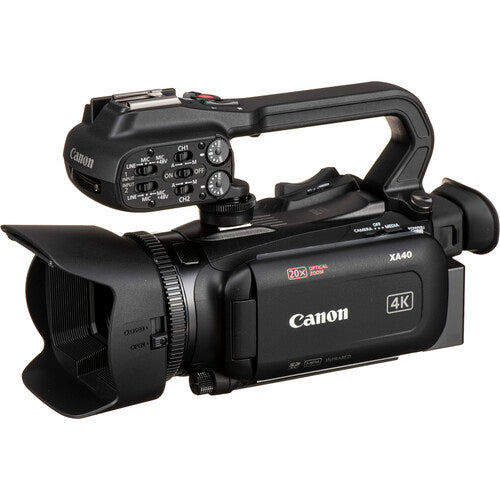

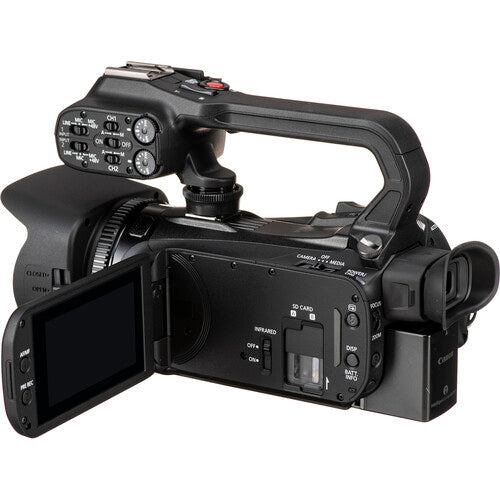

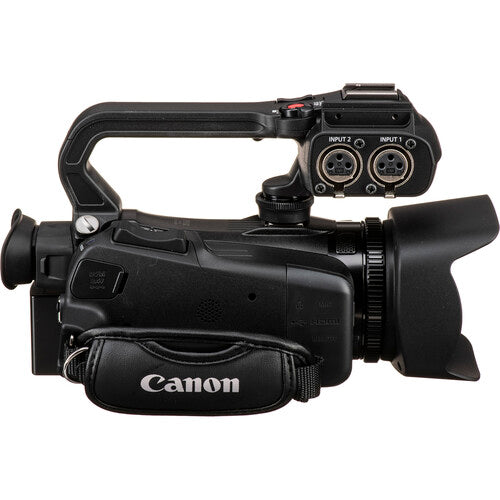

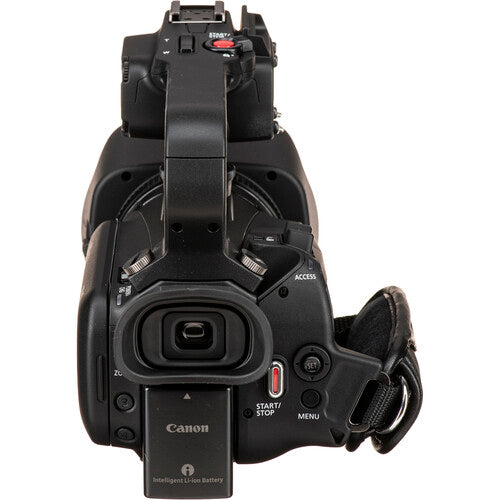

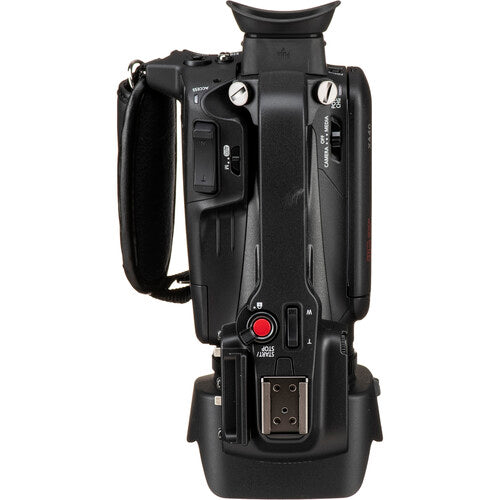

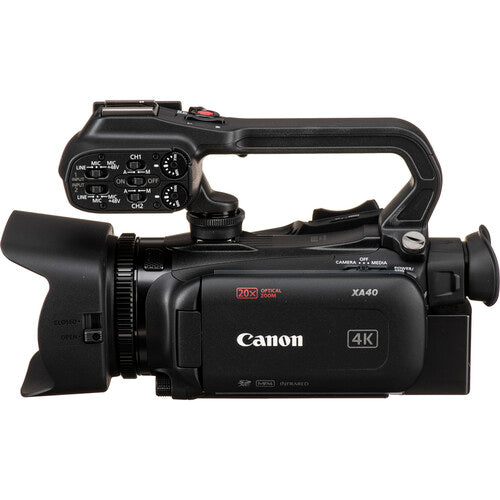

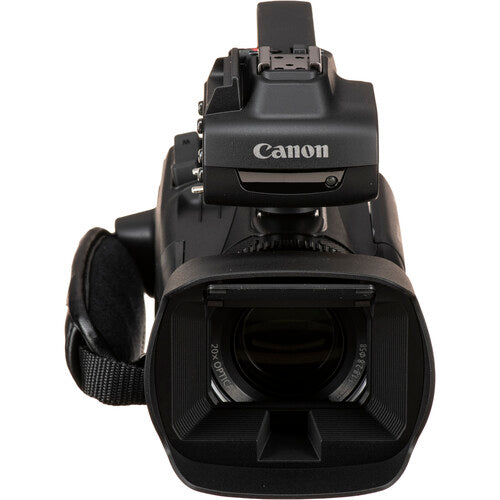

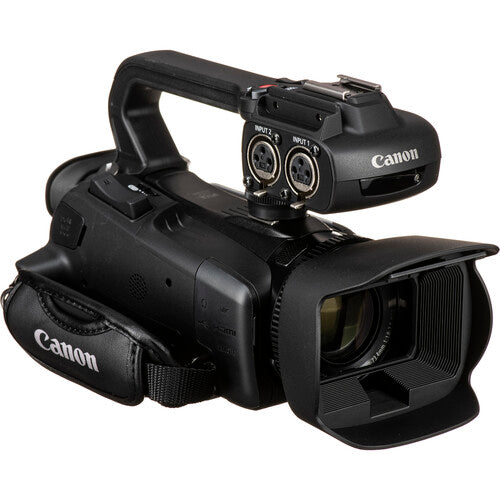

The Canon XA40 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1/2.3" CMOS sensor, two XLR audio inputs, and one mini-HDMI output which fits right into the ENG category for documentary or journalism-style productions.
The XA40's optics include an integrated 20x HD optical zoom and an eight-bladed circular iris for more natural highlights. The camera's pro-style features include Hybrid, Normal, Face Only, Manual Focus, Instant, and Canon's Medium autofocus; fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise. The XA40 also has display monitoring features such as zebra, color bars, and test tone.
The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots, and outputs to a mini-HDMI port. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI output. On the audio side, the XA40 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack.
Technical Specifications:
Sensor Resolution
Actual: 21.14 Megapixel (5352 x 3950)
Effective: 8.92 Megapixel (3840 x 2160)
Sensor Type
1/2.3"-Type CMOS Sensor
Image Stabilization
Optical in Integrated Lens
Digital
Capture Type
Stills & Video
Shutter Type
Not Specified by Manufacturer
Shutter Speed
1/2000 to 1 Second
Gain
0 to 24 dB (Native)
Signal-to-Noise Ratio
3 dB
Minimum Illumination
5 Lux at 1/30 Shutter Speed
0.3 Lux at 1/2 Shutter Speed
White Balance
2000 to 15,000K
Focal Length
3.6 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
Optical Zoom Ratio
20x
Maximum Aperture
f/1.8 to 2.8
Minimum Focus Distance
Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Filter Size
58 mm
Focus Control
Autofocus
Manual Focus
Internal Recording Modes
H.264/MP4
3840 x 2160 at 23.98/24.00/29.97 fps [150 Mb/s]
1920 x 1080p at 23.98/24.00/29.97/59.94 fps [17 to 35 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
Fast-/Slow-Motion Support
No
Broadcast Output
NTSC
Built-In Microphone Type
Stereo
Audio Recording
MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
IP Streaming
Yes
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O
1x Mini-HDMI 2.0 Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x Proprietary (8.4VDC) Input
Other I/O
1x Mini-USB
1x 2.5 mm Sub-Mini
Wireless
Mobile App Compatible
* Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.)
Display Size
3.0"
Resolution
460,000 Dot
Display Type
Articulating Touchscreen LCD
Type
Built-In Electronic (LCD)
Size
0.24"
1,560,000 Dot
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Manual Focus
Operating Temperature
32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature
23 to 113°F / -5 to 45°C
Operating Humidity
85%
Storage Humidity
60%
Battery Type
Canon BP-8 Series
Tripod Mounting Thread
1/4"-20 Female
Accessory Mounting Thread
1x
Dimensions (W x H x D)
7.2 x 4.3 x 3.3" / 18.3 x 10.9 x 8.4 cm (Without Protrusions)
9.1 x 4.5 x 3.3" / 23.1 x 11.4 x 8.4 cm (With Protrusions)
Weight
1.6 lb / 725.74 g
