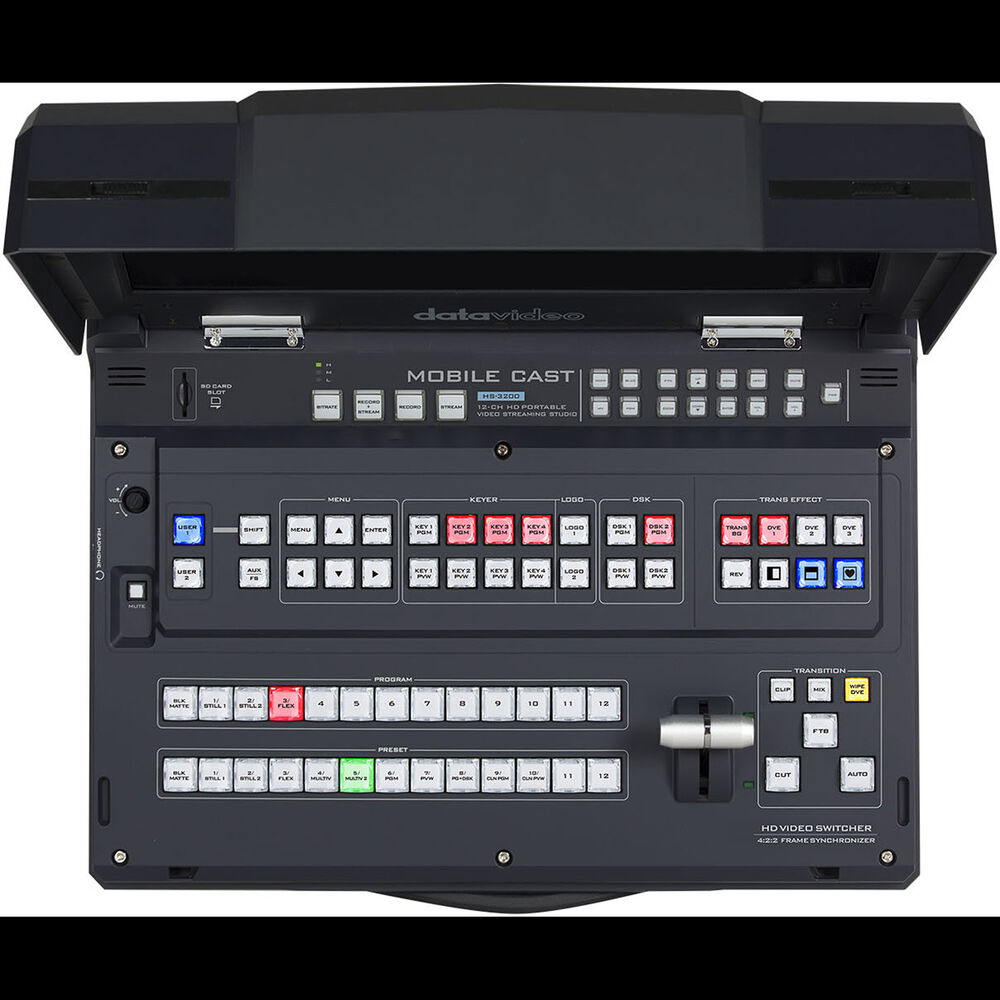

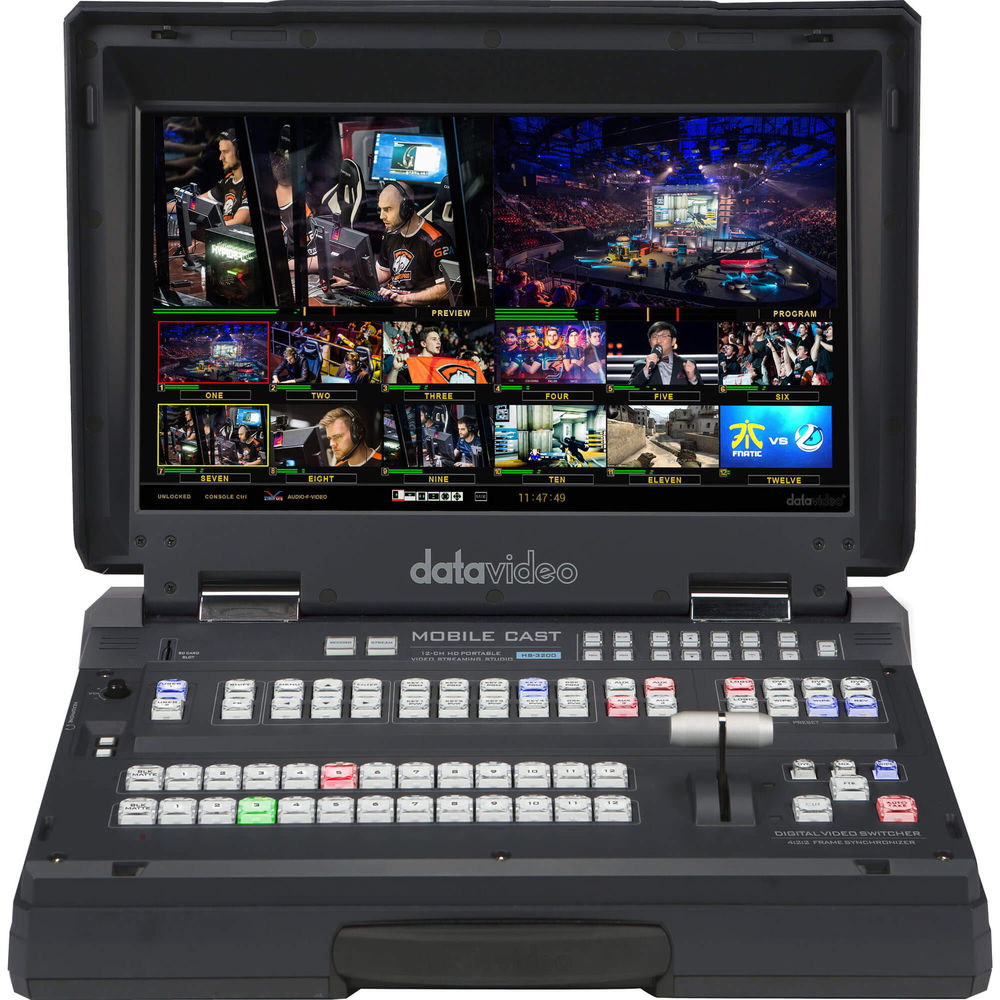

The 12-Input HD-SDI & HDMI Mobile Streaming Studio with 17.3" LCD Monitor from Datavideo is a 12-channel portable switcher with 1080p60 (3G) high-definition support, 12 digital inputs including eight SDI and four HDMI with embedded audio, and five SDI plus four HDMI outputs for connecting an HD recorder and external monitors.The Mobile Studio also features chroma/luma keying, DSK, PiP, a wipe generator, still stores, logo insertion, and a built-in title overlay system for use with a separately available character generator.
Technical Specifications:
Video Standard
Full HD
Video Format
1080p: 60/59.94/50
1080i: 60/59.94/50
720p: 60/59.94/50

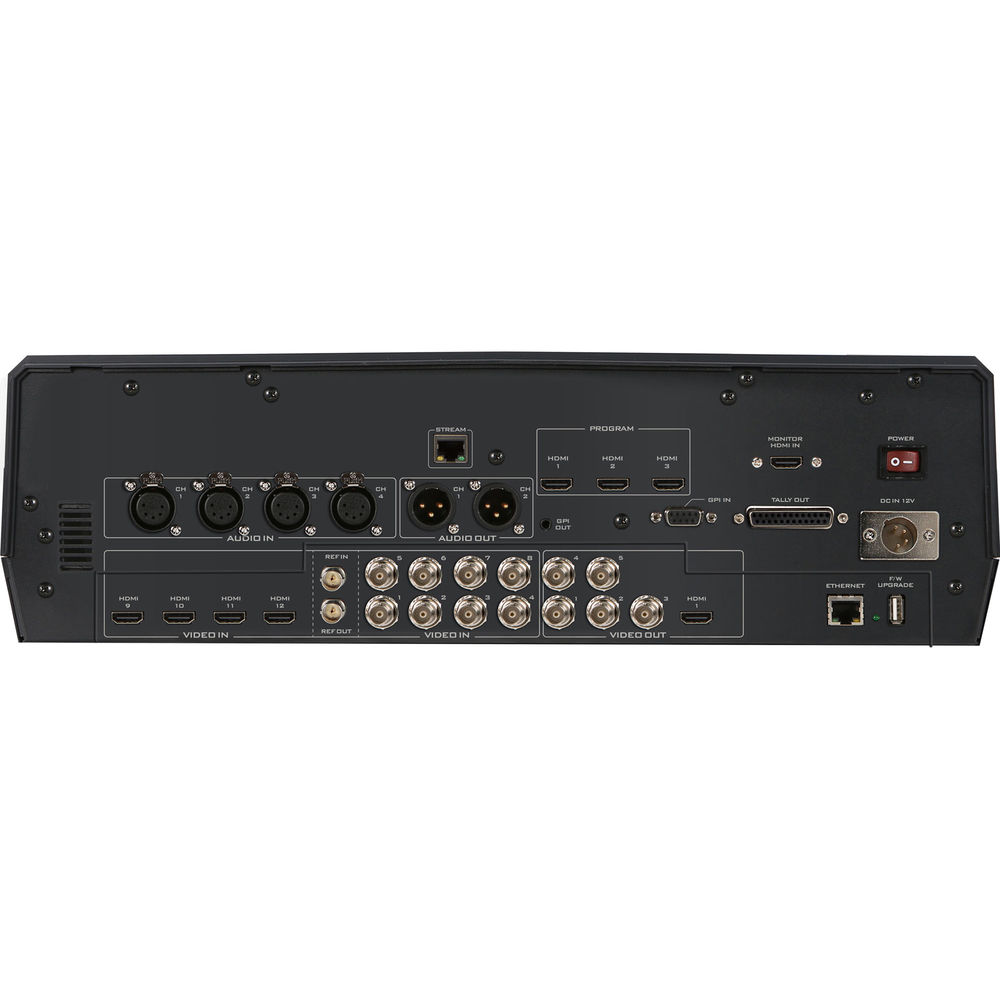

Connectors
8 x SDI, Video In
4 x HDMI, Video In
1 x HDMI, Monitor In
4 x XLR, Audio In
5 x SDI, Video Out
1 x HDMI, Video Out
3 x HDMI, Program Out
2 x XLR, Audio Out
1 x 9-Pin D-Sub, GPI In
1 x 3.5 mm, GPI Out
1 x RJ45, Streaming
1 x RJ45, Ethernet
1 x USB Type-A, Firmware
1 x 25-Pin Sub-D, Tally Out
1 x 4-Pin XLR, DC Power
Monitor Display
17.3" HD TFT LED Backlit
1920 x 1080
Video Encoder
H.264/AVC, Main/High Profile
Configurable Bit Rate up to 10 Mb/s
Audio Encoder
AAC-LC
Configurable Bit Rate: 32 to 384 kb/s
Sample Rate: 48 kHz, 16-Bit
Streaming Protocol
TS over TCP/UDP (Unicast & Multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
Certificates
CE, FCC
Operating temperature
32 to 104°F / 0 to 40°C
Dimensions
17.9 x 35.5 x 5.2" / 45.5 x 35.5 x 13.4 cm
Weight
17.8 lb / 8.1 kg
