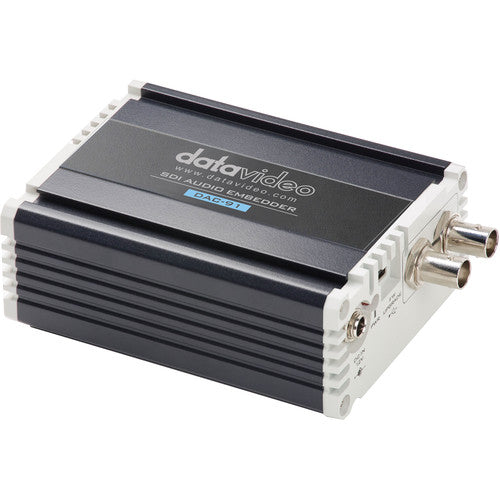

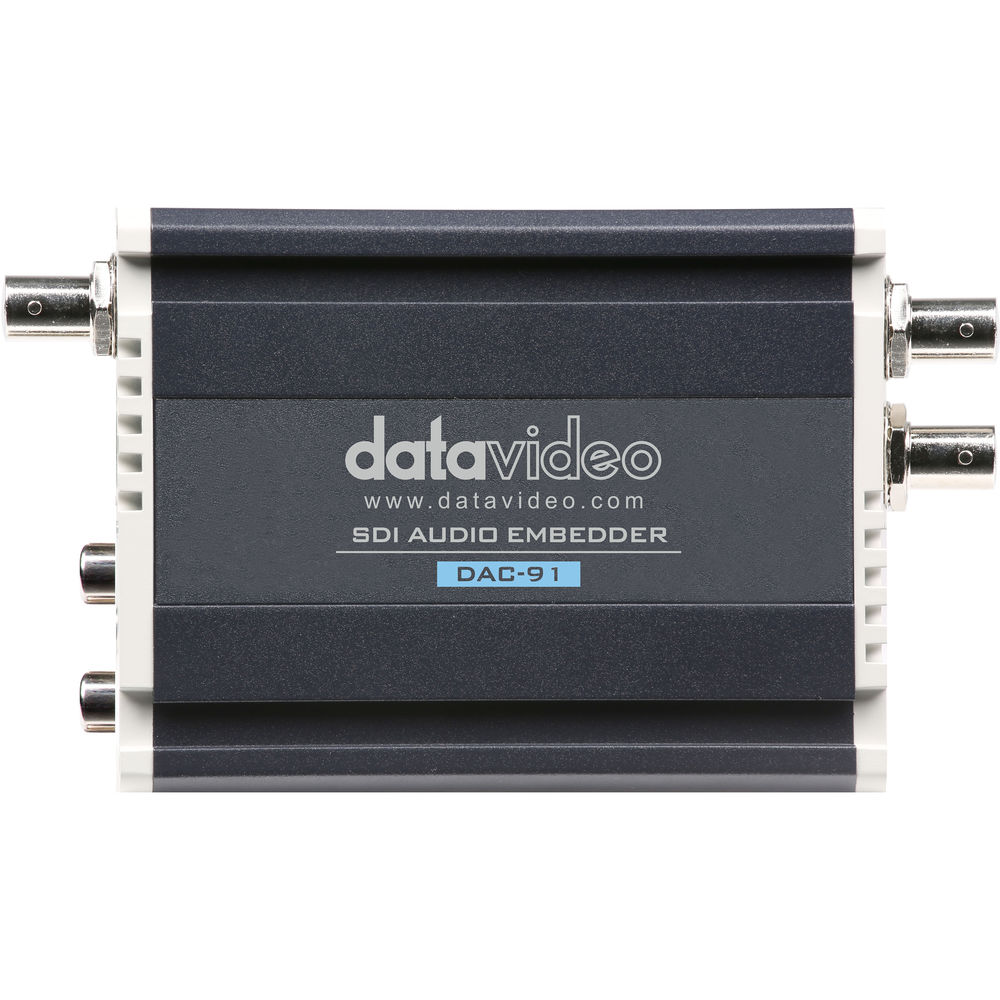

Datavideo DAC-91 2-Channel SDI Analog Audio Embedder
- 2 x Mini-XLR and 2 x RCA Inputs
- Supports 3G/HD/SD-SDI 1080p60 Video
- Embed 2 Channels of Analog Audio
- Aluminum Alloy Construction
The DAC-91 2-Channel SDI Analog Audio Embedder from Datavideo autodetects SD, HD, and 3G signals and allows users to embed two channels of analog audio into SDI video signal. It features 3G/HD/SD-SDI and supports up to 1080p60 video formats, automatically detecting and switching between the different formats. It provides mini XLR and RCA audio connectors for inputting analog audio.
- Auto sets compatible formats to embed external sound sources to SDI output
- Supports SMPTE and EBU
- Audio level indicator display
- Audio level adjustment
- Four analog audio inputs; audio level adjustment using the built-in DIP switches
- Rugged metal housing for use in the roughest conditions
- Ideal for long-period operation in a normal ventilated environment
Technical Specifications:
|
USB I/O |
1 x Mini-USB Integrated Male Input |
|
Video I/O |

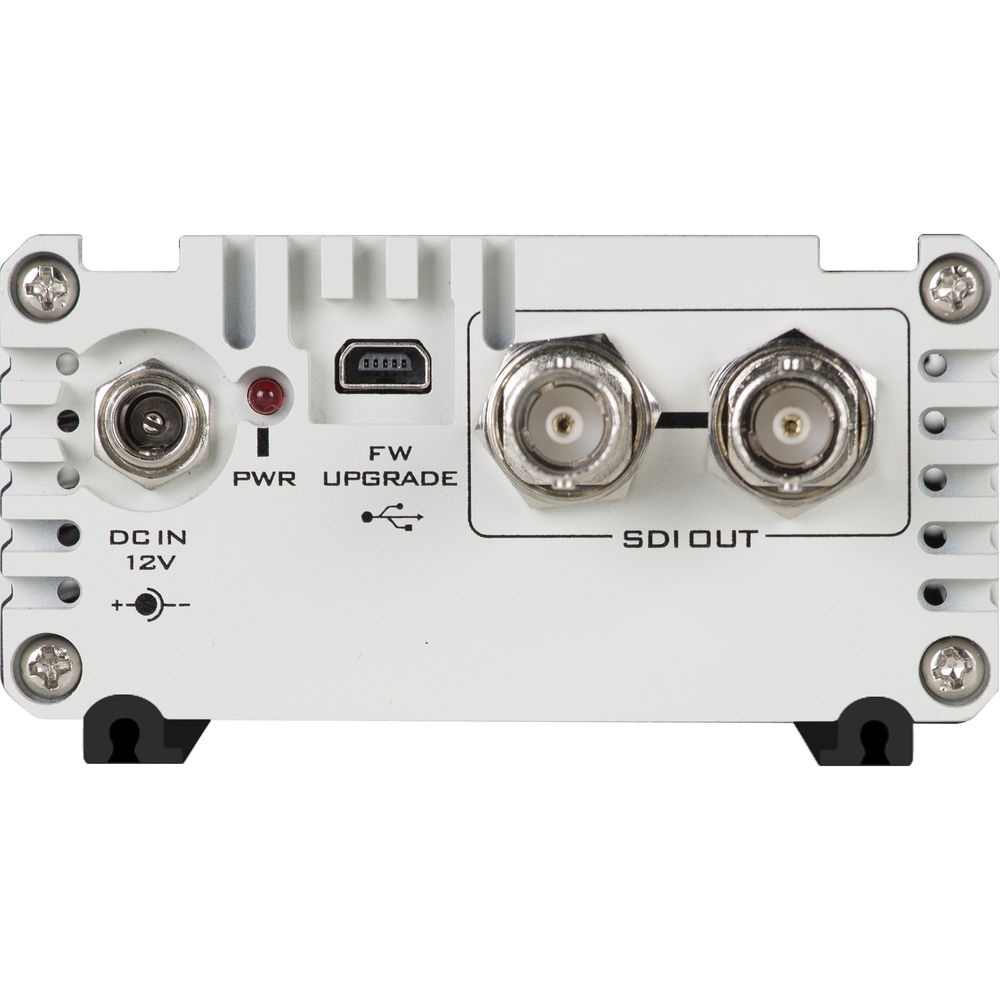

1 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Output |
|
Audio I/O |

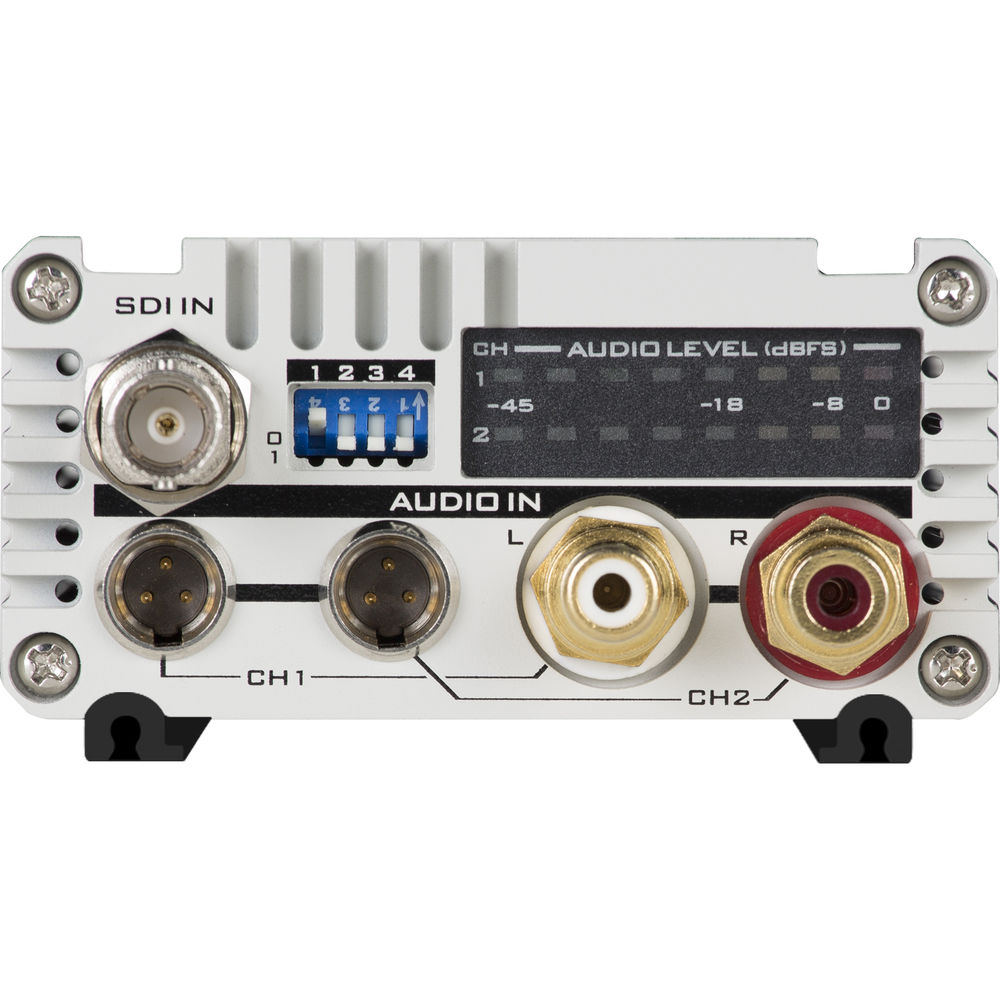

2 x Mini-XLR Input 2 x 2RCA Input |
|
Power Source |
Proprietary Interface |
|
DC Input Power |
12 VDC at 0.5 A |
|
Operating Temperature |
32 to 72°F / 0 to 40°C |
|
Color |
Black |
|
Material of Construction |
Aluminum Alloy |
|
Dimensions |
4.4 x 3.3 x 1.8" / 112 x 85 x 45 mm |
|
Weight |
0.9 lb / 0.4 kg |
In the Box:
- Datavideo DAC-91 2-Channel SDI Analog Audio Embedder
- AD Switch (12 VDC)
- 2 x Mini XLR to Female XLR Cable
- Limited 1-Year Manufacturer Warranty
