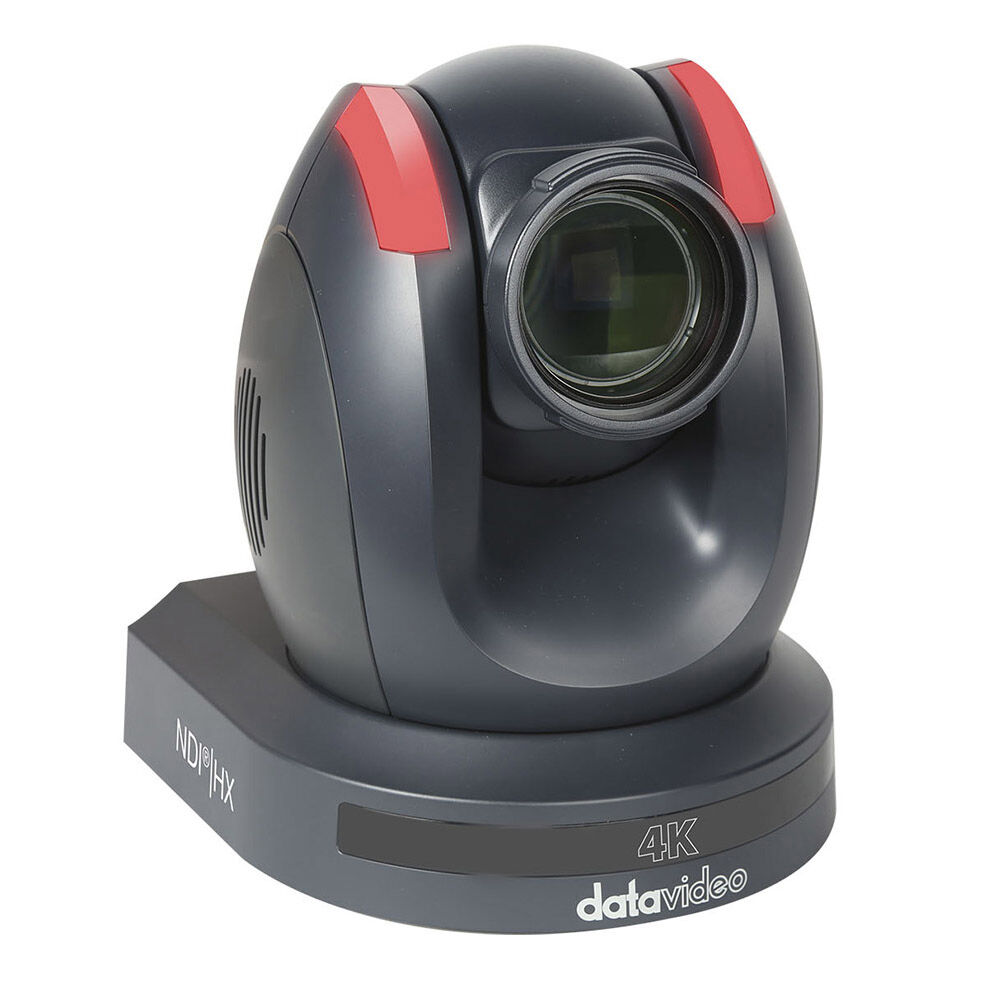

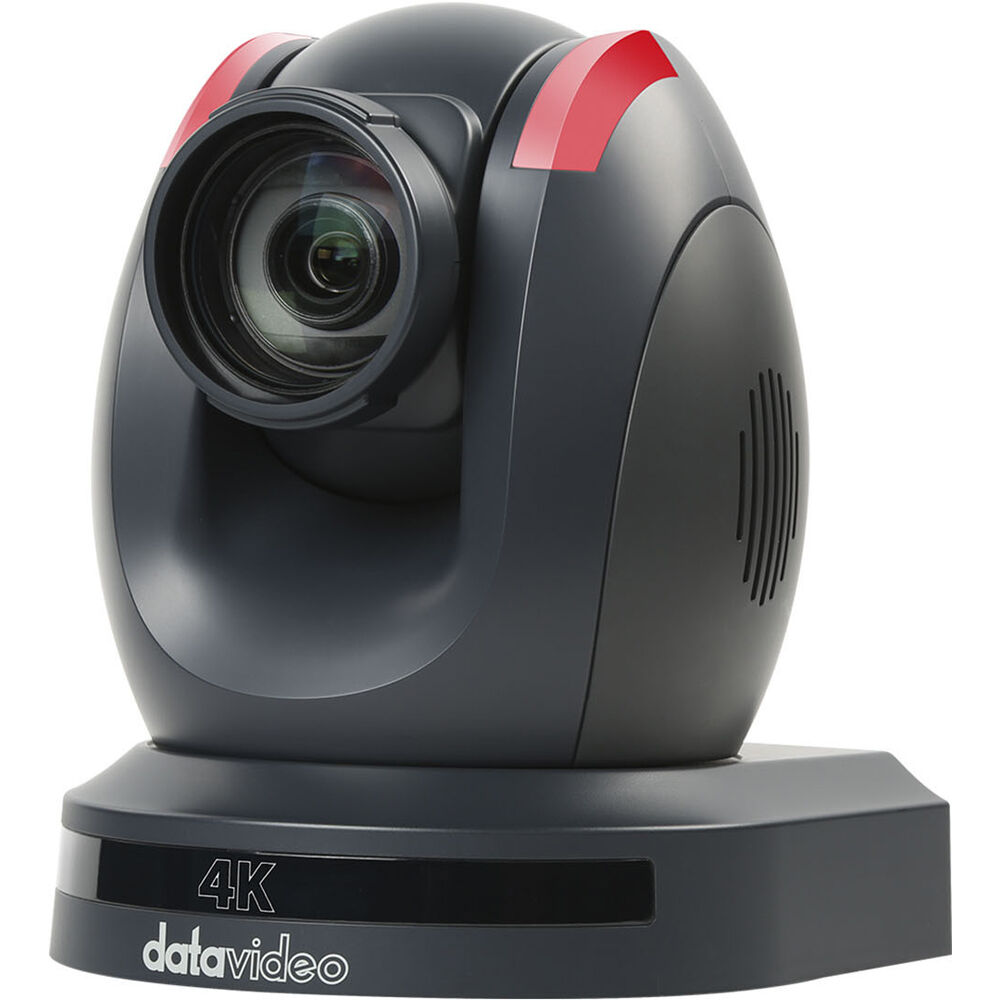

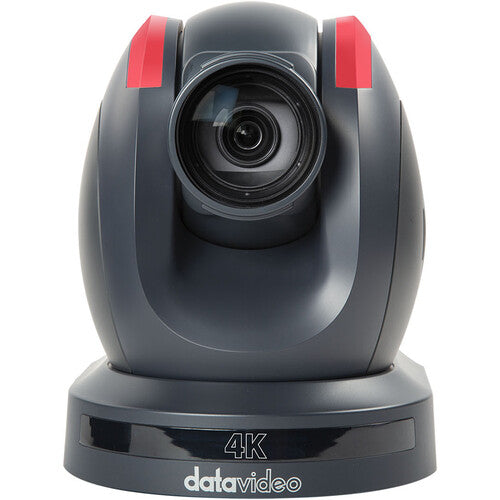

Datavideo PTC-280NDI 4K HDMI/3G-SDI/NDI PTZ Camera (Black)

Rs. 250,160.00 Rs. 225,000.00
On Special Order (Expected shipping: 2-4 weeks)
Key Features:
  • 1/2.5" CMOS Sensor, 8.51MP
  • Resolution up to UHD 4K
  • 12x Optical, 16x Digital Zoom
  • 255 Preset Positions
  • H.264/H.265/MJPEG Compression Support
  • 3.5mm Audio Input
  • AAC Audio Compression
  • TCP/IP, RTSP, SRT, and Multicast Support
  • HDMI, 3G-SDI, and LAN NDI|HX Outputs
  • 1/4"-20 Thread for Mounting

Whether you are setting up a corporate video shoot, live streaming from a house of worship, or integrating multi-camera acquisition into your broadcast facility, this black PTC-280NDI 4K HDMI/3G-SDI/NDI PTZ Camera from Datavideo provides the ideal solution while bringing together 4K resolution video with the power and simplicity of single-cable connectivity, using NDI.

Employing a powerful, 1/2.5" CMOS sensor and a 12x optical/16x digital zoom, the PTC-280NDI offers 255 preset positions and a multitude of streaming protocols, including TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, and Multicast, with H.264/H.265/MJPEG video compression. The supported NDI|HX technology allows you to transfer video, audio, tally, control, and PoE (Power-over-Ethernet) over a single Ethernet cable, while HDMI and 3G-SDI connectivity provide you with options to send your signal to a video switcher, external recorder, and/or imaging display. Add audio coming from an external microphone or an audio mixer into your program, using the 3.5mm mic/line input or the embedded digital audio in the AAC compression format.

A standard 1/4"-20 mounting thread at the bottom of the camera enables you to set it up on a tripod or, if you prefer, to mount the camera on a wall; the separately available WM-1, WM-10, or WM-11 wall mount kits are all compatible with the PTC-280NDI.

2D/3D Noise Reduction Technology
Reduces noise while ensuring sharper imaging, especially in lower light conditions

Simultaneous High-Resolution Video Outputs
Up to UHD 4K from HDMI and NDI output and up to 1080p60/50 from 3G-SDI

SRT Ready
Fully supported by SRT and Datavideo's own dvCloud for reliable live streaming workflows

Wide Field of View
Provides a 71° field of view for wide shots

Multiple Remote Control Options
Easily controlled via RS-422 serial port, DVIP and VISCA over IP, or any NDI controller

Technical Specifications:

Image Sensor

1/2.5"-Type CMOS

Sensor Resolution

Effective: 8.51 Megapixel

Built-In ND Filter

None

Focus Control

Autofocus

Manual Focus

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1/30 Second

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

Flip / Mirror Support

Image Flip, Mirror (Vertical)

White Balance

2500 to 8000K

Presets: Auto, Indoors, Manual, One Push, Outdoors

Focal Length

4.4 to 52.8mm

Optical Zoom Ratio

12x

Max Digital Zoom

16x

Field of View

Horizontal: 71°

Maximum Aperture

f/1.8 to 2.6

External Recording Modes

HDMI

3840 x 2160 at 25/29.97/50/59.94 fps

1920 x 1080p at 25/29.97/50/59.94 fps

1920 x 1080i at 50/59.94 fps

1280 x 720 at 50/59.94 fps

SDI/BNC

1920 x 1080p at 25/29.97/50/59.94 fps

1920 x 1080i at 50/59.94 fps

1280 x 720 at 50/59.94 fps

Broadcast Output

NTSC/PAL

IP Streaming

H.264, H.265, MJPEG, NDI|HX, ONVIF, RTMP, RTSP, TCP

3840 x 2160

1920 x 1080

1280 x 720

1024 x 576

960 x 540

720 x 576

720 x 480

720 x 408

640 x 480

640 x 360

480 x 270

320 x 240

Presets

255 via IR, RS-232, VISCA

Move Speed

Pan: 0.87 to 43°/sec

Tilt: 0.69 to 21.32°/sec

Movement Range

Pan: 300°

Tilt: 145° (-15 to 130°)

Tally Light

Yes

Supported Control Protocols

DVIP

IP

IR

NDI

Pelco-D

Pelco-P

RS-232

VISCA

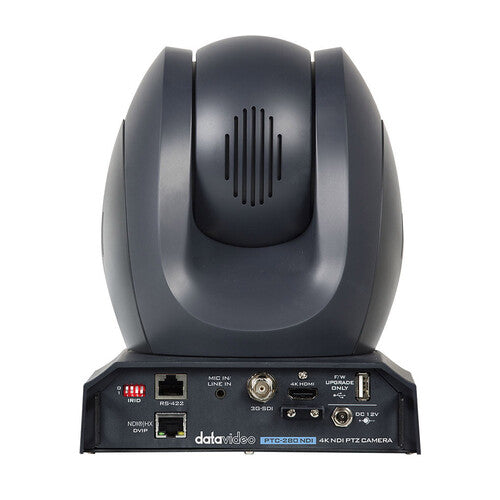

Video I/O

1 x HDMI 2.0 Output

1 x BNC (3G-SDI) Output

1 x RJ45 (NDI) Output

Audio I/O

1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

Other I/O

1 x RJ45 (RS-422) Control Input

1 x RJ45 (DVIP, LAN) Control Input

1 x USB-A Input

Built-In Speaker

No

PoE Support

PoE 802.3af

Power I/O

1 x Barrel (12VDC) Input

Power Consumption

Device: 12 W

Operating Temperature

32 to 104°F / 0 to 40°C



In the Box:

  • Datavideo PTC-280NDI 4K HDMI/3G-SDI/NDI PTZ Camera (Black)

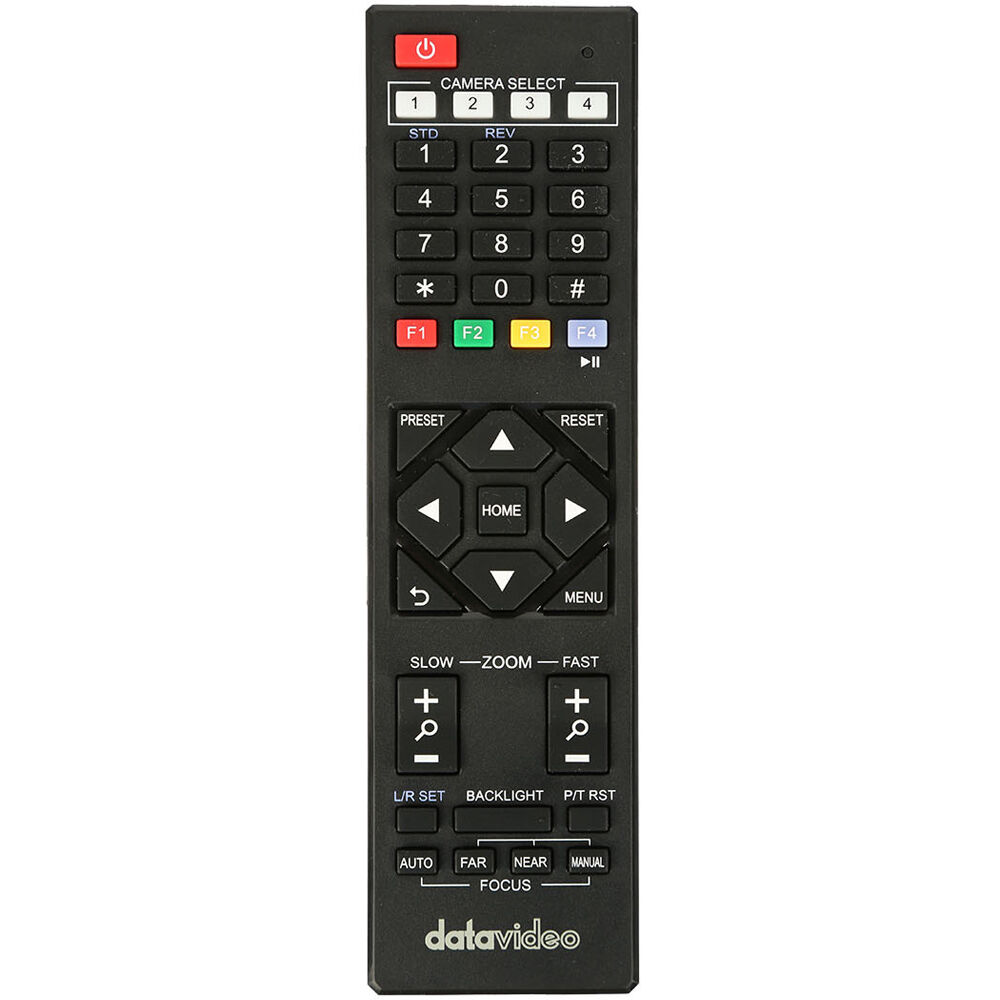

  • IR Remote Controller
  • Ceiling Mount Bracket A
  • Ceiling Mount Bracket B
  • 6 x Ceiling Mount Bracket Screw M3*4mm
  • 12 VDC Power Adapter
  • Tightrope
  • Limited 1-Year Manufacturer Warranty
