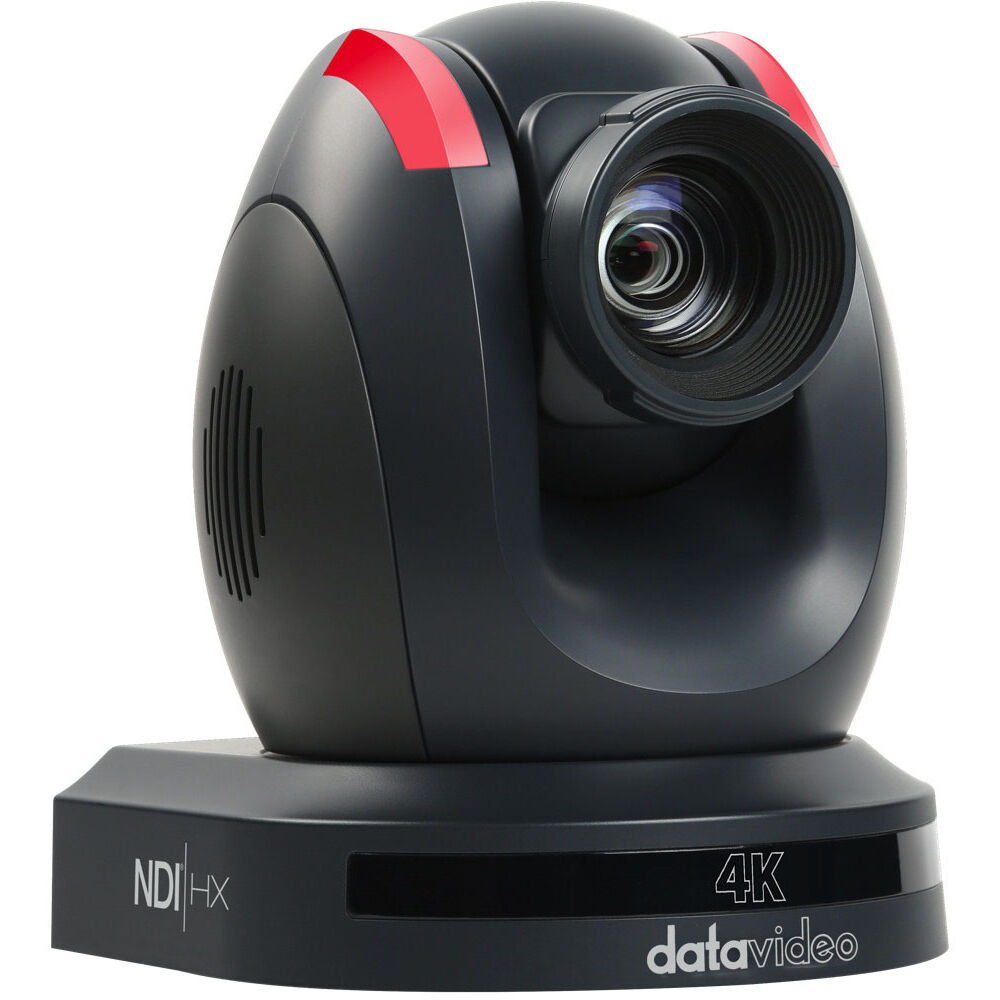

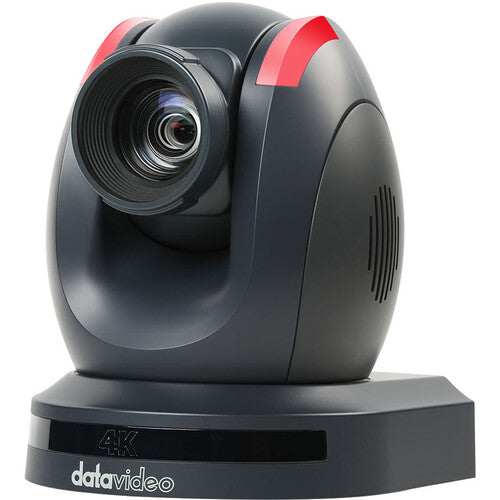

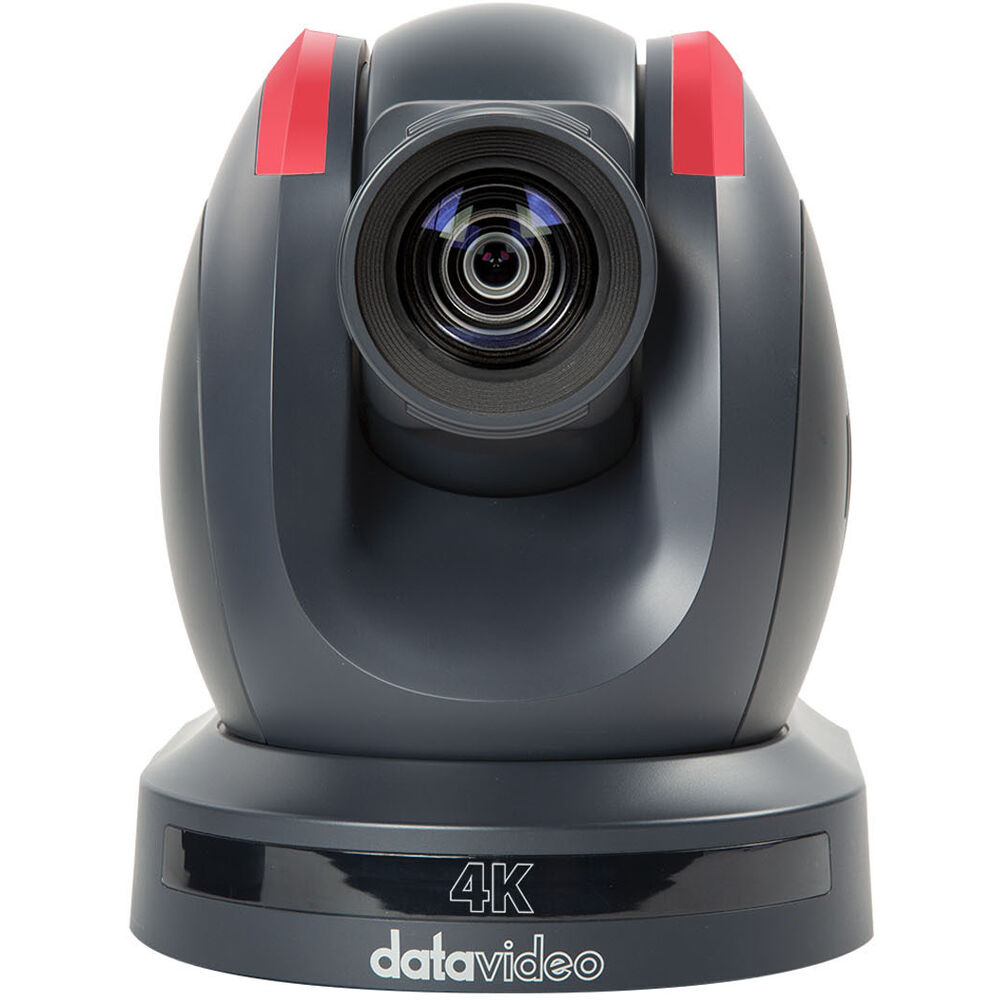

Datavideo PTC-300NDI 4K HDMI/3G-SDI/20x NDI PTZ Camera (Black)

Rs. 297,360.00 Rs. 265,000.00
On Special Order (Expected shipping: 2-4 weeks)
Key Features:
  • 8.42MP, 1/1.8" CMOS Sensor
  • Capture Resolution up to UHD 4K
  • NDI, HDMI, and 3G-SDI Outputs
  • 20x Optical, 16x Digital Zoom
  • H.264/H.265/MJPEG Compression Support
  • AAC Audio Compression
  • 255 Preset Positions, 3.5mm Audio Input
  • TCP/IP, RTSP, SRT, and Multicast Support
  • 1/4"-20 Thread for Mounting

Combine high-resolution 4K imaging and dual-streaming technology with this black PTC-300NDI 4K HDMI/3G-SDI NDI PTZ Camera with 20x Zoom from Datavideo. The 1/1.8" CMOS sensor supports resolutions up to UHD 4K60, with the 20x optical and 16x digital zoom options, giving you ample flexibility in your placement of the camera for optimal acquisition. Pair all that with NDI, HDMI 2.0, and 3G-SDI outputs and the multitude of streaming protocols available and the PTC-300NDI becomes an invaluable asset in your arsenal of production tools.

Simultaneous High-Resolution Video Outputs
The camera supports simultaneous HDMI 2.0 and IP output up to 2160p60 and also 3G-SDI output up to 1080p60. There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable. Power over Ethernet (PoE) functionality allows you to transmit all the information and power over only one cable.
Compression and Noise Reduction
Advanced 2D/3D technology reduces noise while ensuring sharper imaging, especially in lower light conditions. Support compression of resolution up to 3840 x 2160p60 and the second channel up to 1280 x 720p30. AAC, MP3, and PCM audio compression also supported.

SRT Ready
Fully supported by SRT and Datavideo's own dvCloud for reliable live streaming workflows. Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms as well as to Datavideo dvCloud. It can also be used as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

Wide Field of View
The camera features 20x optical zoom to reach closer to your subject, and it also features 16x digital zoom to get even closer without any loss of image quality. The wide shot provides a horizontal 60° field of view for wide shots.

Multiple Remote Control Options
Easily controlled via RS-422 serial port, DVIP and VISCA over IP, or any NDI controller. The camera control app is tailored for the Datavideo PTZ camera series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and iris.

The app is able to decode the live streaming via RTSP, SRT, and NDI to easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on the App Store or Google Play for free.

Tally Light
Green and red lights tally to show the preview and program status for broadcast applications. There are clearly seen all around the camera.

Technical Specifications:

Image Sensor

1/1.8"-Type CMOS

Horizontal Resolution (TV Lines)

0 TV Lines

Sensor Resolution

Effective: 8.42 Megapixel

Built-In ND Filter


Focus Control


Manual Focus

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1/30 Second

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

Flip / Mirror Support

Image Flip, Mirror (Vertical)

White Balance

2500 to 8000K

Presets: Auto, Indoors, Manual, One Push, Outdoors

Focal Length

6.7 to 125mm

Optical Zoom Ratio


Max Digital Zoom


Field of View

Horizontal: 60°

Maximum Aperture

f/1.58 to 3.95

External Recording Modes


3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps

1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps

1920 x 1080i at 50/59.94/60.00 fps

1280 x 720 at 50/59.94/60.00 fps


1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps

1920 x 1080i at 50/59.94/60.00 fps

1280 x 720 at 50/59.94/60.00 fps

Broadcast Output


IP Streaming


3840 x 2160

1920 x 1080

1280 x 720

1024 x 576

960 x 540

720 x 576

720 x 480

720 x 408

640 x 480

640 x 360

480 x 270

320 x 240

IP Multi-Stream Support


H.264, H.265: 1080p



Move Speed

Pan: 0.87 to 43°/sec

Tilt: 0.69 to 21.32°/sec

Movement Range

Pan: 300°

Tilt: 145° (-15 to 130°)

Tally Light


Supported Control Protocols

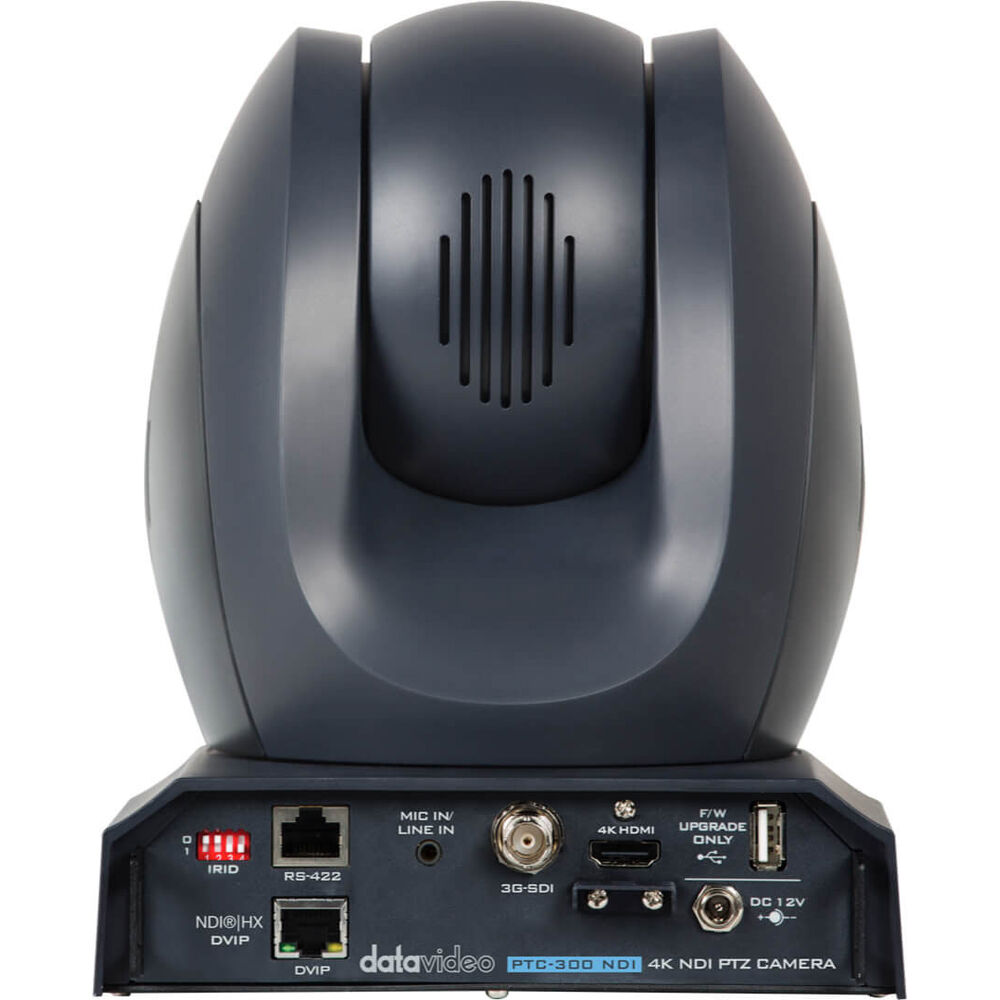

Video I/O

1 x HDMI 2.0 Output

1 x BNC (3G-SDI) Output

1 x RJ45 (NDI) Output

Audio I/O

1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

Other I/O

1 x RJ45 (RS-422) Control Input

1 x RJ45 (DVIP) Control Input

1 x USB-A Input

Built-In Speaker


Power I/O

1 x Barrel (12VDC) Input

Power Consumption

12 W

Operating Temperature

32 to 104°F / 0 to 40°C


In the Box

  • Datavideo PTC-300NDI 4K HDMI/3G-SDI/20x NDI PTZ Camera (Black)

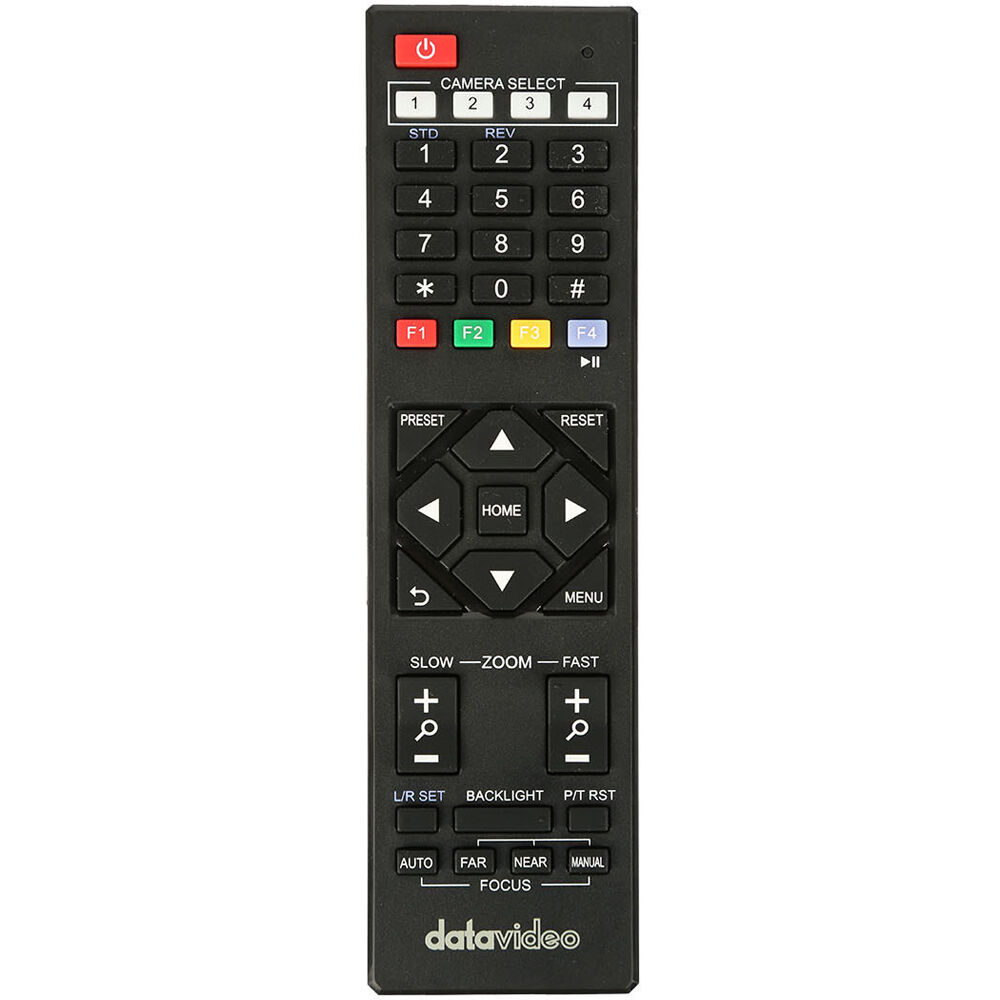

  • IR Remote Controller
  • Ceiling Mount Bracket A
  • Ceiling Mount Bracket B
  • 6 x Ceiling Mount Bracket M3 Screw
  • 12 VDC Power Adapter
  • Safety Rope
  • Limited 1-Year Manufacturer Warranty
