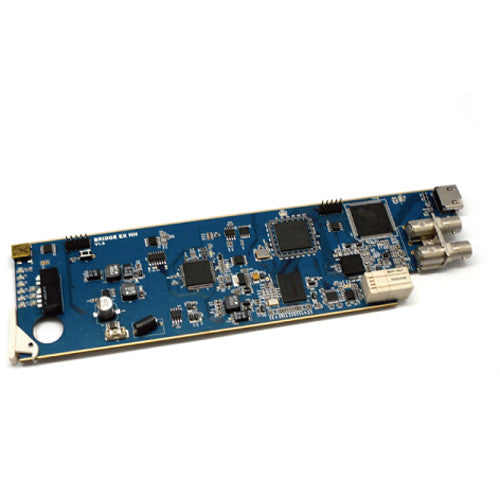

DIGITAL FORECAST Bridge EX HH HDMI TO HD/SD-SDI Converter Module
The DIGITAL FORECAST Bridge EX HH HDMI TO HD/SD-SDI Converter Module can be used for converting a HDMI signal into a standard SMPTE SDI signal. It can support formats up to 1080p60 and can export 2 SDI output signals from 1 HDMI input. The converter also allows you to set the output in a specific format. In addition, it also comes with a built-in scaler.

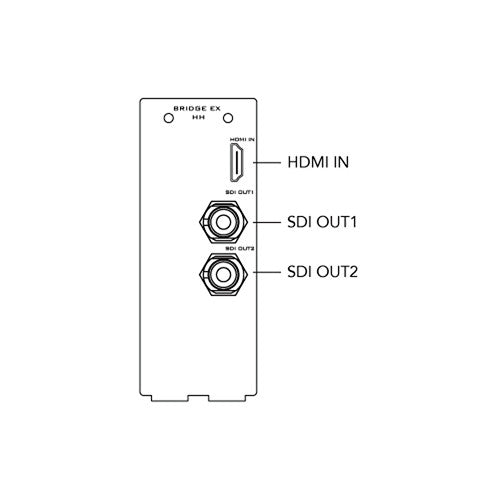

- 1 HDMI input
- 2 HD/SD SDI outputs
- SCAN converter
- Improved output jitter
- Input state LED expression
- Dipswitch configuration
Technical Specifications:
|
HDMI Input |
Connector: 1 x HDMI Formats: 525i/625i, 576p/480p, 720p (50/59/60), 1080i (50/59/60), 1080p (24/25/29/30/50/59/60) |
|
SDI Outputs |
Connector: 75 Ohms BNC No. of Connectors: 2 Formats: 1080i (50/59/60), 1080p (50/59/60) Output Standards: SMPTE 125/274/296M/425M Signal Level: 800 mV ± 10% Return Loss: >15 dB to clock frequency |
|
Electrical |
Voltage: +12 VDC Power Dissipation: <7 W |
|
Temperature |
32 to 104°F (0 to 40°C) |
|
Physical |
Mounting: Bridge EX frame mounting No. of Slots: 2 |
In the Box:
- DIGITAL FORECAST Bridge EX HH HDMI TO HD/SD-SDI Converter Module
