DIGITAL FORECAST Bridge X_TS V3 Troubleshooter Expanded Hard Case Bundle

Rs. 177,000.00 Rs. 159,300.00
This product is Out of stock
Key Features:
  • Updated, Sturdier Case, Brighter Display
  • Up/Down/Cross/Scan Converter
  • Test-Pattern Generator
  • SDI Signal Tester
  • 5" 800 x 480 Touchscreen LCD Display
  • SDI/HDMI/VGA/Component/Composite I/O
  • Analog and AES/EBU Audio
  • Includes Battery Plate and Power Supply
  • Includes Adapter Cables

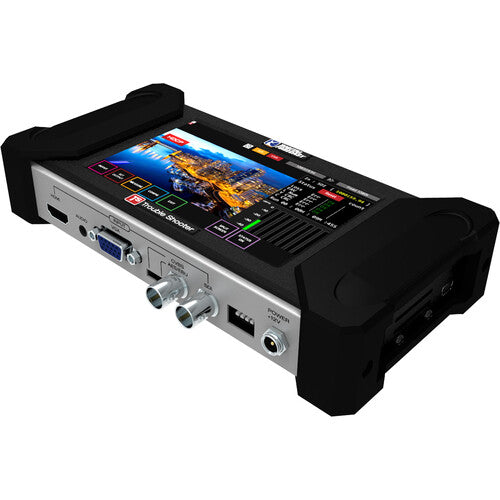

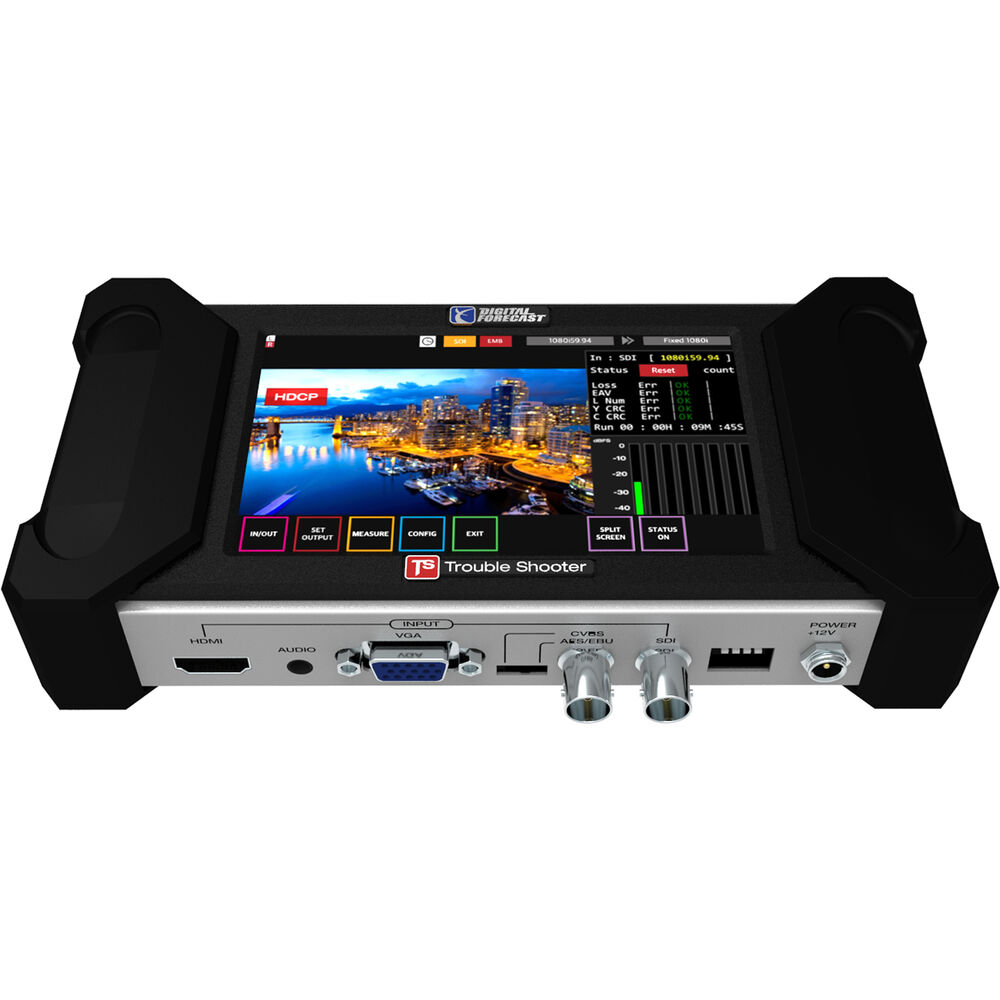

This updated version of the compact, multifunction Bridge X_TS V3 Troubleshooter Expanded Hard Case Bundle from DIGITAL FORECAST can be a signal converter, format converter, and a test-pattern generator. SDI, HDMI, VGA, component, and composite video formats are supported on input and output. Any input can be converted to any available output, and all outputs are simultaneously active. The updated V3 model features a more durable top plate, easier assembly, a thicker frame, a 20% brighter LCD display, shockproof silicone side bumpers, and it now comes in a silver exterior color.

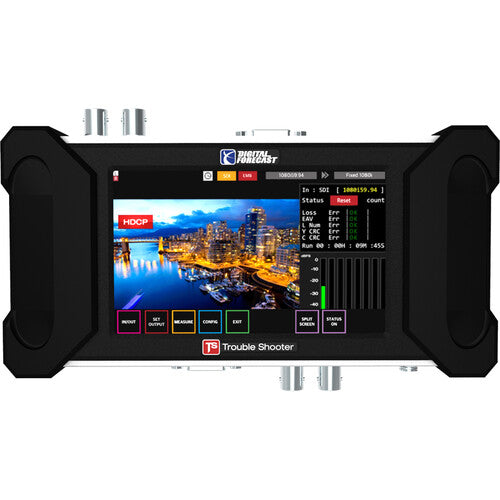

Analog stereo and AES/EBU audio embedding is supported. The front of the Bridge X_TS features a touchscreen LCD for monitoring incoming and outgoing video signals, audio levels, SDI metrics, and more. Power can be supplied using the included power adapter or by using optional Sony batteries using the included battery plate. Accessory adapter cables for Component to VGA video and RCA to 3.5mm audio are also included, as is a hard case for storage and transport when not in use.

Updates in V3 Model
More durable top plate
  • Easier assembly
  • A thicker frame by 0.2mm
  • 20% brighter LCD display
  • Shockproof silicone side bumpers
  • Silver exterior color
General Features:
  • Up/Down/Cross/Scan converter
  • Wide video format support
  • SDI, HDMI, VGA, Component, Composite, AES/EBU, and analog audio support
  • Analog audio embedding/de-embedding
  • User-selectable output format
  • Test pattern generator
  • OSD menus
  • Audio level monitoring (up to 8-channels)
  • 5" touchscreen LCD
  • Supports separately available Sony batteries

Technical Specifications:

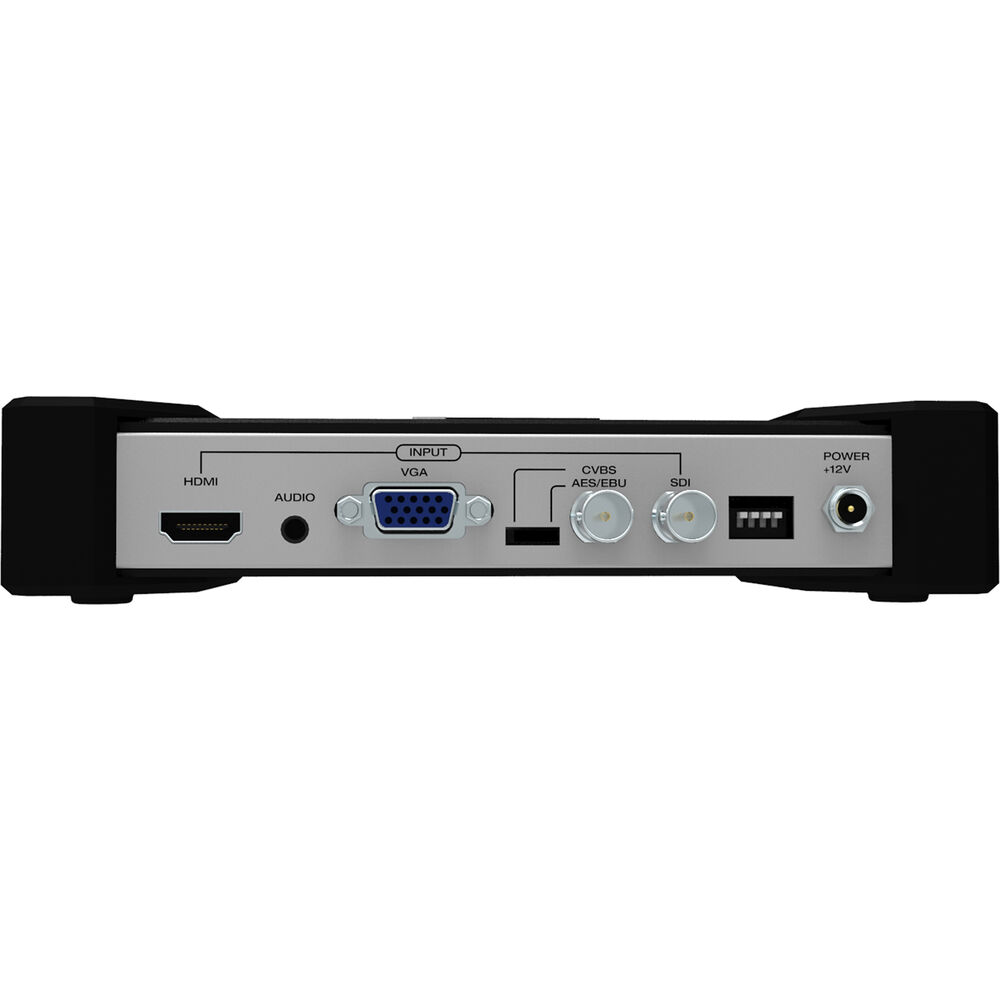

Video Inputs

1 x BNC (3G-SDI) Female

1 x BNC (Composite) Female

1 x DE-15/DB-15 (VGA) Female

1 x HDMI (HDMI 1.3) Female

Audio Inputs

1 x 1/8" / 3.5 mm TRS Stereo Analog

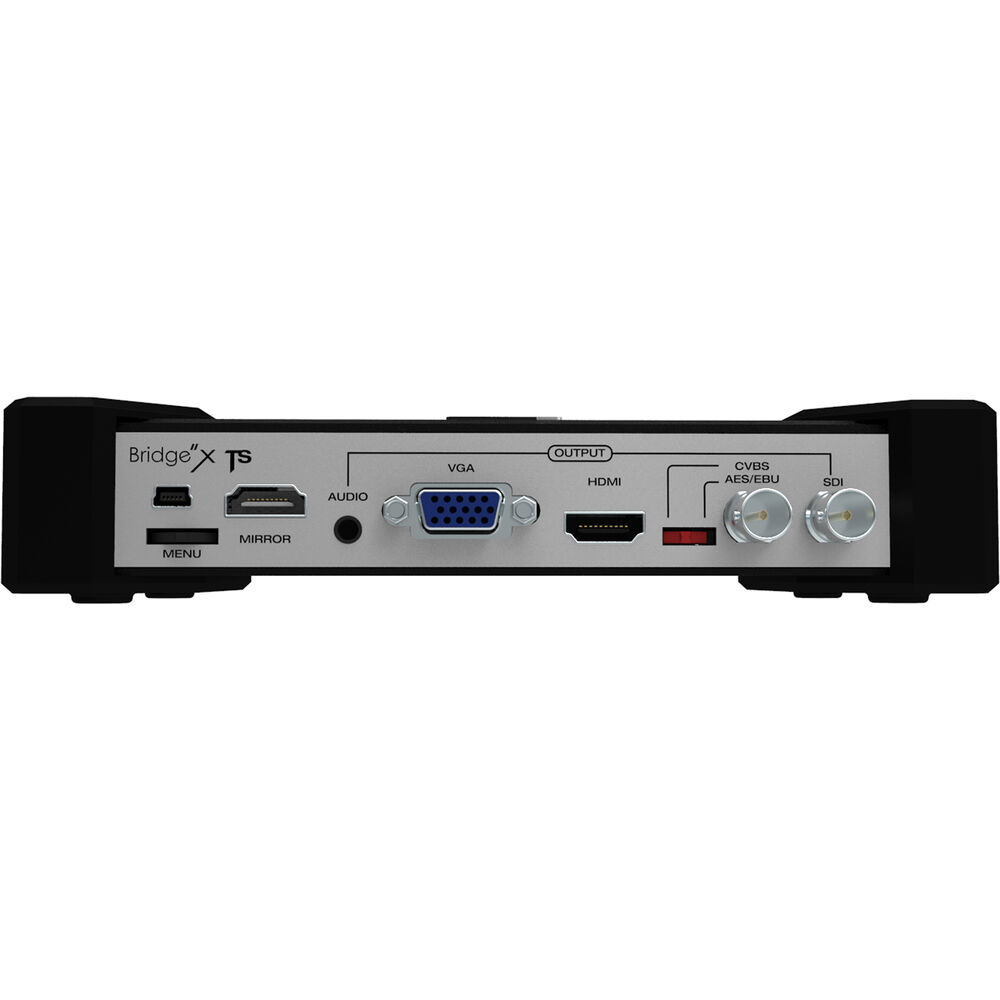

Video Outputs

1 x BNC (3G-SDI) Female

1 x BNC (Composite) Female

1 x HDMI (HDMI 1.3) Female (Loop Output)

1 x DE-15/DB-15 (VGA) Female

Audio Outputs

1 x 1/8" / 3.5 mm TRS Stereo Analog Female

Expansion Slots

None

Input Video Format

Component / HDMI / SDI

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 50/59.94/60 fps

576i / 625 lines 50 fps

480i / 525 lines 59.94 fps

Output Video Format

Component / HDMI / SDI

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 50/59.94/60 fps

576i / 625 lines 50 fps

480i / 525 lines 59.94 fps

Embedded Audio

HDMI/SDI

Video Standard Compliance

SMPTE 125M/274M/292M/296M/424M

HDR Compatibility

None

Display Size

5"

Battery Support

1 x Sony L-Series / NP-F Type

Power I/O

1 x Barrel (12 VDC) Input

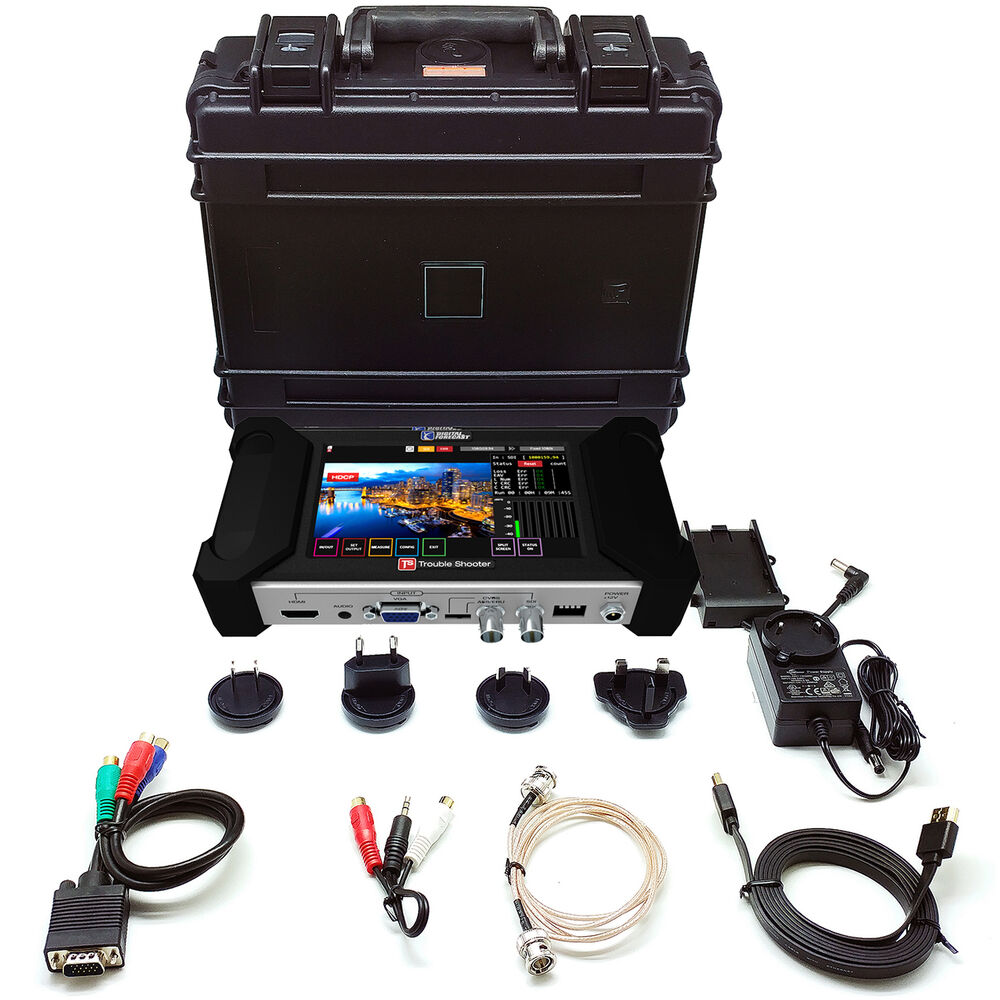

In the Box:

  • DIGITAL FORECAST Bridge X_TS V3 Troubleshooter Expanded Hard Case Bundle
  • Side Bumper Set
  • Power Adapter
  • Sony Battery Plate
  • Component to VGA Adapter
  • Stereo RCA to 3.5mm Adapter
  • HDMI Cable
  • BNC SDI Cable
  • Hard-Shell Case
  • Limited 2-Year Manufacturer Warranty
