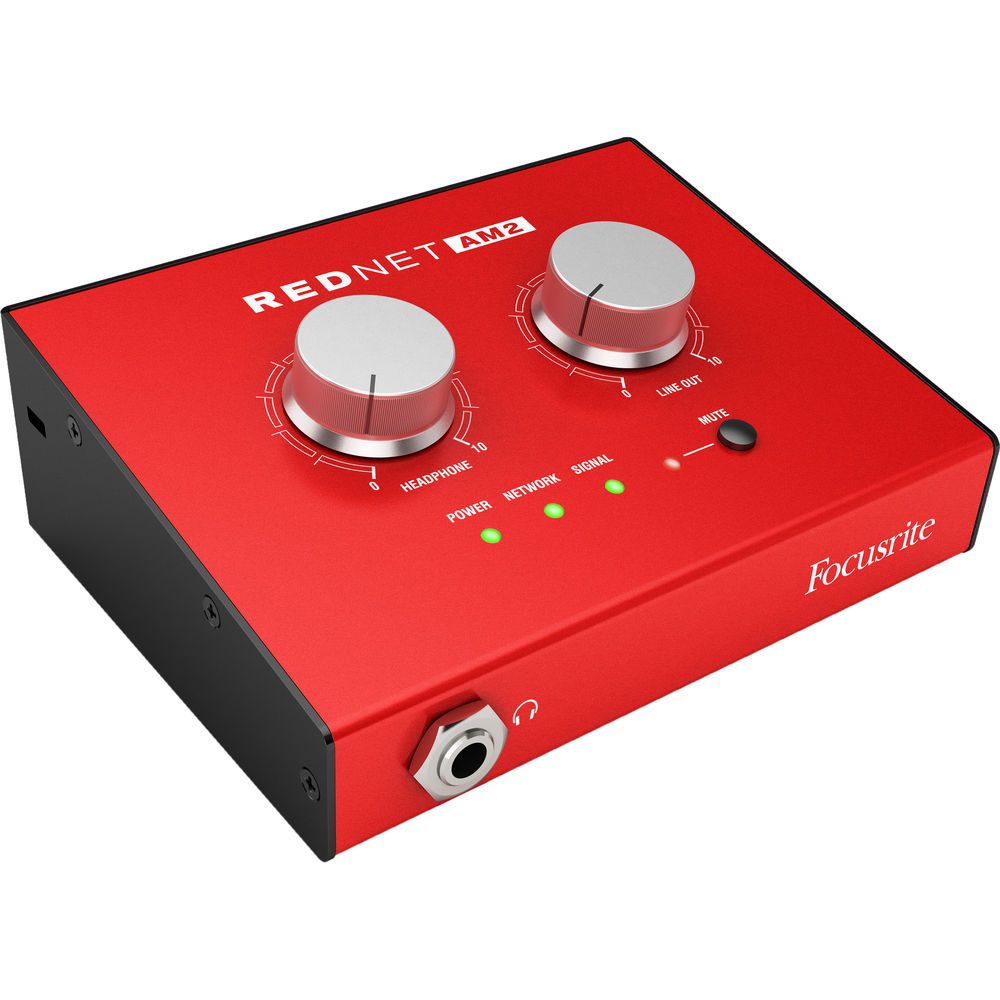

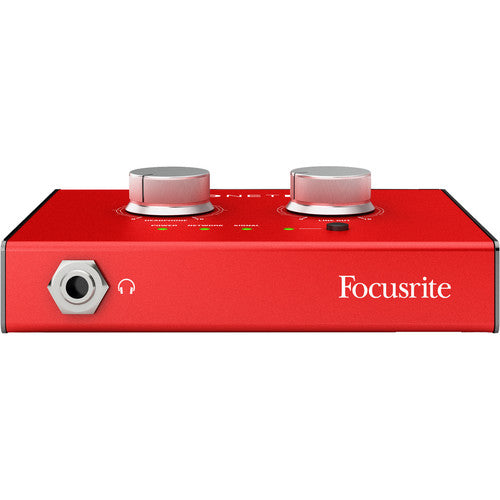

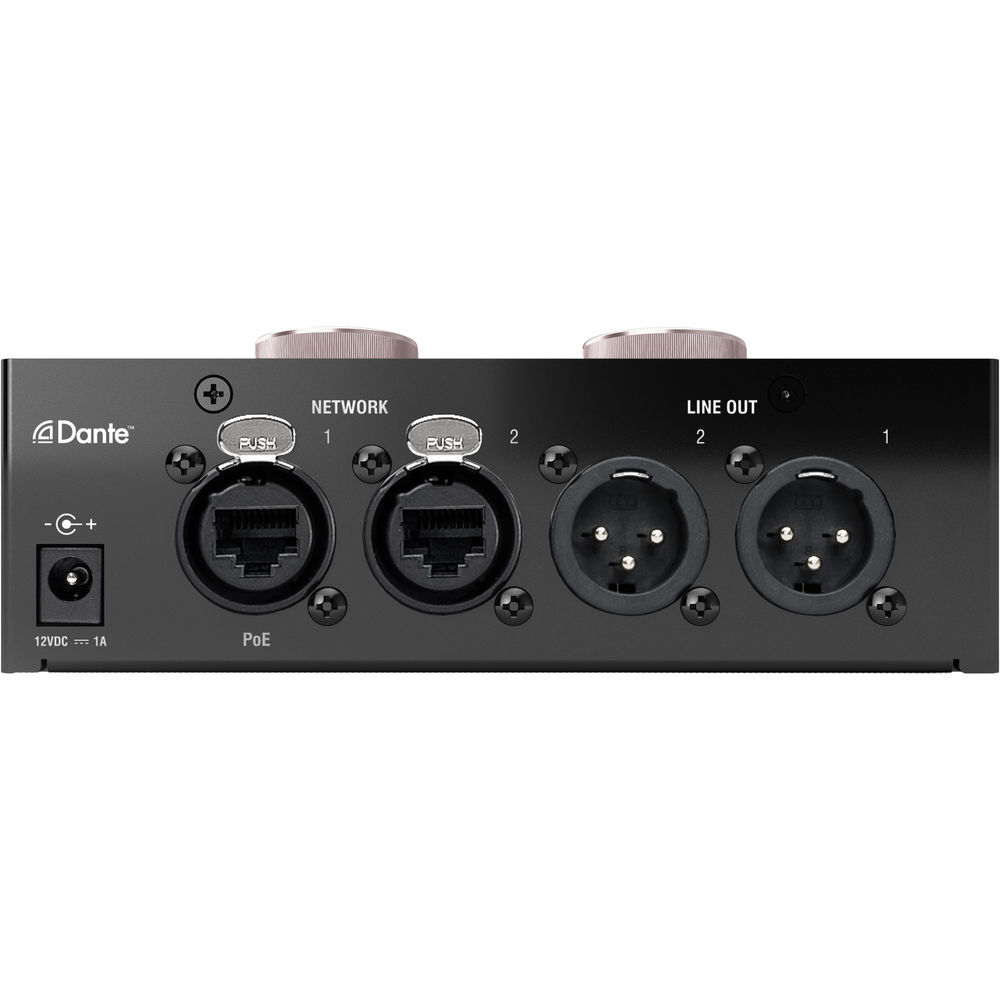

The RedNet AM2 from Focusrite is a headphone amplifier with Dante compatibility. It features both headphone and balanced line outputs, and allows for monitoring of signals over Dante networks. Your headphone input takes the form of a stereo 1/4" TRS jack on the front-panel, while a pair of XLR-male balanced line outputs adorn the rear panel, in addition to the two locking etherCON connection points compatible with Dante systems. As such, this unit can provide additional headphone outputs in studio environments, or facilitate monitoring possibilities in education, live-sound, and broadcast scenarios.

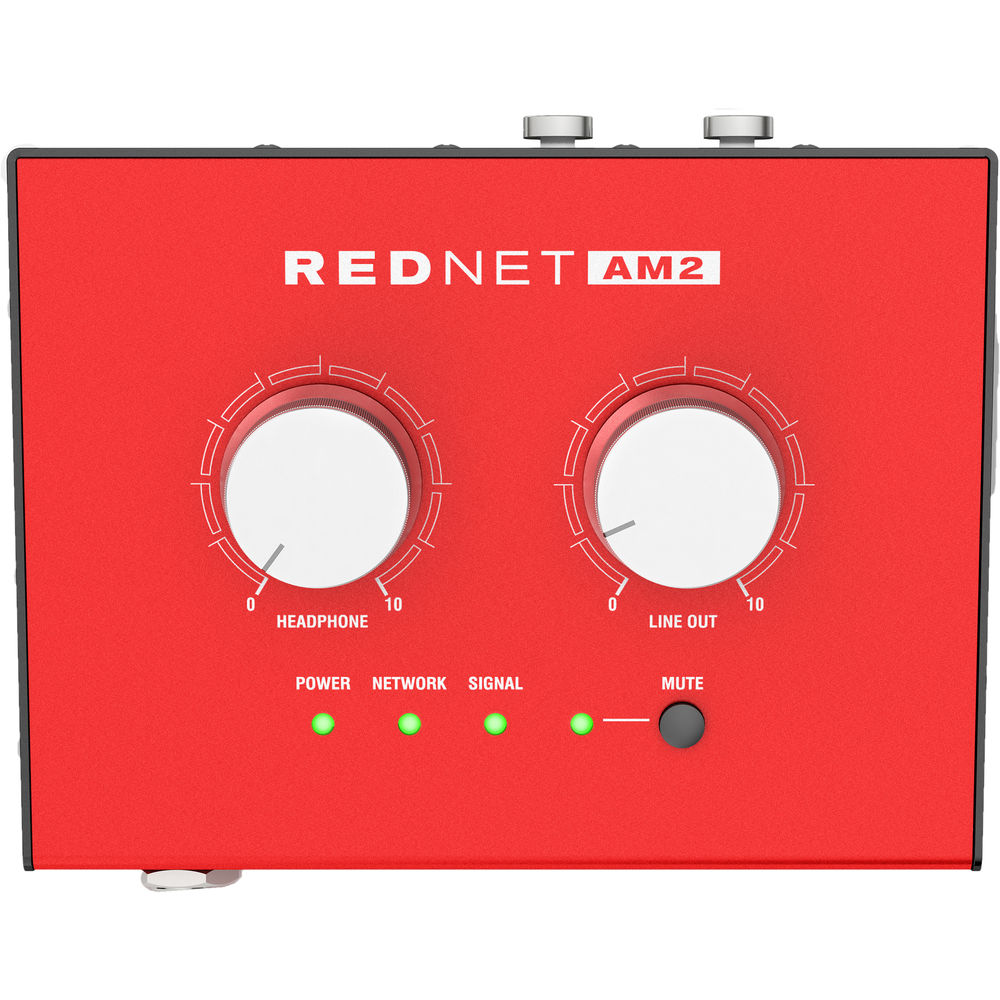

Designed to drive impedances up to 600 Ohms, the RedNet AM2 can offer substantial output levels, rendering the unit suitable for on-stage or front-of-house usage. Its XLR line-level outputs sport a software-switchable 0 dBFS reference level of either +18 or +24 dBu. Two prominent volume controls, as well as LED indicators, allow you to adjust and monitor signal.
Furthermore, the RedNet AM2 utilizes digital-to-analog converters capable of handling between 44.1 to 96 kHz with much in the way of dynamic range. It may be clocked internally, or slaved to the master via Dante. As with all products in the RedNet series, the AM2 integrates seamlessly with any other Dante audio-over-IP network components or infrastructure. The unit can be powered either over Ethernet or via the included power supply
Please note that RedNet Control 1.8 supports OS X 10.8 only, while version 1.9 supports OS X 10.9 and later, as well as Windows 7, Windows 8, and Windows (all instances of Windows being both 32- and 64-bit)
Technical Specification:
Number of Headphone Channels
Single Channel
Frequency Response
Headphone Outputs:20 Hz to 20 kHz ±0.1 dBLine Outputs:20 Hz to 20 kHz ±0.1 dB
Maximum Output Level
Line Outputs:+18 dBu at 0 dBFS+24 dBu at 0 dBFSHeadphone Outputs:+21.5 dBu at 0 dBFS (600-Ohm Load)
Dynamic Range
Headphone Outputs:> 118 dB (A-Weighted, -60 dBFS)Line Outputs:> 119 dB (A-Weighted, -60 dBFS)
THD+N
Headphone Outputs:< -100 dB / < 0.001% (Unweighted, -1 dBFS Input, 20 Hz to 22 kHz)Line Outputs:< -103 dB / < 0.0007% (Unweighted, -1 dBFS Input, 20 Hz to 22 kHz)
SNR
Headphone Outputs:≥ 118 dB (A-Weighted, 20 Hz to 20 kHz, 600-Ohm Load)Line Outputs:≥ 119 dB (A-Weighted, 20 Hz to 20 kHz)
Crosstalk
Headphone Outputs:< -95 dB (-20 dBFS Input, 20 Hz to 20 kHz)Line Outputs:< -100 dB (-20 dBFS Input, 20 Hz to 20 kHz)
OS Compatibility
Windows 7Windows 8Windows 10 (32-/64-Bit)macOS 10.7macOS 10.8macOS 10.9macOS 10.10macOS 10.11
Dimensions
5.51 x 4.57 x 2.28" / 139.95 x 116.08 x 57.91 mm
Weight
1.5 lb / 0.7 kg
