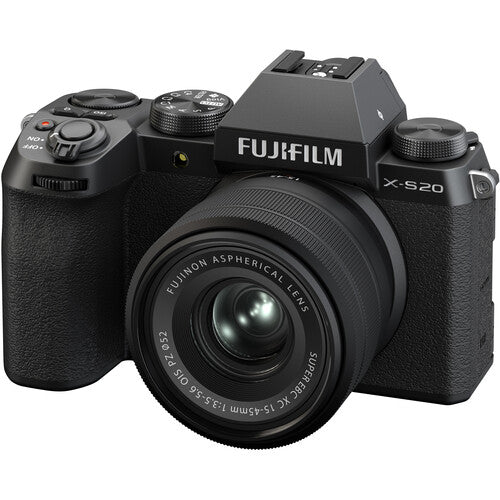

Sporting a sleek profile and a versatile focal length range, the black XC 15-45mm f/3.5-5.6 OIS PZ from FUJIFILM is a 23-69mm-equivalent zoom characterized by its compact, retractable design. The first power zoom lens in the X-series lineup, this lens allows for electronic zoom control for smooth focal length adjustments. It also features an optical image stabilization system that minimizes the appearance of camera shake by three stops for sharper handheld images. Complementing the handling assets, the optical design incorporates both aspherical and extra-low dispersion elements, to improve sharpness and clarity, and has a Super EBC coating that suppresses flare and ghosting in order to achieve greater contrast and color accuracy.
Technical Specifications:
Lens Mount
FUJIFILM X
Sensor Resolution
Effective: 26.1 Megapixel

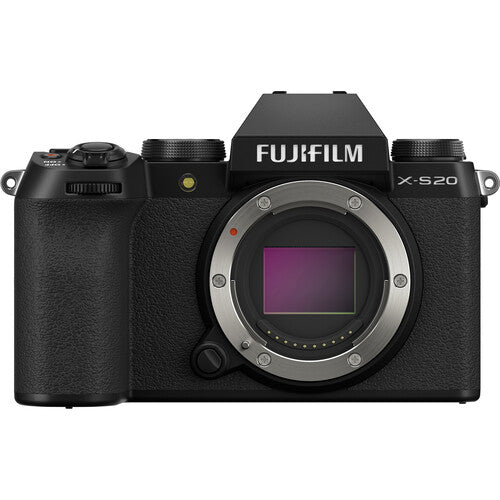

Image Sensor
23.5 x 15.6 mm (APS-C) CMOS
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
None
Capture Type
Stills & Video
Shutter Type
Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed
Mechanical Shutter
1/4000 to 900 Seconds in Manual Mode
1/4000 to 900 Seconds in Shutter Priority Mode
1/4000 to 30 Seconds in Program Mode
1/4000 to 30 Seconds in Aperture Priority Mode
0 to 60 Minutes in Bulb Mode
Electronic Shutter
1/32000 to 900 Seconds in Manual Mode
1/32000 to 900 Seconds in Shutter Priority Mode
1/32000 to 30 Seconds in Program Mode
1/32000 to 30 Seconds in Aperture Priority Mode
Fixed 1 Second in Bulb Mode
Bulb/Time Mode
ISO Sensitivity Range
160 to 12,800 in Manual, Auto Mode (Extended: 80 to 51,200)
Video
125 to 12,800 in Manual, Auto Mode (Extended: 25,600)
Metering Method
Average, Center-Weighted Average, Multi, Spot, TTL 256-Zones
Exposure Modes
Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation
-5 to +5 EV (1/3 EV Steps)
White Balance
2500 to 10,000K
Presets: Auto, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
Continuous Shooting
Up to 20 fps at 26.1 MP for up to 256 Frames (JPEG) / 28 Frames (Raw)
Up to 10 fps at 26.1 MP for up to 341 Frames (JPEG) / 32 Frames (Raw)
Up to 8 fps at 26.1 MP for up to 35 Frames (Raw)
Up to 30 fps at 20.9 MP for up to 407 Frames (JPEG) / 28 Frames (Raw)
Up to 20 fps at 20.9 MP for Unlimited Frames (JPEG) / 30 Frames (Raw)
Up to 10 fps at 20.9 MP for Unlimited Frames (JPEG) / 40 Frames (Raw)
Up to 8 fps at 26.1 MP for Unlimited Frames (JPEG) / 35 Frames (Raw)
Interval Recording
Yes
Self-Timer
2/3/5/10-Second Delay
Image Sizes
3:2
6240 x 4160
4416 x 2944
3120 x 2080
16:9
6240 x 3512
4416 x 2488
3120 x 1760
1:1
4160 x 4160
2944 x 2944
2080 x 2080
Aspect Ratio
1:1, 3:2, 16:9
Image File Format
HEIF, JPEG, Raw, TIFF
Bit Depth
16-Bit
Internal Recording Modes
H.264 ALL-Intra/H.264 Long GOP/H.265/H.265 Long GOP/MOV/MP4/MPEG-4 AVC 4:2:2/4:2:0 8/10-Bit
6240 x 4160 at 23.98/24.00/25/29.97 fps [50 to 360 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [50 to 360 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps [50 to 360 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps [360 Mb/s]
External Recording Modes
Raw/ProResRAW 12-Bit via HDMI
6240 x 4160 up to 29.97 fps
Fast-/Slow-Motion Support
Recording Limit
IP Streaming
Built-In Microphone Type
Stereo
Audio Recording
MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: AAC Audio
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC (UHS-II) [2 TB Maximum]

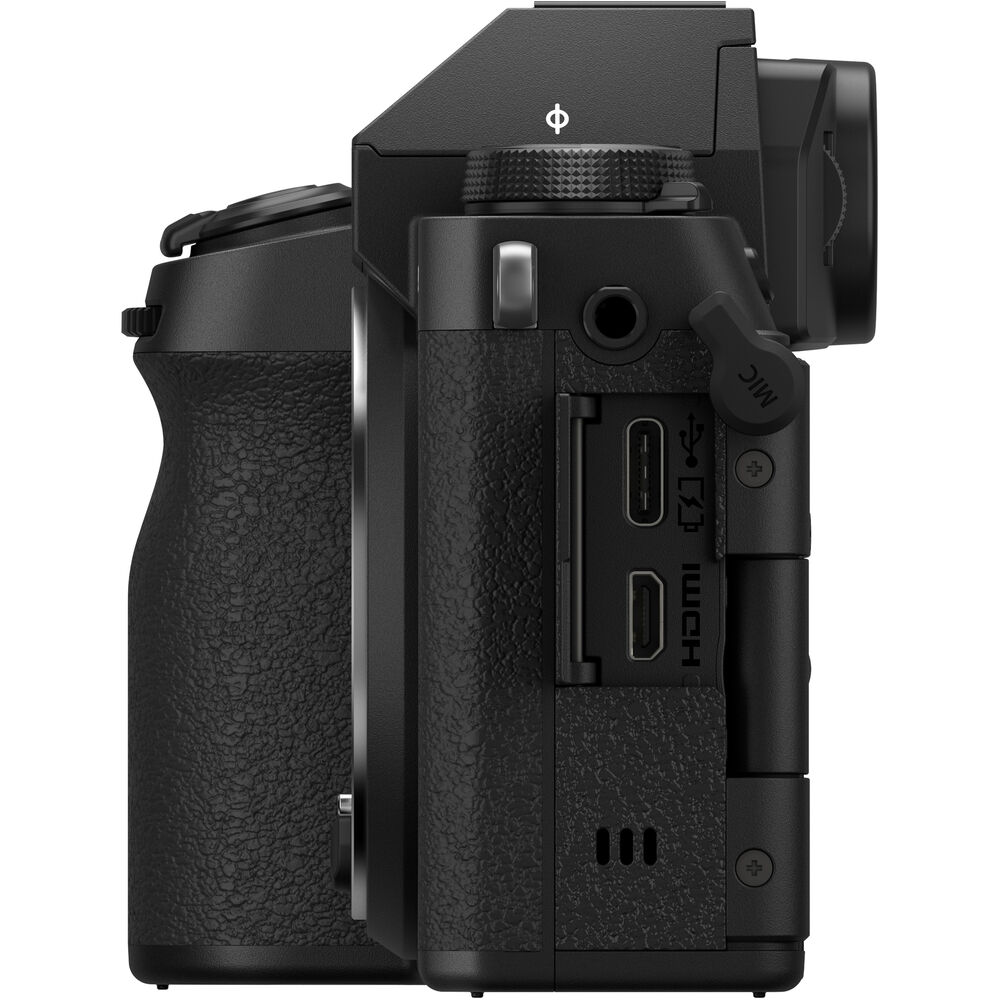

Video I/O
1 x Micro-HDMI (Unspecified Signal) Output
Audio I/O
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1 x USB-C Input/Output
Other I/O
1 x USB-C Control/Monitor/Tether Input/Output (Shared with Power Input)
Wireless
2.4 GHz Wi-Fi 5 (802.11ac)
Bluetooth 4.2
Mobile App Compatible
Yes: Android & iOS
App Name: FUJIFILM XApp
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.)
Display Size
3"
Resolution
3 x 2 (1,840,000 Dot)
Display Type

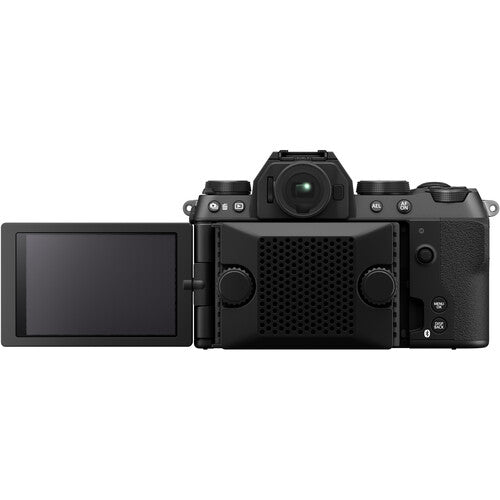

Free-Angle Tilting Touchscreen LCD
Type
Built-In Electronic (OLED)
Size
0.39"
2,360,000 Dot
Eye Point
17.5 mm
Coverage
100%
Magnification
Approx. 0.62x
Diopter Adjustment
-4 to +2
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Contrast Detection, Phase Detection: 117
Built-In Flash/Light
Yes, Flash Only
Guide Number
16.4' / 5 m at ISO 100
Maximum Sync Speed
1/180 Second
External Flash Connection
Proprietary
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
10 to 80% (Non-Condensing)
Battery Type
1 x NP-W235 Rechargeable Lithium-Ion
Shoe Mount
1 x Hot Shoe
Tripod Mounting Thread
1 x 1/4"-20 Female
Dimensions (W x H x D)
5 x 3.4 x 2.6" / 127.7 x 85.1 x 65.4 mm
Weight
1.1 lb / 491 g (With Battery, Recording Media)
0.9 lb / 410 g (Body Only)

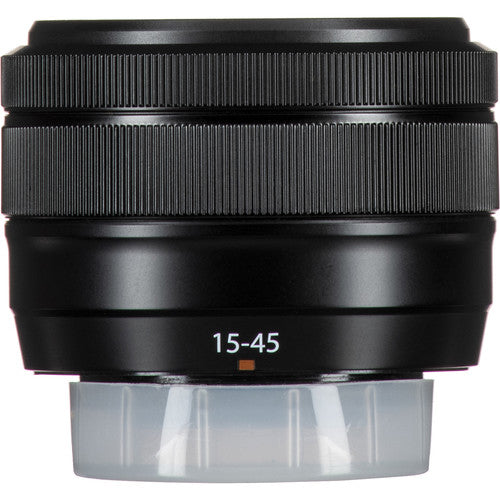

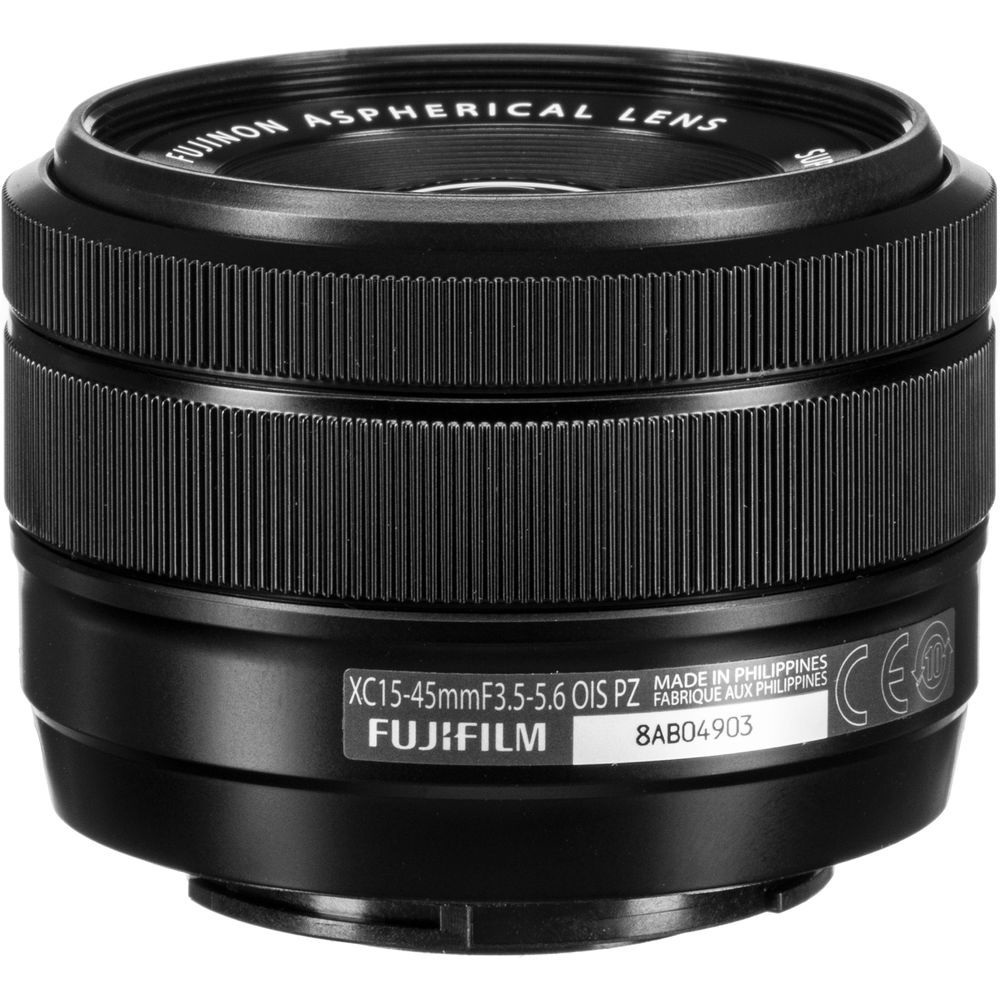

FUJIFILM XC 15-45mm F/3.5-5.6 OIS PZ Lens
Focal Length
15 to 45mm (35mm Equivalent: 23 to 69mm)
Maximum Aperture
f/3.5 to 5.6
Minimum Aperture
f/22
Lens Format Coverage
APS-C
Angle of View
86.9° to 35°
Minimum Focus Distance
5.12" / 13 cm
Maximum Magnification
0.24x
Optical Design
10 Elements in 9 Groups
Diaphragm Blades
7, Rounded
Autofocus
Filter Size
52 mm (Front)
Dimensions (ø x L)
2.46 x 1.74" / 62.6 x 44.2 mm
4.76 oz / 135 g
In the Box:
