Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate
- 10.1" 1920 x 1200 HDMI & 3G-SDI Monitor
- 320 cd/m² Brightness
- 4K HDMI Input/Output
- Interchangeable L-Series Battery Plate
- 1000:1 Contrast Ratio
- 175° Viewing Angle
- Peaking / False Color / Histogram
- Exposure / Audio Meter / Image Flip
- 1/4"-20 and VESA 75 Mounting Options

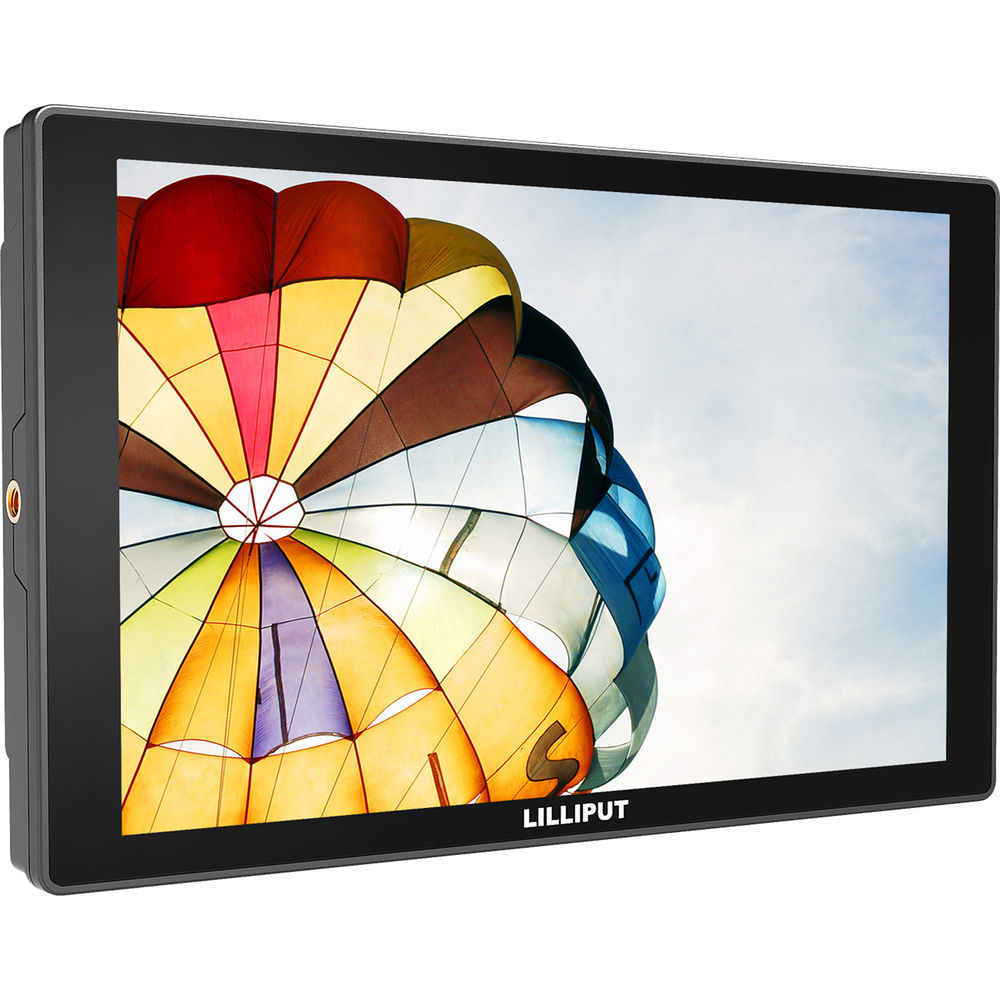

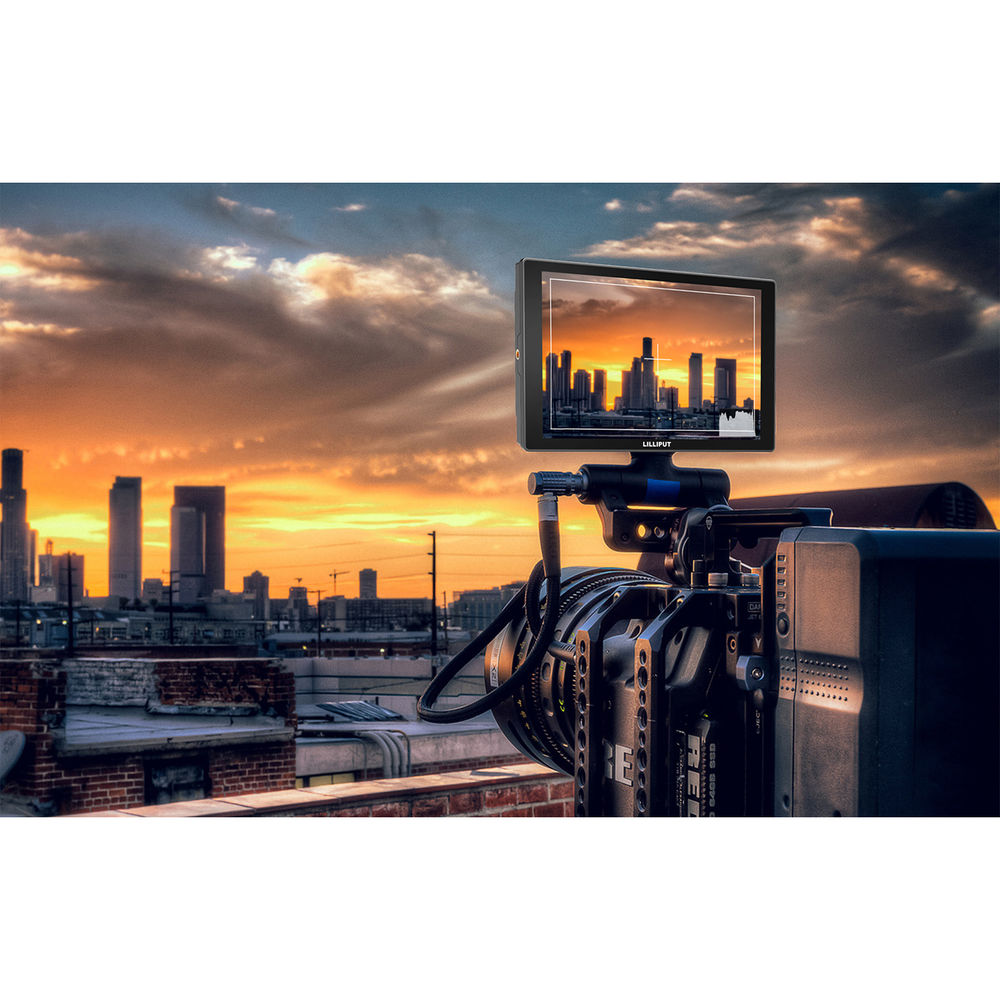

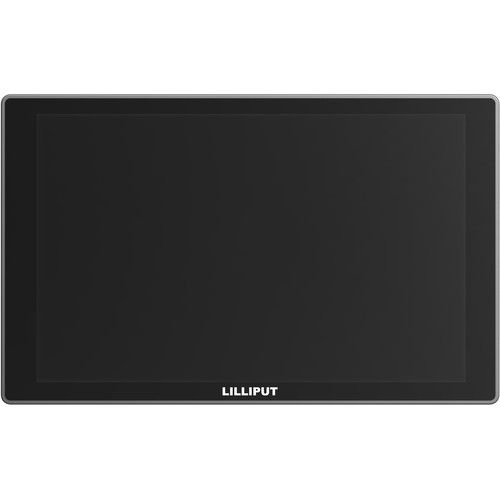

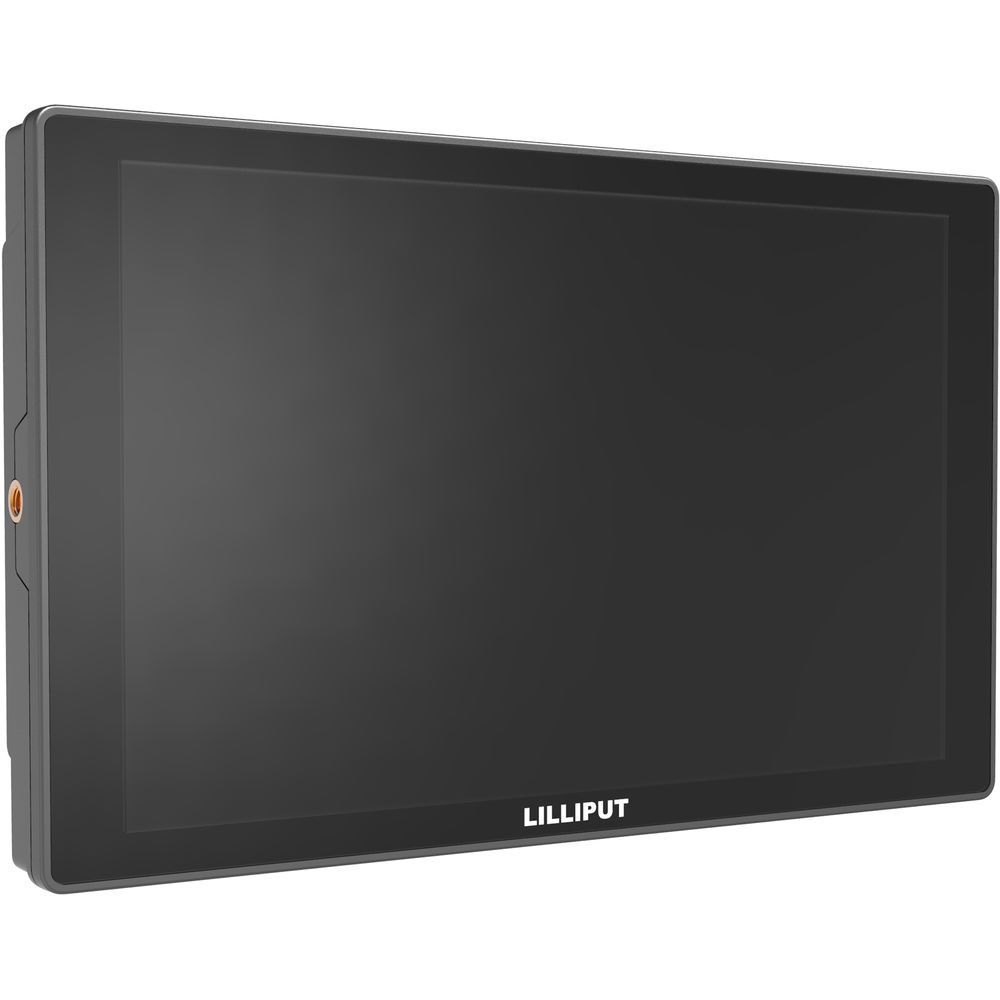

The 10.1" A11 4K HDMI & 3G-SDI Monitor from Lilliput is a field monitor designed for on-camera use with video, DSLR, and mirrorless cameras. This Full HD panel monitor features both 4K HDMI input/output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast, and 320 cd/m² brightness.

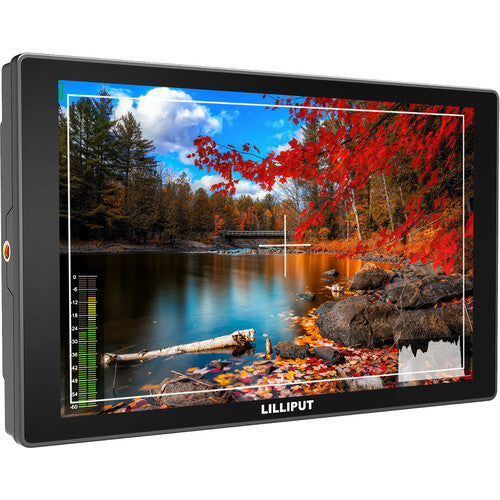

Integrated tools include focus peaking, histogram, selectable aspect ratios, false color, zoom, image flip, and an audio level meter. These display tools assist users in accurately monitoring their video when recording or playing back footage in post-production. Two user-assignable buttons enable you to quickly access your most-used tools.

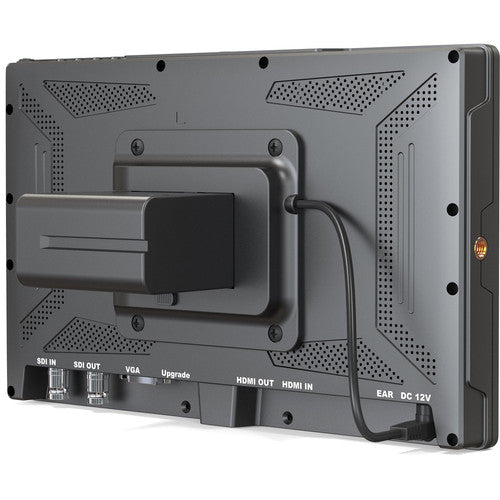

Power the A11 monitor using one Sony L-series type battery and the included plate, or use a separately available V-mount or Gold mount battery plate with your compatible battery. Mounting options include a 1/4"-20 thread for use with a support arm and a 75 x 75mm VESA pattern.
- 10.1" LCD panel
- 320 cd/m² brightness
- 1000:1 contrast
- Rich 8-bit color
- 175° horizontal and vertical viewing angle
- 4K30 HDMI input/output
- 3G-SDI input/output
- VGA input

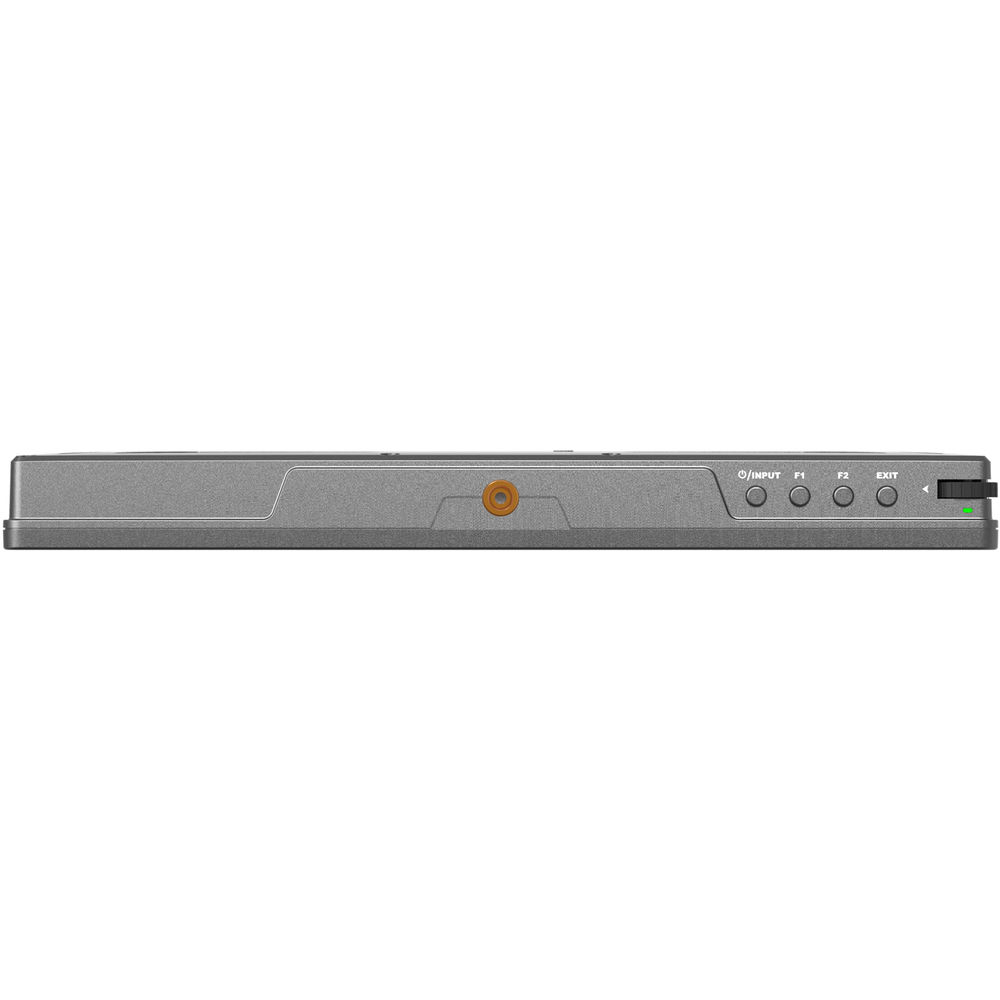

- Two user-assignable buttons
- Focus peaking
- Selectable aspect ratios
- Exposure control
- False color function
- Histogram
- Zoom function
- Audio meter
- Includes one Sony L-series type battery plate
- Can be used with separate V-mount or Gold mount plates
- 75 x 75mm VESA mounting pattern
- 1/4"-20 mounting thread
- 7 to 24V DC input range
Technical Specifications:
|
Panel Type |
LCD |
|
Display Size |
10.1" / 25.7 cm |
|
Resolution |
1920 x 1200 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
Horizontal: 175° Vertical: 175° |
|
Touchscreen |
No |
|
Maximum Brightness |
320 nits / cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
|
Pixels Per Inch (ppi) |
224 ppi |
|
Image Controls |
Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Underscan, Zebra |
|
Video I/O |

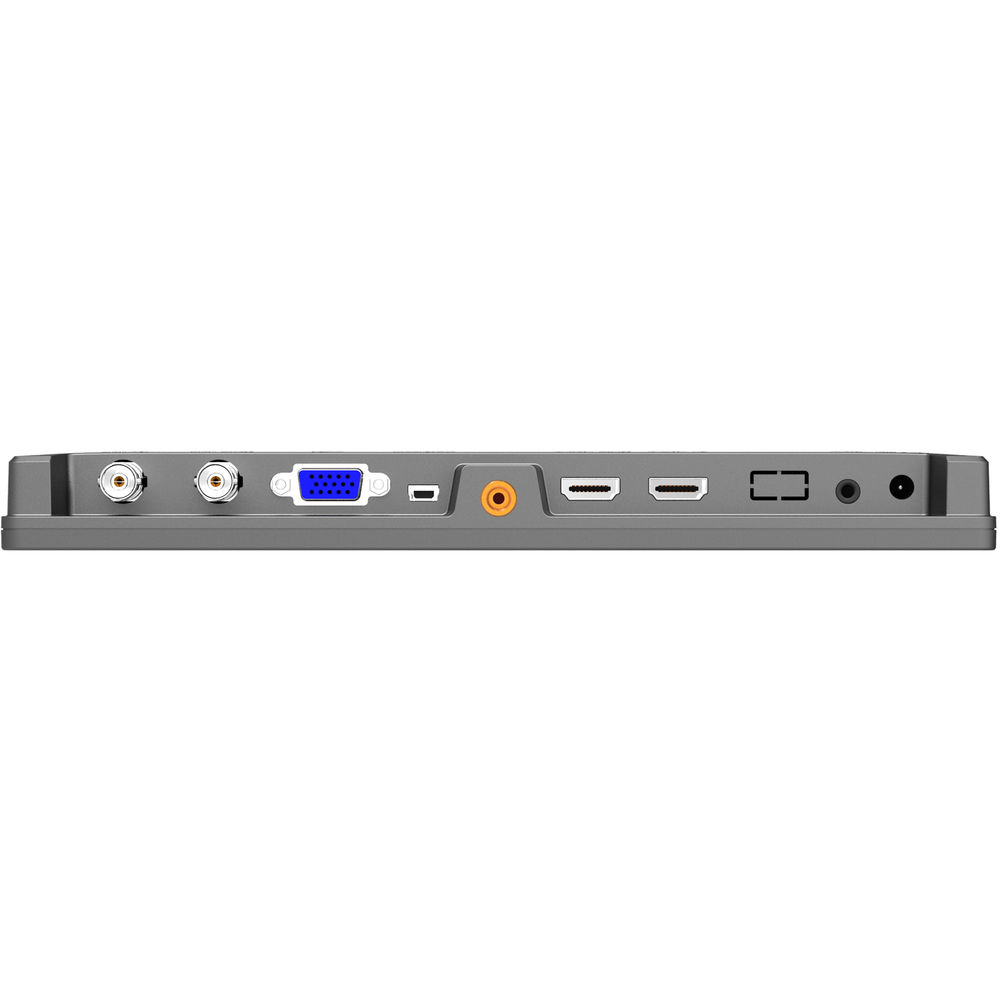

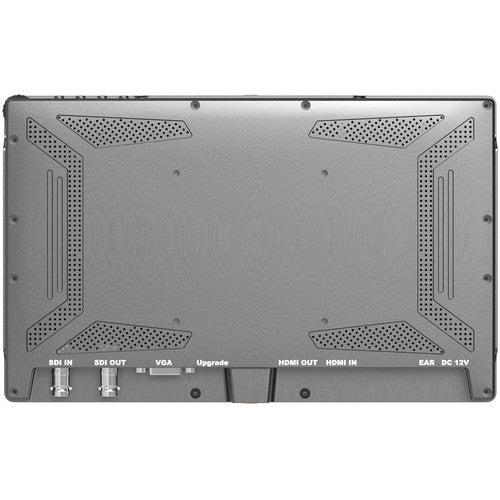

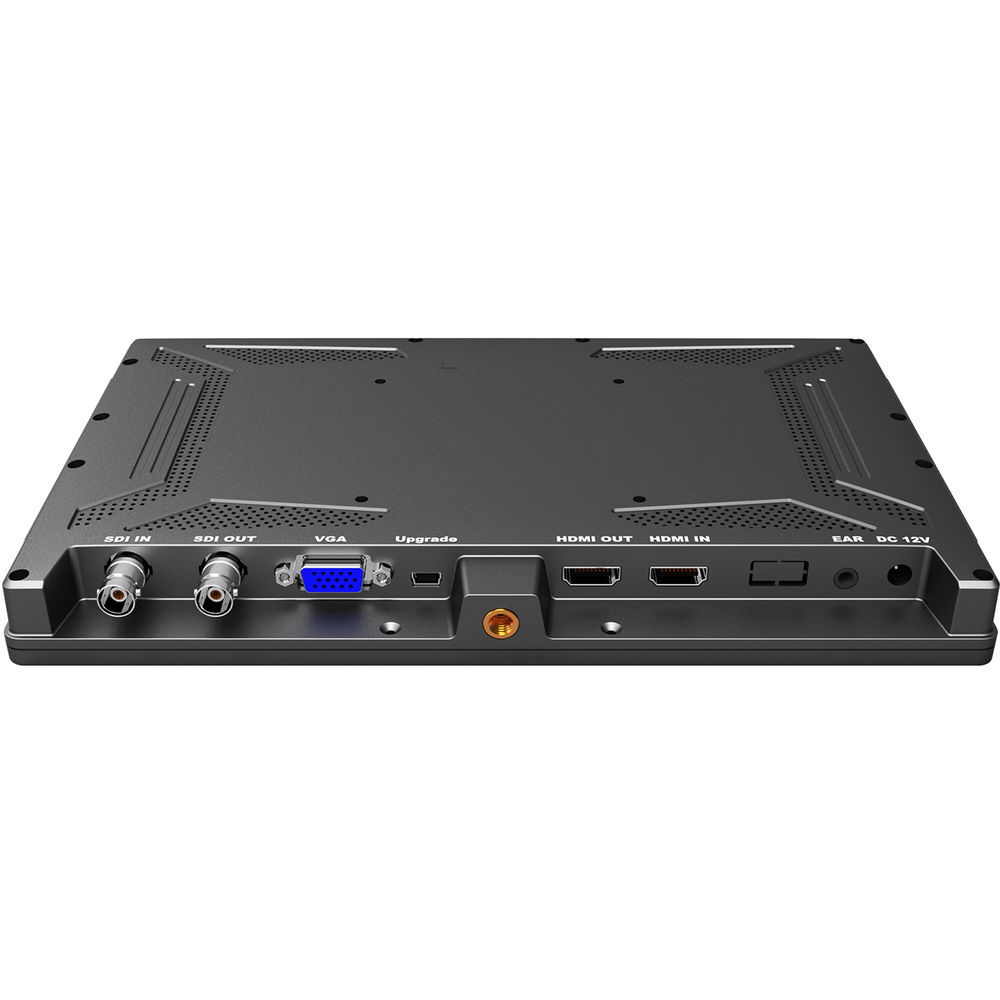

1 x HDMI 1.4b Input 1 x BNC (3G-SDI) Input 1 x DE-15/DB-15 (VGA) Input 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Loop Output |
|
Embedded Audio |
HDMI SDI |
|
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output |
|
Built-In Speaker |
1 |
|
Power I/O |
1 x Barrel (24 VDC) Input |
|
Other I/O |
1 x USB-B 2.0 |
|
Media/Memory Card Slot |
None |
|
Wi-Fi |
None |
|
Video Format |
HDMI UHD 4K: 30 1080p: 30 1080i: 30 720p: 30 576p: 30 576i: 30 480p: 30 480i: 30 |
|
DC Input Power |
7 to 24 VDC |
|
Battery Type |
1 x L-Series (Interchangeable Mount) |
|
Power Consumption |
13 W |
|
Mounting-Hole Pattern |
75 x 75 mm |
|
Mounting |
1 x 1/4"-20 Female |
|
Operating Temperature |
32 to 82°F / 0 to 50°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Dimensions |
9.9 x 6.2 x 1" / 252 x 157 x 25 mm |
|
Weight |
1.21 lb / 550 g |
In the Box:
- Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate
- Sony L-Series Type Battery Plate
- AC Adapter
- Limited 1-Year Manufacturer Warranty
