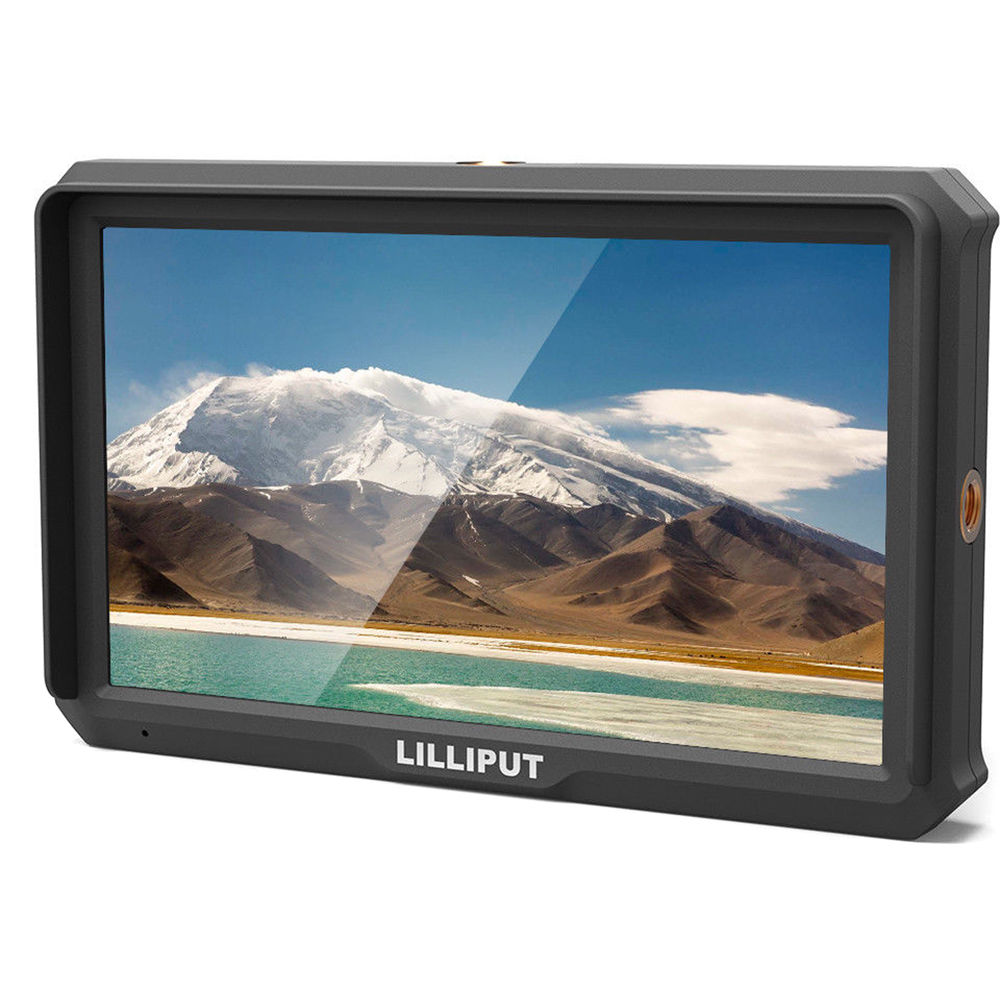

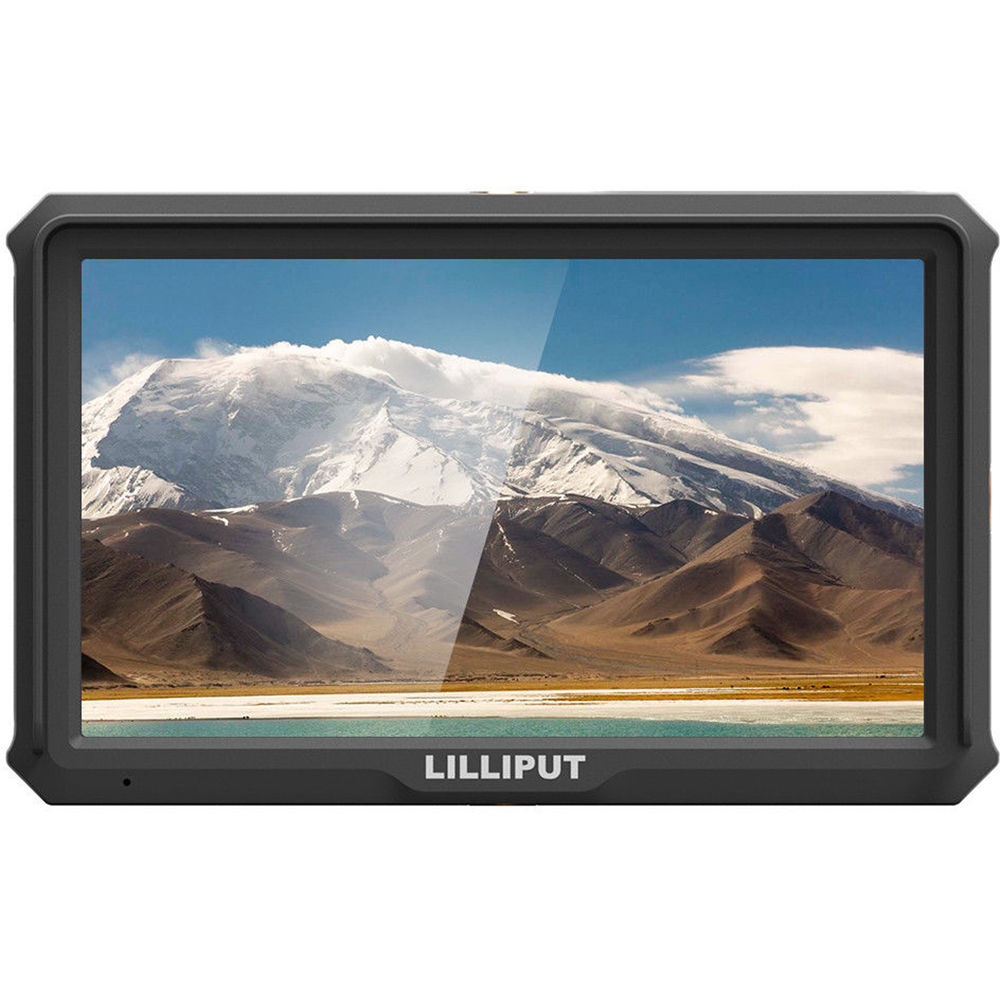

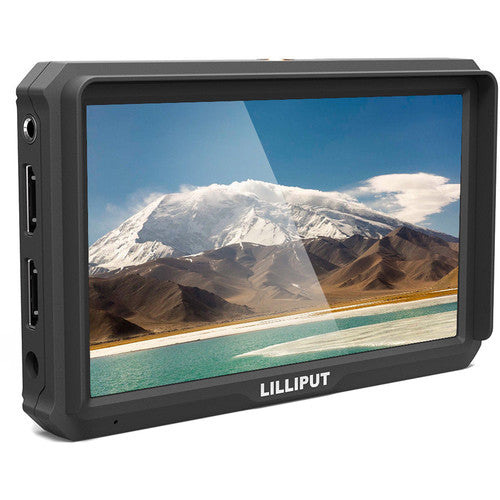

This compact, lightweight, fully featured A5 5" On-Camera Monitor from Lilliput is designed to take on almost any production. The 1920 x 1080 LCD screen features 460 cd/m² brightness, 1000:1 contrast ratio, and 170° viewing angle. Its HDMI 1.4 input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K 3840 x 2160 video at 30 fps. It also features a loop-through HDMI output for additional displays.

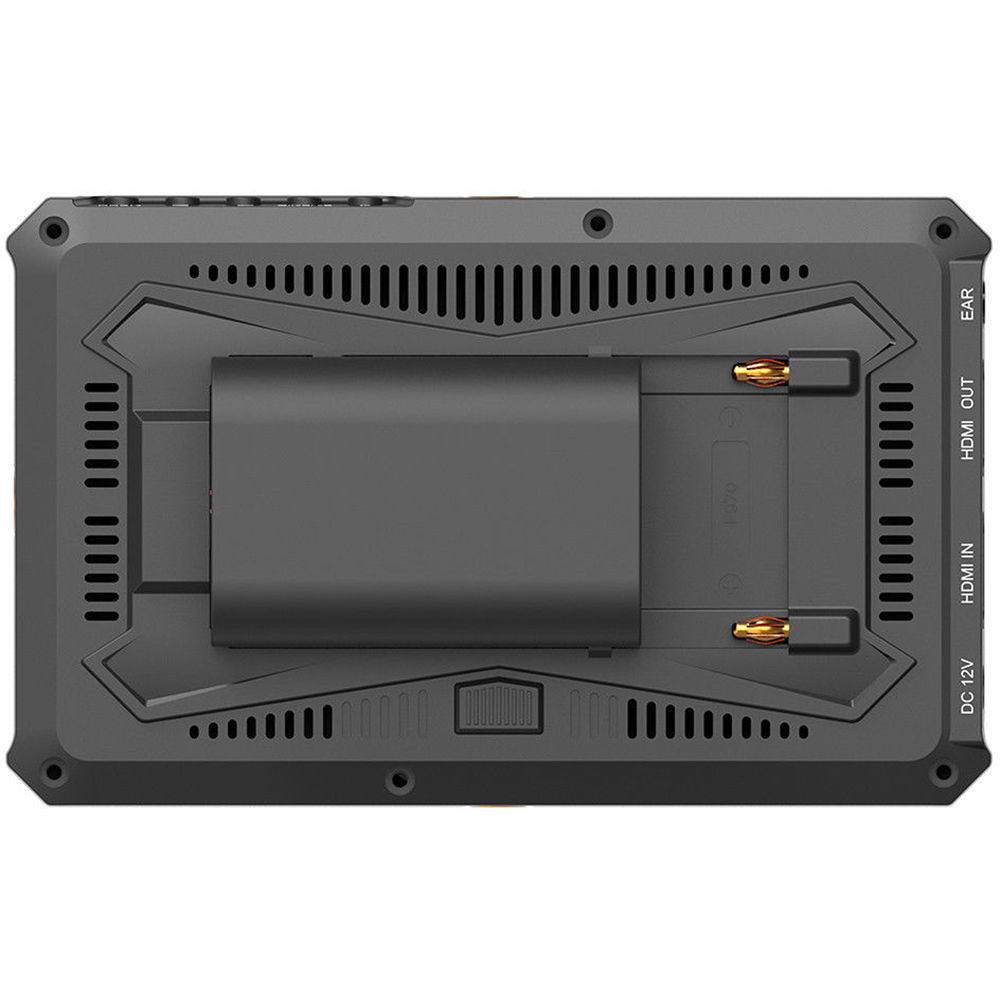

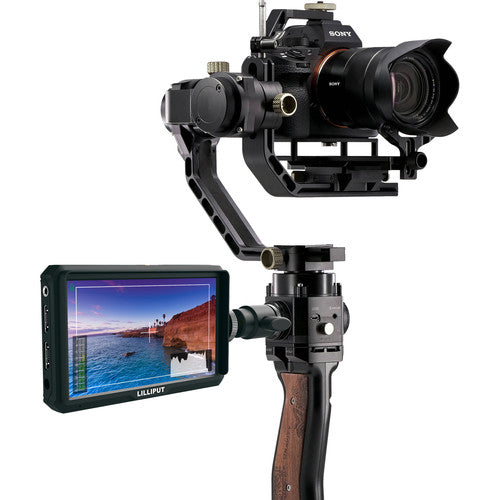

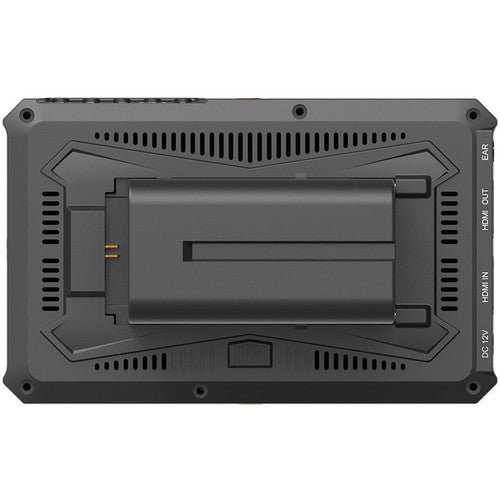

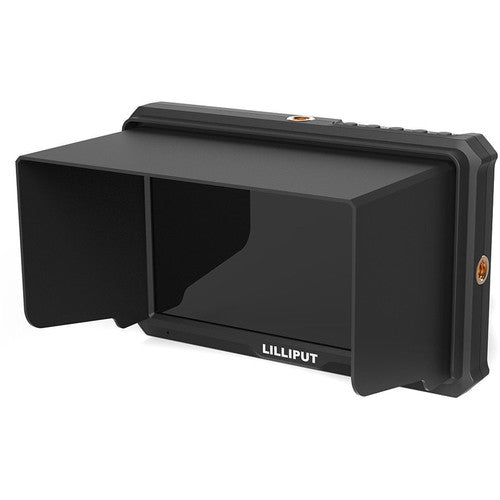

A built-in, dual-purpose NP-F / LP-E6 battery plate is provided to power the monitor. When shooting outdoors, the included sunhood makes the screen easier to see by blocking any glare. An included articulating shoe mount attaches to the monitor's 1/4"-20 mounting thread and allows you to secure the A5 to your camera via a standard accessory shoe.
Technical Specifications:
Panel Type
IPS-Type LCD
Display Size
5.0" / 12.7 cm
Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170°
Vertical: 170°
Touchscreen
No
Maximum Brightness
460 nits / cd/m2
Contrast Ratio
1000:1
Pixels Per Inch (ppi)
440 ppi
Image Controls
False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom
Video I/O
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
1
Power I/O
1 x Barrel Input
Media/Memory Card Slot
None
Video Format
HDMI
UHD 4K: 30
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/23.98
576p: 50
480p: 60/59.94
480i: 60/59.94
576i: 50
DC Input Power
7 to 24 VDC at 1 A
Battery Type
1 x LP-E6 or L-Series
Operating Current
600 mA
Power Consumption
9 W (Maximum)
Mounting
1 x 1/4"-20 Female
Operating Temperature
12 to 82°F / -20 to 50°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Dimensions
5.1 x 3.1 x 0.9" / 13 x 8 x 2.4 cm
Weight
4.16 oz / 118 g
In the Box:
