• Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
• 4K@60Hz resolution, full 3D video and Deep Color
• Supports video amplifier bandwidth up to 300 MHz, 3 Gbps per channel (10.2 Gbps total) for 4Kx2K displays

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.

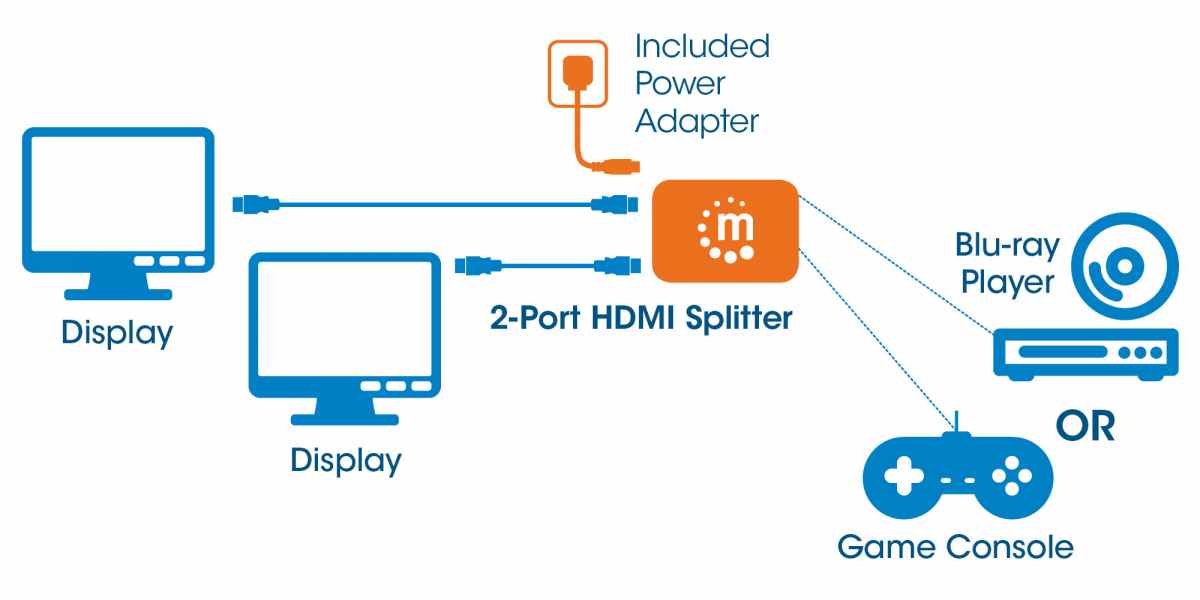

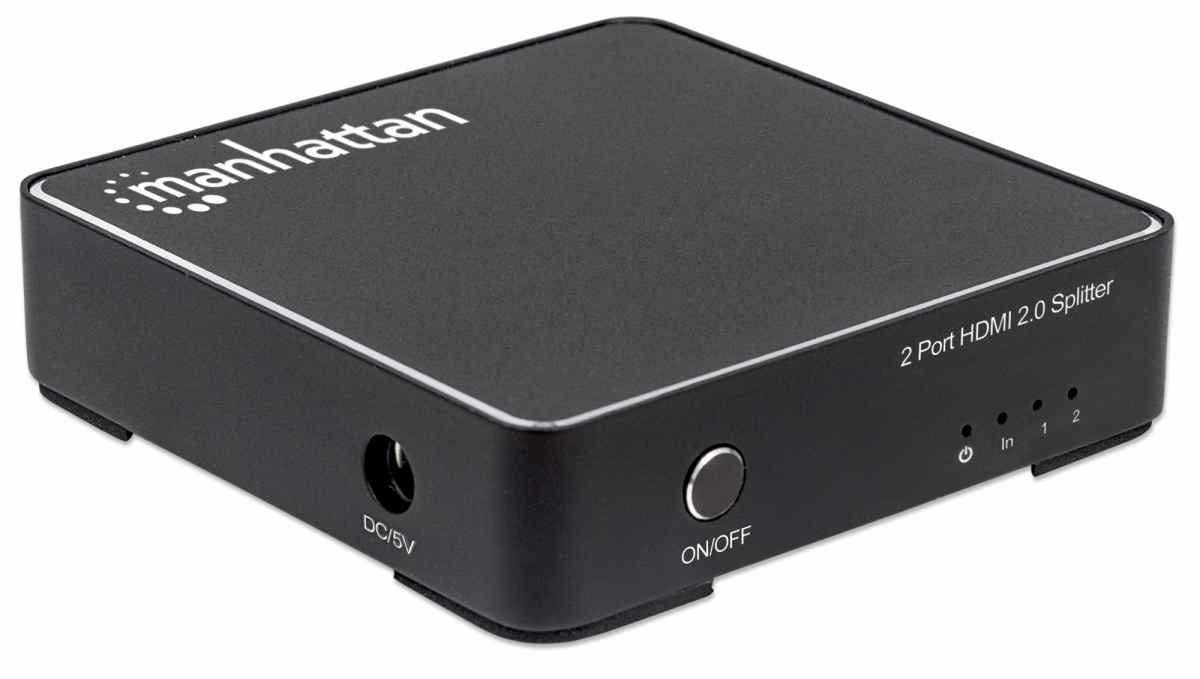

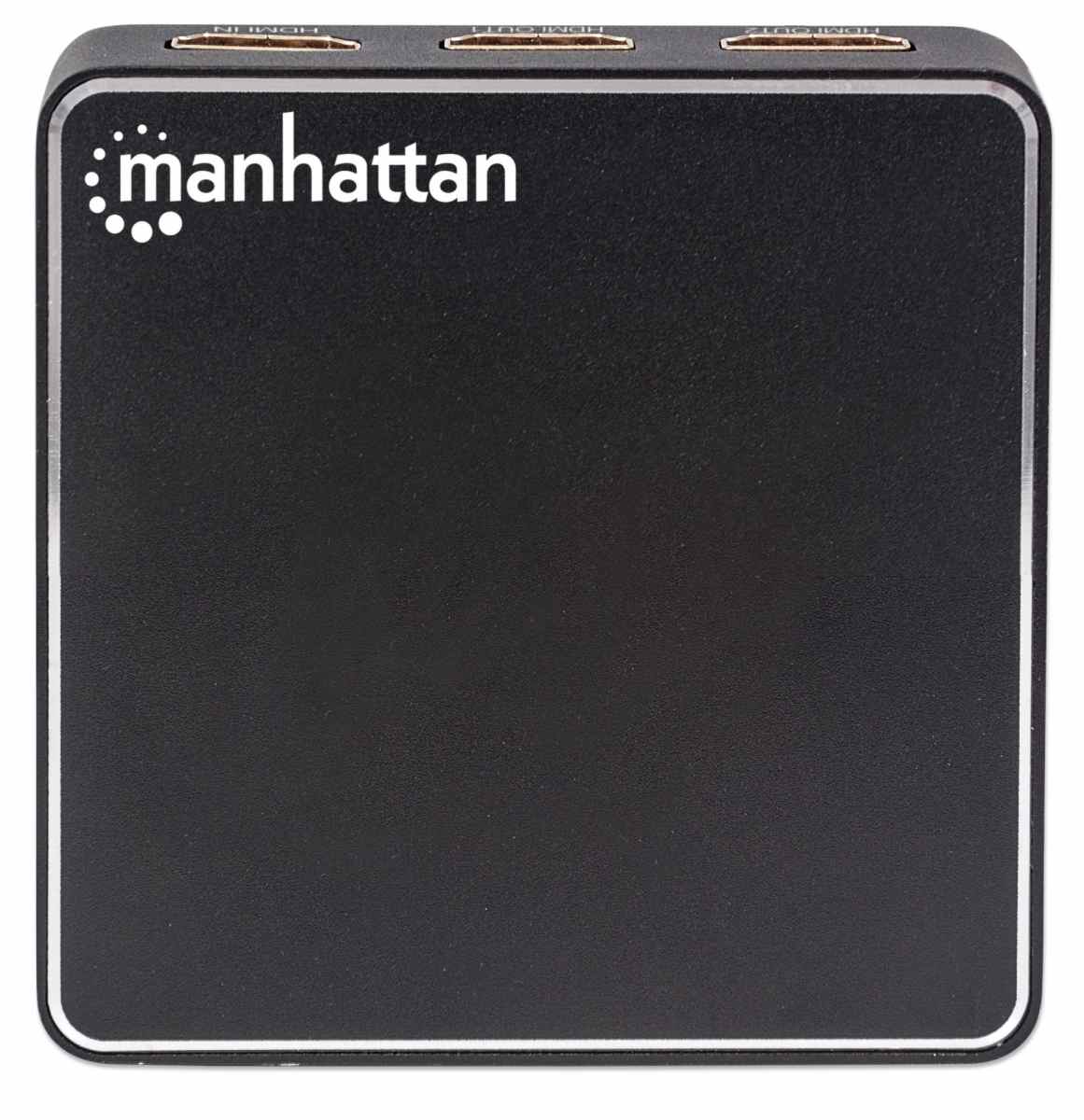

The Manhattan 2-Port HDMI Splitter streams a 4K HDMI signal from a single UHD source to up to two UHD displays.


Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 4K 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal to multiple 4K HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications.

Quality Construction and Easy Installation

Full compliance with HDMI, HDCP 2.2 and DVI 1.0 ensures that the Manhattan 4K 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the 5 V / 1 A power adapter without software/hardware configuration or complicated settings to complete this affordable Ultra-High-Definition, 4K HDMI solution.

• Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
• 4K@60Hz resolution, full 3D video and Deep Color
• Supports video amplifier bandwidth up to 300 MHz, 3 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
• Supports compressed DTS-HD Master Audio, uncompressed LPCM 8 channel (7.1 surround sound) audio and Dolby TrueHD as well as 32-channel audio
• Supports 48-bit Deep Color (12-bits per channel), xvYCC (x.vColor), Rec. 2020 color space and 21:9 aspect ratio
• Supports LPCM, DTS Digital, DTS-HD Master Audio, Dolby TrueHD audio, four audio streams and 32-channel audio
• HDCP 2.2 compliant
• AC powered with Plug and Play installation; no special setup or remote required
• Rugged metal housing for maximum durability; built-in wall-mounting holes
• Up to three splitters may be cascaded to support four 4K displays
• Gold-plated contacts for corrosion-free connections
• Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
• Three-year warranty

• HDCP 2.2

• DVI 1.0

• CTS 1.4a

• CE

• FCC

• RoHS2

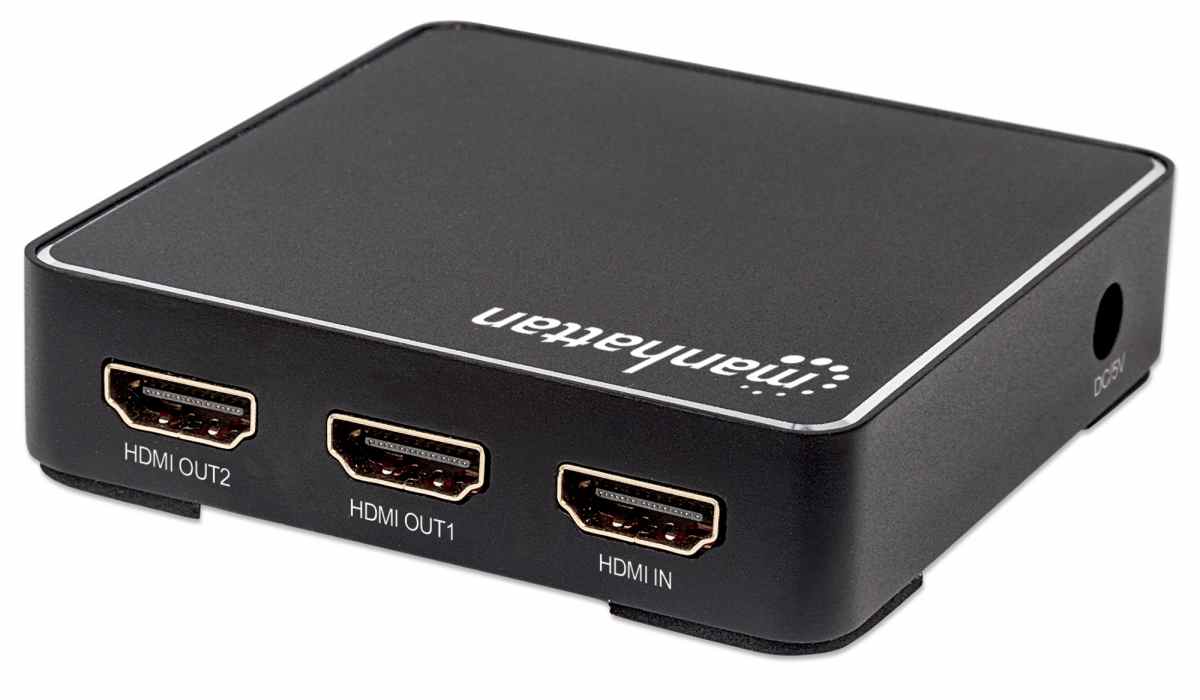

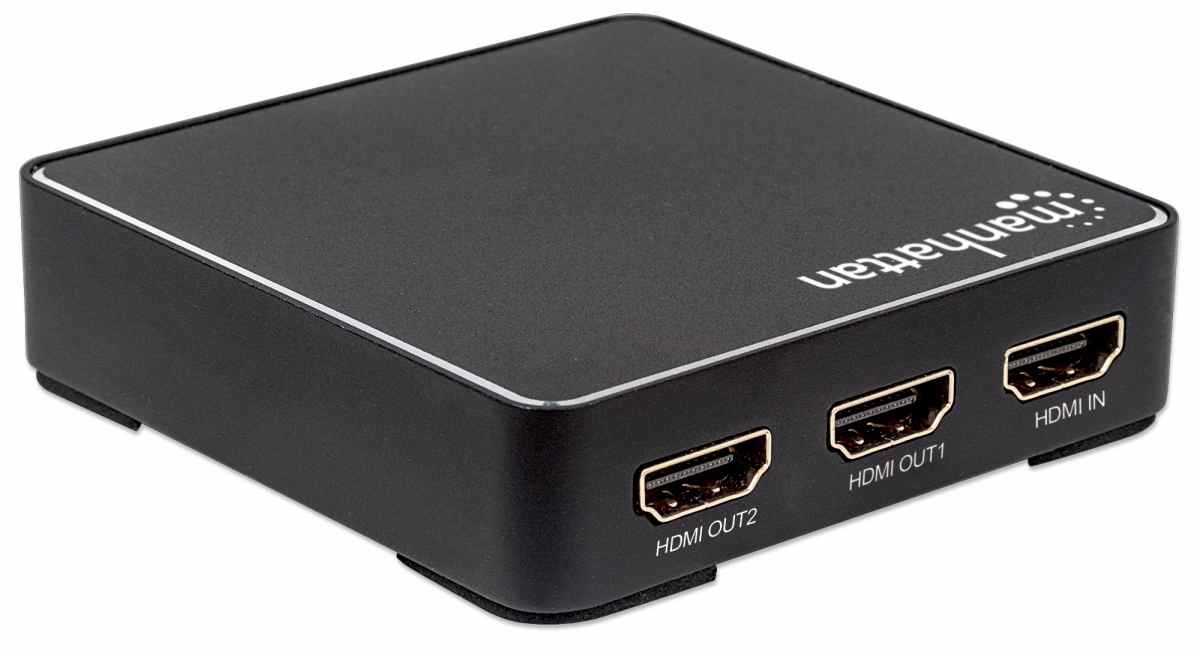

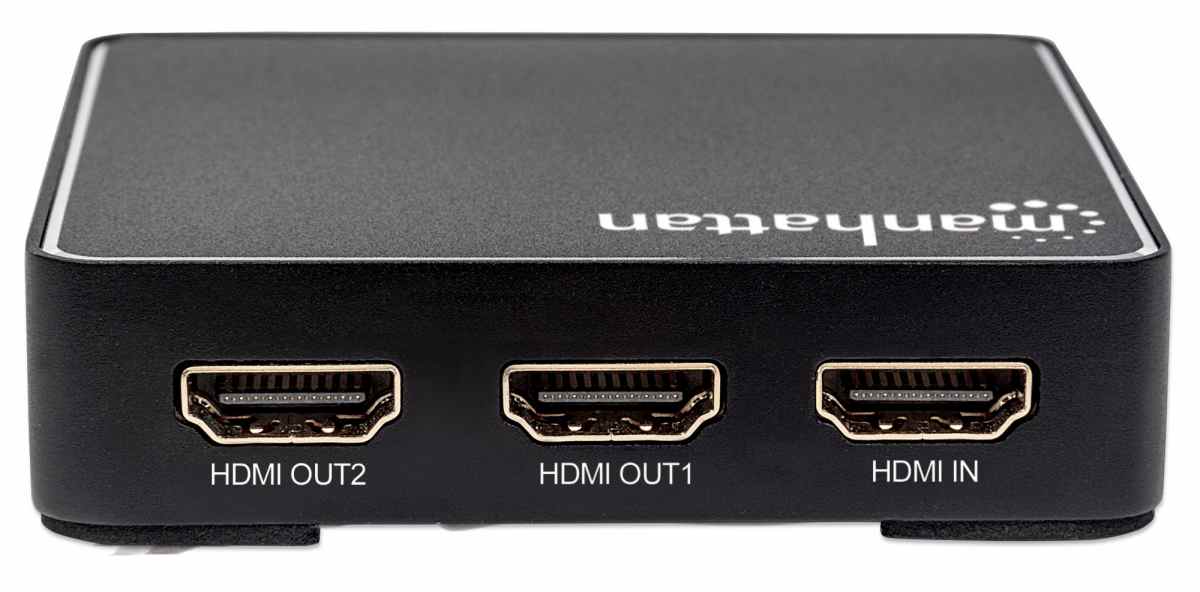

  Connections

• One HDMI female (input)

• Two HDMI female (output)

• One 5 V / 1 A DC power female (input)

  Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p

• Input DDC signal: 5 V p-p (TTL)

• Maximum single-link range: 10.2 Gbps, 4096x2160 at 60 Hz resolution

• Output video: HDCP 2.2, DVI 1.0

  Video Resolutions

• VGA: 640x480, 800x600, 1024x768, 1920x1200

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz

  Physical

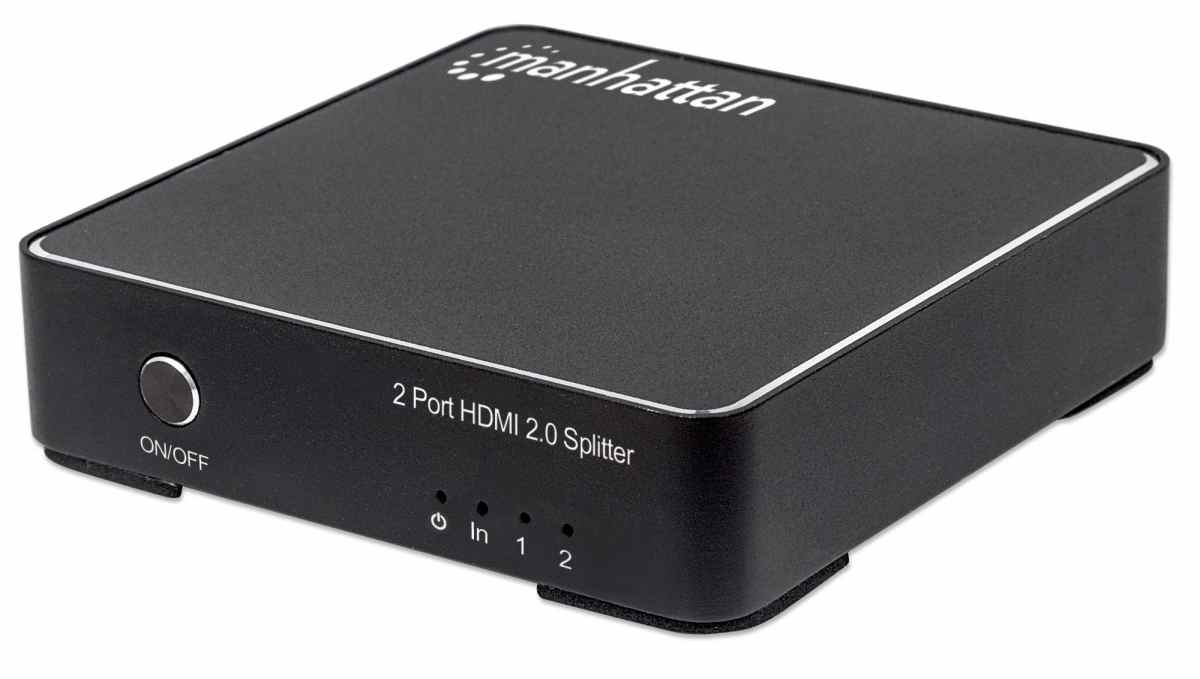

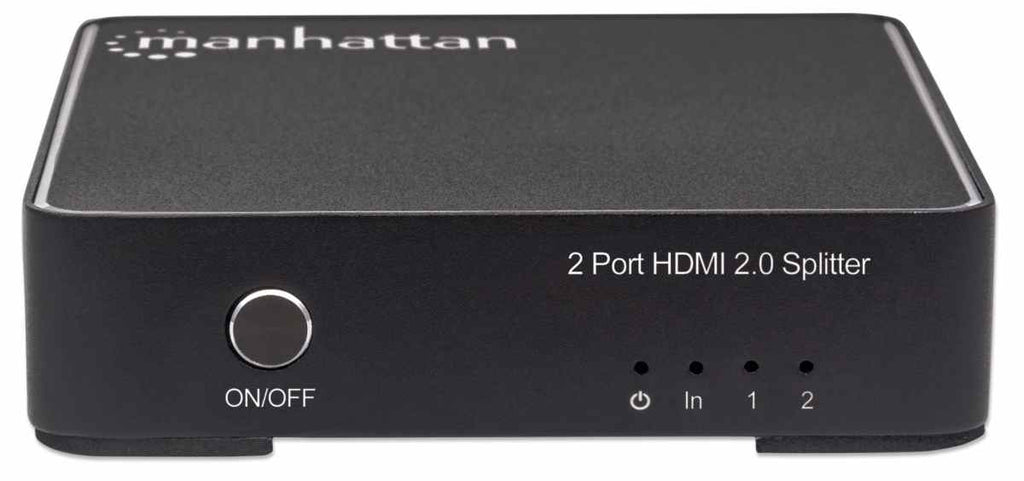

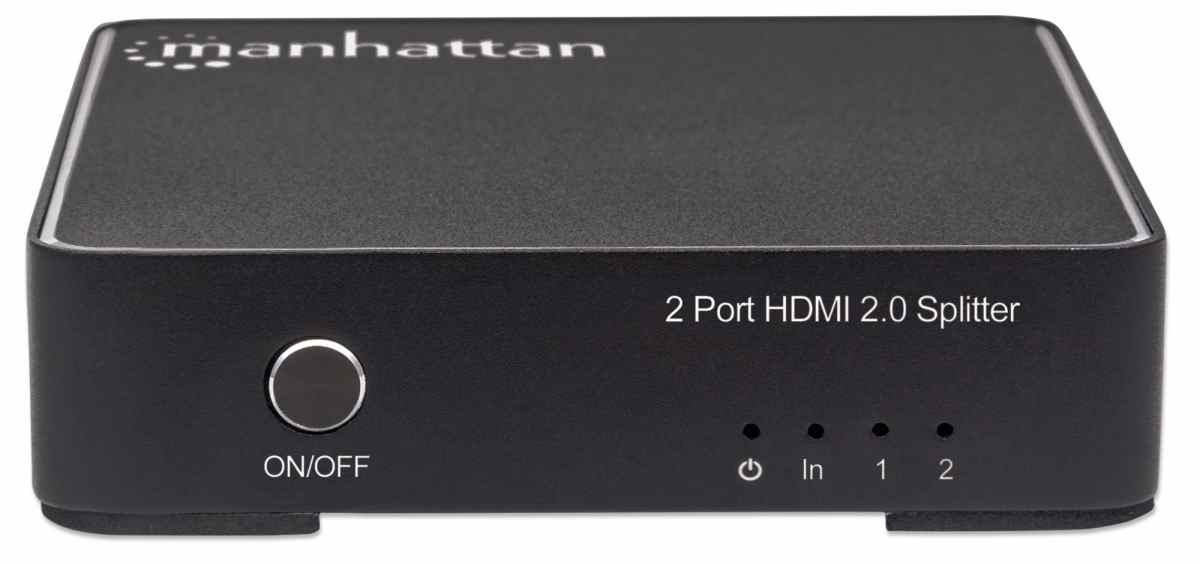

• LED indicators: power and port connection

• Dimensions: 80 x 80 x 20 mm (3.2 x 3.2 x 0.8 in.)

• 5 V / 1 A power adapter: 1.2 m (3.9 ft.)

• Weight: 150 g (5.3 oz.)

• Housing: metal

• Two wall-mount holes

  Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

• Humidity (noncondensing): 0 - 96%

  Package Contents

• 4K 2-Port HDMI Splitter

• 5 V / 1 A power adapter

• Quick Instruction Guide
