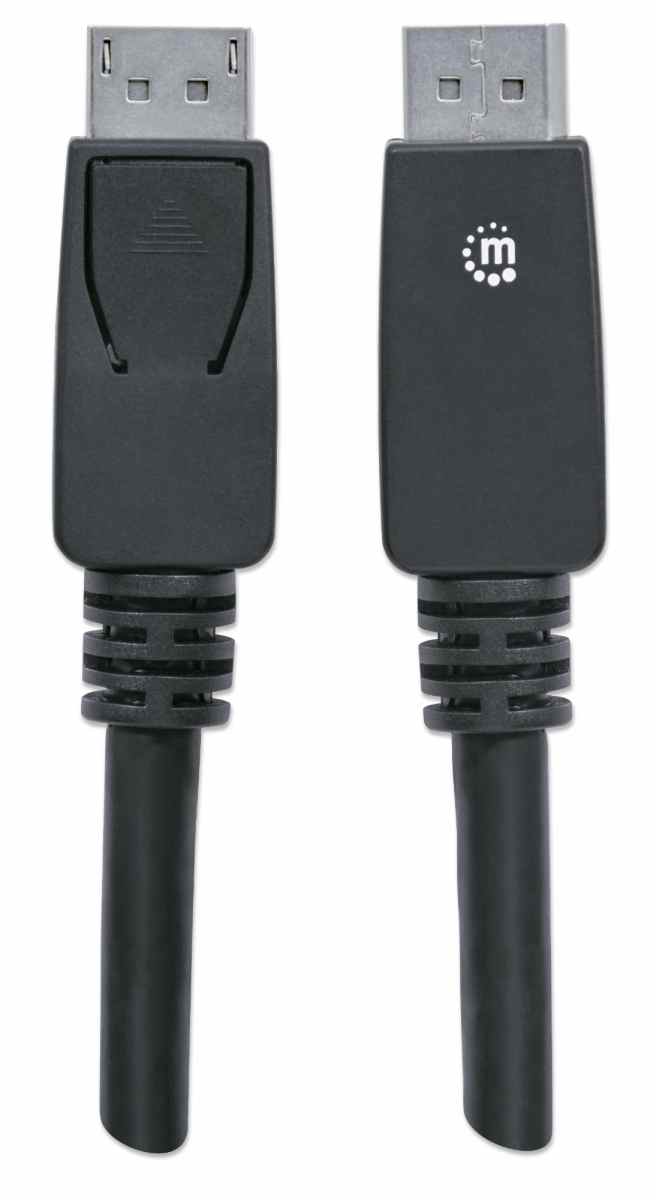

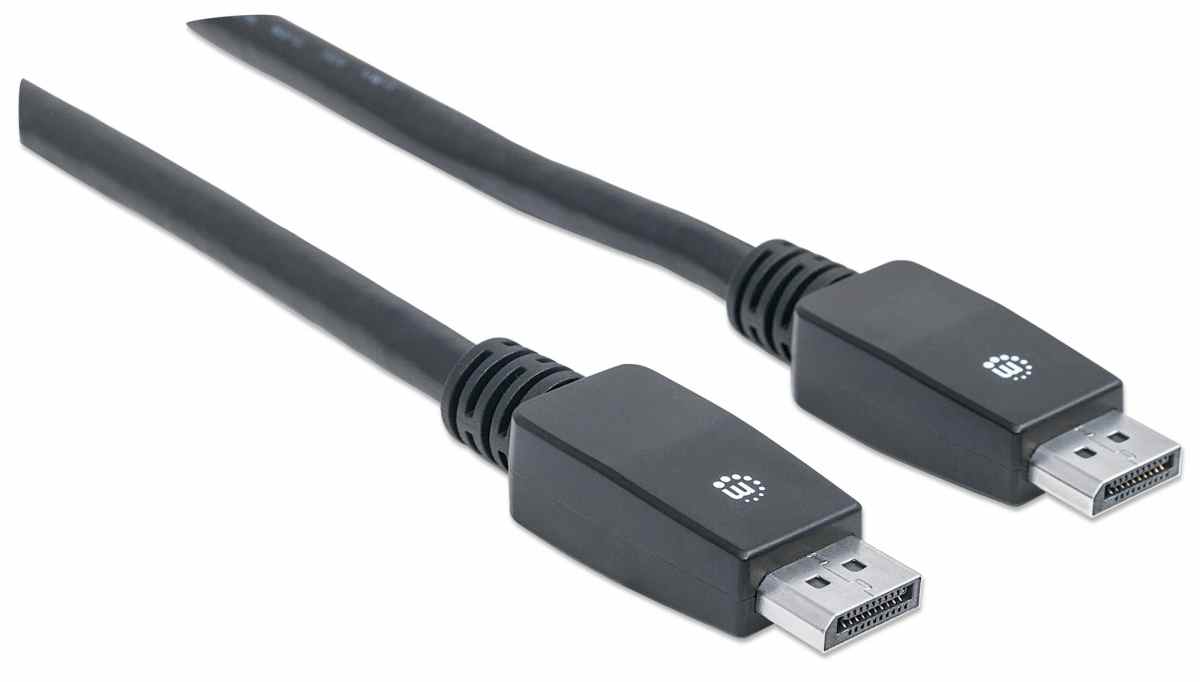

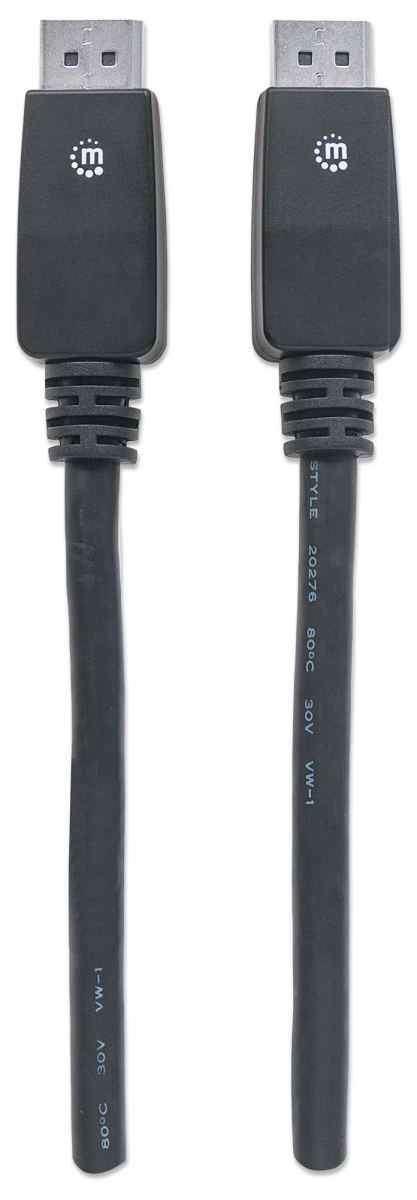

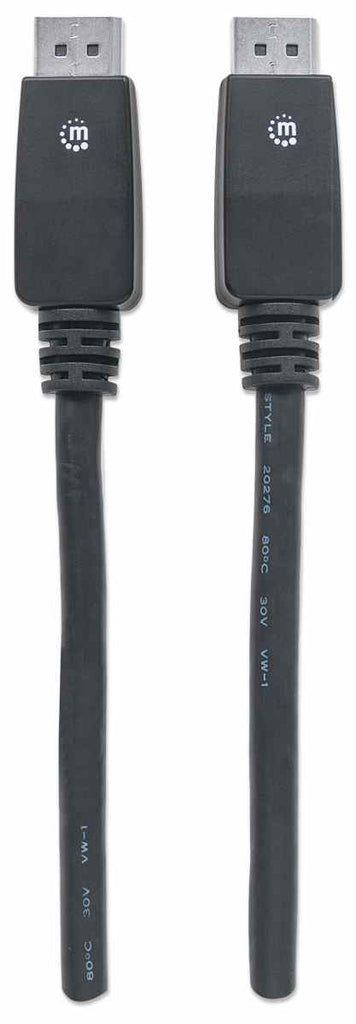

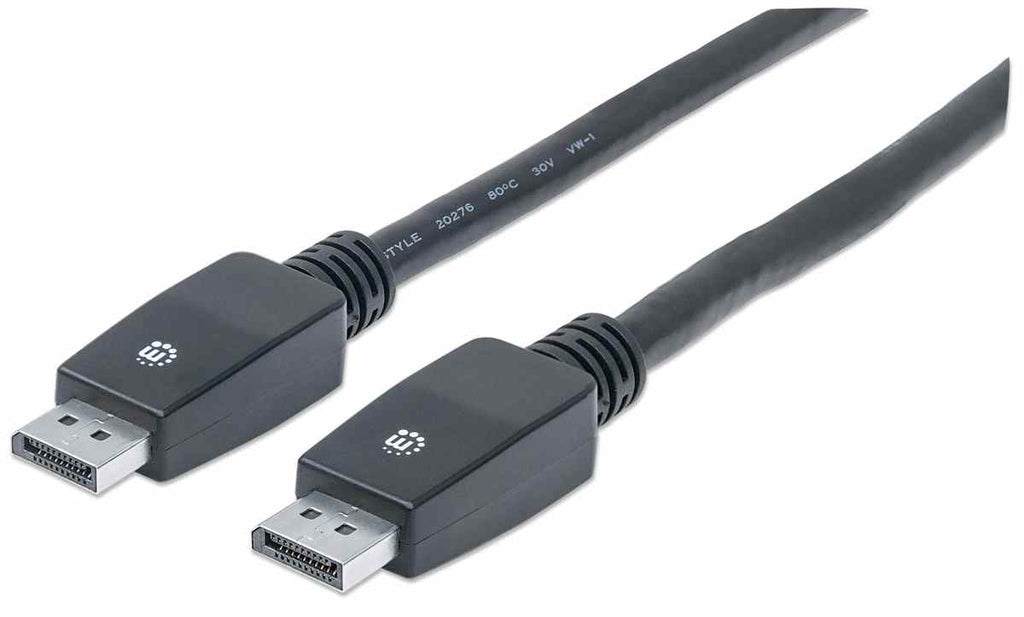

Manhattan 4K@60Hz DisplayPort Monitor Cable

Rs. 3,000.00 Rs. 1,500.00
This product is Out of stock

Highlights:

  • DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots
  • Delivers high-bandwidth, 10.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
  • 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color

High-definition performance for personal computing

Manhattan DisplayPort Cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 10.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

  • DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots
  • Delivers high-bandwidth, 10.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
  • 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
  • Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
  • Fully shielded to reduce EMI and other interference sources
  • Supports the HDCP and DPCP content protection standards
  • Lifetime Warranty
Specifications:
            Standards and Certifications
  • UL 20276
  • DisplayPort 1.1
  • ISO 9002

    General
  • Bandwidth: 10.8 Gbps at 600 MHz
  • Meets or exceeds existing DisplayPort standards
  • Length: 5m / 7.5m / 10m

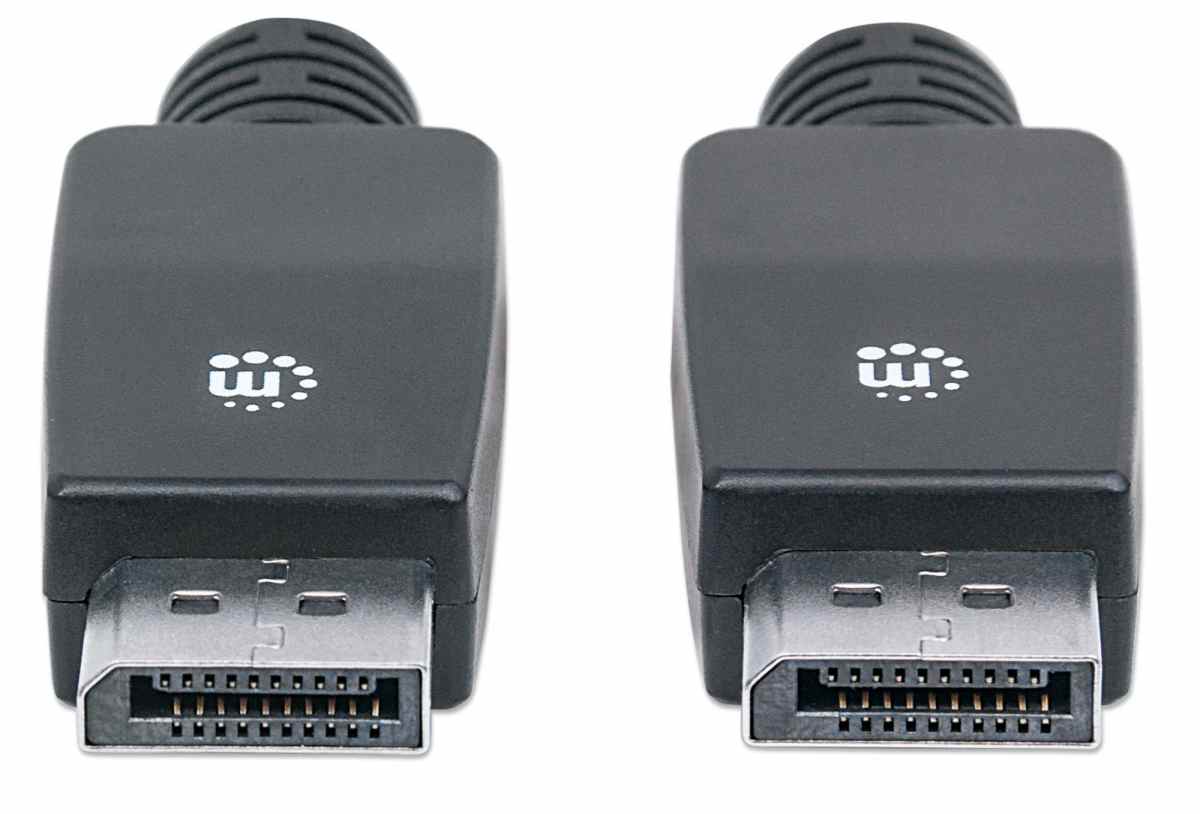

    Connectors
  • DisplayPort 20-pin male with latches (2)
  • Gold plated
  • Gold-plated contacts
  • ABS boots, built-in PVC strain relief

    Cable
  • 26 AWG
  • Shielding: aluminum and Mylar braid
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Contact resistance: 10 Ohms
  • Current rating: 0.5 A DC
  • Conductive resistance: 5 Ohms
  • Thermal plastic casing

    Operating Environment
  • Operation Temperature: 0 - 50°C (32 - 122°F)
  • Storage Temperature: -25 - 85°C (-13 - 185°F)
  • Humidity (noncondensing): 0 - 96%

    Package Contents
  • 4K@60Hz DisplayPort Monitor Cable
