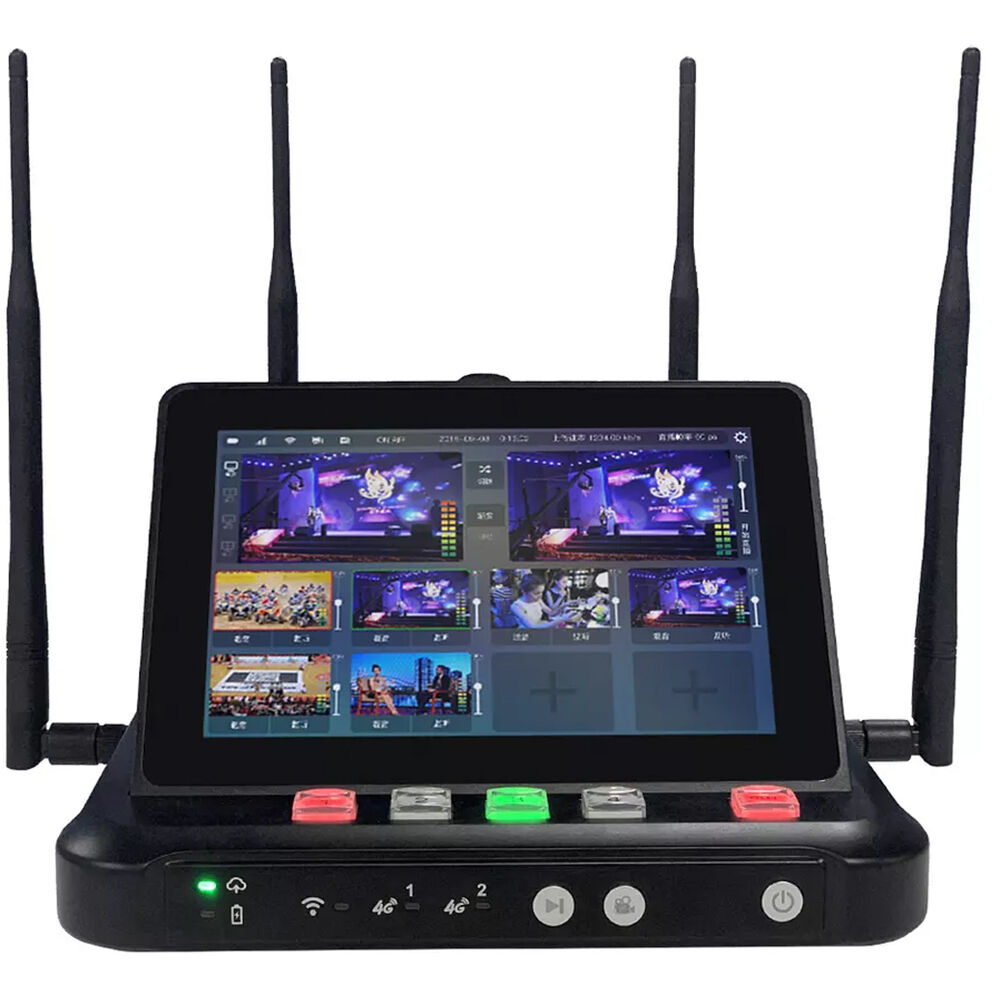

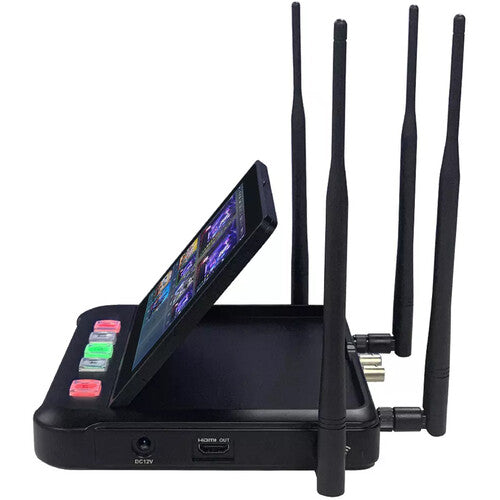

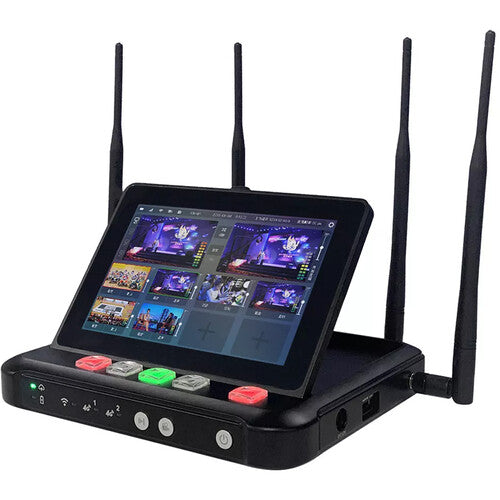

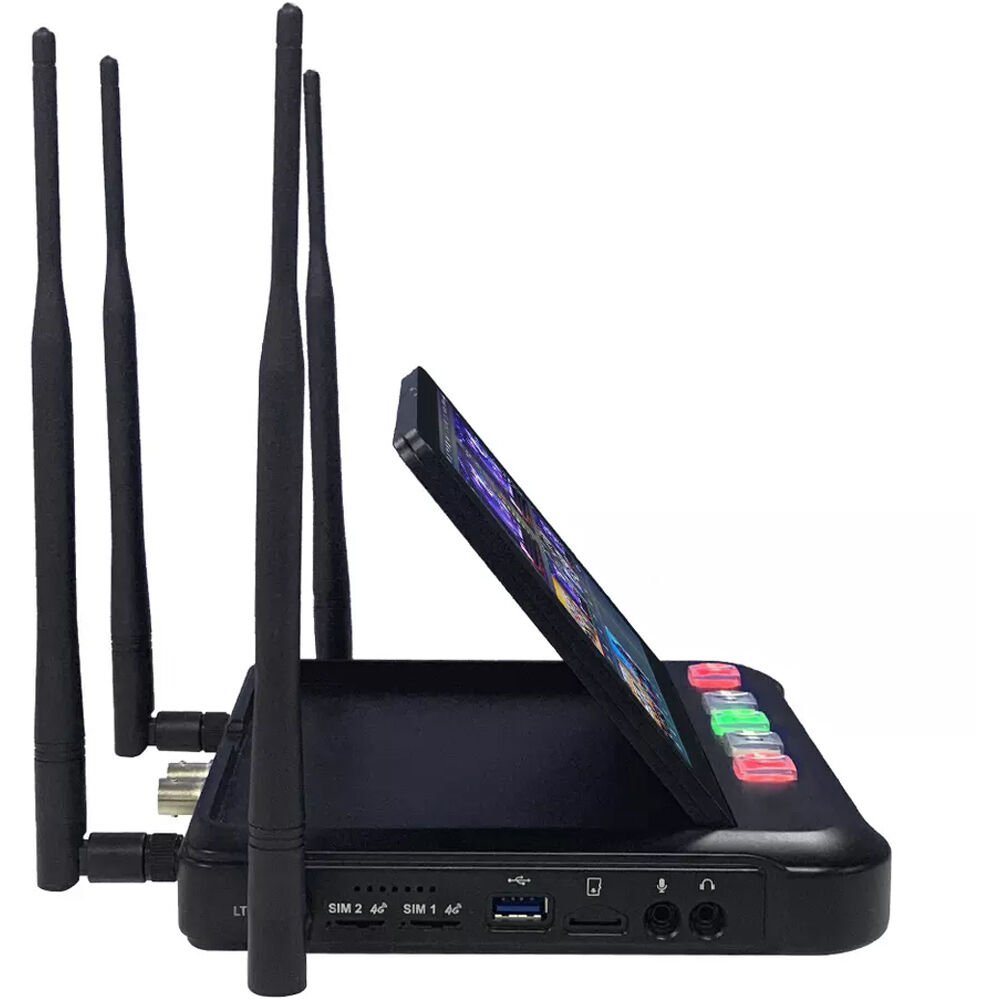

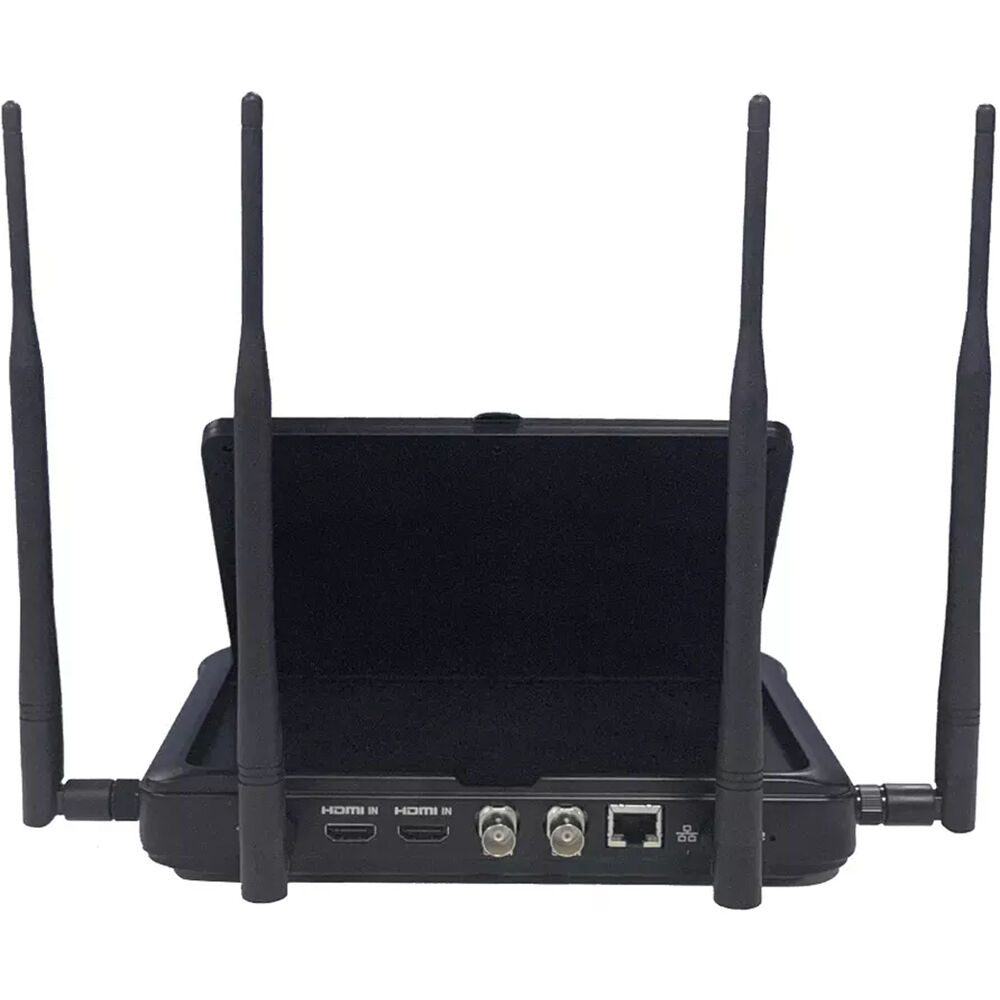

MiNE Media R8 4G Bonding Video Switcher
- Portable Wireless 4G Video Switcher
- 7" Touchscreen
- 2 x HDMI, 2 x SDI, and 4 x RTMP Inputs
- H.264/H.265 Support up to 1080p60
- Bonds up to Five Network Links
- 3 to 4 Hours of Continuous Streaming
- TF Card Slot for Recording MP4 Format
Switch multiple video sources and live stream your next event to Facebook, YouTube, Twitter, and more with the R8 4G Bonding Video Switcher from MiNE Media. This portable wireless 4G video switcher features a 7" touchscreen, and it can simultaneously bond up to five network links with support for two 4G cellular signals or one USB dongle, Wi-Fi, and Ethernet, for live streaming from anywhere on location.
The R-8 has an internal rechargeable battery that keeps your livestream continuously running for up to three to four hours and it supports H.264 and H.265 compression with resolutions up to 1080p60. An integrated TF card slot enables MP4 recording, and an HDMI output facilitates external monitoring.
- 7" touchscreen interface
- Up to 1080p60 switching of 2x SDI inputs, 2x HDMI inputs, and 4x RTMP network inputs
- HDMI output for external monitoring
- TF card slot for recording of MP4 format
- 3.5mm stereo audio input and output with built-in speaker
- 5 total network uplinks: 2x 4G LTE SIM slots, Wi-Fi, RJ-45 Ethernet, USB-A for additional dongle
- Browser and mobile app control
- Add logos, titles, and scoreboards
Technical Specifications:
|
Switching Type |
Software, Touchscreen |
|
Processing Resolution |
1080p at 60 |
|
Audio Processing |
192 kHz |
|
Video Inputs |
2 x HDMI Female 2 x BNC (3G-SDI) Female |
|
Input Video Format |
HDMI / SDI 1080p at 25/30/50/60 fps 1080i at 50/60 fps 720p at 25/30/50/60/120 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
|
Audio Inputs |
1 x 1/8" / 3.5 mm TRS |
|
Input Audio Format |
Analog |
|
Embedded Audio Input |
HDMI SDI RJ45 |
|
Video Outputs |
1 x HDMI Female (Monitor) |
|
Output Video Format |
HDMI 1080p up to 60 fps |
|
Audio Outputs |
1 x 1/8" / 3.5 mm TRS Analog Female |
|
Output Audio Format |
Analog: 192 kHz |
|
Multiview Output |
1-Way Multiview viaHDMI |
|
Other I/O |
1 x RJ45 LAN Input/Output (Shared Video Input) 1 x USB-A 3.0 / 3.1/3.2 Gen 1 |
|
Display Size |
7" |
|
Screen Resolution |
1920 x 1080 |
|
OS Compatibility |
Android 5.0 or Later iOS 9.0 or Later *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
|
Wi-Fi |
Yes |
|
Bluetooth |
None |
|
Built-In Battery |
8000 mAh |
|
Power I/O |
1 x Barrel (12 VDC at 3 A) Input |
|
Power Consumption |
18 W |
|
Operating Temperature |
32 to 113°F / 0 to 45°C |
|
Storage Temperature |
41 to 104°F / 5 to 40°C |
|
Operating Humidity |
15 to 85% (Non-Condensing) |
In the Box:
- MiNE Media R8 4G Bonding Video Switcher
- 2 x Wi-Fi Antenna
- 2 x 4G Antenna
- Power Adapter
- Protective Carry Case
- Limited 1-Year Manufacturer Warranty
