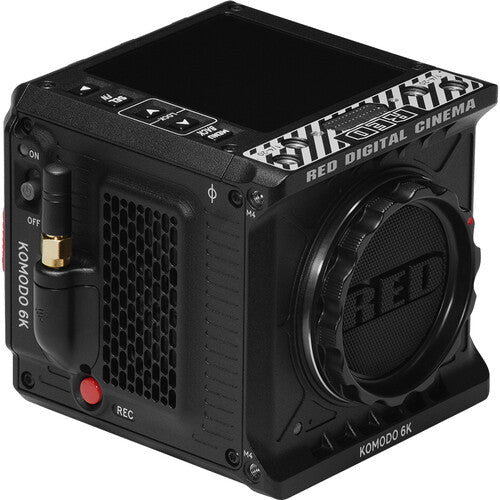

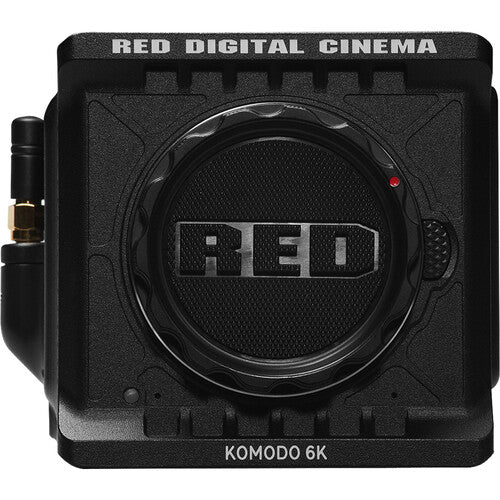

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultracompact, all-in-one design that weighs just 2.1 lb and measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.
Camera Technical Specifications:

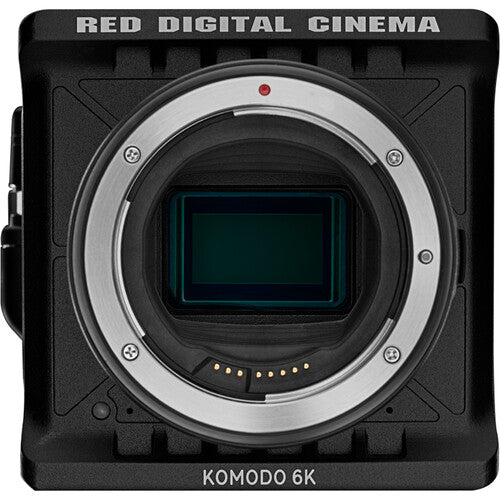

Lens Mount
Canon RF
Canon EF with Included Adapter
Lens Communication
Yes, with Autofocus Support
Sensor Resolution
Effective: 19.9 Megapixel (6144 x 3240)
Image Sensor
27.03 x 14.26 mm (Super35) CMOS
Image Stabilization
No
Built-In ND Filter
Capture Type
Stills & Video
Shutter Type
Electronic Global Shutter
Shutter Speed
1/8000 to 1 Second
ISO Sensitivity Range
250 to 12,800
Shutter Angle
0 to 360°
Advertised Dynamic Range
16 Stops
White Balance
1700 to 10,000K
Internal Recording Modes
REDCODE RAW
6144 x 3240 up to 40 fps [280 Mb/s]
5120 x 2700 up to 48.00 fps [280 Mb/s]
4096 x 2160 up to 59.94 fps [280 Mb/s]
2048 x 1080 up to 120 fps [280 Mb/s]
ProRes 422/ProRes 422 HQ
4096 x 2160 up to 59.94 fps
ProRes 422
2048 x 1080 up to 120 fps
External Recording Modes
4:2:2 10-Bit via SDI/BNC
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
Recording Sensor Crop
Crops to Output Resolution in All Recording Modes
Built-In Microphone Type
Stereo
Audio Recording
2-Channel 24-Bit 48 kHz
IP Streaming
Aspect Ratio
16:9
Media/Memory Card Slot
Single Slot: CFast (CFast 2.0)

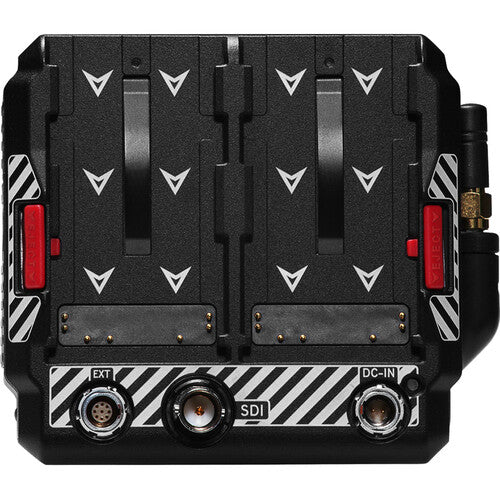

Video I/O
1x BNC (12G-SDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x LEMO 2-Pin (7 to 17VDC) Input
Other I/O
1x 9-Pin (Genlock, GPI, RS-232, Timecode)
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control
Mobile App Compatible
Yes: Android & iOS
App Name: RED Control
Functionality: Remote Control
Global Positioning (GPS, GLONASS, etc.)

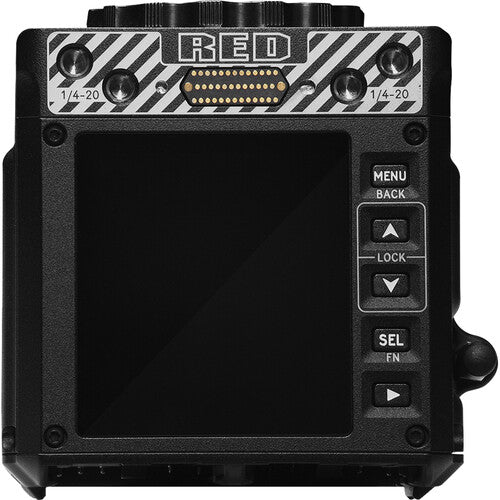

Display Type
Fixed Touchscreen LCD
Display Size
2.9"
Resolution
1440 x 1440
Type
Optional, Not Included
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Manual Focus
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 122°F / -20 to 50°C
Storage Humidity
0 to 85% (Non-Condensing)
Battery Type
Canon BP-9 Series
Power Consumption
45 W

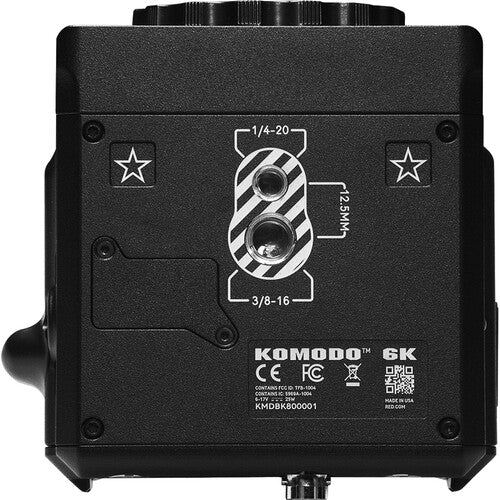

Tripod Mounting Thread
1/4"-20 Female (Bottom)
3/8"-16 Female (Bottom)
Netflix Approved
Yes
Material of Construction
Aluminum
Dimensions (W x H x D)
4 x 4 x 4" / 10.2 x 10.2 x 10.2 cm
Weight
2.1 lb / 1 kg

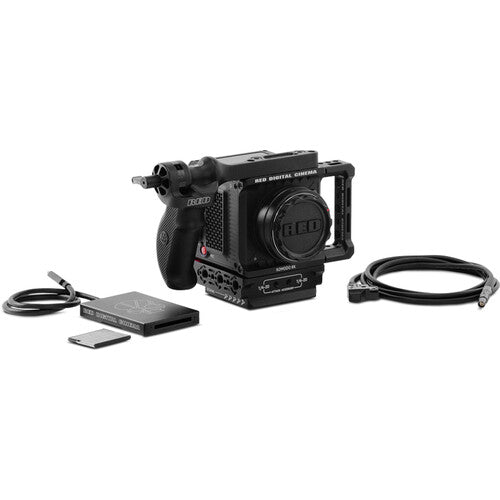

In The Box:
