RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera

RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera

Name: RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera
Brand: RED DIGITAL CINEMA
SKU: 710-0333
Price: 400000 INR
Availability: InStock

Rs. 630,000.00 Rs. 400,000.00

- +

RED DIGITAL CINEMA ⁄ RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera

Key Features:

19.9MP Super35 Global Shutter CMOS
Compact, 2.1 lb All-in-One Design
Canon RF Lens & ARRI CFast 2.0 Support
16+ Stops Dynamic Range
Up to 6K40, 5K48, 4K60 & 2K120 Recording
REDCODE RAW HQ/MQ/LQ & Apple ProRes
Integrated 2.9" 1440 x 1440 Touchscreen
Wireless Control & Preview via Wi-Fi
CFast 2.0 Card Slot; RED IPP2 Support
EF-to-RF Mechanical Adapter Included

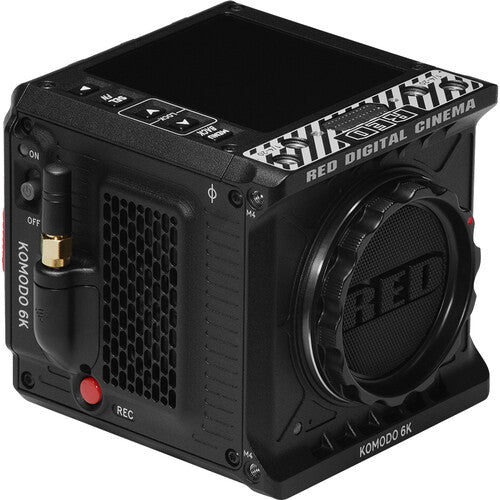

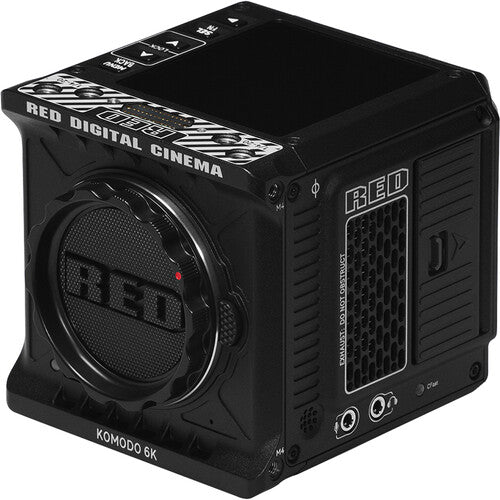

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultracompact, all-in-one design that weighs just 2.1 lb and measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.

All-in-One Design

Revolutionary for RED is the creation of an extremely compact all-in-one design with the KOMODO. This means you can simply pop in a CFast 2.0 card into its media slot and you are ready to roll with data rates up to 280 MB/s. A top 2.9" 1440 x 1440 touchscreen makes it easy to configure and monitor your footage or you can use the RED Control system for using an iOS or Android device for preview and settings. This is possible through integrated 2.4/5 GHz Wi-Fi. Wired control is also possible via the USB Type-C port and optional adapters. The RED KOMODO 6K offers an exceptionally compact form factor that sacrifices nothing in terms of image quality. This base model includes the KOMODO 6K, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.

Firmware Update v.1.5.5

Fixed playback stuttering at high frame rates, German SLA causing a camera shutdown, and RFB raw metering in 6K full frame
Improved LCD sync issues in playback with anamorphic formats
Improved general stability

The KOMODO 6K features a 6K Super35 19.9MP CMOS sensor with a dynamic range of 16+ stops and a resolution of 6144 x 3160
Take advantage of the 6K resolution to capture in 6K full frame or do a 4K or HD crop
Use the higher resolution to stabilize your shot in post-production

Global Shutter

The KOMODO 6K's global shutter produces crisp images while reducing motion artifacts.Records fast-moving action the way it should be without blurred or curved lines.Captures every moment, burst, and flash without losing any dynamic range or image quality.

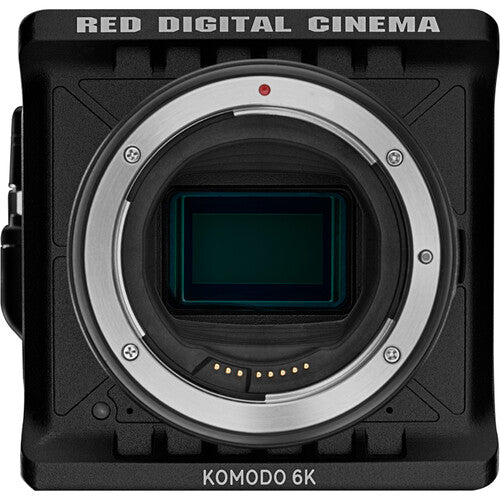

Canon RF Mount

The use of the Canon RF lens mount allows the KOMODO to be extremely compact while still enabling compatibility with a vast range of lenses through the use of optional adapters. The mount will natively support mechanical RF lenses and mechanical EF lenses via the included adapter. Using optional electronic EF-to-RF mount adapters, the KOMODO will even support electronic Canon EF-mount lenses and unlock additional functionality, such as autofocus.

Phase-Detect Autofocus

A first for RED is the ability to use Phase-Detect Autofocus (PDAF) with compatible lenses. This includes adapted Canon EF-mount lenses used with a separately available EF-to-RF adapter with electronic communication. Phase-detect systems are known for their speed by measuring and comparing distance and should provide a reliable, accurate system for video production. Additionally, the touchscreen can be used for quickly changing focus and selecting subjects.

REDCODE RAW

The robust REDCODE RAW file format offers versatility without burdensome storage requirements and editing on many NLE systems without transcoding to save time. The KOMODO promises to be among RED's finest with the ability to capture up to 6K at 40 fps using the powerful 16-bit REDCODE RAW format. RED has simplified compression options, giving users a choice between HQ, MQ, and LQ, each varying compression from low to high, respectively. Having these choices allows users to choose the best option for each shoot and whether to prioritize data rate or image quality. REDCODE RAW is supported for 5K up to 48 fps, 4K up to 60 fps, and 2K up to 120 fps and will deliver the greatest possible flexibility in post-production. Those looking to use a more conventional format can record natively in Apple ProRes 422 HQ and standard 422 with DCI 4K up to 60 fps or DCI 2K up to 120 fps.

CFast Recording

Capture at rates up to 280 MB/s on RED PRO or qualified third-party CFast 2.0 cards.

REDCODE Options

HQ is perfect for VFX, extremely detailed scenes, and capturing stills from motion
MQ is great for cinema and high-end TV projects
LQ is ideal for TV, online content, documentaries, interviews, and long takes

Apple ProRes Formats

For proxy files or quicker turnaround times than raw files, Apple ProRes can be recorded at 4K and 2K resolutions at rates up to 120 fps (2K).

Color Management

Supports 3D LUTs and RED color science.

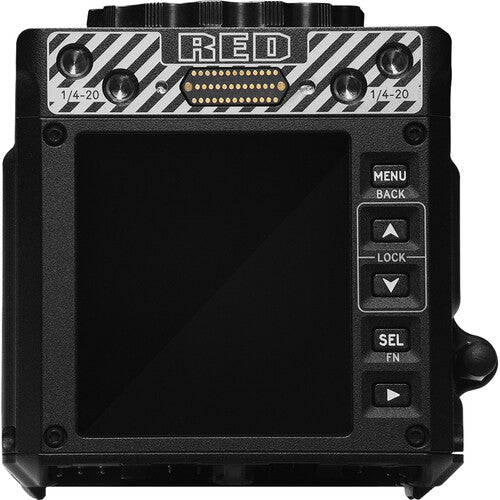

Integrated 2.9" touchscreen LCD screen for video preview and camera control.

Versatile Power Options

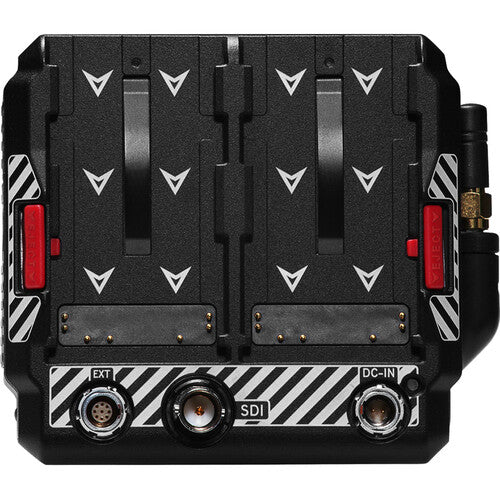

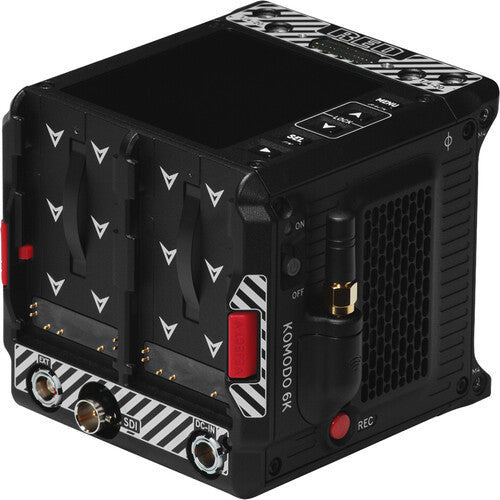

The KOMODO 6K's power options include using two lightweight Canon BP-9 batteries, a larger battery, or an AC power supply.

Technical Specifications:

Lens Mount	Canon RF Canon EF with Included Adapter
Lens Communication	Yes, with Autofocus Support
Sensor Resolution	Effective: 19.9 Megapixel (6144 x 3240)
Image Sensor	27.03 x 14.26 mm (Super35) CMOS
Image Stabilization	No
Built-In ND Filter	No
Capture Type	Stills & Video
Shutter Type	Electronic Global Shutter
Shutter Type	Electronic Global Shutter
Shutter Speed	1/8000 to 1 Second
ISO Sensitivity Range	250 to 12,800
Shutter Angle	0 to 360°
Advertised Dynamic Range	16 Stops
White Balance	1700 to 10,000K
Internal Recording Modes	REDCODE RAW 6144 x 3240 up to 40 fps [280 Mb/s] 5120 x 2700 up to 48.00 fps [280 Mb/s] 4096 x 2160 up to 59.94 fps [280 Mb/s] 2048 x 1080 up to 120 fps [280 Mb/s] ProRes 422/ProRes 422 HQ 4096 x 2160 up to 59.94 fps ProRes 422 2048 x 1080 up to 120 fps
External Recording Modes	4:2:2 10-Bit via SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
Recording Sensor Crop	Crops to Output Resolution in All Recording Modes
Built-In Microphone Type	Stereo
Audio Recording	2-Channel 24-Bit 48 kHz
IP Streaming	No
Aspect Ratio	16:9
Media/Memory Card Slot	Single Slot: CFast (CFast 2.0)
Video I/O	1 x BNC (12G-SDI) Output

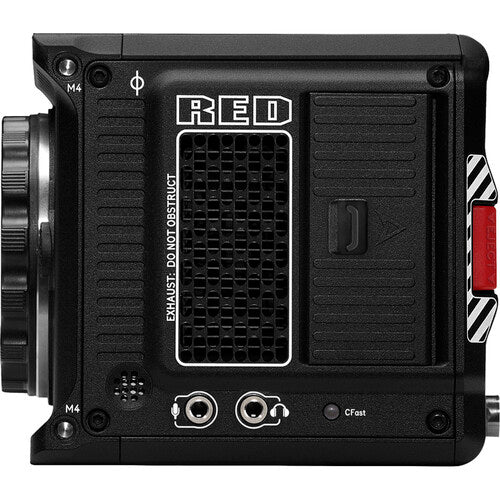

Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O	1 x LEMO 2-Pin (7 to 17VDC) Input
Other I/O	1 x 9-Pin (Genlock, GPI, RS-232, Timecode)
Wireless	2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control
Mobile App Compatible	Yes: Android & iOS App Name: RED Control Functionality: Remote Control
Global Positioning (GPS, GLONASS, etc.)	No
Display Type	Fixed Touchscreen LCD
Display Size	2.9"
Resolution	1440 x 1440
Type	Optional, Not Included
Focus Type	Auto and Manual Focus
Focus Mode	Automatic, Manual Focus
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 122°F / -20 to 50°C
Storage Humidity	0 to 85% (Non-Condensing)
Battery Type	Canon BP-9 Series
Power Consumption	45 W

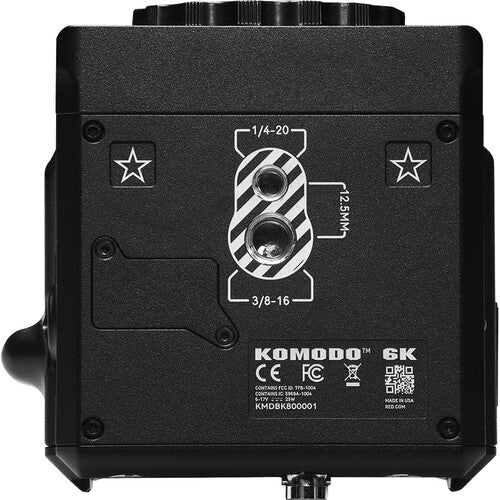

Tripod Mounting Thread	1/4"-20 Female (Bottom) 3/8"-16 Female (Bottom)
Netflix Approved	Yes
Material of Construction	Aluminum
Dimensions (W x H x D)	4 x 4 x 4" / 10.2 x 10.2 x 10.2 cm
Weight	2.1 lb / 1 kg
