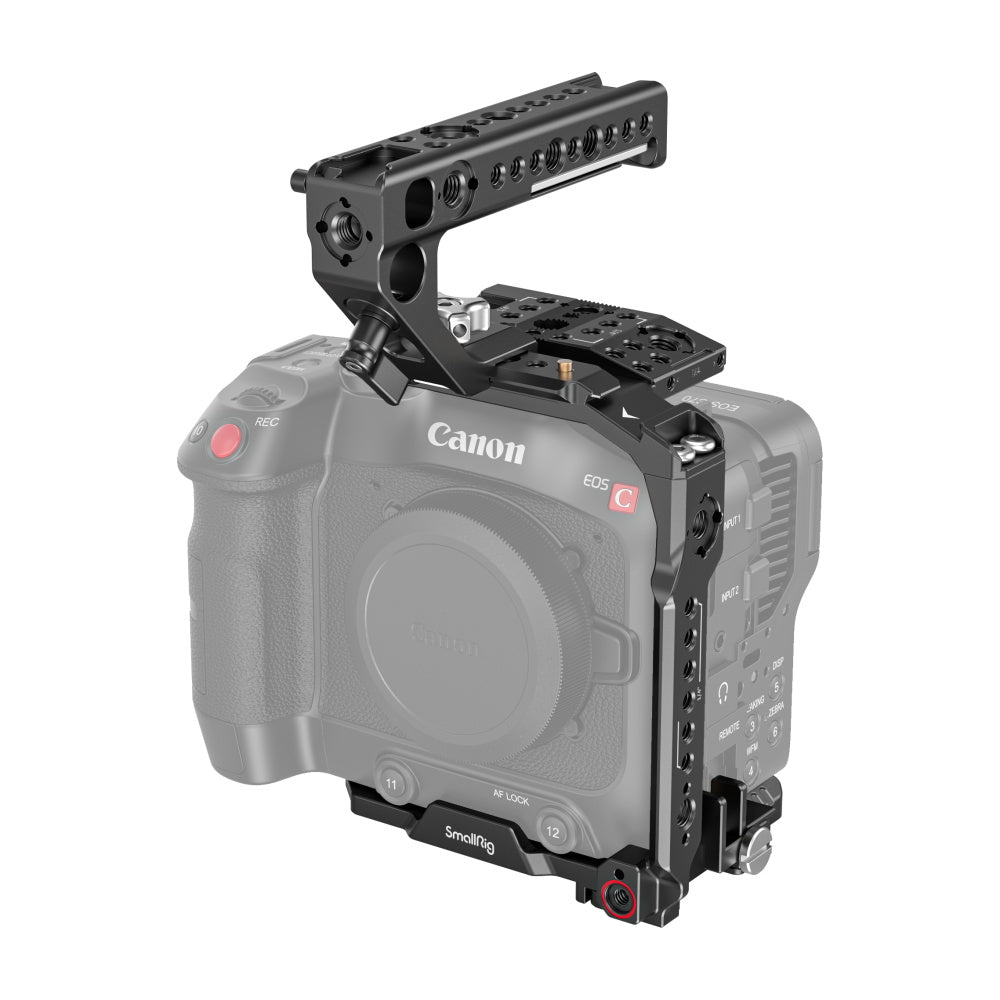

SmallRig Handheld Kit for Canon EOS C70 3899 is designed to protect the camera and provide accessory mounting points, hence a comfortable handheld shooting experience. It includes: a top plate, a side plate, a baseplate, a detachable extended baseplate, a NATO top handle, a cable clamp, etc., among which, the comfortable NATO top handle facilitates camera movement and stabilize shooting; the top plate , baseplate, and side plate can be assembled into a half cage that supports the original handle unit and microphone holder unit. The half cage’s base consists of a baseplate and a detachable extended baseplate. It can be directly mounted onto RS 2 / RSC 2 / RS 3 / RS 3 Prostabilizers and Acra-Swiss tripod by merely removing the extended baseplate, allowing quick switch among handheld, stabilizer, and tripod shooting. The kit also comes with a HDMI cable clamp to prevent accidental signal disconnection and ensure stable data transmission, and gives full access to original camera grip and buttons. Its 1/4"-20 threaded holes, 3/8"-16 threaded holes, cold shoe mounts, ARRI 3/8"-16 locating holes, NATO rails, etc. support Side Handle 3260/2093/2427, Top Handle 2165/1638, Magic Arm 2115/2071, Monitor Mount 3601/2903/2905, Baseplate with Dual 15mm Rod Clamp 1674, Single Rod Clamp 3276, etc. In addition, an allen wrench is included for easy disassembly and assembly.

Designer: Nico Robin

Note:

1. Installationorder: baseplate, side plate, camera, top plate.

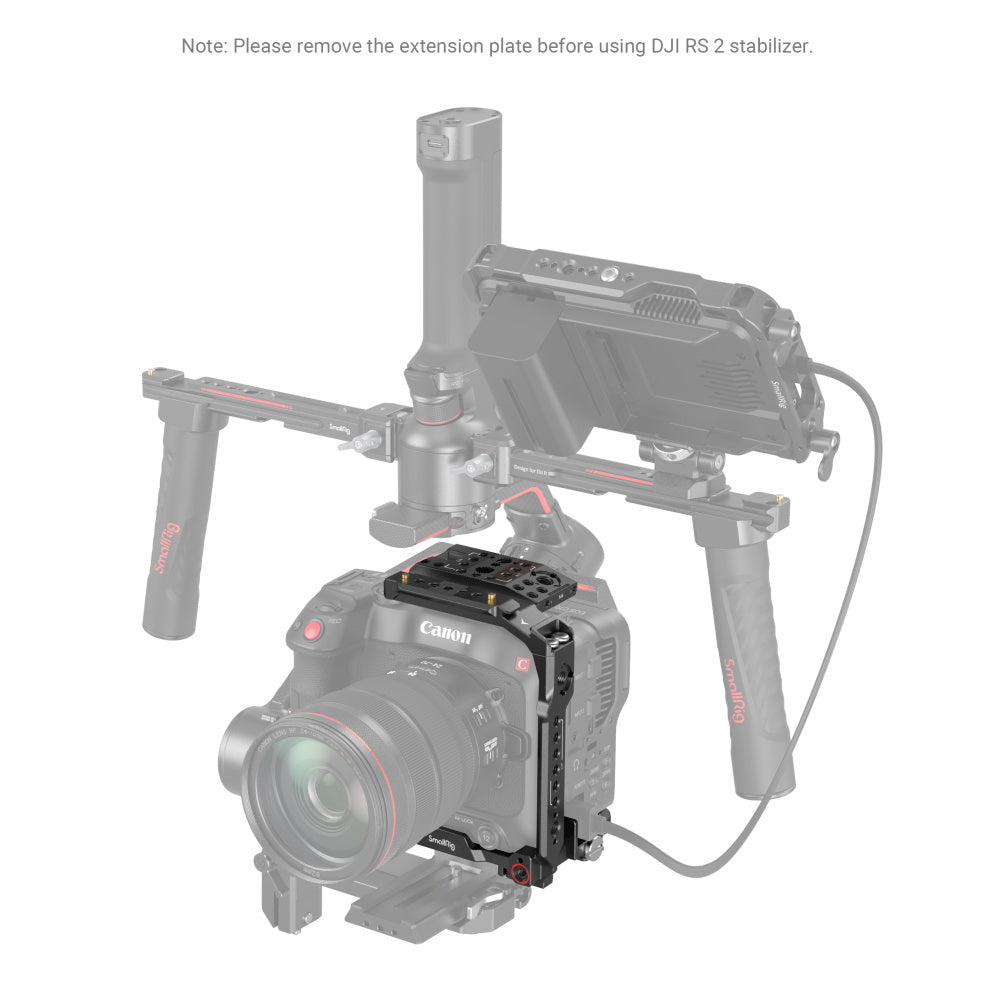

2. Please remove the detachable extended baseplate before attaching RS 2 / RSC 2 / RS 3 / RS 3 Pro.

Compatibility

Canon EOS C70

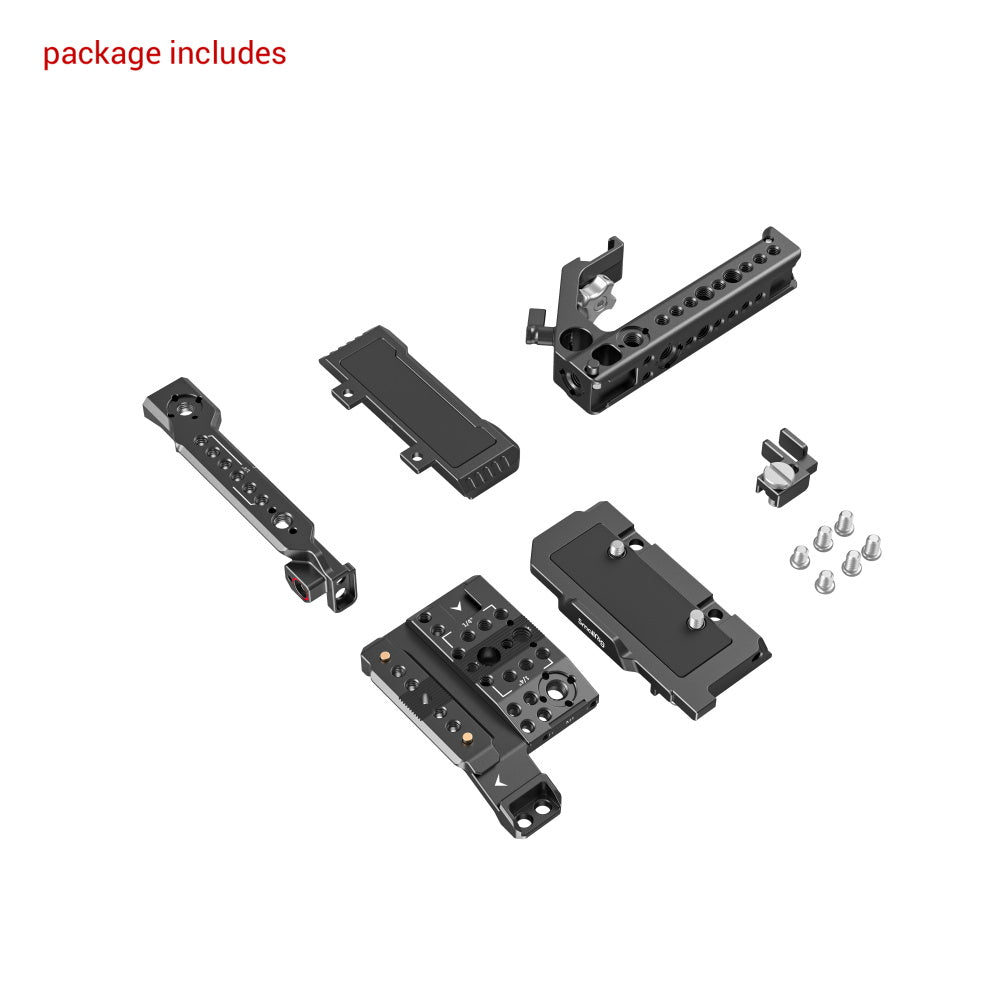

In the Box

1 x Top Plate

1 x Side Plate

1 x Baseplate

1 x Detachable Extended Baseplate

6 x 1/4''-20 Screw

1 x Handle 2439

1 x Cable Clamp 1639

1 x User Manual

Product Parameters

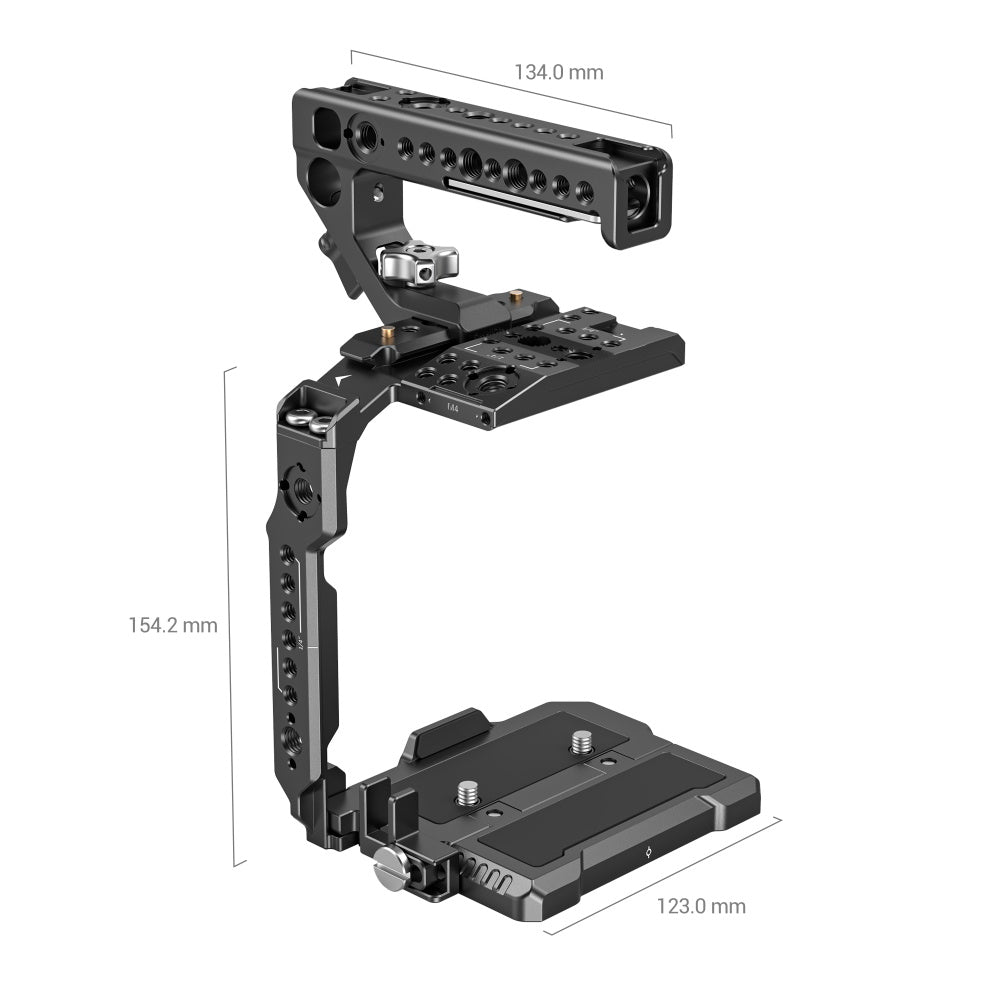

Product Dimensions: 90.5 x 123 x 12.7mm

Package Dimensions: 181 x 131 x 76 mm

Net Weight: 350g±5g

Package Weight: 644g±5g

Material: Aluminum Alloy, Stainless Steel
