YoloLiv YoloBox Pro Portable Multi-Camera Encoder

Rs. 119,000.00
This product is Out of stock
Key Features:

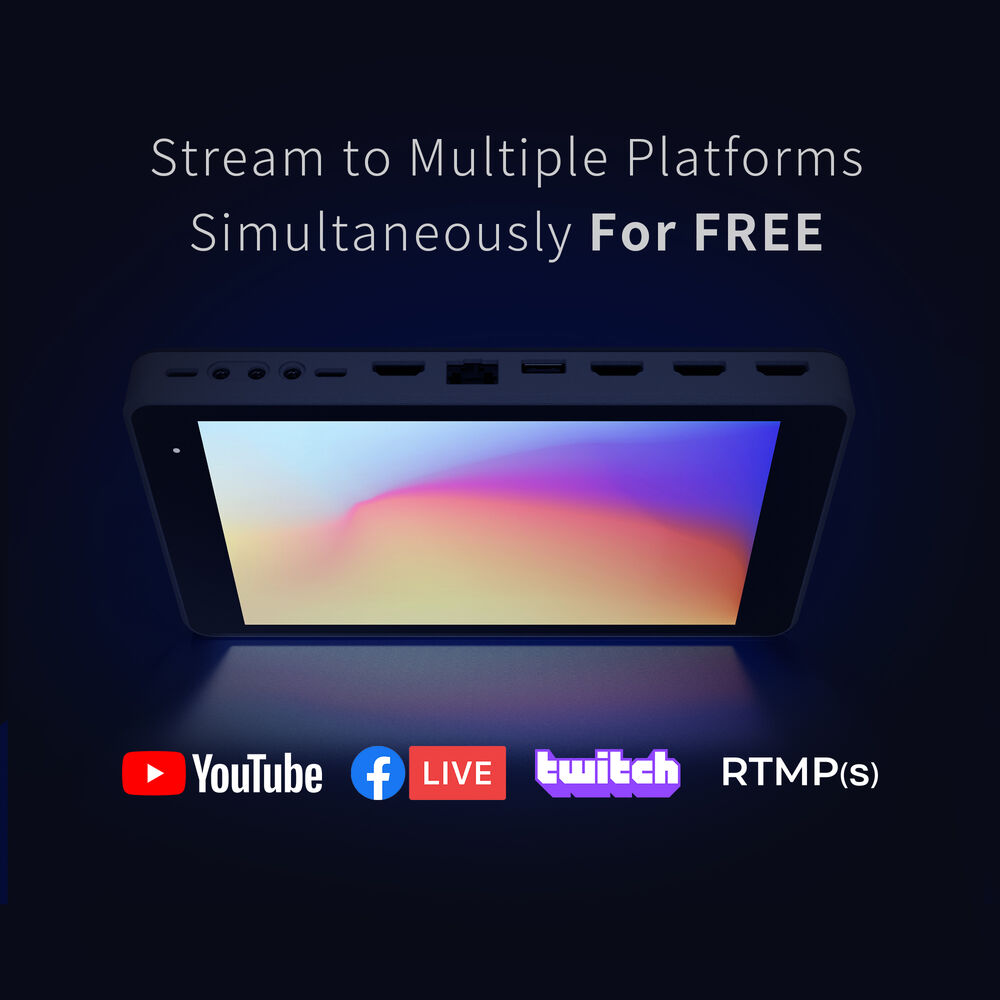

  • Simultaneous Cross-Platform Streaming
  • Encoder, Monitor, Switcher, and Recorder
  • 8" Touchscreen Control LCD Display

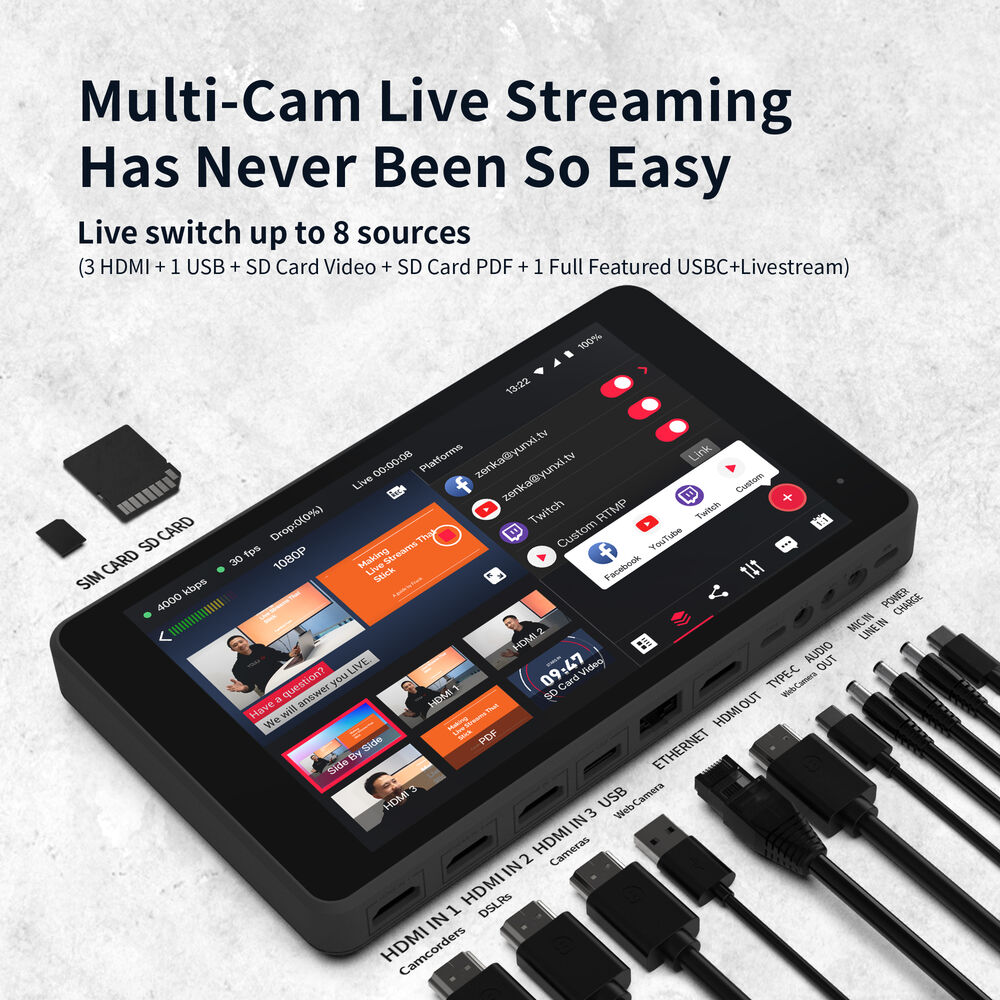

  • Live Switch from up to 8 Sources

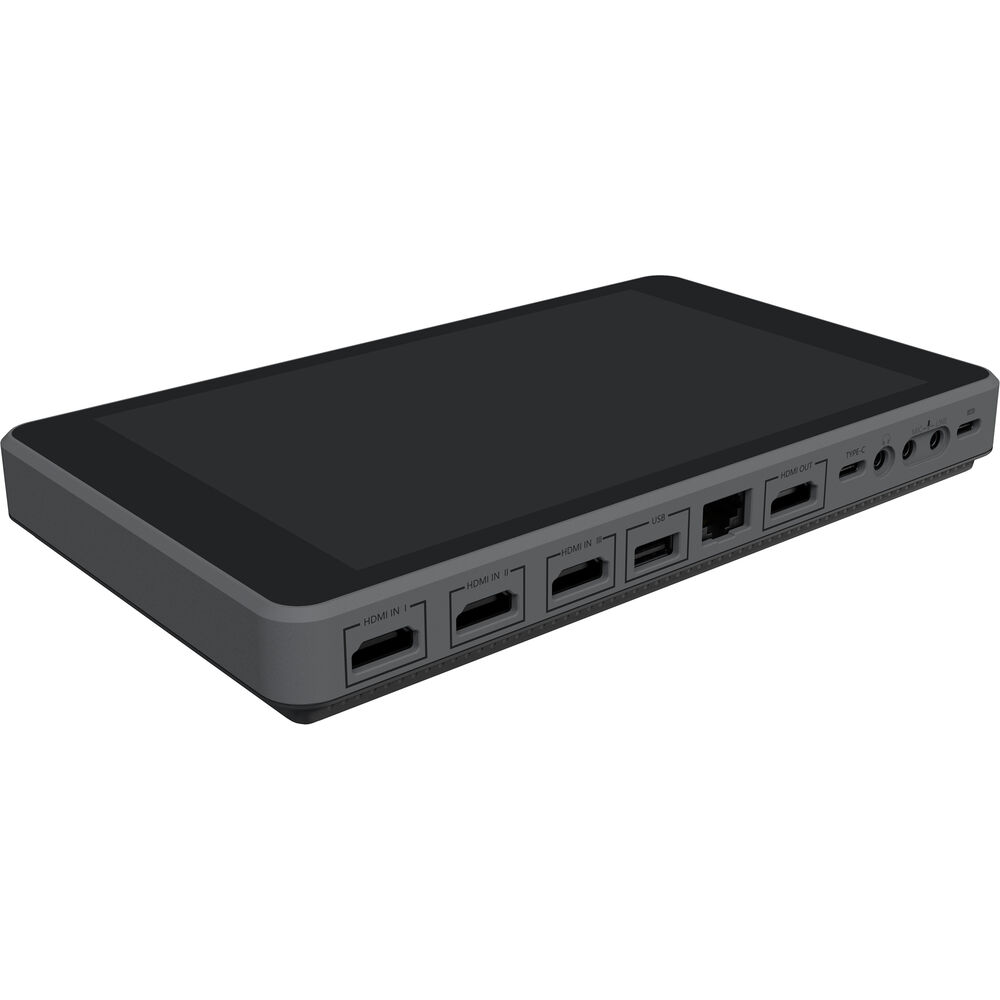

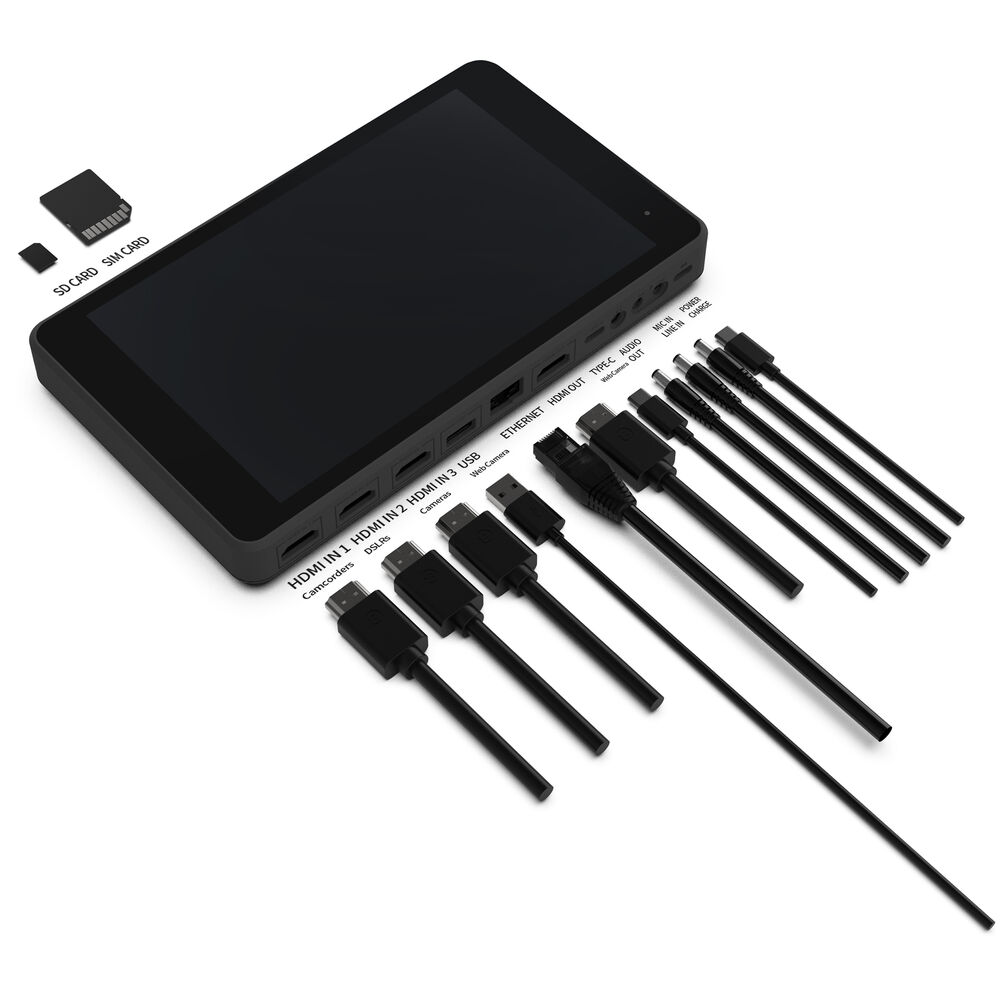

  • 3 x HDMI & 1 x USB Inputs
  • Supports H.264/MP4 up to 1080p Video
  • Stream via Ethernet, Wi-Fi, 4G LTE
  • 1 x SD Card Slot for Record, up to 128GB
  • HDCP Compliant, Line & Mic Inputs
  • 400 cd/m² Brightness, Built-In Battery

Create a live stream production from anywhere with the ultra-portable YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder from YoloLiv. This EM version of the YoloBox Pro can simultaneously broadcast up to three video streams via Wi-Fi, RJ45 Ethernet, or via 4G LTE with a separately available SIM card and subscription. Please note, the EM version will work via Ethernet and Wi-Fi anywhere in the world, but it only supports LTE 4G outside the United States, Canada, and Mexico. The YoloBox Pro features multiple updates from the original YoloBox, including HDCP compliance, both mic and line analog audio inputs, a USB input, three HDMI inputs, a Qualcomm 660 encoder/processor, a high-capacity 10,000mAh internal battery, and a larger 8" LCD touchscreen display with 400 cd/m² brightness.

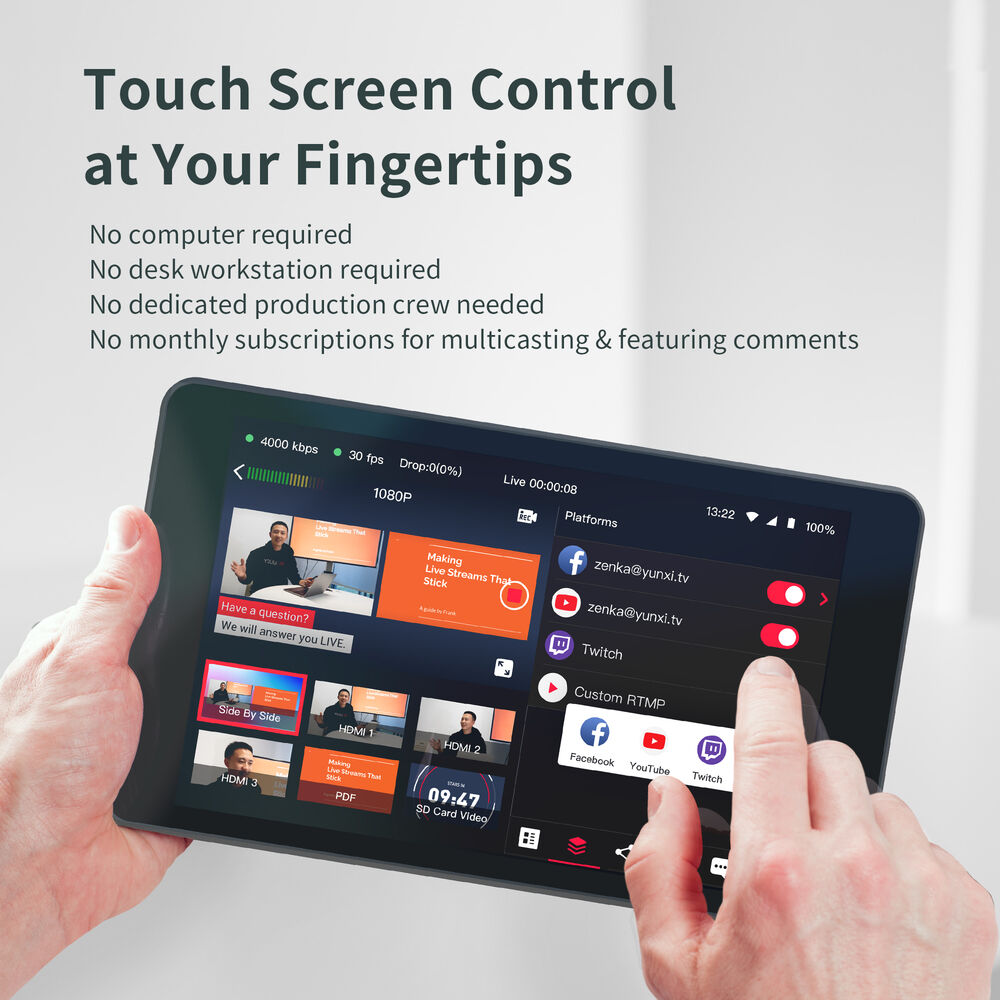

The YoloBox Pro allows you to connect and live switch up to 8 video sources, and then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8" touchscreen display shows the streaming image and the input streams as well as the control interface, which allows you to switch between the info sources with a touch. It also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic input, and a discrete headphone audio out.

The YoloBox Pro supports input resolutions ranging up to 1080p using the H.264 codec, and you can stream resolutions from 540p to 1080p to YouTube, Twitch, and other streaming services via custom RTMP presets. Stream to the Internet using a 4G cellular network using a separately available nano-size SIM card and a separately available data plan. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.

Technical Specifications:

IP Video

H.264:

960 x 540 to 1920 x 1080 Encoding

IP Audio

AAC-LC: Encoding

Transport Protocols

RTMP

Simultaneous Streams

3 Streams

Compatible Services

Facebook Live, Twitch, YouTube Live

Wi-Fi

2.4/5 GHz

SIM Card Slots

1 x Nano SIM

4G LTE

LTE

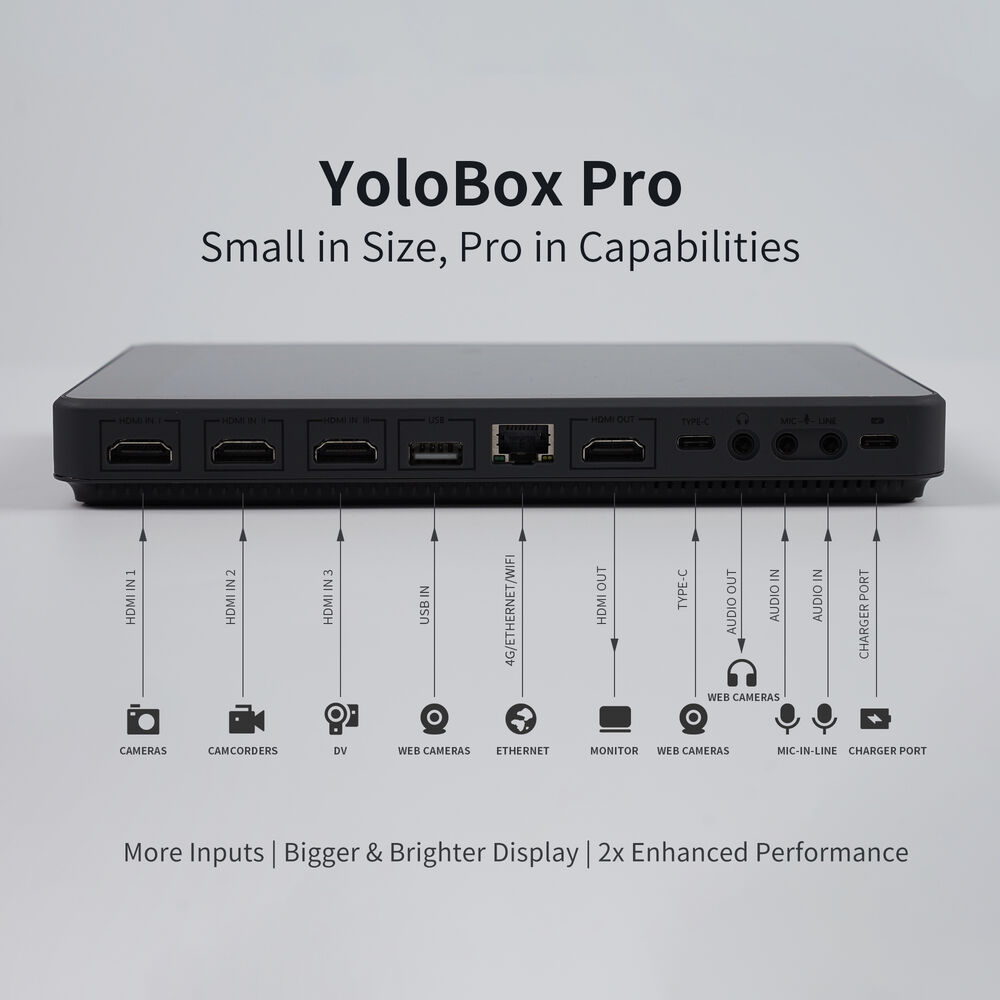

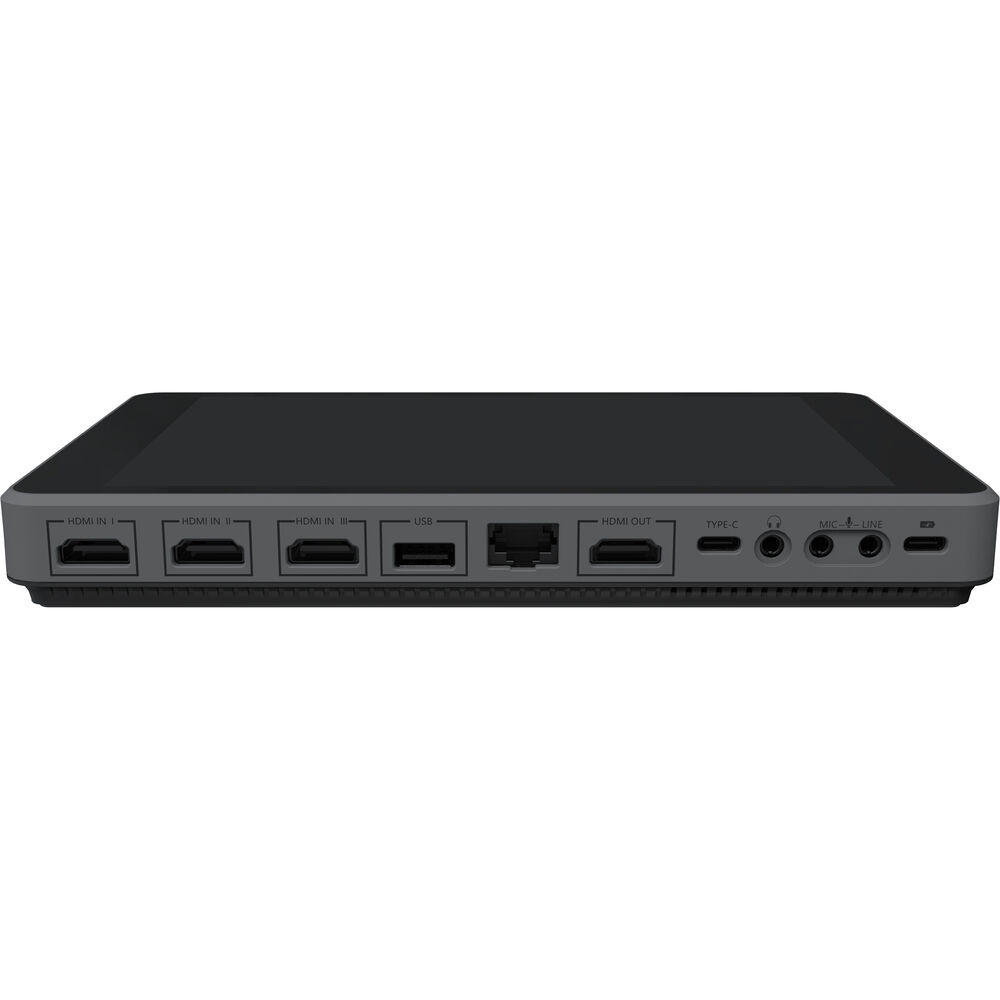

Video Connectors

3 x HDMI Input

1 x HDMI Output

Audio Connectors

1 x 1/8" / 3.5 mm TRS Stereo Analog Input

1 x 1/8" / 3.5 mm TRS Mono Analog Input

1 x 1/8" / 3.5 mm TRS Stereo Analog Output

Other I/O

1 x RJ45 10/100 Ethernet Input/Output

1 x USB Type-A USB 3.1 Gen 1 Input

1 x USB Type-C USB 3.1 Gen 1 Input/Output

Embedded Audio

HDMI/USB Type-C/Wireless: 2-Channel

Recording Media

1 x SD (Unspecified Type)

Recording Modes

1920 x 1080p up to 60 fps

Built-In Battery

10,000 mAh

Power Connector

1 x USB Type-C (5 to 12 VDC at 1.5 A) Input

Operating Temperature

14 to 104°F / -10 to 40°C

Storage Temperature

41 to 104°F / 5 to 40°C

Display

LCD

Dimensions

8.6 x 5.1 x 1.1" / 218 x 129 x 27 mm

Weight

26.5 oz / 750 g



In the Box:

  • YoloLiv YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder (EM Version)
  • 2 x USB Type-C Cable
  • Shoe Mount
  • SIM Card Eject Pin
  • Limited 1-Year Warranty
